2015 TOYOTA CAMRY HYBRID Owners Manual

4498-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)■
When a tire is replaced with a spare tire (vehicles with a tire pressure
warning system)
The compact spare tire is not equipped with a tire pressure warning valve
and transmitter. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire.
Replace the spare tire with the repaired tire and adjust the tire inflation
pressure. The tire pressure warning light will go off after a few minutes.
■Conditions that the tire pressure warning system may not function
properly (vehicles with a tire pressure warning system)

P. 4 1 1
■If the tire pressure warning light frequently comes on after blinking
for 1 minute (vehicles with a tire pressure warning system)
If the tire pressure warning light frequently comes on after blinking for 1
minute when the power switch is turned to ON mode, have it checked by
your Toyota dealer.
■Warning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
■ Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient or the voltage tempo-
rarily drops, the electric power steering system warning light may come on
and the warning buzzer may sound.

4508-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
WARNING
■If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact your Toyota
dealer. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
■ When the electric power steerin g system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold
firmly and operate using more force than usual.
■
If the tire pressure warning light comes on (vehicles with a tire
pressure warning system)
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is probable that you have a flat tire. Check the tires.
If a tire is flat, change it with the spare tire and have the flat tire
repaired by the nearest Toyota dealer.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur (vehicles with a tire
pressure warning system)
The tire pressure warning system may not activate immediately.

4518-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
WARNING
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a dif-
ferent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine
the proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-tire pressure warning system) that
illuminates a low tire pressure telltale (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressure telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire maintenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached
the level to trigger illumination of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warn-
ing system) malfunction indicator to indicate when the system is not
operating properly. The TPMS (tire pressure warning system) malfunc-
tion indicator is combined with the low tire pressure telltale (tire pressure
warning light). When the system detects a malfunction, the telltale will
flash for approximately one minute and then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups
as long as the malfunction exists. When the malfunction indicator is illu-
minated, the system may not be able to detect or signal low tire pres-
sure as intended.
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installation of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.

4528-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
NOTICE
■To ensure the tire pressure warning system operates properly
(vehicles with a tire pressure warning system)
Do not install tires with different specifications or makers, as the tire
pressure warning system may not operate properly.

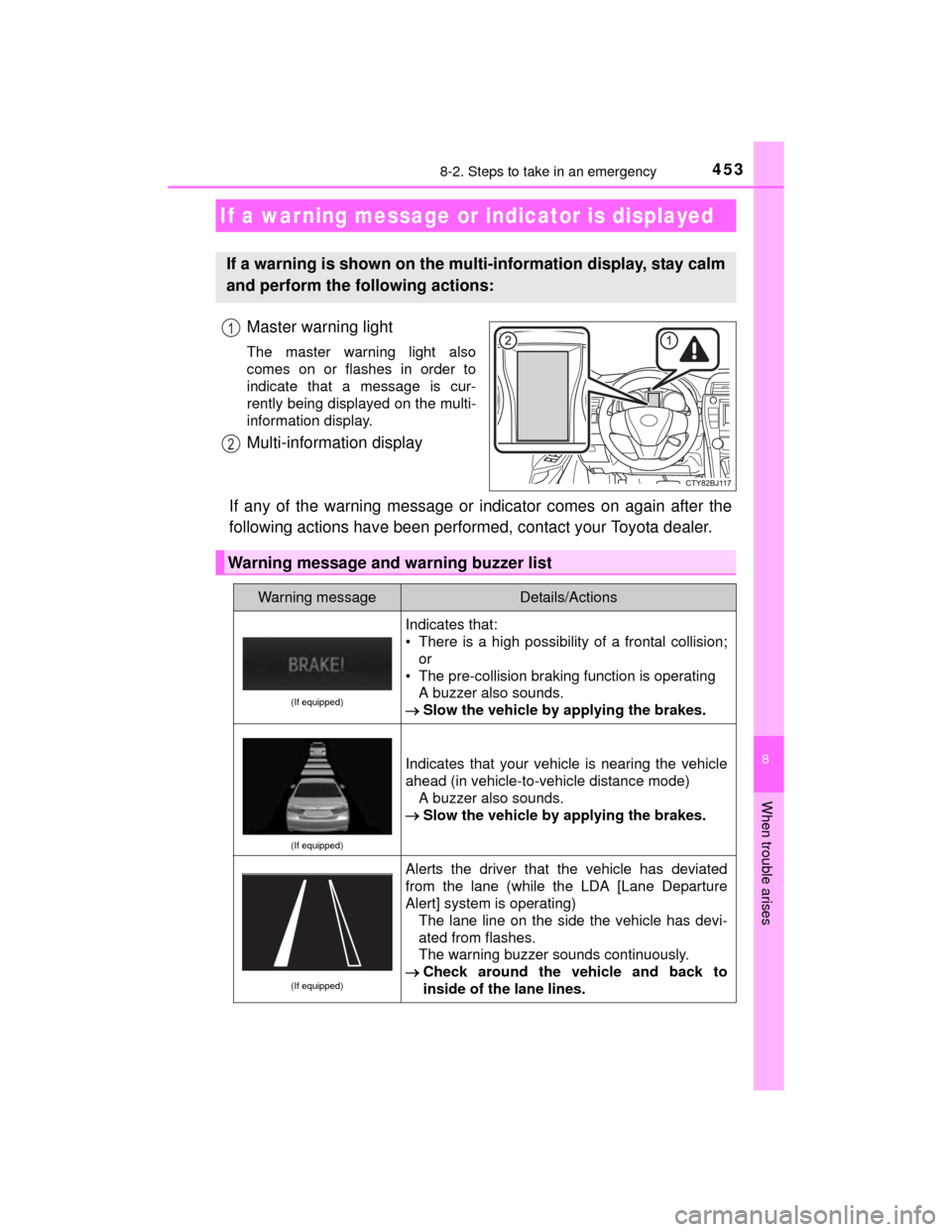

4538-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
Master warning light
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the multi-
information display.
Multi-information display
If any of the warning message or indicator comes on again after the
following actions have been performed, contact your Toyota dealer.
If a warning message or indicator is displayed
If a warning is shown on the multi-information display, stay calm
and perform the following actions:
1
2
Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision; or
• The pre-collision braking function is operating A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(If equipped)
Indicates that your vehicle is nearing the vehicle
ahead (in vehicle-to-vehicle distance mode)
A buzzer also sounds.
 Slow the vehicle by applying the brakes.
(If equipped)
Alerts the driver that the vehicle has deviated
from the lane (while the LDA [Lane Departure
Alert] system is operating)
The lane line on the side the vehicle has devi-
ated from flashes.
The warning buzzer sounds continuously.
 Check around the vehicle and back to
inside of the lane lines.

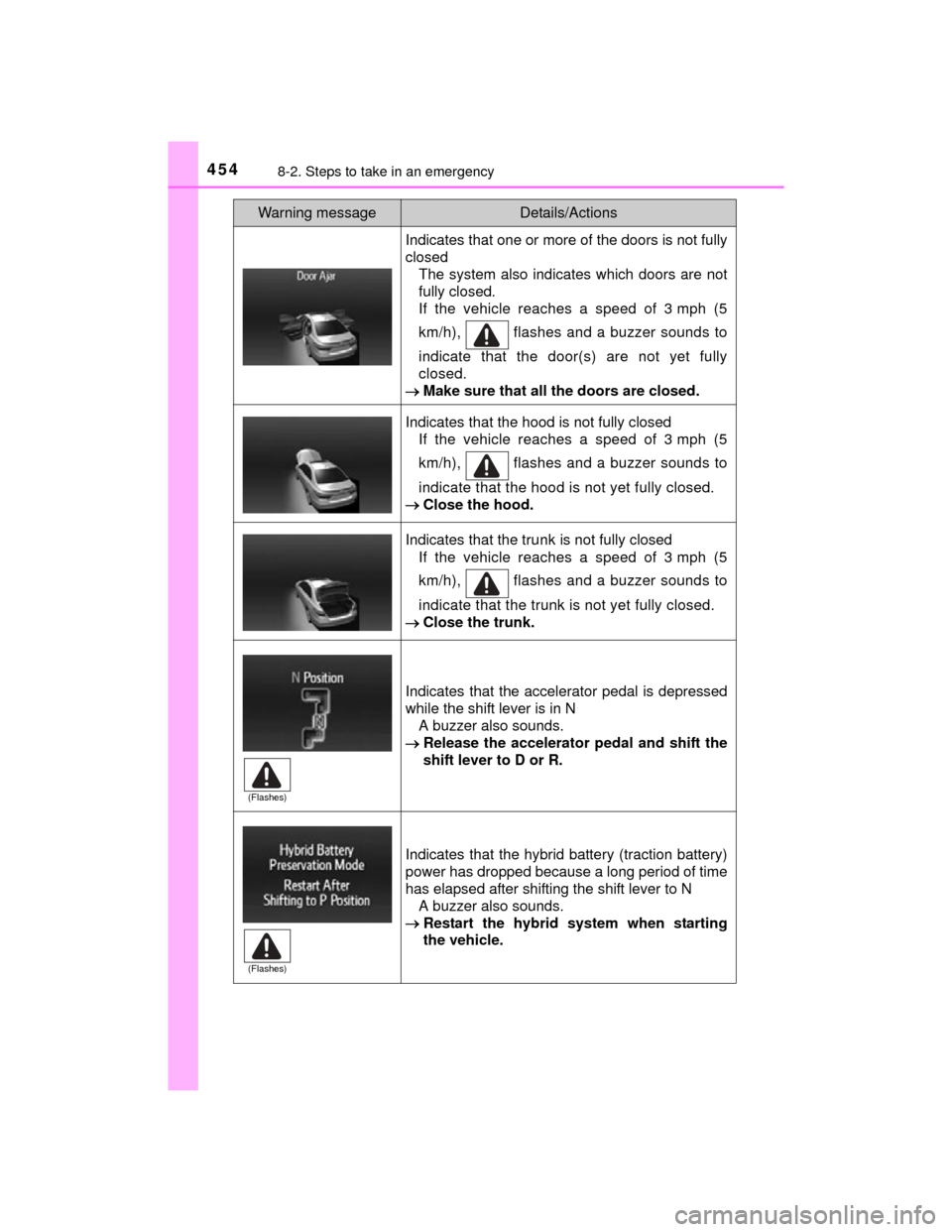

4548-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
Indicates that one or more of the doors is not fully
closedThe system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 3 mph (5
km/h), flashes and a buzzer sounds to
indicate that the door(s) are not yet fully
closed.
 Make sure that all the doors are closed.
Indicates that the hood is not fully closed
If the vehicle reaches a speed of 3 mph (5
km/h), flashes and a buzzer sounds to
indicate that the hood is not yet fully closed.
 Close the hood.
Indicates that the trunk is not fully closed
If the vehicle reaches a speed of 3 mph (5
km/h), flashes and a buzzer sounds to
indicate that the trunk is not yet fully closed.
 Close the trunk.
Indicates that the accelerator pedal is depressed
while the shift lever is in N
A buzzer also sounds.
 Release the accelerator pedal and shift the
shift lever to D or R.
Indicates that the hybrid battery (traction battery)
power has dropped because a long period of time
has elapsed after shifting the shift lever to N
A buzzer also sounds.
 Restart the hybrid system when starting
the vehicle.
Warning messageDetails/Actions
(Flashes)
(Flashes)

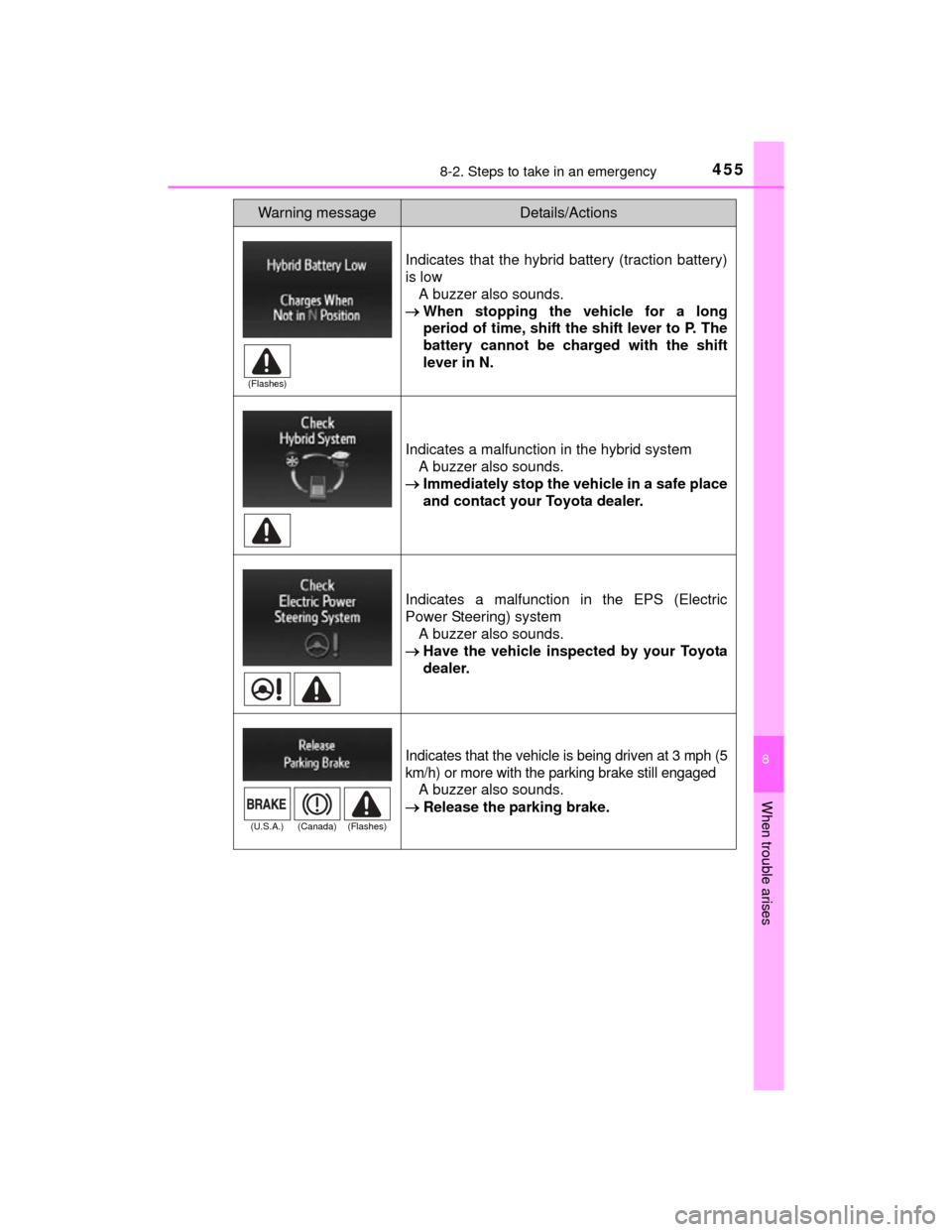

4558-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
Indicates that the hybrid battery (traction battery)
is lowA buzzer also sounds.
 When stopping the vehicle for a long
period of time, shift the shift lever to P. The
battery cannot be charged with the shift
lever in N.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Indicates a malfunction in the EPS (Electric
Power Steering) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates that the vehicle is being driven at 3 mph (5
km/h) or more with the parking brake still engaged
A buzzer also sounds.
 Release the parking brake.
Warning messageDetails/Actions
(Flashes)
(U.S.A.) (Canada) (Flashes)

4568-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
(U.S.A.)
(Canada)
Indicates a malfunction in:
• The ABS; or
• The brake assist system A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates a malfunction in the VSC (Vehicle Sta-
bility Control) system.
Have the vehicle inspected by your Toyota
dealer.
Indicates that the engine coolant temperature is
too high
A buzzer also sounds.
 P. 491
Indicates a malfunction in the vehicle’s charging
system
Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
Warning messageDetails/Actions
