2015 TOYOTA CAMRY HYBRID Owners Manual

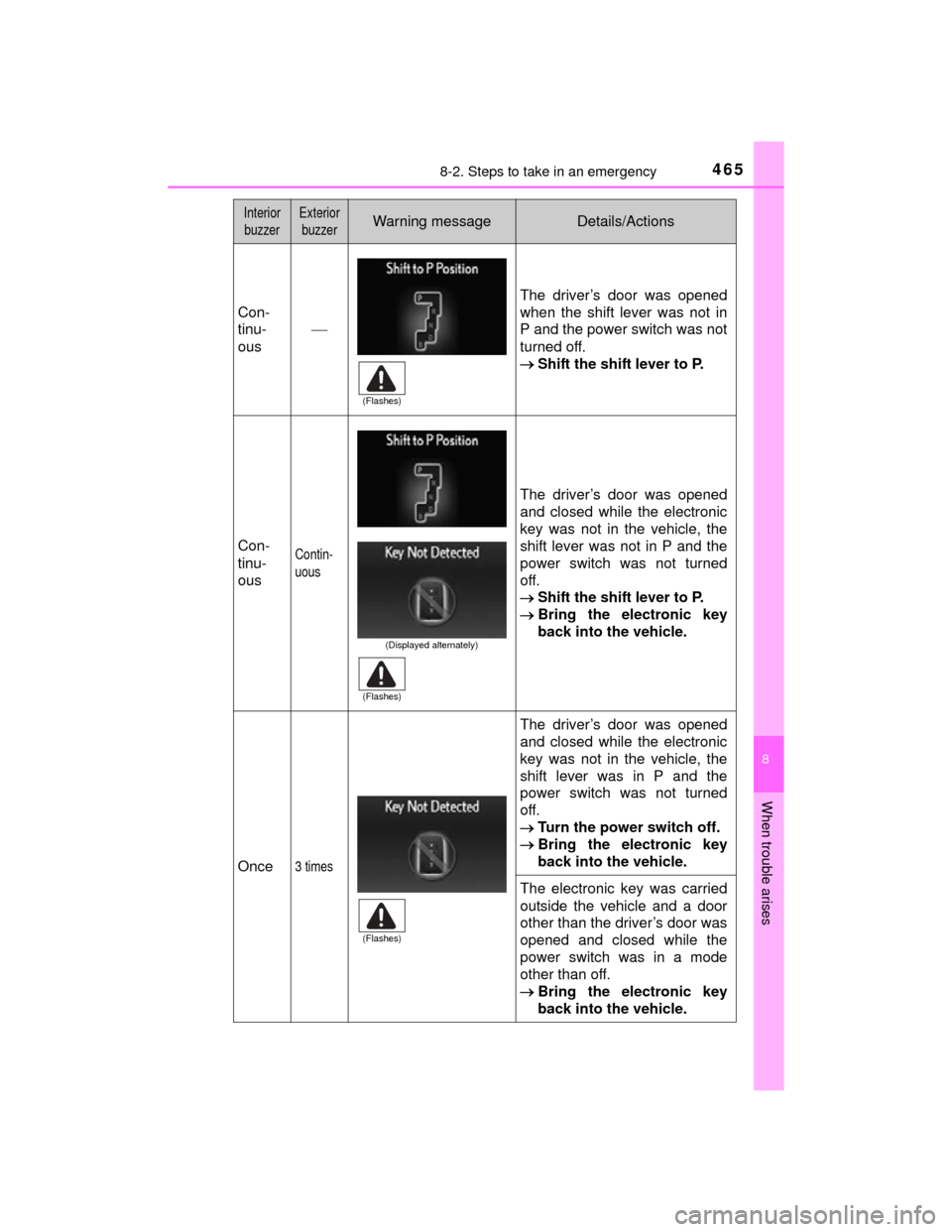

4658-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
InteriorbuzzerExterior buzzerWarning messageDetails/Actions
Con-
tinu-
ous  The driver’s door was opened
when the shift lever was not in
P and the power switch was not
turned off.

Shift the shift lever to P.
Con-
tinu-
ousContin-
uous
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was not in P and the
power switch was not turned
off.
Shift the shift lever to P.
 Bring the electronic key
back into the vehicle.
Once3 times
The driver’s door was opened
and closed while the electronic
key was not in the vehicle, the
shift lever was in P and the
power switch was not turned
off.
Turn the power switch off.
 Bring the electronic key
back into the vehicle.
The electronic key was carried
outside the vehicle and a door
other than the driver’s door was
opened and closed while the
power switch was in a mode
other than off.
Bring the electronic key
back into the vehicle.
(Flashes)
(Displayed alternately)
(Flashes)
(Flashes)

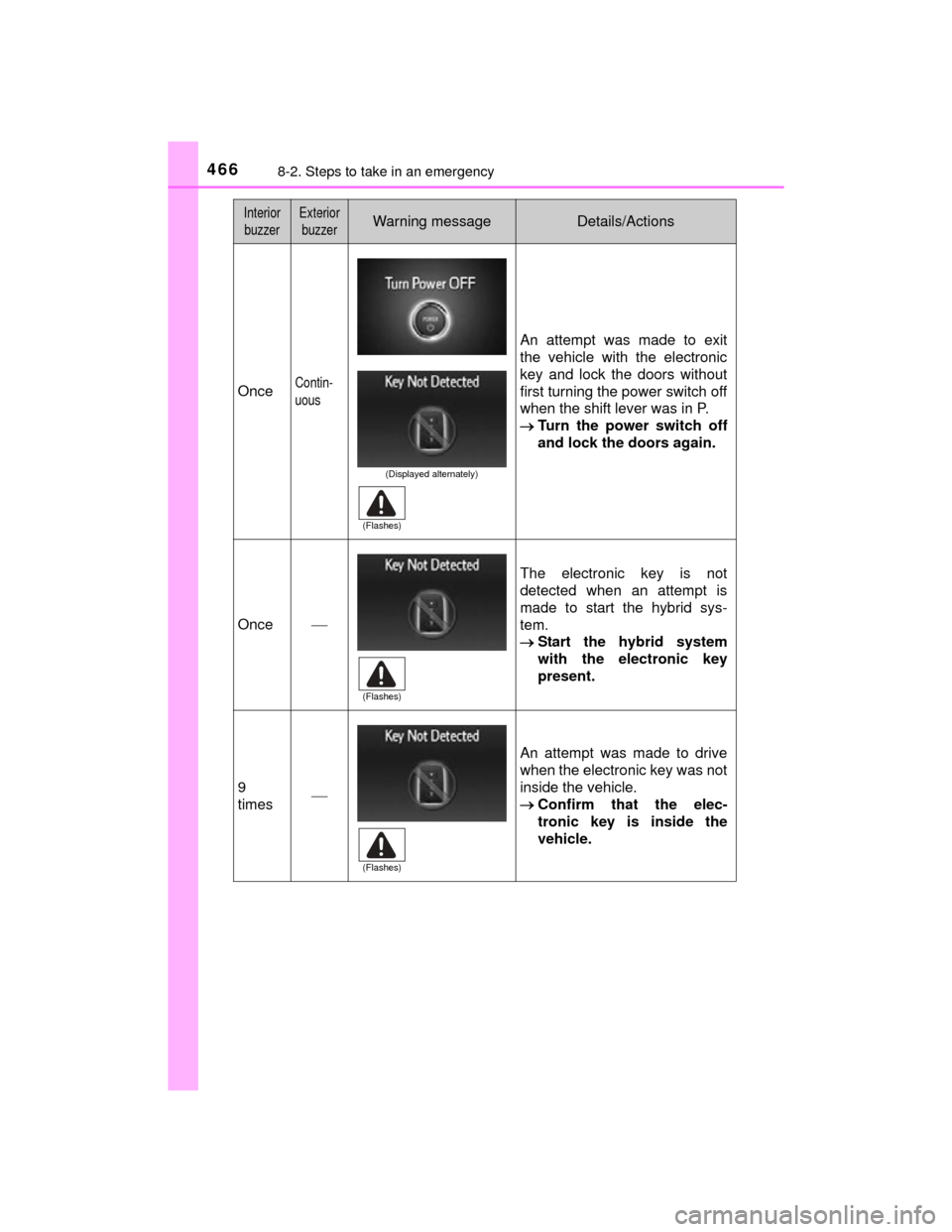

4668-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
OnceContin-
uous
An attempt was made to exit
the vehicle with the electronic
key and lock the doors without
first turning the power switch off
when the shift lever was in P.
Turn the power switch off
and lock the doors again.
Once
The electronic key is not
detected when an attempt is
made to start the hybrid sys-
tem.
Start the hybrid system
with the electronic key
present.
9
times
An attempt was made to drive
when the electronic key was not
inside the vehicle.
Confirm that the elec-
tronic key is inside the
vehicle.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Displayed alternately)
(Flashes)
(Flashes)
(Flashes)

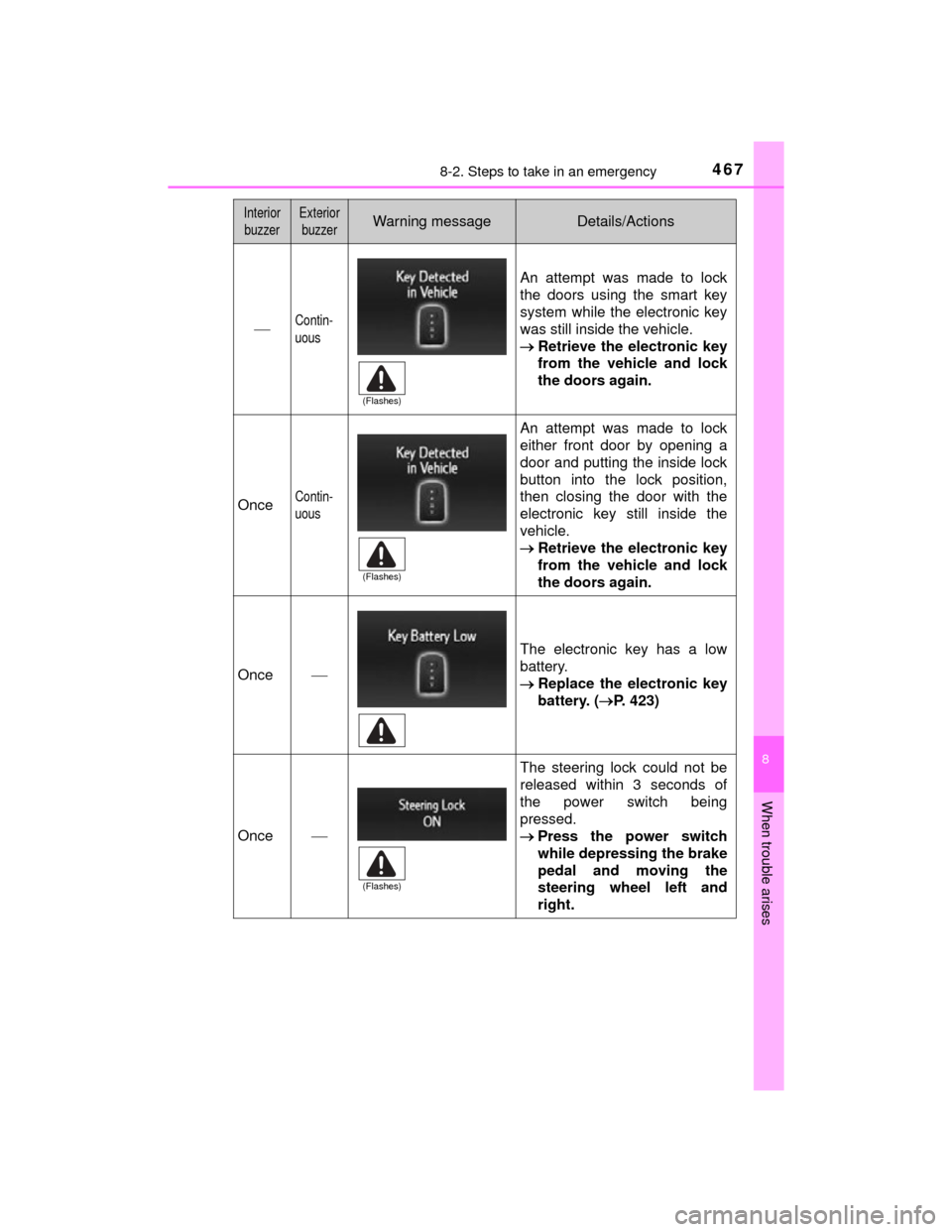

4678-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
Contin-
uous
An attempt was made to lock
the doors using the smart key
system while the electronic key
was still inside the vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
OnceContin-
uous
An attempt was made to lock
either front door by opening a
door and putting the inside lock
button into the lock position,
then closing the door with the
electronic key still inside the
vehicle.
Retrieve the electronic key
from the vehicle and lock
the doors again.
Once
The electronic key has a low
battery.
Replace the electronic key
battery. ( P. 423)
Once
The steering lock could not be
released within 3 seconds of
the power switch being
pressed.
Press the power switch
while depressing the brake
pedal and moving the
steering wheel left and
right.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

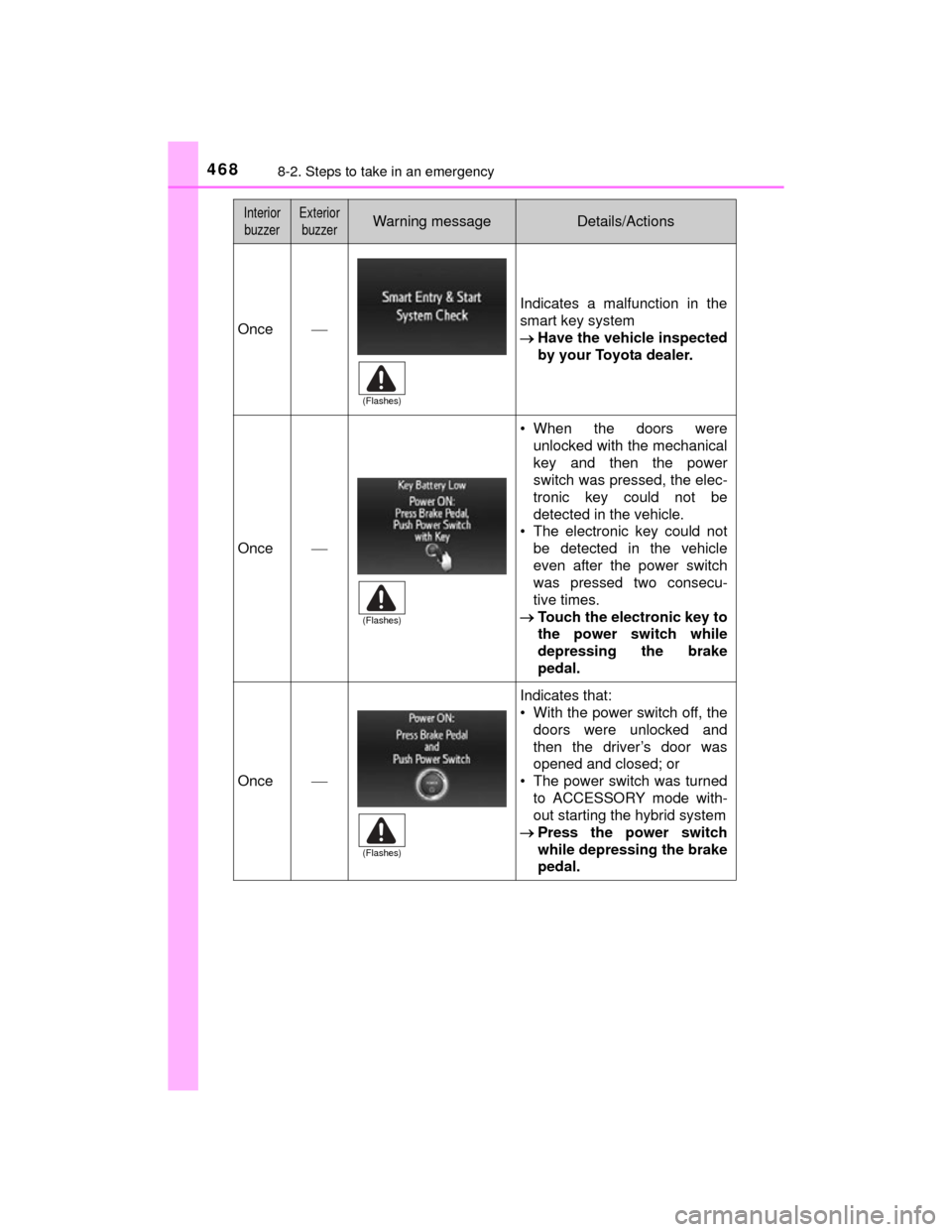

4688-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
Once
Indicates a malfunction in the
smart key system
Have the vehicle inspected
by your Toyota dealer.
Once
• When the doors were
unlocked with the mechanical
key and then the power
switch was pressed, the elec-
tronic key could not be
detected in the vehicle.
• The electronic key could not
be detected in the vehicle
even after the power switch
was pressed two consecu-
tive times.
 Touch the electronic key to
the power switch while
depressing the brake
pedal.
Once
Indicates that:
• With the power switch off, the
doors were unlocked and
then the driver’s door was
opened and closed; or
• The power switch was turned to ACCESSORY mode with-
out starting the hybrid system
 Press the power switch
while depressing the brake
pedal.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

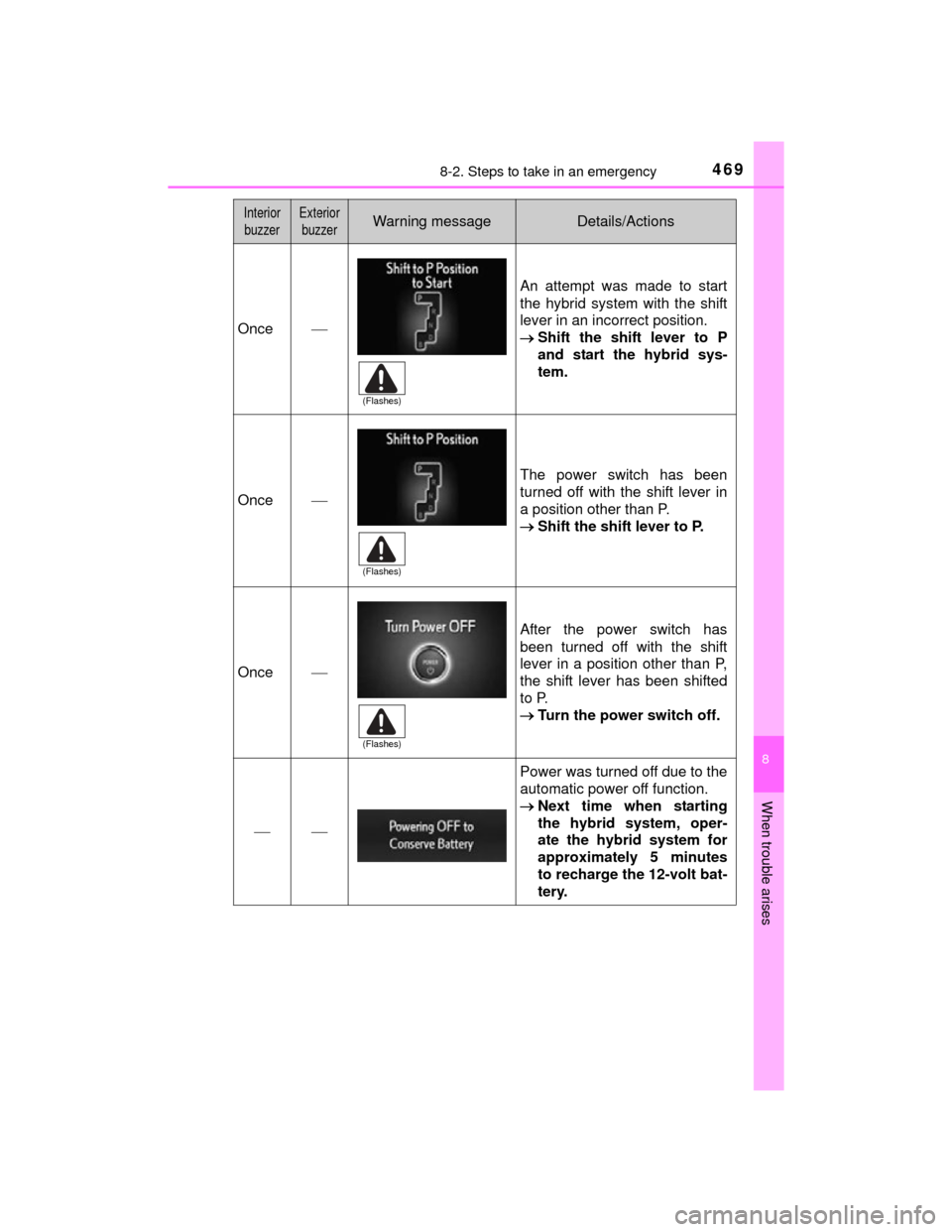

4698-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
Once
An attempt was made to start
the hybrid system with the shift
lever in an incorrect position.
Shift the shift lever to P
and start the hybrid sys-
tem.
Once
The power switch has been
turned off with the shift lever in
a position other than P.
Shift the shift lever to P.
Once
After the power switch has
been turned off with the shift
lever in a position other than P,
the shift lever has been shifted
to P.
Turn the power switch off.

Power was turned off due to the
automatic power off function.
Next time when starting
the hybrid system, oper-
ate the hybrid system for
approximately 5 minutes
to recharge the 12-volt bat-
tery.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)
(Flashes)
(Flashes)

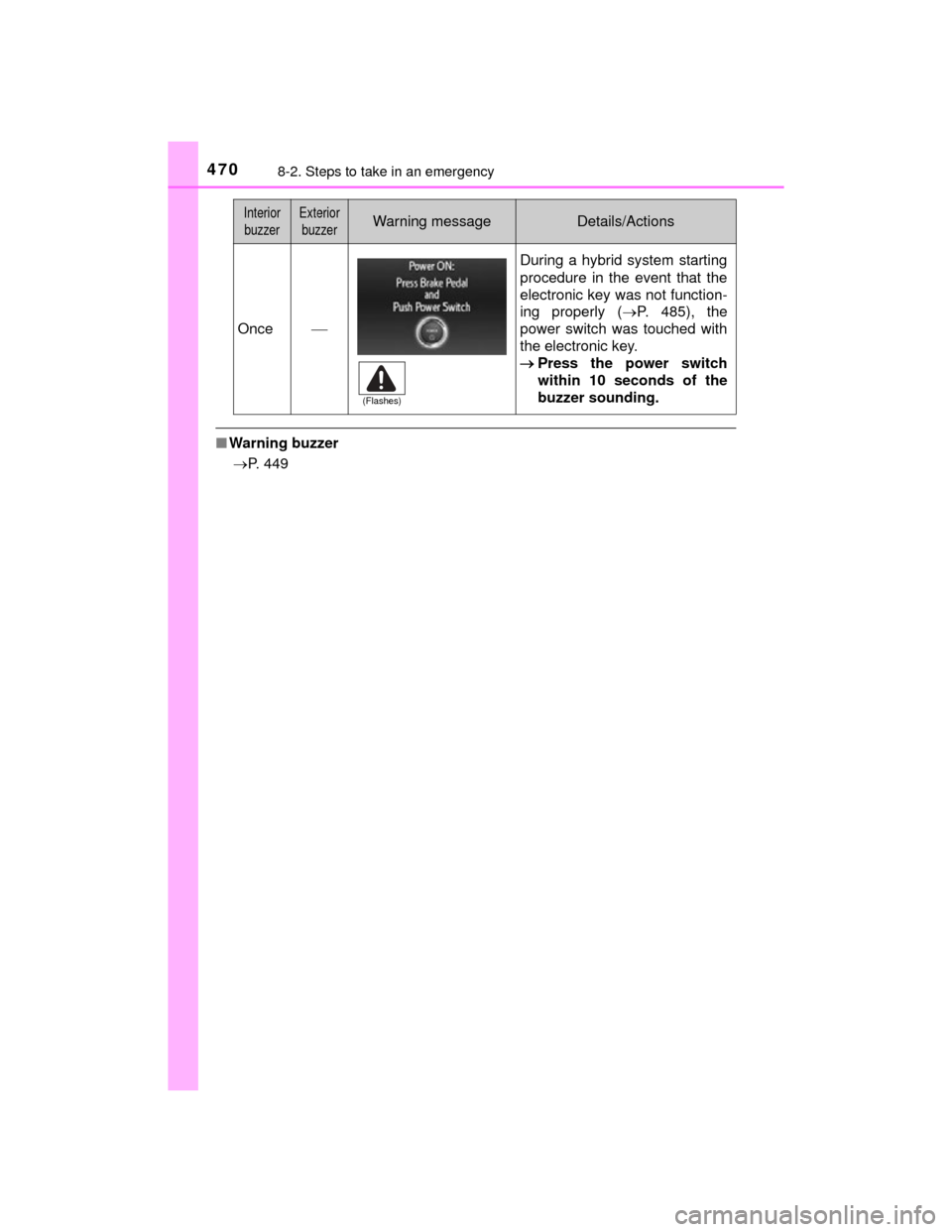

4708-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
■Warning buzzer
P. 449
Once
During a hybrid system starting
procedure in the event that the
electronic key was not function-
ing properly ( P. 485), the
power switch was touched with
the electronic key.
 Press the power switch
within 10 seconds of the
buzzer sounding.
Interior
buzzerExterior buzzerWarning messageDetails/Actions
(Flashes)

4718-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift lever to P.
● Stop the hybrid system.
● Turn on the emergency flashers. ( P. 438)
If you have a flat tire
Your vehicle is equipped with a spare tire. The flat tire can be
replaced with the spare tire.
For details about tires: P. 4 0 6
WARNING
■If you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair, which could result in an accident.
Before jacking up the vehicle
Location of the spare tire, jack and tools
Luggage floor cover
Wheel nut wrench
Spare tire Jack handle
Jack1
2
3
4
5

4728-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
Lift up the hook of the luggage
floor cover on the trunk floor.
WARNING
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off
the jack, leading to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or
installing and removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported
by the jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is
supported by the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to
replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the
vehicle. If there are people nearby, warn them vocally before lowering.
Taking out the jack
1
