2015 TOYOTA CAMRY HYBRID Owners Manual

4578-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
(If equipped)
Indicates that the radar sensor is dirty or covered
with iceA buzzer also sounds.
 Clean the sensor.
(If equipped)
Indicates that the dynamic radar cruise control
system is unable to judge vehicle-to-vehicle dis-
tance
A buzzer also sounds.
 Switch driving mode to normal.
If the windshield wipers are on, turn them
off or set them to a mode other than high
speed wiper operation.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system is suspended (The camera sensor tem-
perature is higher than the operation temperature
range)
A buzzer also sounds.
 Restart the LDA after driving for a while.
(If equipped)
Indicates that a Blind Spot Monitor sensor or the
surrounding area on the bumper is dirty or cov-
ered with ice
A buzzer also sounds.
 Clean the sensor and its surrounding area
on the bumper.
Indicates a malfunction in:
• The cruise control system (if equipped); or
• The dynamic radar cruise control system (if
equipped)
Press the “ON-OFF” button once to deactivate
the system, and then press the button again to
reactivate the system.
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Warning messageDetails/Actions

4588-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)

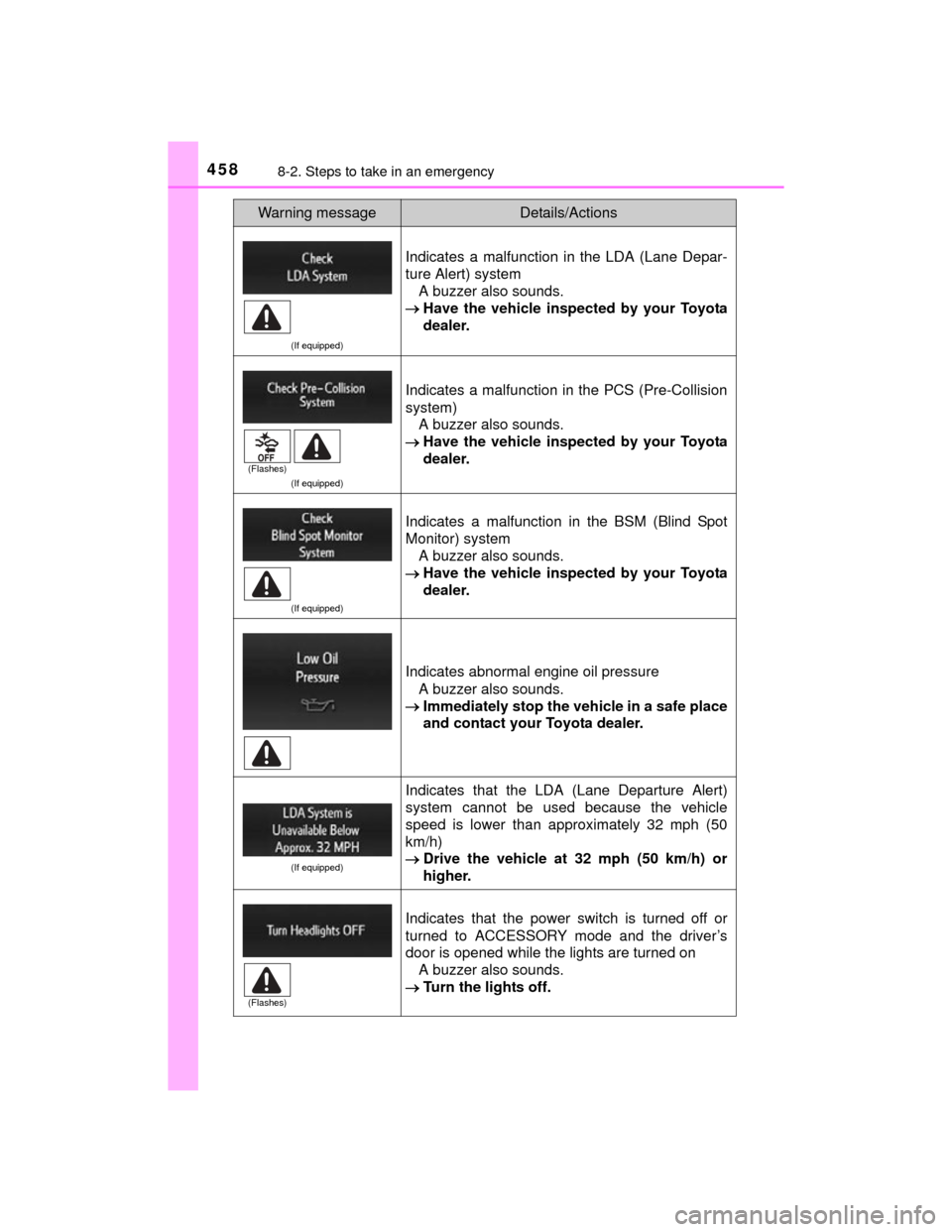

(If equipped)
Indicates a malfunction in the LDA (Lane Depar-
ture Alert) systemA buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the PCS (Pre-Collision
system)
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates a malfunction in the BSM (Blind Spot
Monitor) system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
Indicates abnormal engine oil pressure
A buzzer also sounds.
 Immediately stop the vehicle in a safe place
and contact your Toyota dealer.
(If equipped)
Indicates that the LDA (Lane Departure Alert)
system cannot be used because the vehicle
speed is lower than approximately 32 mph (50
km/h)
Drive the vehicle at 32 mph (50 km/h) or
higher.
Indicates that the power switch is turned off or
turned to ACCESSORY mode and the driver’s
door is opened while the lights are turned on
A buzzer also sounds.
 Turn the lights off.
Warning messageDetails/Actions
(Flashes)
(Flashes)

4598-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)

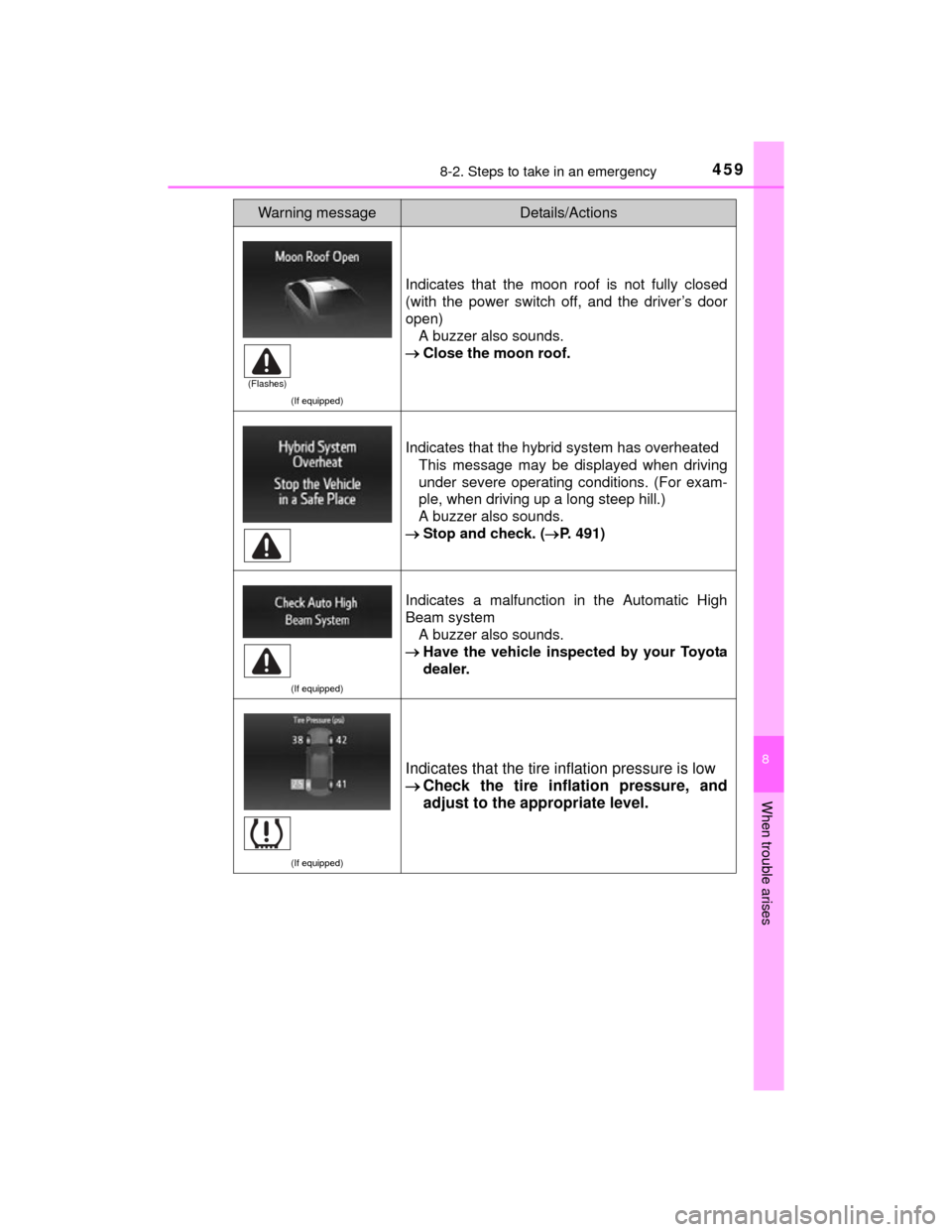

(If equipped)
Indicates that the moon roof is not fully closed
(with the power switch off, and the driver’s door
open)A buzzer also sounds.
 Close the moon roof.
Indicates that the hybrid system has overheated
This message may be displayed when driving
under severe operating conditions. (For exam-
ple, when driving up a long steep hill.)
A buzzer also sounds.
 Stop and check. ( P. 491)
(If equipped)
Indicates a malfunction in the Automatic High
Beam system
A buzzer also sounds.
 Have the vehicle inspected by your Toyota
dealer.
(If equipped)
Indicates that the tire inflation pressure is low
Check the tire inflation pressure, and
adjust to the appropriate level.
Warning messageDetails/Actions
(Flashes)

4608-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)

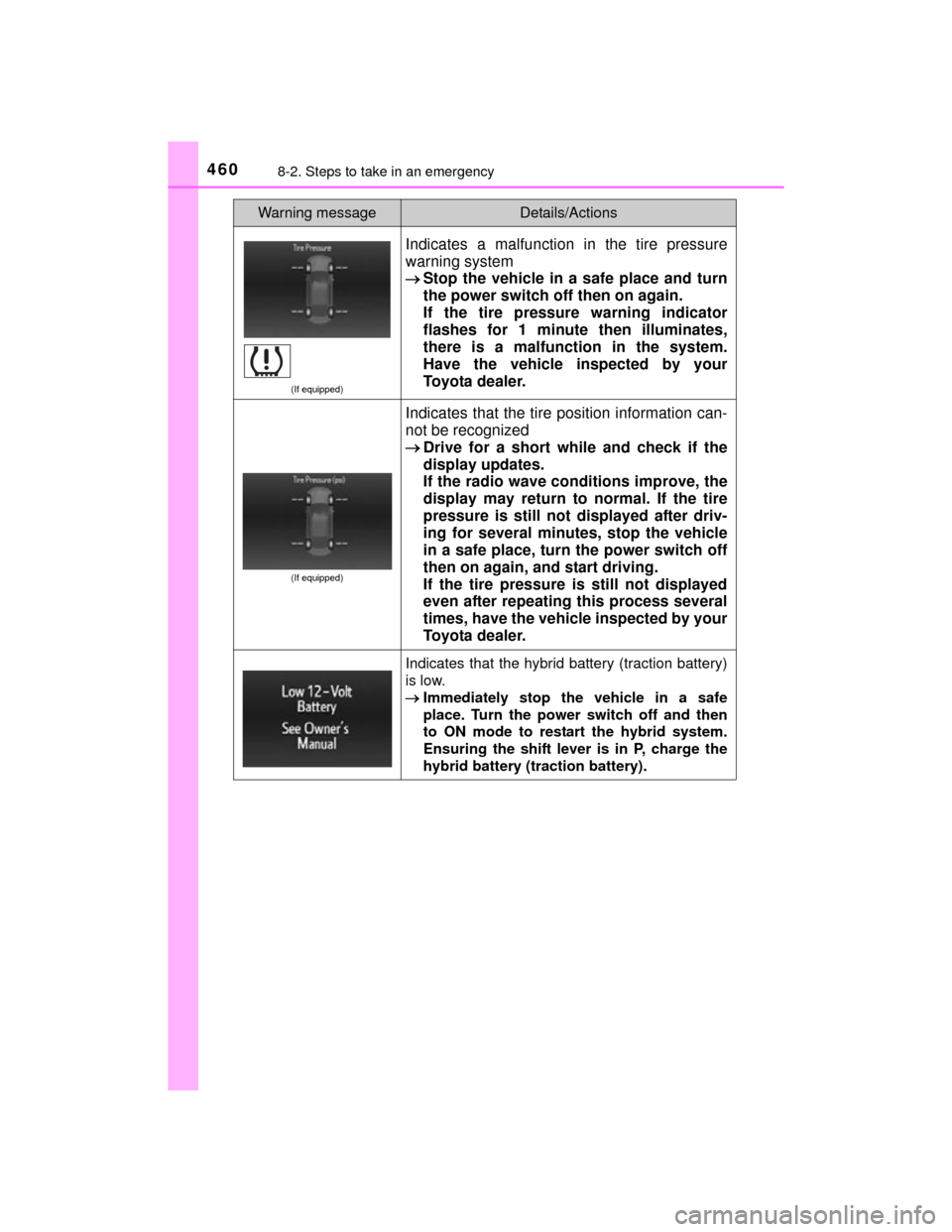

(If equipped)
Indicates a malfunction in the tire pressure
warning system
Stop the vehicle in a safe place and turn
the power switch off then on again.
If the tire pressure warning indicator
flashes for 1 minute then illuminates,
there is a malfunction in the system.
Have the vehicle inspected by your
Toyota dealer.
(If equipped)
Indicates that the tire position information can-
not be recognized
Drive for a short while and check if the
display updates.
If the radio wave conditions improve, the
display may return to normal. If the tire
pressure is still not displayed after driv-
ing for several minutes, stop the vehicle
in a safe place, turn the power switch off
then on again, and start driving.
If the tire pressure is still not displayed
even after repeating this process several
times, have the vehicle inspected by your
Toyota dealer.
Indicates that the hybrid battery (traction battery)
is low.
 Immediately stop the vehicle in a safe
place. Turn the power switch off and then
to ON mode to restart the hybrid system.
Ensuring the shift lever is in P, charge the
hybrid battery (traction battery).
Warning messageDetails/Actions

4618-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
Indicates that the washer fluid level is low
Add washer fluid.
Indicates that remaining fuel is approximately 2.6
gal. (9.7 L, 2.1 Imp. gal.) or less
Refuel the vehicle.
Indicates that the TRAC (Traction Control) sys-
tem has been deactivated
Turn the TRAC on. ( P. 219)
(U.S.A. only)
Indicates that all maintenance according to the
driven distance on the maintenance schedule*1
should be performed soon.
Comes on approximately 4500 miles (7200 km)
after the message has been reset.
If necessary, perform maintenance.
(U.S.A. only)
Indicates that all maintenance is required to cor-
respond to the driven distance on the mainte-
nance schedule*
1.
Comes on approximately 5000 miles (8000 km)
after the message has been reset.
(The indicator will not work properly unless the
message has been reset.)
 Perform the necessary maintenance.
Please reset the message after the mainte-
nance is performed. ( P. 383)
Warning messageDetails/Actions

4628-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
(If equipped)
Indicates that, since the VSC (Vehicle Stability
Control) system was turned off, the pre-collision
brake system operation is stopped
Turn the VSC on. ( P. 220)
(If equipped)
Indicates that the PCS (Pre-collision system) is
not currently functional because the grille cover
or the sensor is dirty
Check the grille cover and the sensor and
clean them if they are dirty.
Warning messageDetails/Actions
(Flashes)

4638-2. Steps to take in an emergency
8
When trouble arises
CAMRY_HV_U (OM33A87U)
Other displayed messages
Warning messageDetails/Actions
Indicates that maintenance of the hybrid system
(traction battery) cooling component is required The filter may be clogged, the air vent may be
blocked or the duct may be disconnected.
 Have maintenance performed on the hybrid
system (traction battery) cooling compo-
nent at Toyota dealer.
Indicates that the EV drive mode is not avail-
able
*2
The reason the EV drive mode is not available
(the vehicle is idling, hybrid battery [traction
battery] charge is low, speed is higher than the
EV drive mode operating speed range, acceler-
ator pedal is depressed too much) may be dis-
played.
A buzzer also sounds.
 Use the EV drive mode when it becomes
available.

4648-2. Steps to take in an emergency
CAMRY_HV_U (OM33A87U)
*1: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s ManualSupplement” for the maintenance interval applicable to your vehicle.
*2: For the EV drive mode operating conditions: P. 166
■Warning message in dynamic radar cruise control mode (if equipped)
In the following situations, the warning message may not be displayed even if
vehicle-to-vehicle distance decreases:
●When your vehicle and the vehicle ahead are traveling at the same speed or
the vehicle ahead is traveling more quickly than your vehicle
● When the vehicle ahead is traveling at a very low speed
● Immediately after cruise control speed is set
● At the instant the accelerator pedal is depressed
■ The LDA (Lane Departure Alert) lane departure warning function (if
equipped)
In the following situations, a warning message will not be displayed even if a
lane line is crossed.
●When the vehicle speed deviates from the operating range of the LDA sys-
tem functions
● When the lane lines cannot be recognized
■
When a tire is replaced with the spare tire
The compact spare tire is not equipped with a tire pressure warning valve
and transmitter. If a tire goes flat, the tire pressure warning light will not
turn off even though the flat tire has been replaced with the spare tire.
■Conditions that the tire pressure warning system may not function
properly (vehicles with a tire pressure warning system)
 P. 3 8 3
■Warning buzzer
P. 449
Indicates that the EV drive mode has been auto-
matically canceled
*2
The reason the EV drive mode is not available
(the hybrid battery [traction battery] charge is
low, speed is higher than the EV drive mode
operating speed range, accelerator pedal is
depressed too much) may be displayed.
A buzzer also sounds.
 Drive the vehicle for a while.
Warning messageDetails/Actions
