2015 TOYOTA CAMRY HYBRID Owners Manual

5299-2. Customization
9
Vehicle specifications
CAMRY_HV_U (OM33A87U)■
Turn signal lever (
P. 170)
*1: After flashing the turn signal lights when turning left or right while this func-
tion is off and the turn signal lever is moved to the first position in the direc-
tion of the flashing light, the turn signal lights can be selected to be flashing
or off.
*2: The turn signal lights will be off if the turn signal lever is moved to the firstposition in the direction of flashing light.
■
Automatic light control system ( P. 172)
■Lights ( P. 172, 175)
*: If equipped
FunctionDefault settingCustomized set-
ting
The number of times the
turn signal lights flash
automatically when the
turn signal lever is
moved to the first posi-
tion during a lane
change
*1
3
Off*2
——O4 to 7
123
FunctionDefault settingCustomized set-ting
Light sensor sensitivityLevel 3Level 1 to 5OOO
Time elapsed before
headlights automatically
turn off after doors are
closed
30 seconds
Off
OOO60 seconds
90 seconds
123
FunctionDefault settingCustomized set-ting
Daytime running light
system (except Canada)OnOffOOO
Automatic high beam*OnOff—OO
123

5309-2. Customization
CAMRY_HV_U (OM33A87U)■
Vehicle Proximity Notification System (
P. 7 0 )
■Automatic air conditioning system ( P. 332)
■Illumination ( P. 340)
■Seat belt reminder ( P. 446)
FunctionDefault settingCustomized set-
ting
The volume of Vehicle
Proximity Notification
System sound
Level 1
Level 2
OOOLevel 3
123
FunctionDefault settingCustomized set-ting
A/C auto switch opera-
tionAutoManual—OO
Air conditioning control
of Eco drive modeOnOff——O
123
FunctionDefault settingCustomized set-ting
Time elapsed before
lights turn off15 seconds7.5 secondsOOO30 seconds
Operation when the
doors are unlockedOnOff——O
Operation after the
power switch turned offOnOff——O
Operation when you
approach the vehicle
with the electronic key
on your person
OnOff——O
123
FunctionDefault settingCustomized set-ting
Vehicle speed linked
seat belt reminder
buzzer
OnOff——O
123

5319-2. Customization
9
Vehicle specifications
CAMRY_HV_U (OM33A87U)
WARNING
■During customization
As the hybrid system needs to be operating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

532
CAMRY_HV_U (OM33A87U)
9-3. Items to initialize

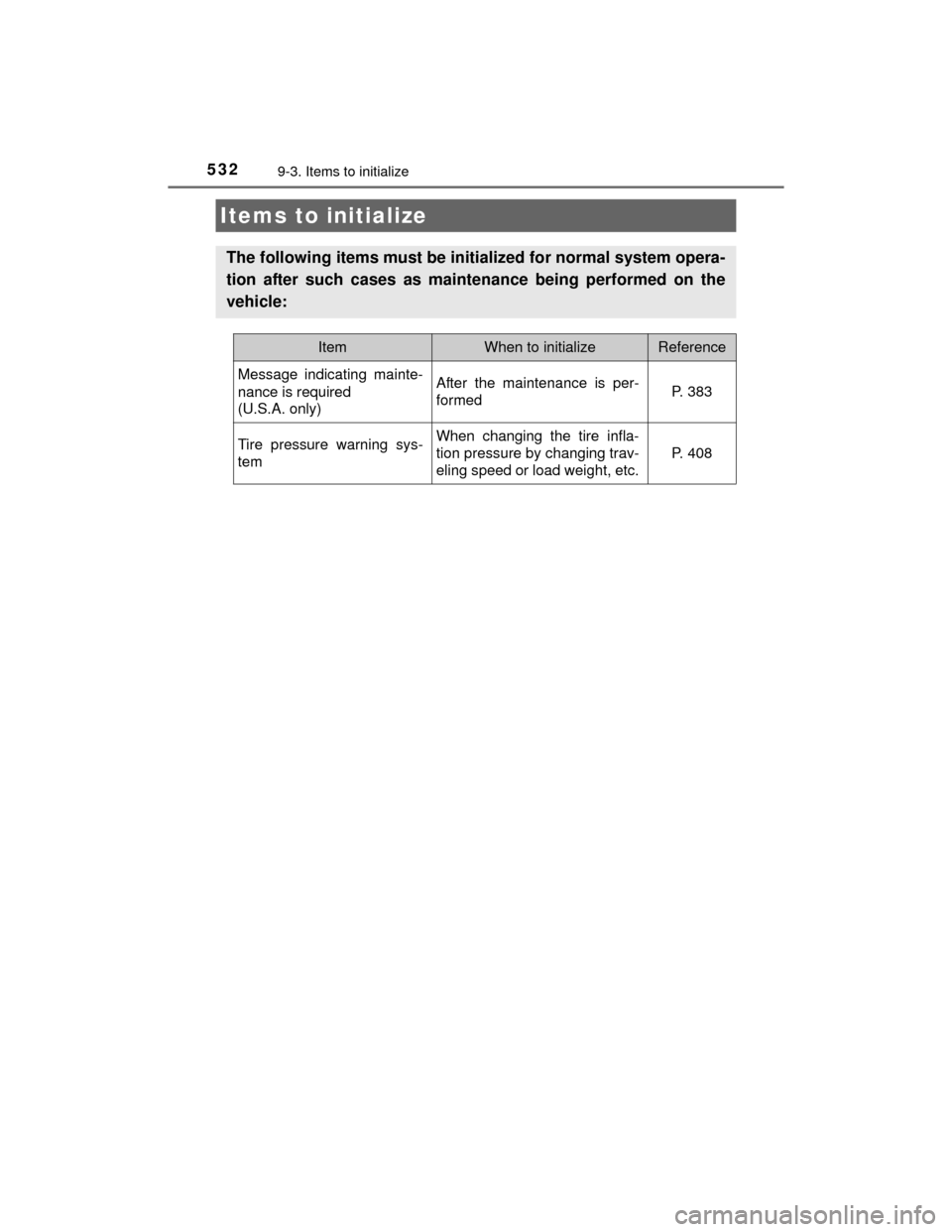

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as maintenance being performed on the
vehicle:
ItemWhen to initializeReference
Message indicating mainte-
nance is required
(U.S.A. only)After the maintenance is per-
formedP. 383
Tire pressure warning sys-
temWhen changing the tire infla-
tion pressure by changing trav-
eling speed or load weight, etc.
P. 408

10
533
For owners
CAMRY_HV_U (OM33A87U)Reporting safety defects
for U.S. owners ........................ 534
Seat belt instructions for Canadian owners
(in French) ............................... 535
SRS airbag instructions for Canadian owners
(in French) ............................... 537

534
CAMRY_HV_U (OM33A87U)

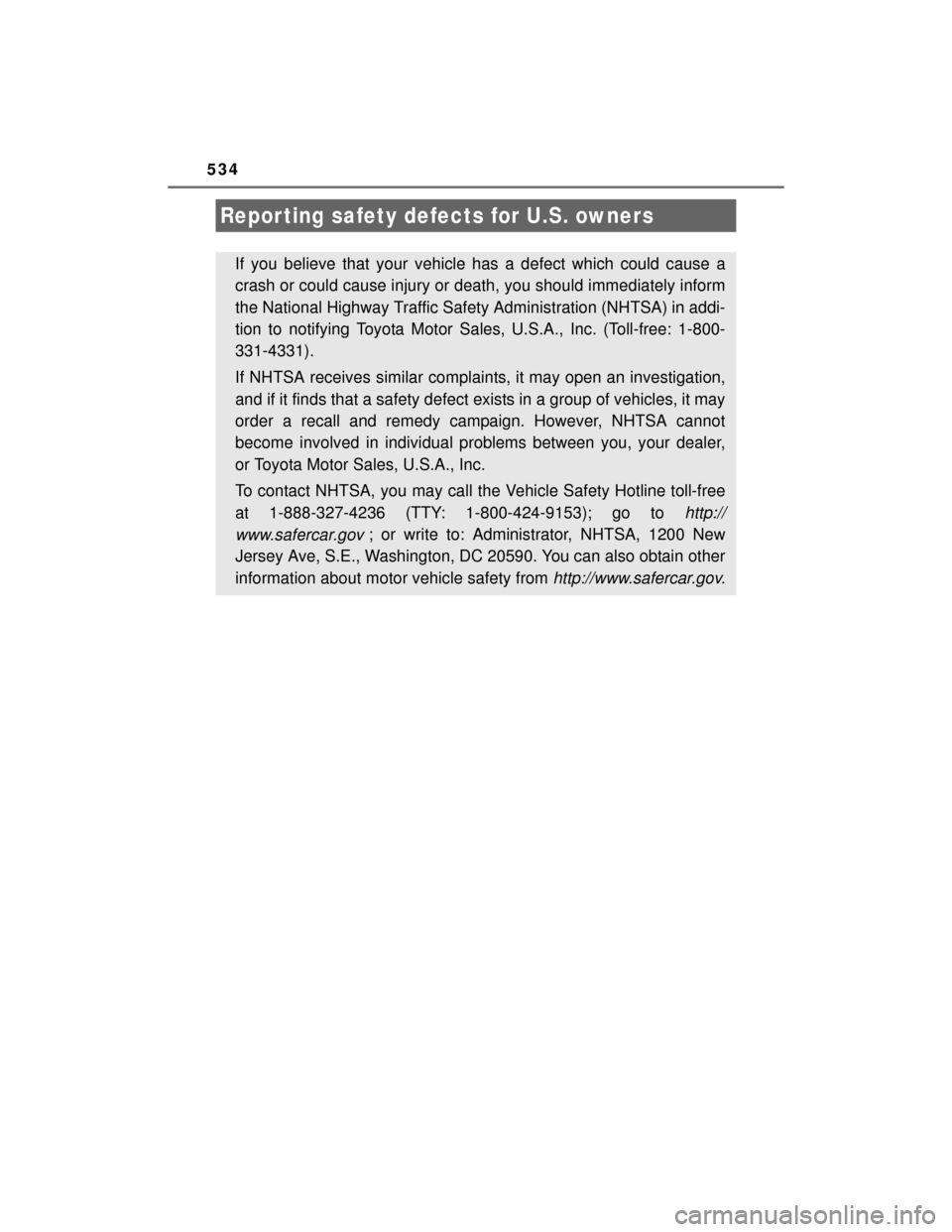

Repor ting safety defects for U.S. owners
If you believe that your vehicle has a defect which could cause a
crash or could cause injury or death, you should immediately inform
the National Highway Traffic Safety Administration (NHTSA) in addi-
tion to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar complaints, it may open an investigation,
and if it finds that a safety defect exists in a group of vehicles, it may
order a recall and remedy campaign. However, NHTSA cannot
become involved in individual problems between you, your dealer,
or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153); go to http://
www.safercar.gov
; or write to: Administrator, NHTSA, 1200 New
Jersey Ave, S.E., Washington, DC 20590. You can also obtain other
information about motor vehicle safety from http://www.safercar.gov.

535
10
For owners
CAMRY_HV_U (OM33A87U)
●Déroulez la sangle diagonale
de telle sorte qu'elle passe bien
sur l'épaule, sans pour autant
être en contact avec le cou ou
glisser de l'épaule.
● Placez la sangle abdominale le
plus bas possible sur les han-
ches.
● Réglez la position du dossier de siège. Asseyez-vous le dos droit et
calez-vous bien dans le siège.
● Ne vrillez pas la ceinture de sécurité.
■Ceintures de sécurité
Nettoyez avec un chiffon ou une éponge humectée d’eau savon-
neuse tiède. Vérifiez régulièrement que les ceintures ne sont pas
effilochées, entaillées ou exagérément usées.
Seat belt instructions for Canadian owners
(in French)
The following is a French explanation of seat belt instructions
extracted from the seat belt section in this manual.
See the seat belt section for more detailed seat belt instructions in
English.
Utilisation correcte des ceintures de sécurité
Entretien et soin

536
CAMRY_HV_U (OM33A87U)
AVERTISSEMENT
■Dommage et usure de la ceinture de sécurité
Inspectez la ceinture de sécurité périodiquement. Vérifiez si elles ne sont
pas entaillées, effilochées et que leurs ancrages ne sont pas desserrés.
N’utilisez pas une ceinture de sécurité défectueuse avant qu’elle ne soit
remplacée. Une ceinture de sécurité défectueuse n’apporte aucune garan-
tie de protection de l’occupant en cas de blessures graves, voire mortelles.
