2015 NISSAN QUEST Owners Manual


> (GLW    0RGHO (' @
GUID-7D60A267-E7F5-4B1D-960B-7F15227768DD

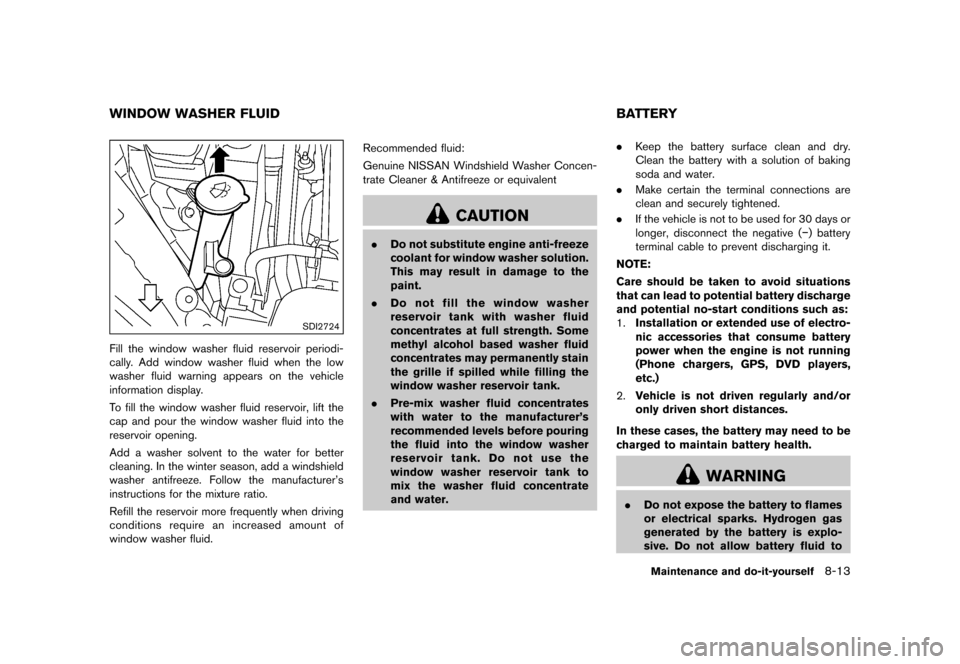

SDI2724
Fill the window washer fluid reservoir periodi-
cally. Add window washer fluid when the low
washer fluid warning appears on the vehicle
information display.
To fill the window washer fluid reservoir, lift the
cap and pour the window washer fluid into the
reservoir opening.
Add a washer solvent to the water for better
cleaning. In the winter season, add a windshield
washer antifreeze. Follow the manufacturer's
instructions for the mixture ratio.
Refill the reservoir more frequently when driving
conditions require an increased amount of
window washer fluid.Recommended fluid:
Genuine NISSAN Windshield Washer Concen-
trate Cleaner & Antifreeze or equivalent
CAUTION
.
Do not substitute engine anti-freeze
coolant for window washer solution.
This may result in damage to the
paint.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer's
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the
window washer reservoir tank to
mix the washer fluid concentrate
and water.
GUID-3341BEA7-EC64-47AA-A1EE-BACB14EE20E3.Keep the battery surface clean and dry.
Clean the battery with a solution of baking
soda and water.
. Make certain the terminal connections are
clean and securely tightened.
. If the vehicle is not to be used for 30 days or
longer, disconnect the negative (


> (GLW    0RGHO (' @

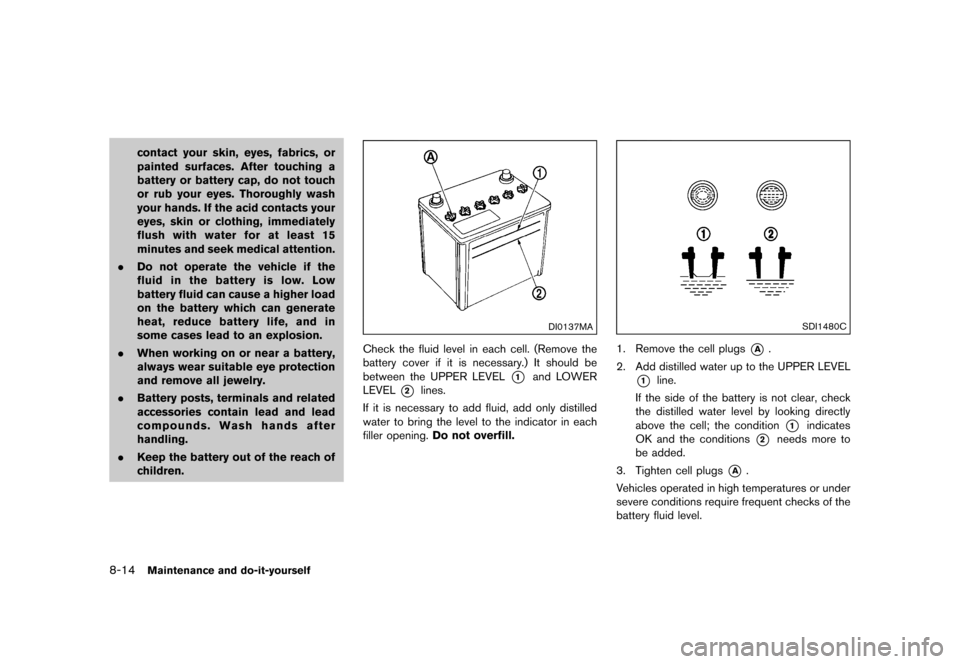

8-14Maintenance and do-it-yourself
contact your skin, eyes, fabrics, or
painted surfaces. After touching a
battery or battery cap, do not touch
or rub your eyes. Thoroughly wash
your hands. If the acid contacts your
eyes, skin or clothing, immediately
flush with water for at least 15
minutes and seek medical attention.
. Do not operate the vehicle if the
fluid in the battery is low. Low
battery fluid can cause a higher load
on the battery which can generate
heat, reduce battery life, and in
some cases lead to an explosion.
. When working on or near a battery,
always wear suitable eye protection
and remove all jewelry.
. Battery posts, terminals and related
accessories contain lead and lead
compounds. Wash hands after
handling.
. Keep the battery out of the reach of
children.
DI0137MA
Check the fluid level in each cell. (Remove the
battery cover if it is necessary.) It should be
between the UPPER LEVEL
*1and LOWER
LEVEL
*2lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening. Do not overfill.
SDI1480C
1. Remove the cell plugs*A.
2. Add distilled water up to the UPPER LEVEL
*1line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
*1indicates
OK and the conditions
*2needs more to
be added.
3. Tighten cell plugs
*A.
Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
&RQGLWLRQ


> (GLW    0RGHO (' @
JUMP STARTINGGUID-728A6D00-0B3A-42B9-8C55-879E984DF697If jump starting is necessary, see ªJump startingº
(P.6-10) . If the engine does not start by jump
starting, the battery may have to be replaced.
Contact a NISSAN dealer.
GUID-CC0BCD7D-44D1-4A5E-B327-BF7E1877664D
CAUTION
.Do not ground accessories directly
to the battery terminal. Doing so will
bypass the variable voltage control
system and the vehicle battery may
not charge completely.
. Use electrical accessories with the
engine running to avoid discharging
the vehicle battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.
GUID-9E8A3147-1884-4C25-9489-A487C9B57788
JVM0172X
1. Drive belt auto-tensioner
2. Alternator
3. Air conditioner compressor
4. Crankshaft pulley
WARNING
Be sure the ignition switch is in the OFF
or LOCK position before servicing drive
belt. The engine could rotate unexpect-
edly.
1. Visually inspect the belt for signs of unusual wear, cuts, fraying or looseness. If the belt is
in poor condition or loose, have it replaced
or adjusted by a NISSAN dealer.
Maintenance and do-it-yourself8-15
VARIABLE VOLTAGE CONTROL
SYSTEM DRIVE BELT
&RQGLWLRQ


> (GLW    0RGHO (' @
8-16Maintenance and do-it-yourself
2. Have the belt condition checked regularly.
GUID-53755493-0790-478D-BA34-2754E26CDE9C
WARNING
Be sure the engine and ignition switch
are off and that the parking brake is
engaged securely.
CAUTION
Be sure to use the correct socket to
remove the spark plugs. An incorrect
socket can damage the spark plugs.
SDI2020
REPLACING SPARK PLUGSGUID-BF350227-8726-4B09-A731-8CE0C748AD7DIf replacement is required, see a NISSAN dealer
for servicing.
Iridium-tipped spark plugsGUID-61A49279-7B24-4FC8-87A3-56FDAA3C3680It is not necessary to replace the platinum-
tipped spark plugs as frequently as the conven-
tional type spark plugs since they will last much
longer. Follow the maintenance log shown in the
ªNISSAN Service and Maintenance Guideº. Do
not reuse spark plugs by cleaning or regapping.
Always replace spark plugs with recom-
mended or equivalent ones.
SPARK PLUGS
&RQGLWLRQ


> (GLW    0RGHO (' @
GUID-40DCF25A-26C7-4D51-AD10-2B6311C1B242

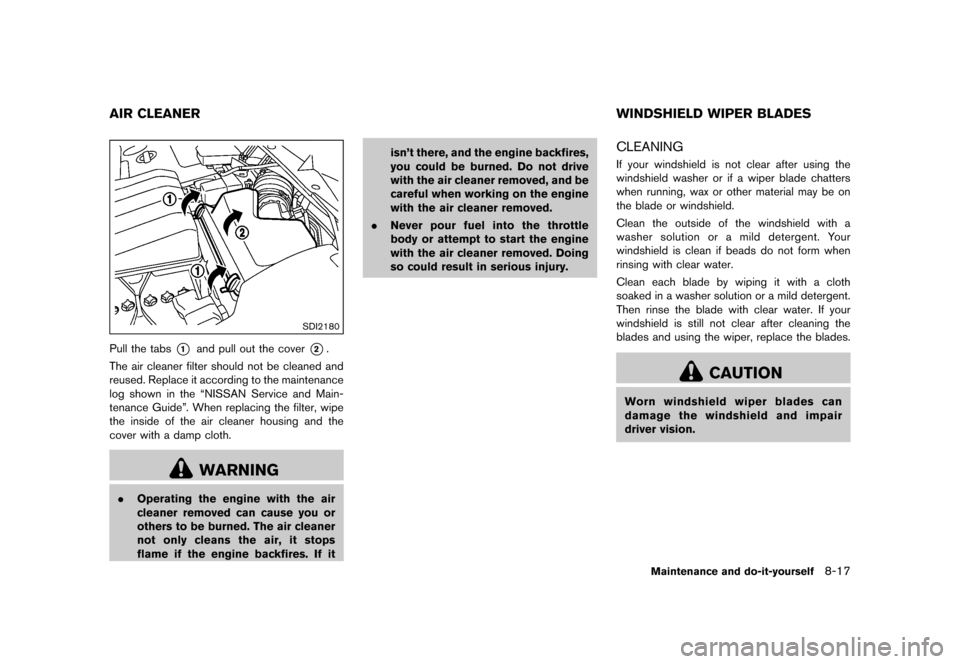

SDI2180
Pull the tabs*1and pull out the cover*2.
The air cleaner filter should not be cleaned and
reused. Replace it according to the maintenance
log shown in the ªNISSAN Service and Main-
tenance Guideº. When replacing the filter, wipe
the inside of the air cleaner housing and the
cover with a damp cloth.
WARNING
. Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops
flame if the engine backfires. If it isn't there, and the engine backfires,
you could be burned. Do not drive
with the air cleaner removed, and be
careful when working on the engine
with the air cleaner removed.
. Never pour fuel into the throttle
body or attempt to start the engine
with the air cleaner removed. Doing
so could result in serious injury.
GUID-0B228E6E-8086-44DC-9928-41FFB169FE37CLEANINGGUID-4C8AEF46-6EBD-4E17-A096-32F656DFA0FEIf your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your
windshield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild detergent.
Then rinse the blade with clear water. If your
windshield is still not clear after cleaning the
blades and using the wiper, replace the blades.
CAUTION
Worn windshield wiper blades can
damage the windshield and impair
driver vision.
Maintenance and do-it-yourself8-17
AIR CLEANER WINDSHIELD WIPER BLADES
&RQGLWLRQ


> (GLW    0RGHO (' @

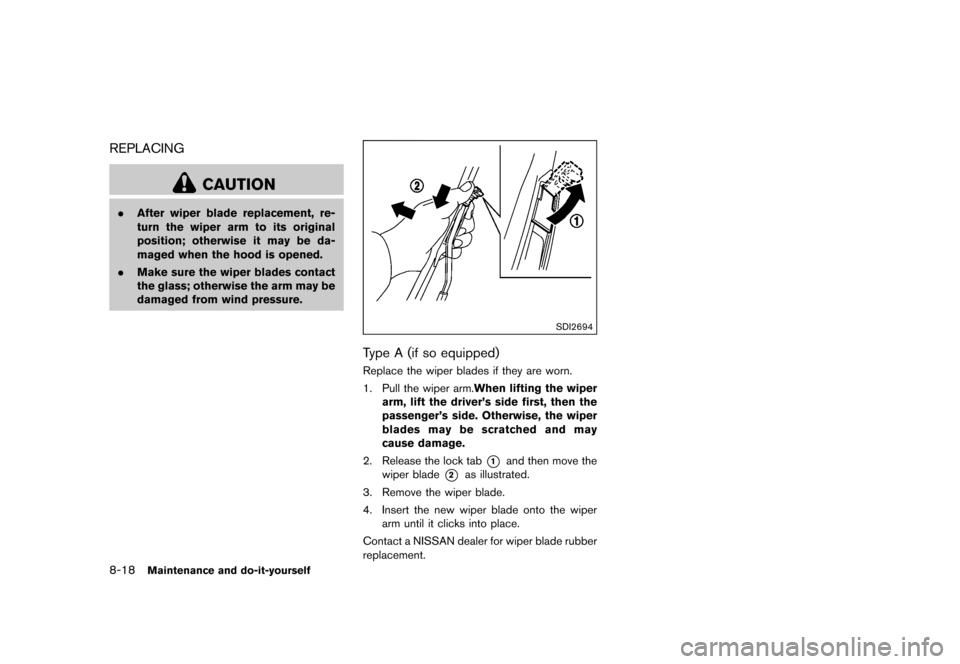

8-18Maintenance and do-it-yourself
REPLACINGGUID-64F105DC-1C12-4FBA-BF9C-A20F7E010206
CAUTION
.After wiper blade replacement, re-
turn the wiper arm to its original
position; otherwise it may be da-
maged when the hood is opened.
. Make sure the wiper blades contact
the glass; otherwise the arm may be
damaged from wind pressure.
SDI2694
Type A (if so equipped)GUID-7F276170-6D2E-4086-93BB-ECED4A41C08FReplace the wiper blades if they are worn.
1. Pull the wiper arm.When lifting the wiper
arm, lift the driver's side first, then the
passenger's side. Otherwise, the wiper
blades may be scratched and may
cause damage.
2. Release the lock tab
*1and then move the
wiper blade
*2as illustrated.
3. Remove the wiper blade.
4. Insert the new wiper blade onto the wiper arm until it clicks into place.
Contact a NISSAN dealer for wiper blade rubber
replacement.
&RQGLWLRQ


> (GLW    0RGHO (' @

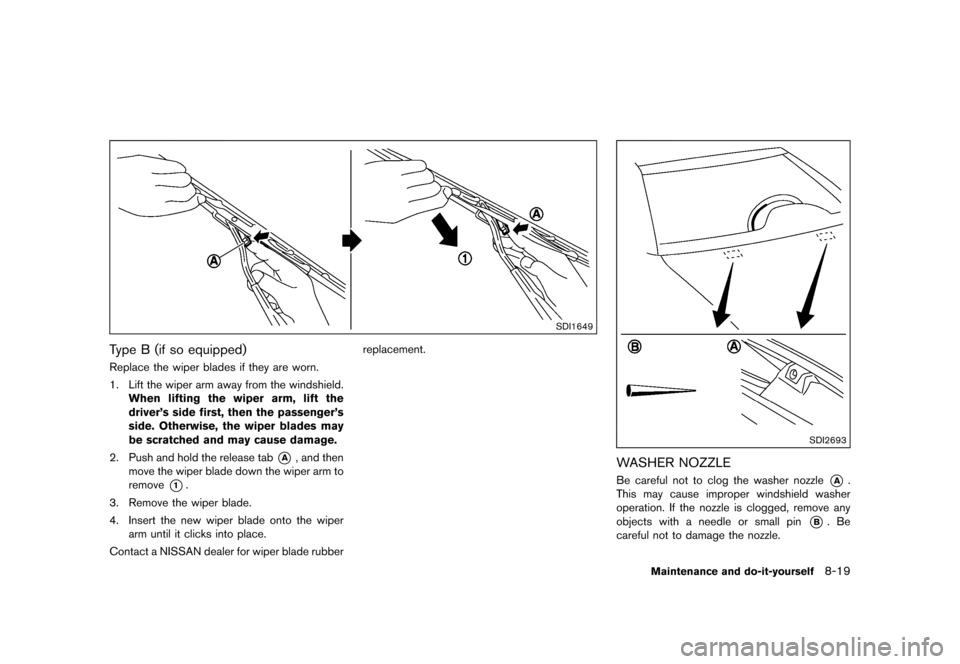

SDI1649
Type B (if so equipped)GUID-1ED733C3-9777-4189-B2C7-C8C88F7EEE2CReplace the wiper blades if they are worn.
1. Lift the wiper arm away from the windshield.When lifting the wiper arm, lift the
driver's side first, then the passenger's
side. Otherwise, the wiper blades may
be scratched and may cause damage.
2. Push and hold the release tab
*A, and then
move the wiper blade down the wiper arm to
remove
*1.
3. Remove the wiper blade.
4. Insert the new wiper blade onto the wiper arm until it clicks into place.
Contact a NISSAN dealer for wiper blade rubber replacement.
SDI2693
WASHER NOZZLEGUID-C60F7E27-E349-49E7-9DD9-3D79F98007EDBe careful not to clog the washer nozzle*A.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
*B. Be
careful not to damage the nozzle.
Maintenance and do-it-yourself8-19
&RQGLWLRQ


> (GLW    0RGHO (' @
8-20Maintenance and do-it-yourself
GUID-C605529D-EFDF-4D37-AE85-7A15EAD0A5C8Contact a NISSAN dealer if checking or
replacement is required.GUID-86D39641-0FCA-4C25-BFB9-549F76F28C23If the brakes do not operate properly, have the
brakes checked by a NISSAN dealer.
SELF-ADJUSTING BRAKESGUID-EC0A9C2B-3E67-4EA4-B0D9-6AA58C9FD2E1Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See a NISSAN dealer for a brake
system check if the brake pedal height
does not return to normal.
BRAKE PAD WEAR WARNINGGUID-54184785-40C9-4F75-95B5-7D0D1533C611The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warning
sound is heard.
Under some driving or climate conditions,
occasional brake squeak, squeal or other noise
may be heard. Occasional brake noise duringlight to moderate stops is normal and does not
affect the function or performance of the brake
system.
Proper brake inspection intervals should
be followed.
For additional information, see the
maintenance log section of your ªNISSAN
Service and Maintenance Guideº.
REAR WINDOW WIPER BLADE BRAKES
