2015 NISSAN QUEST Owners Manual


> (GLW    0RGHO (' @
High beam indicator lightGUID-615CDEB6-E7A5-47B7-A115-94D5A95A46BCThis light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction Indicator Light (MIL)GUID-1C68E634-2F16-4A6B-85E1-536C36C54FC0If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
Continuously Variable Transmission (CVT) mal-
function.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (11.4 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See ªReadiness for inspec-
tion/maintenance (I/M) testº (P.9-27).) Operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The malfunction indicator light will come on in
one of two ways:
.
Malfunction indicator light on steady Ð An
emission control system and/or CVT mal-
function has been detected. Check the fuel-
filler cap if the LOOSE FUEL CAP warning
appears on the vehicle information display. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
light should turn off after a
few driving trips. If the
light does not
turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to
the dealer.
. Malfunction indicator light blinking Ð An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
1) Do not drive at speeds above 45 MPH
(72 km/h) .
2) Avoid hard acceleration or deceleration.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on. Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
and/or CVT system checked and re-
paired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission con-
trol system.
Overdrive off indicator lightGUID-B248403A-7160-4641-9641-C1D42F7AEF5DThe overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, see ªContinuously
Variable Transmission (CVT)º (P.5-13) of this
manual.
Security indicator lightGUID-ECFD3652-2277-449D-95FC-FDE76A31BDDEThe light blinks when the ignition switch is in the
ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this light
Instruments and controls2-17
&RQGLWLRQ


> (GLW    0RGHO (' @

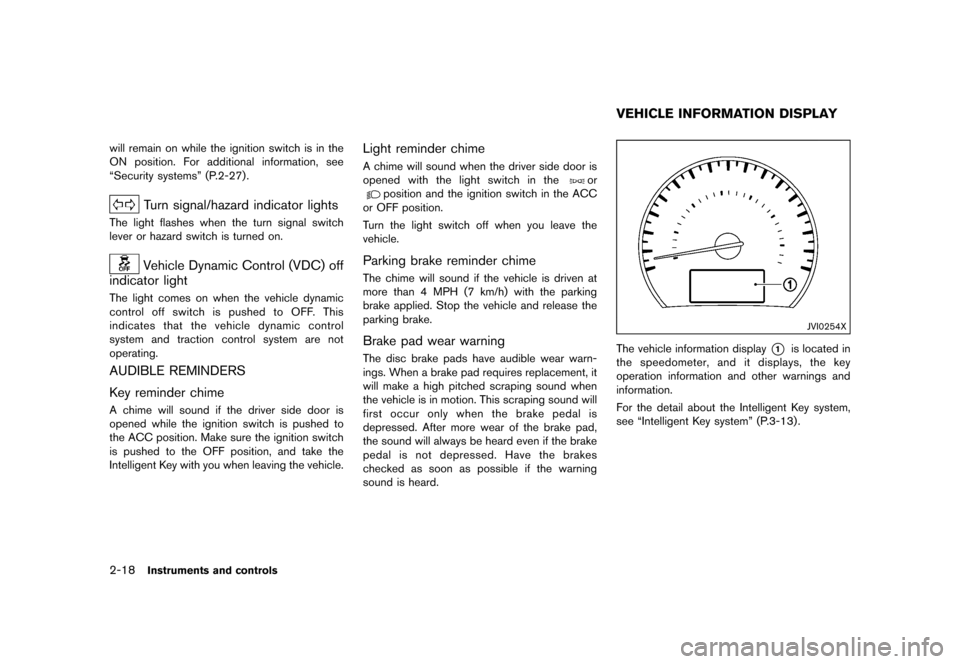

2-18Instruments and controls
will remain on while the ignition switch is in the
ON position. For additional information, see
ªSecurity systemsº (P.2-27) .
Turn signal/hazard indicator lightsGUID-DEC39268-26DF-4838-A9EA-6A903EF57EBBThe light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC) off
indicator light
GUID-36C6A5CB-7D96-42B6-B569-12EA0CD78A19The light comes on when the vehicle dynamic
control off switch is pushed to OFF. This
indicates that the vehicle dynamic control
system and traction control system are not
operating.
AUDIBLE REMINDERSGUID-5CBEA2B2-B021-4887-B30F-E3C585323EDD
Key reminder chimeGUID-2453E6AA-C9B7-4D05-8394-0F1BB506FF53A chime will sound if the driver side door is
opened while the ignition switch is pushed to
the ACC position. Make sure the ignition switch
is pushed to the OFF position, and take the
Intelligent Key with you when leaving the vehicle.
Light reminder chimeGUID-BFB5E744-D2B8-408B-834A-688BCF472327A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC
or OFF position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chimeGUID-B170CCAE-51B0-4C2A-93DA-57D00974E4A8The chime will sound if the vehicle is driven at
more than 4 MPH (7 km/h) with the parking
brake applied. Stop the vehicle and release the
parking brake.
Brake pad wear warningGUID-11093B54-7D84-4D73-B07E-6FB94DF62F91The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound will
first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the warning
sound is heard.
GUID-DF977CB1-DA21-4D82-92AC-EC347BF184E2
JVI0254X
The vehicle information display*1is located in
the speedometer, and it displays, the key
operation information and other warnings and
information.
For the detail about the Intelligent Key system,
see ªIntelligent Key systemº (P.3-13) .
VEHICLE INFORMATION DISPLAY
&RQGLWLRQ


> (GLW    0RGHO (' @

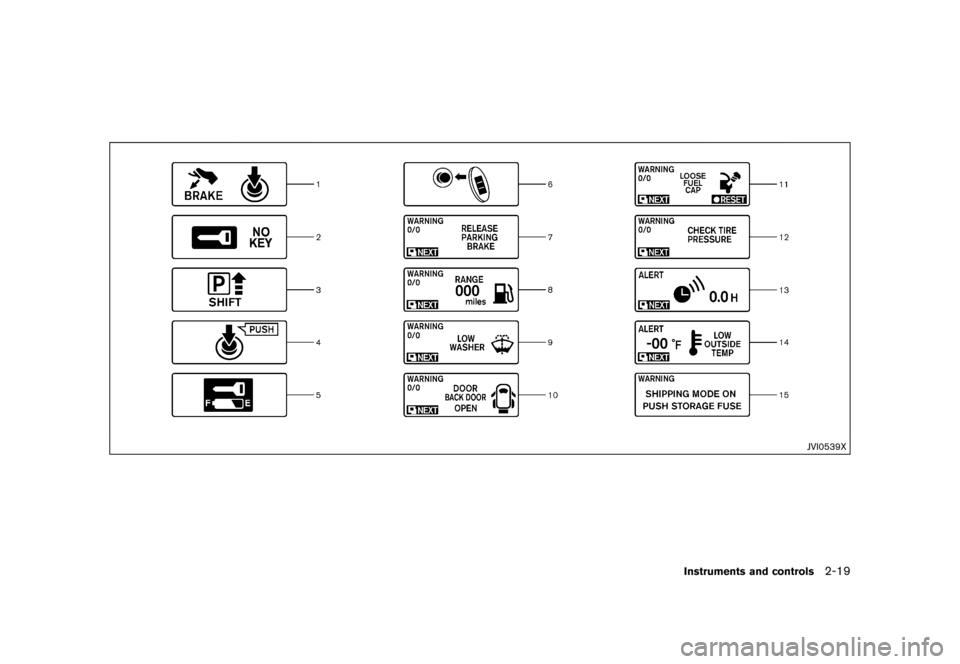

JVI0539X
Instruments and controls2-19
&RQGLWLRQ


> (GLW    0RGHO (' @

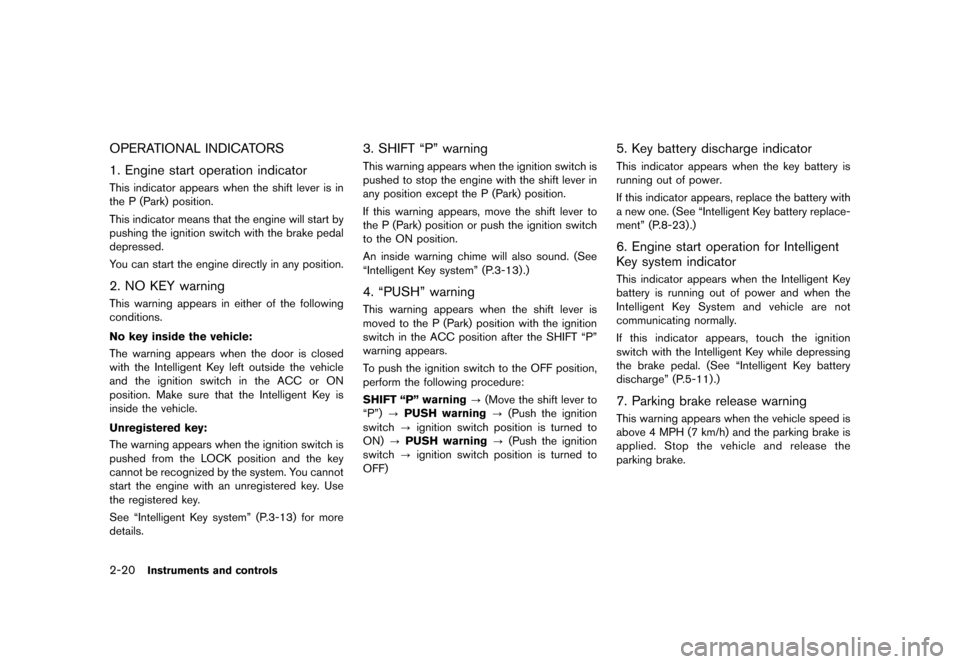

2-20Instruments and controls
OPERATIONAL INDICATORSGUID-AD5B0BAF-2C91-4EC9-A709-EB982E1C0773
1. Engine start operation indicatorGUID-3A8E6F2E-0AEB-4F35-B6FE-0018789257BCThis indicator appears when the shift lever is in
the P (Park) position.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed.
You can start the engine directly in any position.
2. NO KEY warningGUID-75410B7B-4F58-4067-BDFB-93074F70EDACThis warning appears in either of the following
conditions.
No key inside the vehicle:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the ignition switch in the ACC or ON
position. Make sure that the Intelligent Key is
inside the vehicle.
Unregistered key:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The warning appears when the ignition switch is
pushed from the LOCK position and the key
cannot be recognized by the system. You cannot
start the engine with an unregistered key. Use
the registered key.
See ªIntelligent Key systemº (P.3-13) for more
details.
3. SHIFT ªPº warningGUID-39C72E43-25FF-4A4F-B9A5-6B99999E8518This warning appears when the ignition switch is
pushed to stop the engine with the shift lever in
any position except the P (Park) position.
If this warning appears, move the shift lever to
the P (Park) position or push the ignition switch
to the ON position.
An inside warning chime will also sound. (See
ªIntelligent Key systemº (P.3-13) .)
4. ªPUSHº warningGUID-8B1B73E4-768D-4801-A346-AFE043207C1EThis warning appears when the shift lever is
moved to the P (Park) position with the ignition
switch in the ACC position after the SHIFT ªPº
warning appears.
To push the ignition switch to the OFF position,
perform the following procedure:
SHIFT ªPº warning?(Move the shift lever to
ªPº) ?PUSH warning ?(Push the ignition
switch ?ignition switch position is turned to
ON) ?PUSH warning ?(Push the ignition
switch ?ignition switch position is turned to
OFF)
5. Key battery discharge indicatorGUID-967F63CE-1C05-4DC3-99FB-8F1F04EBE95FThis indicator appears when the key battery is
running out of power.
If this indicator appears, replace the battery with
a new one. (See ªIntelligent Key battery replace-
mentº (P.8-23) .)
6. Engine start operation for Intelligent
Key system indicator
GUID-0A04A4BE-EA21-48A0-88E9-6C87C0E9DC4DThis indicator appears when the Intelligent Key
battery is running out of power and when the
Intelligent Key System and vehicle are not
communicating normally.
If this indicator appears, touch the ignition
switch with the Intelligent Key while depressing
the brake pedal. (See ªIntelligent Key battery
dischargeº (P.5-11).)
7. Parking brake release warningGUID-029C1509-C86D-41F0-AE2B-6B98338F1BE8This warning appears when the vehicle speed is
above 4 MPH (7 km/h) and the parking brake is
applied. Stop the vehicle and release the
parking brake.
&RQGLWLRQ


> (GLW    0RGHO (' @

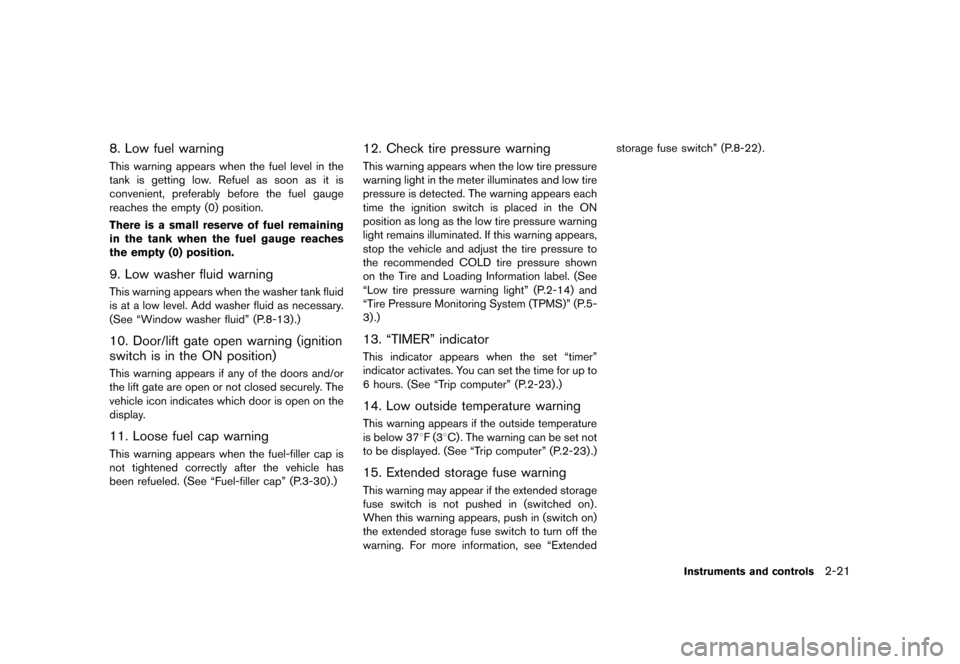

8. Low fuel warningGUID-3F6A4C14-3A53-4889-81A1-9712B64C7CFBThis warning appears when the fuel level in the
tank is getting low. Refuel as soon as it is
convenient, preferably before the fuel gauge
reaches the empty (0) position.
There is a small reserve of fuel remaining
in the tank when the fuel gauge reaches
the empty (0) position.
9. Low washer fluid warningGUID-56C625DC-ABE9-4A02-8BC9-E75B59CC1B40This warning appears when the washer tank fluid
is at a low level. Add washer fluid as necessary.
(See ªWindow washer fluidº (P.8-13).)
10. Door/lift gate open warning (ignition
switch is in the ON position)
GUID-369BA1E4-345B-4EDC-949F-A60010E2FCAEThis warning appears if any of the doors and/or
the lift gate are open or not closed securely. The
vehicle icon indicates which door is open on the
display.
11. Loose fuel cap warningGUID-AE37C079-2D1D-4EC5-BC3E-A6F3746AC355This warning appears when the fuel-filler cap is
not tightened correctly after the vehicle has
been refueled. (See ªFuel-filler capº (P.3-30) .)
12. Check tire pressure warningGUID-DA5B077D-A7AE-4C80-ABBC-FC03EE16A559This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the ignition switch is placed in the ON
position as long as the low tire pressure warning
light remains illuminated. If this warning appears,
stop the vehicle and adjust the tire pressure to
the recommended COLD tire pressure shown
on the Tire and Loading Information label. (See
ªLow tire pressure warning lightº (P.2-14) and
ªTire Pressure Monitoring System (TPMS)º (P.5-
3) .)
13. ªTIMERº indicatorGUID-1125717D-01A2-4EE0-BD94-FCEC2E95C1E9This indicator appears when the set ªtimerº
indicator activates. You can set the time for up to
6 hours. (See ªTrip computerº (P.2-23) .)
14. Low outside temperature warningGUID-05A3065E-96A4-4FAF-9E94-F0DF064F6767This warning appears if the outside temperature
is below 378F (38C) . The warning can be set not
to be displayed. (See ªTrip computerº (P.2-23) .)
15. Extended storage fuse warningGUID-6AB8FBE8-1539-40E0-88C7-FC678D1B5DB6This warning may appear if the extended storage
fuse switch is not pushed in (switched on) .
When this warning appears, push in (switch on)
the extended storage fuse switch to turn off the
warning. For more information, see ªExtendedstorage fuse switchº (P.8-22) .
Instruments and controls2-21
&RQGLWLRQ


> (GLW    0RGHO (' @
2-22Instruments and controls
SIC4237
MAINTENANCE INDICATORSGUID-FA009BEE-2E37-4E85-BAC3-65B2871DE287
1. Engine oil replacement indicatorGUID-B49EC615-22D1-4111-845C-214CE38146A9This indicator appears when the customer set
time comes for changing the engine oil. You can
set or reset the distance for changing the engine
oil. (See ªTrip computerº (P.2-23) .)
2. Oil filter replacement indicatorGUID-8EC15863-1C70-4332-BAFA-4C2E8EE6FBFCThis indicator appears when the customer set
time comes for replacing the oil filter. You can
set or reset the distance for replacing the oil
filter. (See ªTrip computerº (P.2-23).)
3. Tire replacement indicatorGUID-83F3C488-F446-4361-92F6-CBED0996F98CThis indicator appears when the customer set
distance comes for replacing tires. You can set
or reset the distance for replacing tires. (See
ªTrip computerº (P.2-23) .)
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, in-
cluding tire pressure checks. See
ªChanging wheels and tiresº (P.8-37) .
Many factors including tire inflation,
alignment, driving habits and road con-
ditions affect tire wear and when tires
should be replaced. Setting the tirereplacement indicator for a certain
driving distance does not mean your
tires will last that long. Use the tire
replacement indicator as a guide only
and always perform regular tire checks.
Failure to perform regular tire checks,
including tire pressure checks could
result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
4. ªOTHERº indicatorGUID-3F118BD8-4E3B-4C42-83AA-190A2A80C162This indicator appears when the set time comes
for replacing items other than the engine oil, oil
filter and tires. You can set or reset the distance
for replacing the items. (See ªTrip computerº
(P.2-23) .)
Models with center multi-function control panel:
More maintenance reminders are also available
on the center display. (models with center multi-
function control panel) (See ªHow to use INFO
buttonº (P.4-10).)
&RQGLWLRQ


> (GLW    0RGHO (' @
SIC3580

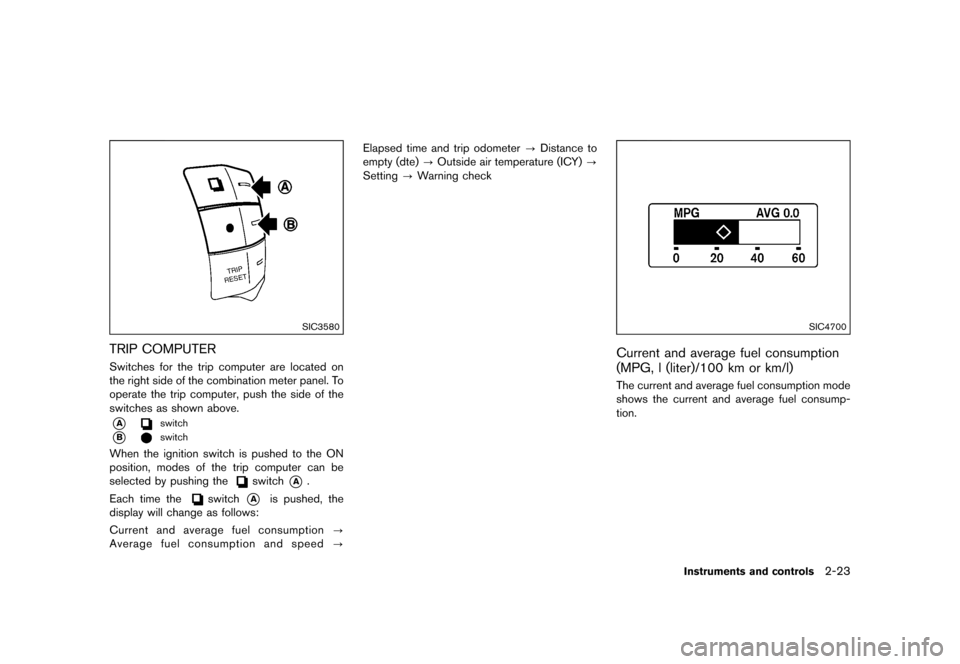

TRIP COMPUTERGUID-930DEE09-4374-4996-AC0B-1BBE0A7E2A37Switches for the trip computer are located on
the right side of the combination meter panel. To
operate the trip computer, push the side of the
switches as shown above.
*Aswitch
*Bswitch
When the ignition switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switch*A.
Each time the
switch*Ais pushed, the
display will change as follows:
Current and average fuel consumption ?
Average fuel consumption and speed ?Elapsed time and trip odometer
?Distance to
empty (dte) ?Outside air temperature (ICY) ?
Setting ?Warning check
SIC4700
Current and average fuel consumption
(MPG, l (liter)/100 km or km/l)
GUID-F605A791-7C05-4ACC-98CA-7D5109816B91The current and average fuel consumption mode
shows the current and average fuel consump-
tion.
Instruments and controls2-23
&RQGLWLRQ


> (GLW    0RGHO (' @
2-24Instruments and controls
SIC3674

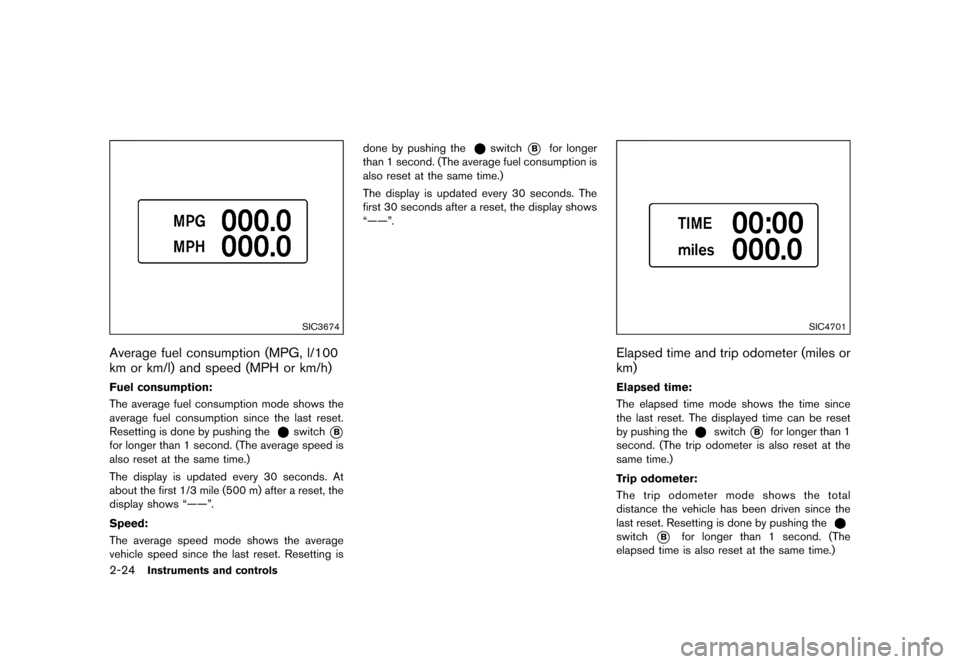

Average fuel consumption (MPG, l/100
km or km/l) and speed (MPH or km/h)
GUID-E1893F46-D3FE-4C74-B5F8-C57C75093BC1
Fuel consumption:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the
switch*B
for longer than 1 second. (The average speed is
also reset at the same time.)
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows ªÐк.
Speed:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The average speed mode shows the average
vehicle speed since the last reset. Resetting isdone by pushing the
switch*Bfor longer
than 1 second. (The average fuel consumption is
also reset at the same time.)
The display is updated every 30 seconds. The
first 30 seconds after a reset, the display shows
ªÐк.
SIC4701
Elapsed time and trip odometer (miles or
km)
GUID-5904C9FC-EFD8-4B9B-97AD-8438716FCDA6
Elapsed time:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the
switch*Bfor longer than 1
second. (The trip odometer is also reset at the
same time.)
Trip odometer:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The trip odometer mode shows the total
distance the vehicle has been driven since the
last reset. Resetting is done by pushing the
switch*Bfor longer than 1 second. (The
elapsed time is also reset at the same time.)
&RQGLWLRQ
