2015 NISSAN QUEST Owners Manual


> (GLW    0RGHO (' @

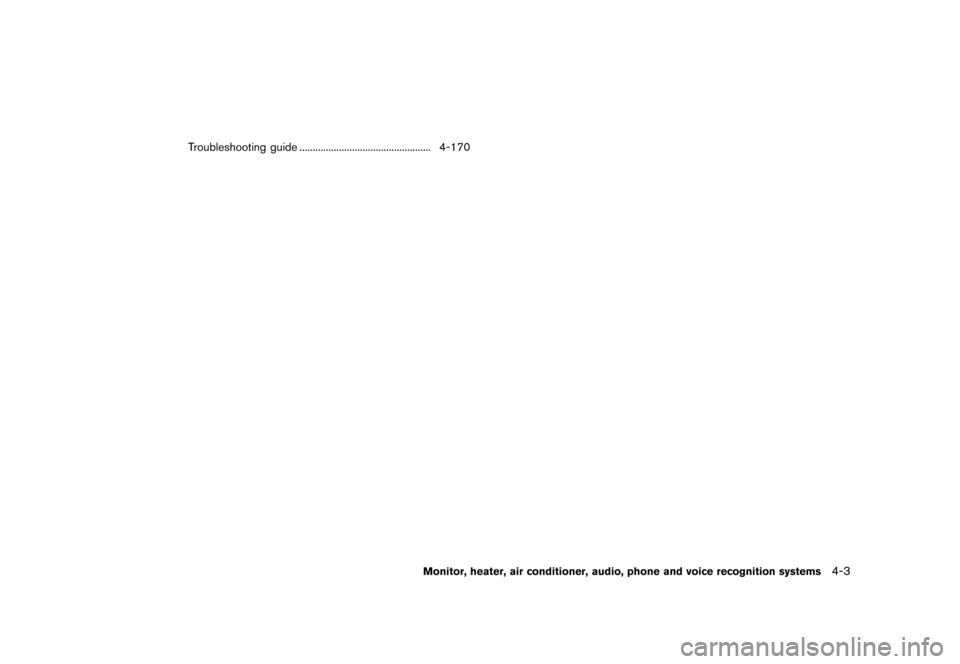

Troubleshooting guide...
.................................................. 4-170
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-3
&RQGLWLRQ


> (GLW    0RGHO (' @

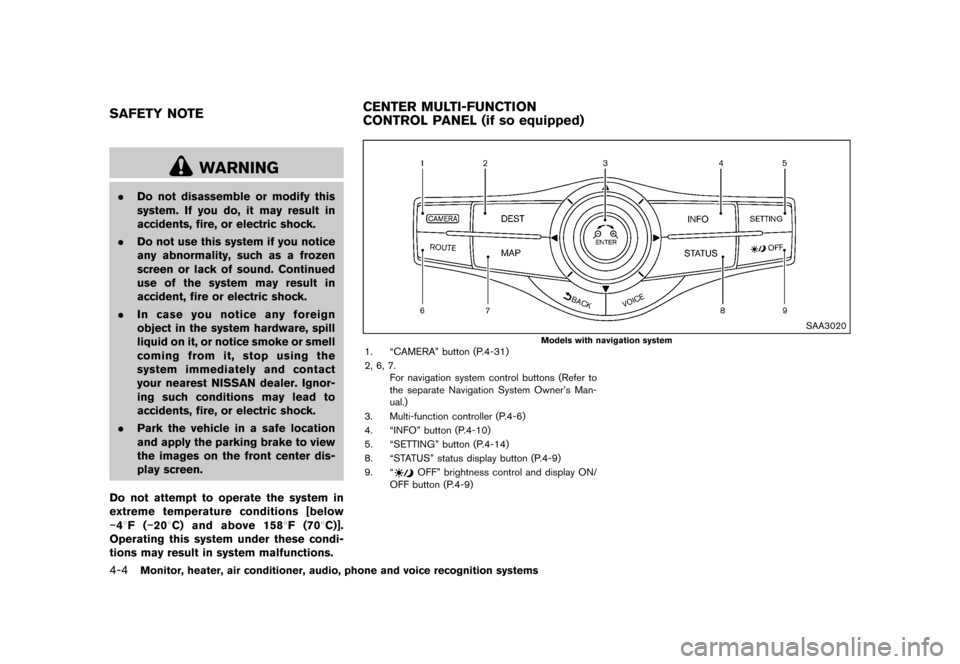

4-4Monitor, heater, air conditioner, audio, phone and voice recognition systems
GUID-9E91A2AF-7FD6-419C-9FB6-2BB1D192A590
WARNING
.Do not disassemble or modify this
system. If you do, it may result in
accidents, fire, or electric shock.
. Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in
accident, fire or electric shock.
. In case you notice any foreign
object in the system hardware, spill
liquid on it, or notice smoke or smell
coming from it, stop using the
system immediately and contact
your nearest NISSAN dealer. Ignor-
ing such conditions may lead to
accidents, fire, or electric shock.
. Park the vehicle in a safe location
and apply the parking brake to view
the images on the front center dis-
play screen.
Do not attempt to operate the system in
extreme temperature conditions [below


> (GLW    0RGHO (' @
SAA3613
Models without navigation system1. ªINFOº button (P.4-10)
2. ªSTATUSº status display button (P.4-9)
3. ªDISPº display setting button (P.4-14)
4. ª
º brightness UP button (P.4-9)
5. ª
ECONº button (P.4-10)
6. ªSETTINGº button (P.4-14)
7. Multi-function controller (P.4-6)
8. ª
OFFº brightness control and display ON/
OFF button (P.4-9)
9. ª
º brightness DOWN button (P.4-9)
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery and the engine may not start.
SAA3025
Models with navigation system
SAA3614
Models without navigation system
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-5
&RQGLWLRQ


> (GLW    0RGHO (' @
4-6Monitor, heater, air conditioner, audio, phone and voice recognition systems
HOW TO USE MULTI-FUNCTION
CONTROLLER
GUID-7E48C6E3-13FB-400D-A81F-BF7E3F9AA50BChoose an item on the display by rotating or
pushing the center dial
*1upward/ downward,
and push the ENTER button
*2for operation.
If you push the BACK button
*3before the
setup is completed, the setup will be canceled
and/or the display will return to the previous
screen. This button can also be used to delete
characters that have been input.
After the setup is completed, push the BACK
button
*3and return to the previous screen.
For the VOICE button
*4functions, refer to the
separate Navigation System Owner's Manual.
HOW TO USE TOUCH SCREEN
(models with navigation system)
GUID-341874AE-CB3F-4BF9-A452-77225AECC7B8
WARNING
. ALWAYS give your full attention to
driving.
. Avoid using vehicle features that
could distract you. If distracted,
you could lose control of your
vehicle and cause an accident.
CAUTION
.The glass screen on the liquid
crystal display may break if it is hit
with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
. To clean the display, use a soft, dry
cloth. If additional cleaning is ne-
cessary, use a small amount of
neutral detergent with a soft cloth.
Never use a rough cloth, alcohol,
benzine, thinner or any kind of
solvent or paper towel with a che-
mical cleaning agent. They will
scratch or deteriorate the panel.
. Do not splash any liquid such as
water or car fragrance on the dis-
play. Contact with liquid will cause
the system to malfunction.
To ensure safe driving, some functions cannot
be operated while driving.
The on-screen functions that are not available
while driving will be ªgrayed outº or muted.
Park the vehicle in a safe location and then
operate the navigation system.
SAA2473
Touch screen operationGUID-6C7F3DCF-7A3A-4832-B1C2-2CEC2C25F75EWith this system, the same operations as those
for the multi-function controller are possible
using the touch screen operation.
Selecting the item:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch an item to select it. To select the ªAudioº
settings, touch the ªAudioº area
*1on the
screen.
Touch the ªBACKº
*2button to return to the
previous screen.
&RQGLWLRQ


> (GLW    0RGHO (' @

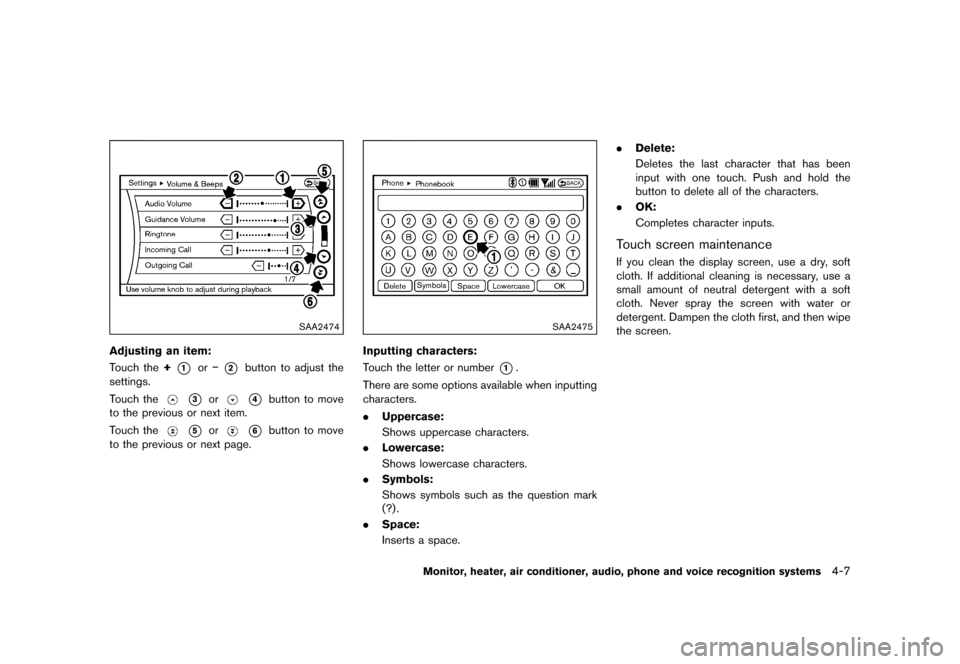

SAA2474
Adjusting an item:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Touch the+*1or


> (GLW    0RGHO (' @
4-8Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3673
MENU OPTIONS (models with naviga-
tion system)
GUID-8F3B6C5E-FAE9-415A-9ACD-618B61F5B9C7The start menu can be displayed using the menu
control switch on the steering-wheel-mounted
controls.
1.While the MAP or STATUS screen is
displayed, push and hold the menu control
switch until the ªMenu Optionsº screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
SAA2476
Available itemsGUID-3FA860EC-9FDE-4C31-8D7B-830C470BA446
Destination/Route:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407These items are for the navigation system. See
the separate Navigation System Owner's Man-
ual for details.
Info:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Displays the settings screen. It is the same
screen that appears when you push the
SETTING button.
SAA2477
Models with navigation system
JVH0179M
Models without navigation system
&RQGLWLRQ


> (GLW    0RGHO (' @

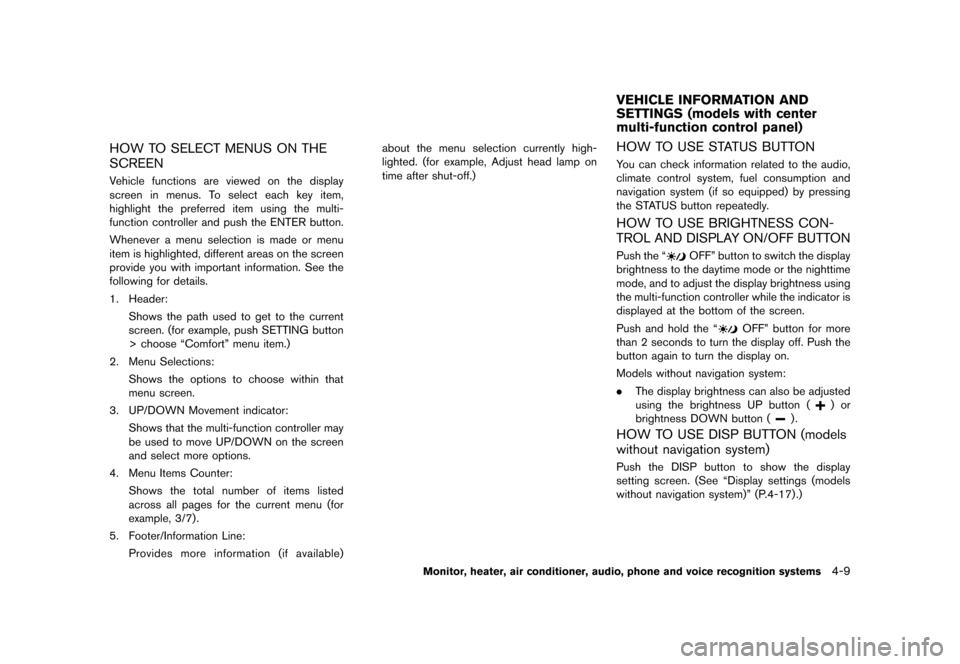

HOW TO SELECT MENUS ON THE
SCREEN
GUID-716D8DAB-A607-460F-8940-58011D08B09BVehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the multi-
function controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the screen
provide you with important information. See the
following for details.
1. Header:Shows the path used to get to the current
screen. (for example, push SETTING button
> choose ªComfortº menu item.)
2. Menu Selections: Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator: Shows that the multi-function controller may
be used to move UP/DOWN on the screen
and select more options.
4. Menu Items Counter: Shows the total number of items listed
across all pages for the current menu (for
example, 3/7) .
5. Footer/Information Line: Provides more information (if available) about the menu selection currently high-
lighted. (for example, Adjust head lamp on
time after shut-off.)
GUID-7BBC7C19-BC3A-4F90-83F0-4A61141D4E5AHOW TO USE STATUS BUTTONGUID-2540E297-82D5-49AA-93C3-3697B4CB844FYou can check information related to the audio,
climate control system, fuel consumption and
navigation system (if so equipped) by pressing
the STATUS button repeatedly.
HOW TO USE BRIGHTNESS CON-
TROL AND DISPLAY ON/OFF BUTTON
GUID-A4523688-0453-4924-B713-BBFFF57D6E1EPush the ªOFFº button to switch the display
brightness to the daytime mode or the nighttime
mode, and to adjust the display brightness using
the multi-function controller while the indicator is
displayed at the bottom of the screen.
Push and hold the ª
OFFº button for more
than 2 seconds to turn the display off. Push the
button again to turn the display on.
Models without navigation system:
. The display brightness can also be adjusted
using the brightness UP button (
) or
brightness DOWN button (
) .
HOW TO USE DISP BUTTON (models
without navigation system)
GUID-FEE84327-8387-4374-B2AA-46CF2799FB7FPush the DISP button to show the display
setting screen. (See ªDisplay settings (models
without navigation system)º (P.4-17).)
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-9
VEHICLE INFORMATION AND
SETTINGS (models with center
multi-function control panel)
&RQGLWLRQ


> (GLW    0RGHO (' @
4-10Monitor, heater, air conditioner, audio, phone and voice recognition systems
HOW TO USE ECON BUTTON (models
without navigation system)
GUID-00BE26B0-47BC-4792-B85C-524262B19770Push the ªECONº button to show fuel
economy information. (See ªHow to use INFO
buttonº (P.4-10).)
HOW TO USE INFO BUTTONGUID-9F37932C-DF63-48BE-9CF6-9207D61AAB92The display screen shows vehicle and navigation
information for your convenience.
The information shown on the screen should be
a guide to determine the condition of the vehicle.
See the following for details.
SAA2478
Models with navigation system
SAA1511
Models without navigation system
1. Push the INFO button on the control panel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the information on the following screens, push the BACK
button to return to the INFO menu.
See the separate Navigation System Owner's
Manual for the following items:
. Where am I?
. Traffic Info
. Weather Info
. Map Update
. Navigation Version
*When the ignition switch is in the ON position,
the ªNavigation Versionº key is displayed after
selecting the ªOthersº key.
