2015 NISSAN QUEST Owners Manual


> (GLW    0RGHO (' @

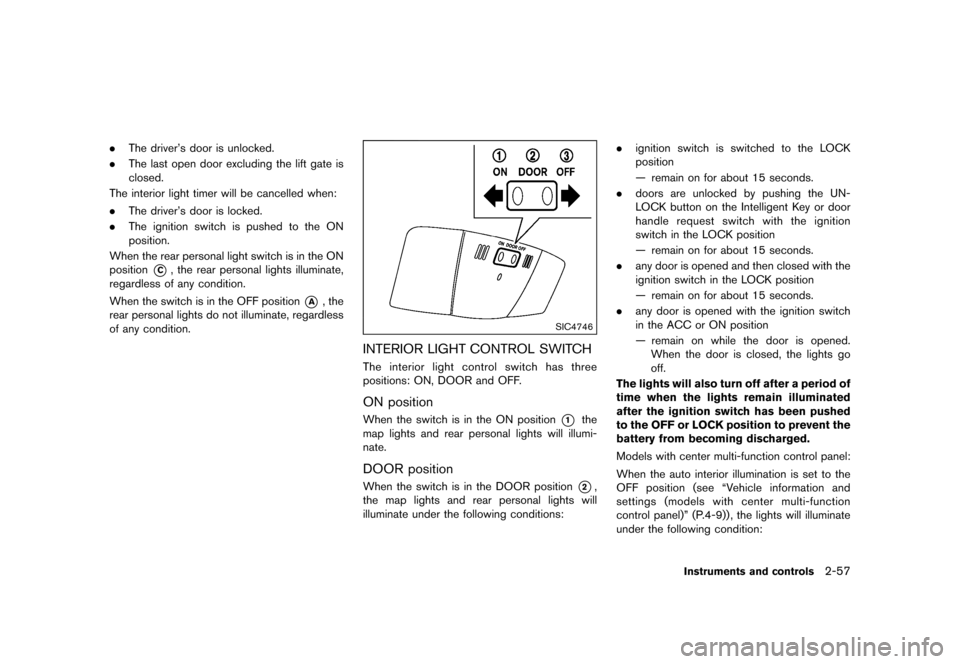

.The driver's door is unlocked.
. The last open door excluding the lift gate is
closed.
The interior light timer will be cancelled when:
. The driver's door is locked.
. The ignition switch is pushed to the ON
position.
When the rear personal light switch is in the ON
position
*C, the rear personal lights illuminate,
regardless of any condition.
When the switch is in the OFF position
*A, the
rear personal lights do not illuminate, regardless
of any condition.
SIC4746
INTERIOR LIGHT CONTROL SWITCHGUID-D34CF121-E823-48BC-AE90-42AF090DE2D0The interior light control switch has three
positions: ON, DOOR and OFF.
ON positionGUID-4BF6F47A-80E8-4E85-B391-088041B945A7When the switch is in the ON position*1the
map lights and rear personal lights will illumi-
nate.
DOOR positionGUID-6DC4E6E9-76A6-4D00-909F-12F819722D9BWhen the switch is in the DOOR position*2,
the map lights and rear personal lights will
illuminate under the following conditions: .
ignition switch is switched to the LOCK
position
Ð remain on for about 15 seconds.
. doors are unlocked by pushing the UN-
LOCK button on the Intelligent Key or door
handle request switch with the ignition
switch in the LOCK position
Ð remain on for about 15 seconds.
. any door is opened and then closed with the
ignition switch in the LOCK position
Ð remain on for about 15 seconds.
. any door is opened with the ignition switch
in the ACC or ON position
Ð remain on while the door is opened.
When the door is closed, the lights go
off.
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
Models with center multi-function control panel:
When the auto interior illumination is set to the
OFF position (see ªVehicle information and
settings (models with center multi-function
control panel)º (P.4-9)) , the lights will illuminate
under the following condition:
Instruments and controls2-57
&RQGLWLRQ


> (GLW    0RGHO (' @
2-58Instruments and controls

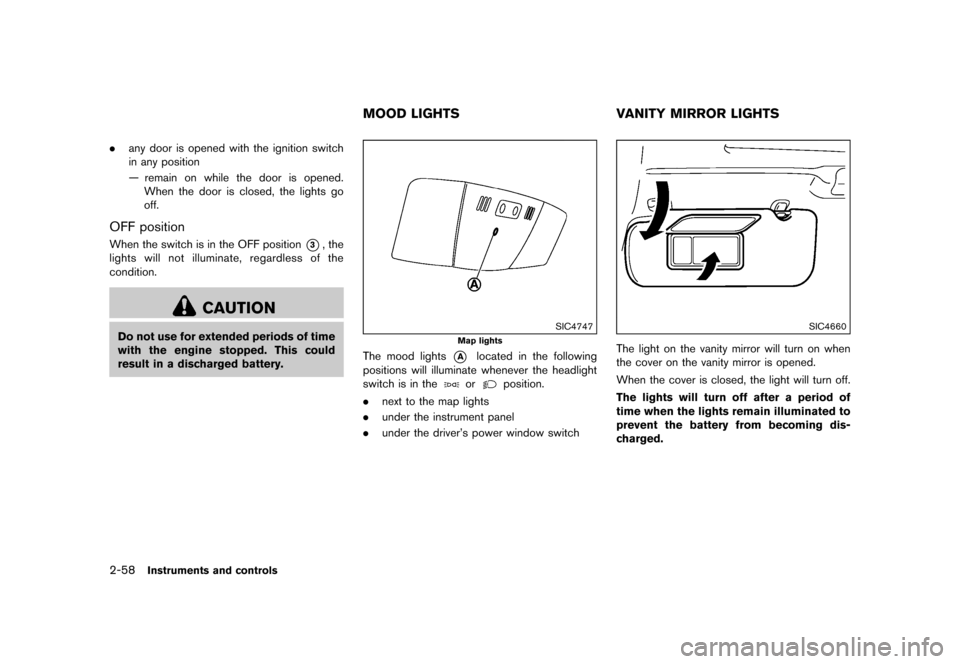

.any door is opened with the ignition switch
in any position
Ð remain on while the door is opened.
When the door is closed, the lights go
off.
OFF positionGUID-197D664B-84F7-45E5-AC9E-DB5ABB3978F4When the switch is in the OFF position*3, the
lights will not illuminate, regardless of the
condition.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could
result in a discharged battery.
GUID-3A69E32E-8217-4F99-803C-BB82226672A4
SIC4747
Map lights
The mood lights*Alocated in the following
positions will illuminate whenever the headlight
switch is in the
orposition.
. next to the map lights
. under the instrument panel
. under the driver's power window switch
GUID-5E0E5511-7965-47D6-BAE7-6D7DF580137C
SIC4660
The light on the vanity mirror will turn on when
the cover on the vanity mirror is opened.
When the cover is closed, the light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
MOOD LIGHTS VANITY MIRROR LIGHTS
&RQGLWLRQ


> (GLW    0RGHO (' @
GUID-61C79262-3671-4A21-8917-20AEB1ADD9A7
SIC2925
When the switch is in the DOOR position*A,
the light illuminates while the lift gate is opened.
When the lift gate is closed, the light will turn off.
When the switch is in the OFF position
*B, the
light will turn off.
The lights will turn off after a period of
time when the lights remain illuminated to
prevent the battery from becoming dis-
charged.
GUID-2A7177D1-CE10-4F5C-86AD-990CD5A71A4DThe HomeLink


> (GLW    0RGHO (' @
2-60Instruments and controls

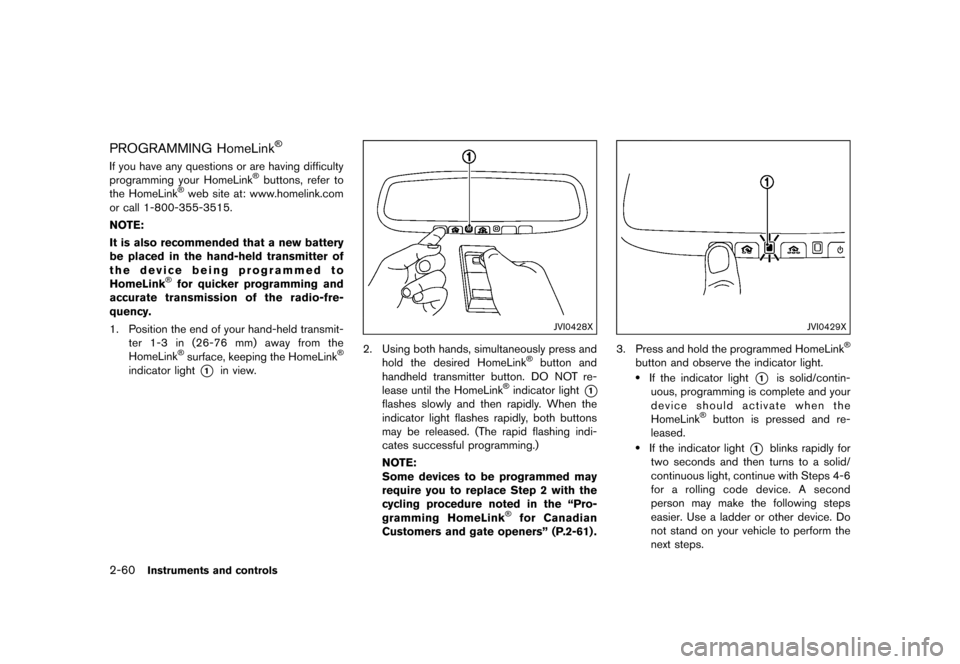

PROGRAMMING HomeLink


> (GLW    0RGHO (' @

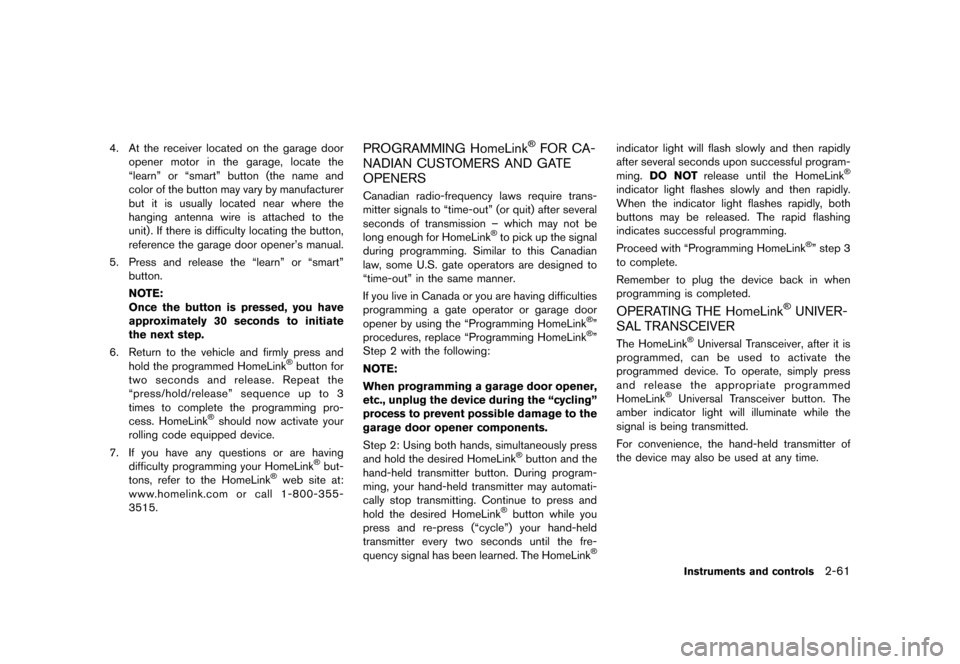

4. At the receiver located on the garage dooropener motor in the garage, locate the
ªlearnº or ªsmartº button (the name and
color of the button may vary by manufacturer
but it is usually located near where the
hanging antenna wire is attached to the
unit) . If there is difficulty locating the button,
reference the garage door opener's manual.
5. Press and release the ªlearnº or ªsmartº button.
NOTE:
Once the button is pressed, you have
approximately 30 seconds to initiate
the next step.
6. Return to the vehicle and firmly press and hold the programmed HomeLink


> (GLW    0RGHO (' @
2-62Instruments and controls

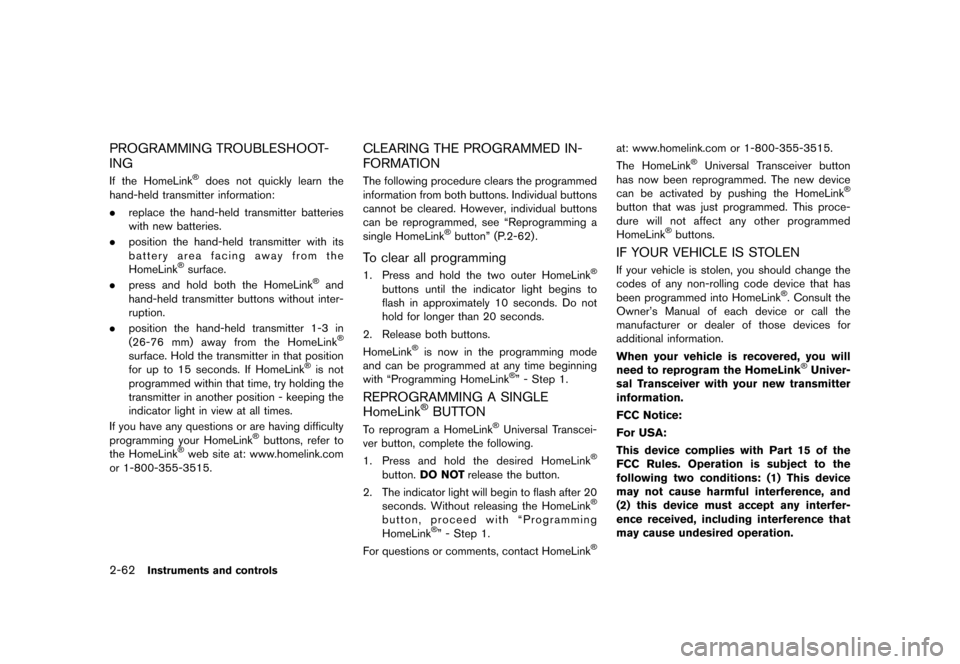

PROGRAMMING TROUBLESHOOT-
ING
GUID-A74B64CF-4A06-448A-A031-4FFBE07569D0If the HomeLink


> (GLW    0RGHO (' @

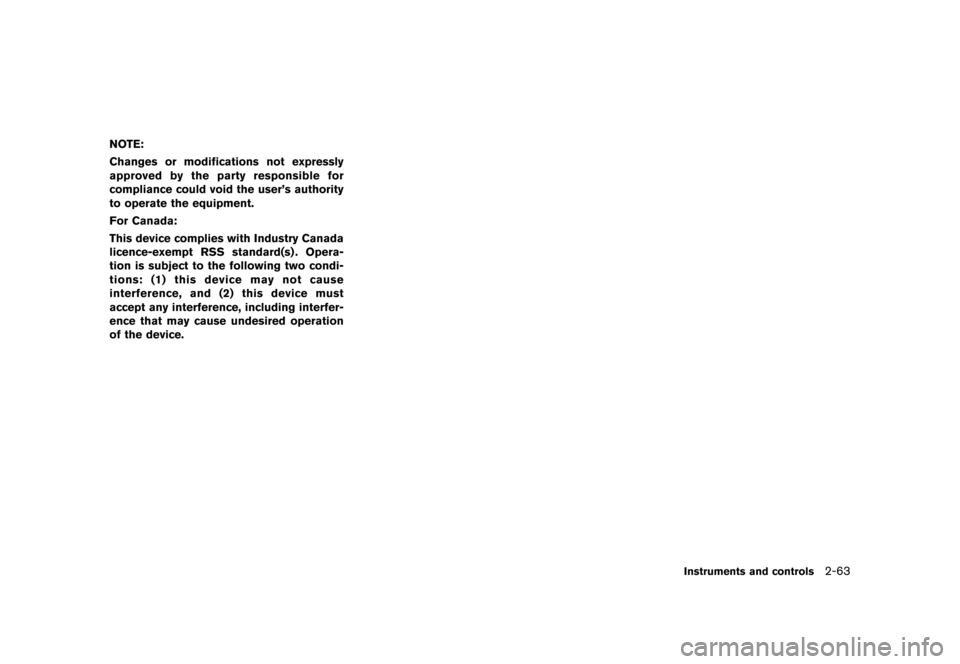

NOTE:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority
to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
Instruments and controls2-63
&RQGLWLRQ


> (GLW    0RGHO (' @
2-64Instruments and controls

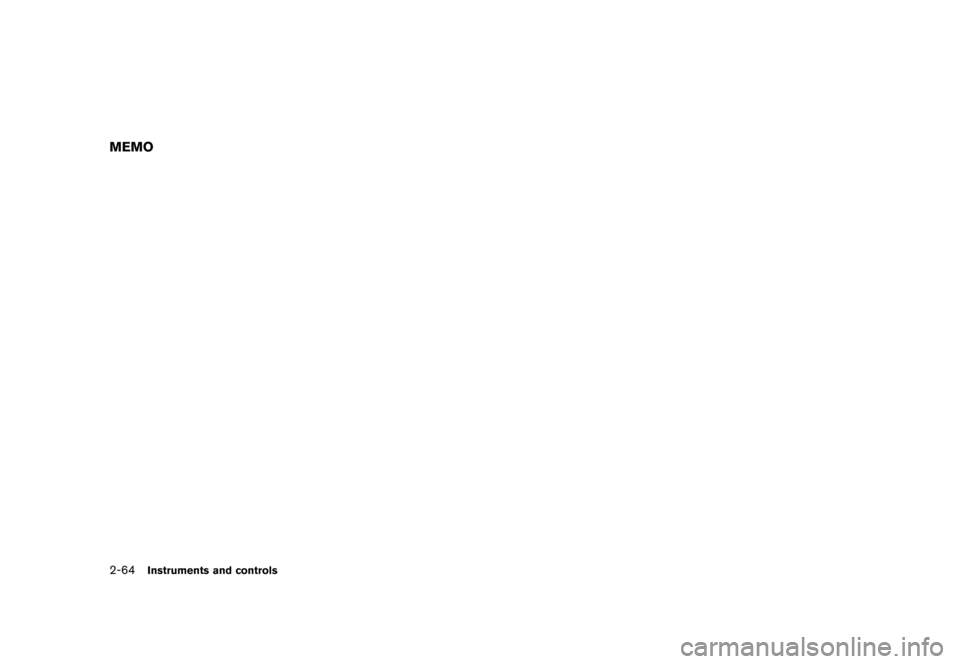

MEMO
&RQGLWLRQ
