2015 NISSAN QUEST Owners Manual


> (GLW    0RGHO (' @
SAA2525
RECEIVING A CALLGUID-F40E182B-7233-40B7-BF81-7AF4F052ECBBWhen you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
a) Select the ªAnswerº key.
b) Push the
button on the steering wheel.
There are some options available when receiving
a call. Select one of the following displayed on
the screen.
.Answer
Accept an incoming call to talk.
. Hold Call
Put an incoming call on hold. .
Reject Call
Reject an incoming call.
To finish the call, perform one of the
following procedures listed below.
a) Select the ªHang upº key.
b) Push the
button on the steering wheel.
SAA3587
DURING A CALLGUID-CD16AE29-C092-4D4C-B4F8-BE1BCA13F8E5There are some options available during a call.
Select one of the following displayed on the
screen if necessary.
.Hang up
Finish the call.
. Use Handset
Transfer the call to the cellular phone.
. Mute
Mute your voice to the person.
. Keypad
Using the touch tone, send digits to the
connected party for using services such as
voicemail.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-123
&RQGLWLRQ


> (GLW    0RGHO (' @
4-124Monitor, heater, air conditioner, audio, phone and voice recognition systems

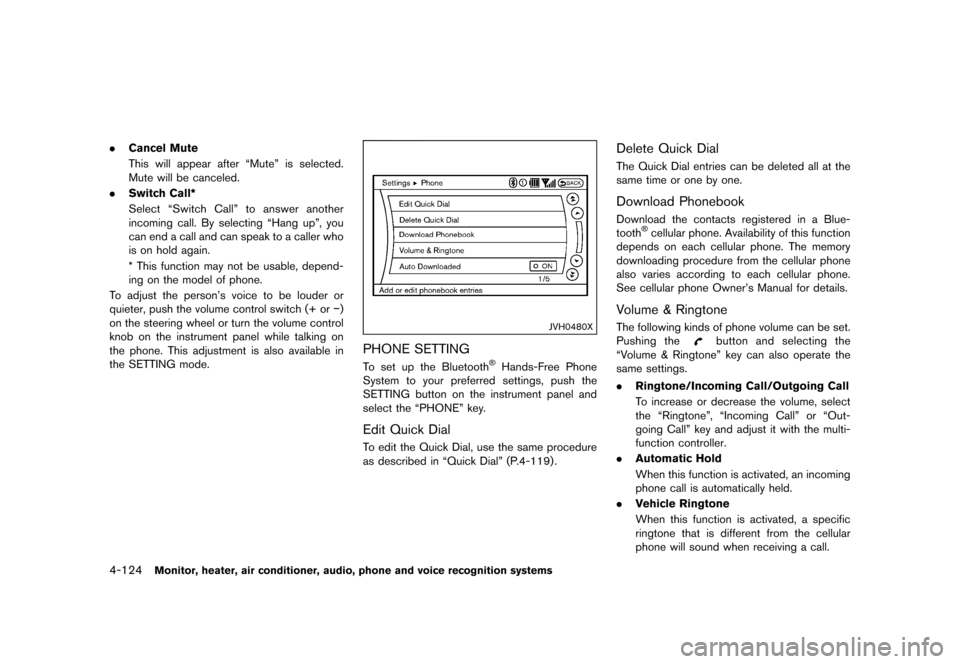

.Cancel Mute
This will appear after ªMuteº is selected.
Mute will be canceled.
. Switch Call*
Select ªSwitch Callº to answer another
incoming call. By selecting ªHang upº, you
can end a call and can speak to a caller who
is on hold again.
* This function may not be usable, depend-
ing on the model of phone.
To adjust the person's voice to be louder or
quieter, push the volume control switch (+ or


> (GLW    0RGHO (' @

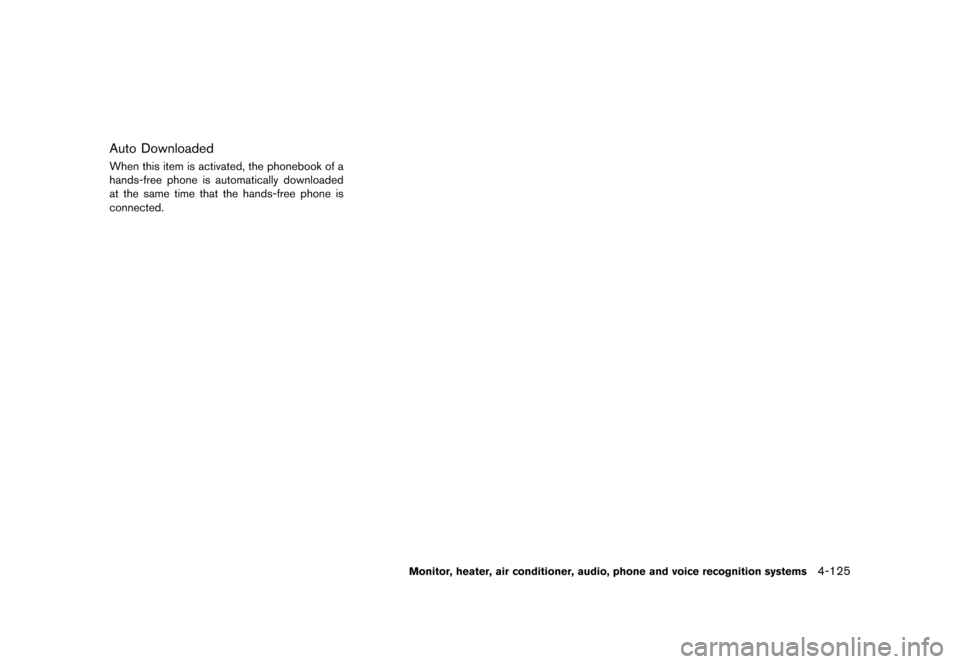

Auto DownloadedGUID-75043781-6D31-473A-AA5E-C5693BCE9F6CWhen this item is activated, the phonebook of a
hands-free phone is automatically downloaded
at the same time that the hands-free phone is
connected.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-125
&RQGLWLRQ


> (GLW    0RGHO (' @
4-126Monitor, heater, air conditioner, audio, phone and voice recognition systems

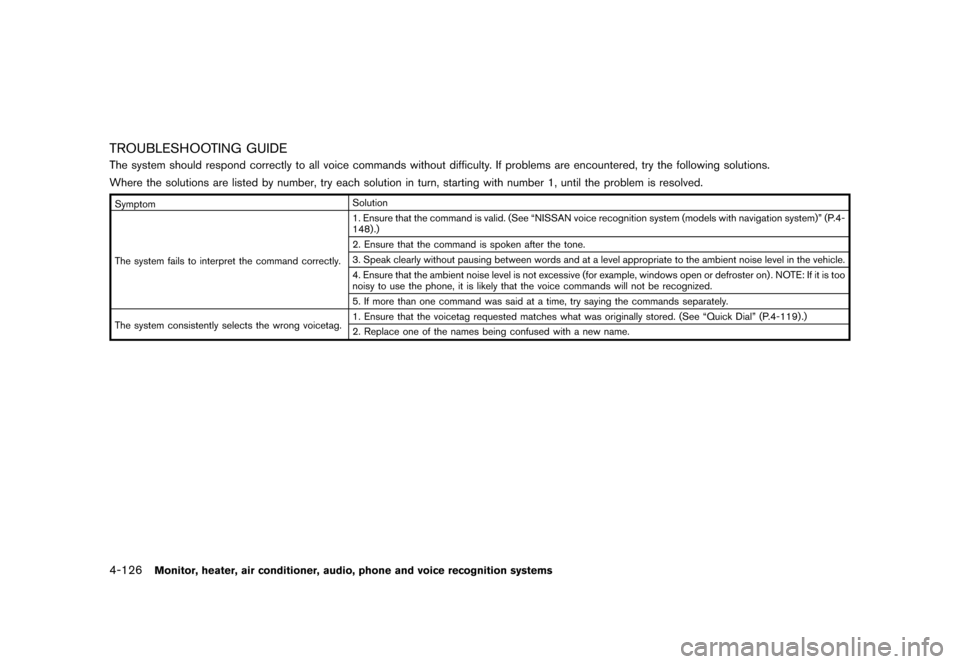

TROUBLESHOOTING GUIDEGUID-B762F3AA-D406-41E7-8EB6-DD02D266D9E5The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
SymptomSolution
The system fails to interpret the command correctly. 1. Ensure that the command is valid. (See ªNISSAN voice recognition system (models with navigation system)º (P.4-
148) .)
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too
noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
The system consistently selects the wrong voicetag. 1. Ensure that the voicetag requested matches what was originally stored. (See ªQuick Dialº (P.4-119) .)
2. Replace one of the names being confused with a new name.
&RQGLWLRQ


> (GLW    0RGHO (' @
GUID-CB2433AC-F184-4F3C-A0AF-4350B0B4D115* Type B is models without navigation
system/without text message function.
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
SAA3677
1. PHONE SENDbutton
2. PHONE END
button
Your NISSAN is equipped with the Bluetooth


> (GLW    0RGHO (' @
4-128Monitor, heater, air conditioner, audio, phone and voice recognition systems
.You will not be able to use a hands-free
phone under the following conditions:
Ð Your vehicle is outside of the telephone
service area.
Ð Your vehicle is in an area where it is difficult to receive radio waves; such as in
a tunnel, in an underground parking
garage, near a tall building or in a
mountainous area.
Ð Your cellular phone is locked to prevent it from being dialed.
. When the radio wave condition is not ideal
or ambient sound is too loud, it may be
difficult to hear the other person's voice
during a call.
. Immediately after the ignition switch is
pushed to the ON position, it may be
impossible to receive a call for a short
period of time.
. Do not place the cellular phone in an area
surrounded by metal or far away from the in-
vehicle phone module to prevent tone quality
degradation and wireless connection dis-
ruption.
. While a cellular phone is connected through
the Bluetooth


> (GLW    0RGHO (' @
Bluetooth trademark:
Bluetooth


> (GLW    0RGHO (' @
4-130Monitor, heater, air conditioner, audio, phone and voice recognition systems
Ð ªOne eight zero zero six six two six twooh ohº
. Words can be used for the first 4 digits
places only.
Example: 1-800-662-6200
Ð ªOne eight hundred six six two six two oh
ohº,
Ð NOT ªOne eight hundred six six two sixty two hundred, and
Ð NOT ªOne eight oh oh six six two sixty two hundred.
. Numbers can be spoken in small groups.
The system will prompt you to continuing
entering digits, if desired.
Example: 1-800-662-6200
Ð ªOne eight zero zeroº
The system repeats the numbers and
prompts you to enter more.
Ð ªsix six twoº The system repeats the numbers and
prompts you to enter more.
Ð ªsix two zero zeroº
. You can say ªStarº for ª*º and ªPoundº for
ª#º at any time in any position of the phone
number. (Available only when using the
ªSpecial Numberº command.)
Example: 1-555-1212 *123 Ð ªOne five five five one two one two star
one two threeº
. Say ªpoundº for ª#º. Say ªstarº for ª*º
(available when using the ªSpecial Numberº
command and the ªSendº command during
a call) .
. Say ªplusº for ª+º (available only when using
the ªSpecial Numberº command) .
. Say ªpauseº for a 2 second pause (available
only when storing a phone book number) .
See ªMaking a call by entering a phone
numberº (P.4-132) and ªList of voice com-
mandsº (P.4-133) for more information.
NOTE:
For best results, say phone numbers as
single digits.
The voice command ªHelpº is available at any
time. Please say the ªHelpº command to get
information about how to use the system.
INFO
. If you are controlling the telephone system
by voice command for the first time or do not
know the appropriate voice command,
speak ªHelpº. The system announces the
available commands.
. When you speak numbers, you can speak
both ªzeroº or ªohº for ª0º.Manual command selectionGUID-AEB01510-6F8C-44AC-B23E-16356BBFEA8ACommands can be selected manually. While the
commands are displayed on the screen, select a
command by operating the Tune switch, and
then push the
button. Once a command is
manually selected, the voice command function
is cancelled. To return to voice command mode,
push the
button to cancel the current
operation, and then perform the first procedure
of voice command.
