2015 NISSAN QUEST Owners Manual


> (GLW    0RGHO (' @

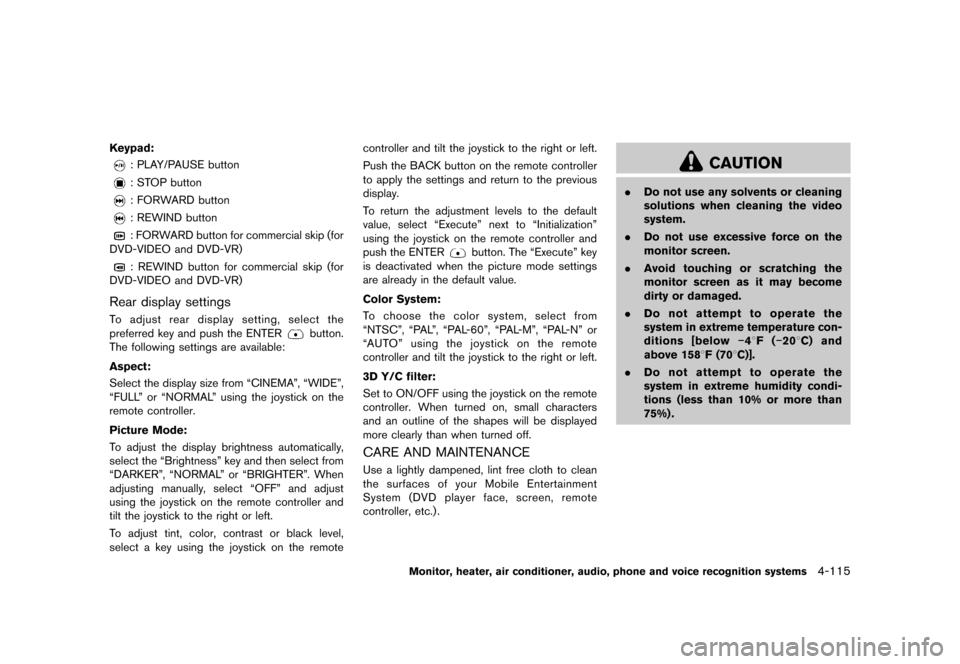

Keypad:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407: PLAY/PAUSE button
: STOP button
: FORWARD button
: REWIND button
: FORWARD button for commercial skip (for
DVD-VIDEO and DVD-VR)
: REWIND button for commercial skip (for
DVD-VIDEO and DVD-VR)
Rear display settingsGUID-00567E6D-1555-4281-8A99-57190FBFC391To adjust rear display setting, select the
preferred key and push the ENTER
button.
The following settings are available:
Aspect:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the display size from ªCINEMAº, ªWIDEº,
ªFULLº or ªNORMALº using the joystick on the
remote controller.
Picture Mode:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the display brightness automatically,
select the ªBrightnessº key and then select from
ªDARKERº, ªNORMALº or ªBRIGHTERº. When
adjusting manually, select ªOFFº and adjust
using the joystick on the remote controller and
tilt the joystick to the right or left.
To adjust tint, color, contrast or black level,
select a key using the joystick on the remote controller and tilt the joystick to the right or left.
Push the BACK button on the remote controller
to apply the settings and return to the previous
display.
To return the adjustment levels to the default
value, select ªExecuteº next to ªInitializationº
using the joystick on the remote controller and
push the ENTER
button. The ªExecuteº key
is deactivated when the picture mode settings
are already in the default value.
Color System:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To choose the color system, select from
ªNTSCº, ªPALº, ªPAL-60º, ªPAL-Mº, ªPAL-Nº or
ªAUTOº using the joystick on the remote
controller and tilt the joystick to the right or left.
3D Y/C filter:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Set to ON/OFF using the joystick on the remote
controller. When turned on, small characters
and an outline of the shapes will be displayed
more clearly than when turned off.
CARE AND MAINTENANCEGUID-A7F955DE-E9EA-46F4-9DFB-E580911AB596Use a lightly dampened, lint free cloth to clean
the surfaces of your Mobile Entertainment
System (DVD player face, screen, remote
controller, etc.) .
CAUTION
. Do not use any solvents or cleaning
solutions when cleaning the video
system.
. Do not use excessive force on the
monitor screen.
. Avoid touching or scratching the
monitor screen as it may become
dirty or damaged.
. Do not attempt to operate the
system in extreme temperature con-
ditions [below


> (GLW    0RGHO (' @
4-116Monitor, heater, air conditioner, audio, phone and voice recognition systems

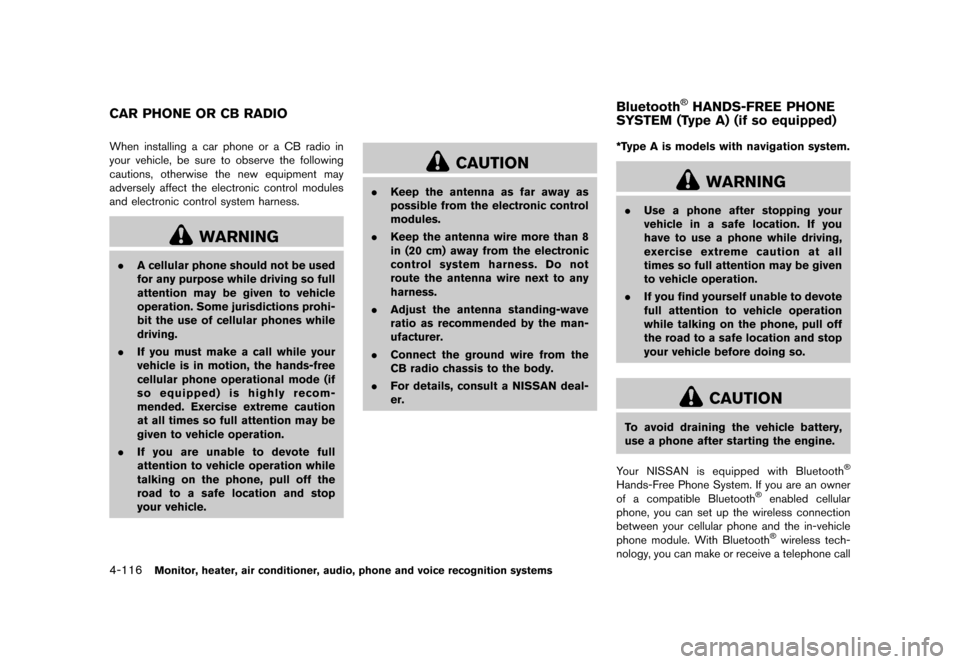

GUID-105D6E67-2A52-412D-A202-BB6065AD5B2BWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN deal-
er.
GUID-983C61FF-2D71-4F38-99B2-426D4B127A2D*Type A is models with navigation system.
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your NISSAN is equipped with Bluetooth


> (GLW    0RGHO (' @
with your cellular phone in your pocket.
Once a cellular phone is connected to the in-
vehicle phone module, no phone connecting
procedure is required anymore. Your phone is
automatically connected with the in-vehicle
phone module when the ignition switch is
pushed to the ON position with the registered
cellular phone turned on and carried in the
vehicle.
You can register up to 5 different Bluetooth


> (GLW    0RGHO (' @
4-118Monitor, heater, air conditioner, audio, phone and voice recognition systems

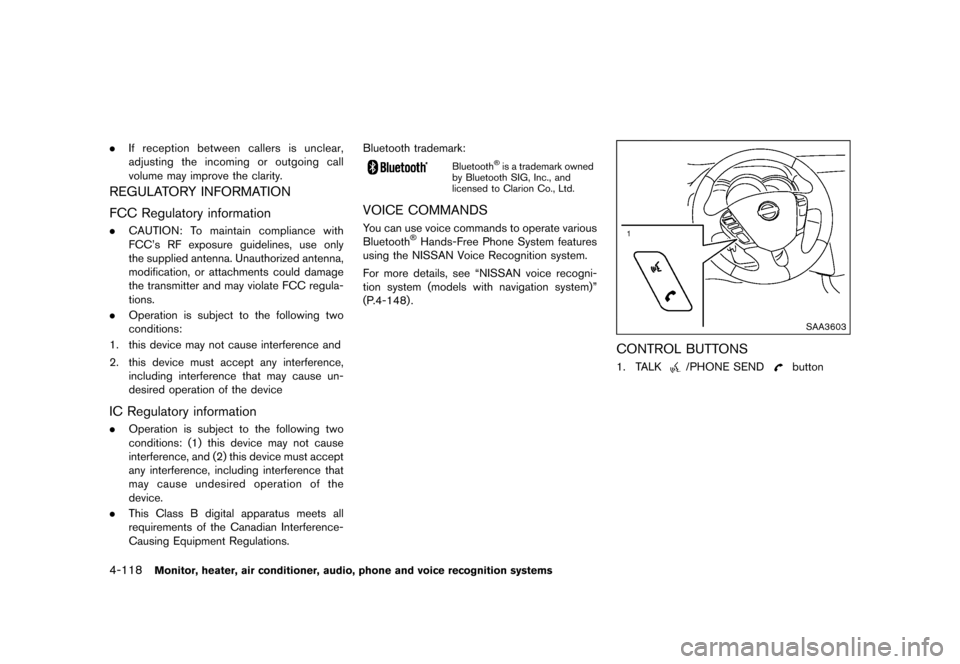

.If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.
REGULATORY INFORMATIONGUID-862365A4-73C3-4F77-A5BF-38C30FE38AAE
FCC Regulatory informationGUID-FB6526D6-1BE9-483D-95DB-A49FA94DDF01.CAUTION: To maintain compliance with
FCC's RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
. Operation is subject to the following two
conditions:
1. this device may not cause interference and
2. this device must accept any interference, including interference that may cause un-
desired operation of the device
IC Regulatory informationGUID-D053C761-A3AB-4F99-99B1-35EAE4E4988A.Operation is subject to the following two
conditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
. This Class B digital apparatus meets all
requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
Bluetooth


> (GLW    0RGHO (' @
JVH0473X

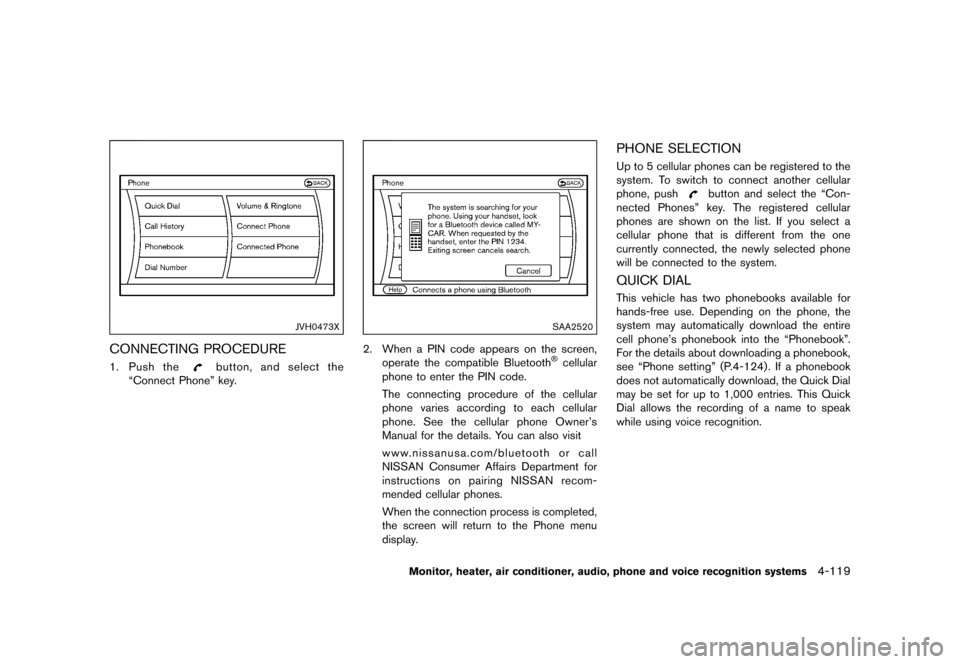

CONNECTING PROCEDUREGUID-21176BFE-792B-4765-B92B-3205D8DDC7DE1.Push thebutton, and select the
ªConnect Phoneº key.
SAA2520
2. When a PIN code appears on the screen,
operate the compatible Bluetooth


> (GLW    0RGHO (' @
4-120Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH0474X

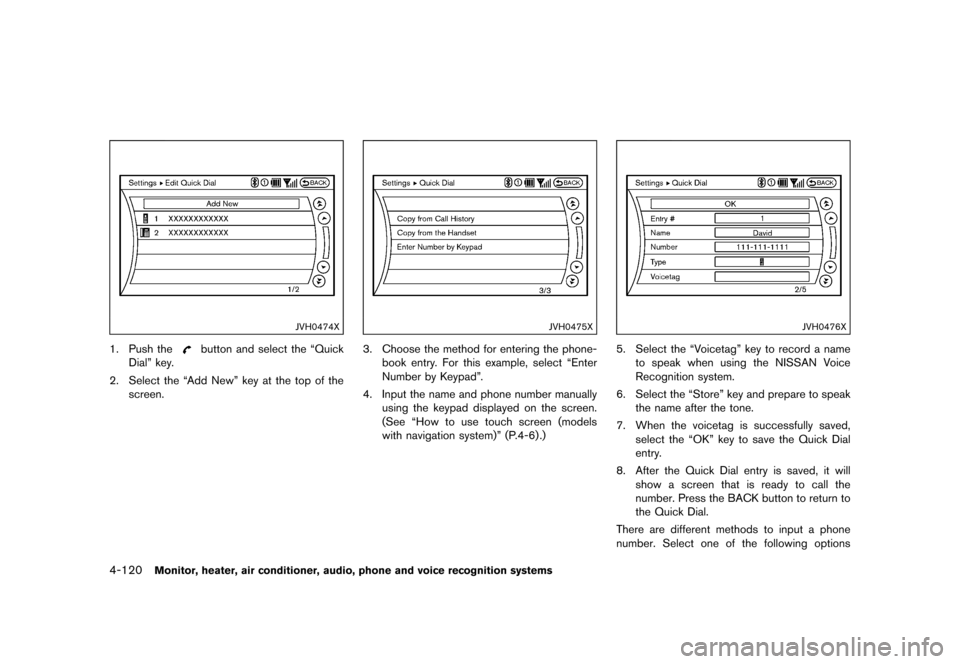

1. Push thebutton and select the ªQuick
Dialº key.
2. Select the ªAdd Newº key at the top of the screen.
JVH0475X
3. Choose the method for entering the phone-
book entry. For this example, select ªEnter
Number by Keypadº.
4. Input the name and phone number manually using the keypad displayed on the screen.
(See ªHow to use touch screen (models
with navigation system)º (P.4-6) .)
JVH0476X
5. Select the ªVoicetagº key to record a name
to speak when using the NISSAN Voice
Recognition system.
6. Select the ªStoreº key and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select the ªOKº key to save the Quick Dial
entry.
8. After the Quick Dial entry is saved, it will show a screen that is ready to call the
number. Press the BACK button to return to
the Quick Dial.
There are different methods to input a phone
number. Select one of the following options
&RQGLWLRQ


> (GLW    0RGHO (' @

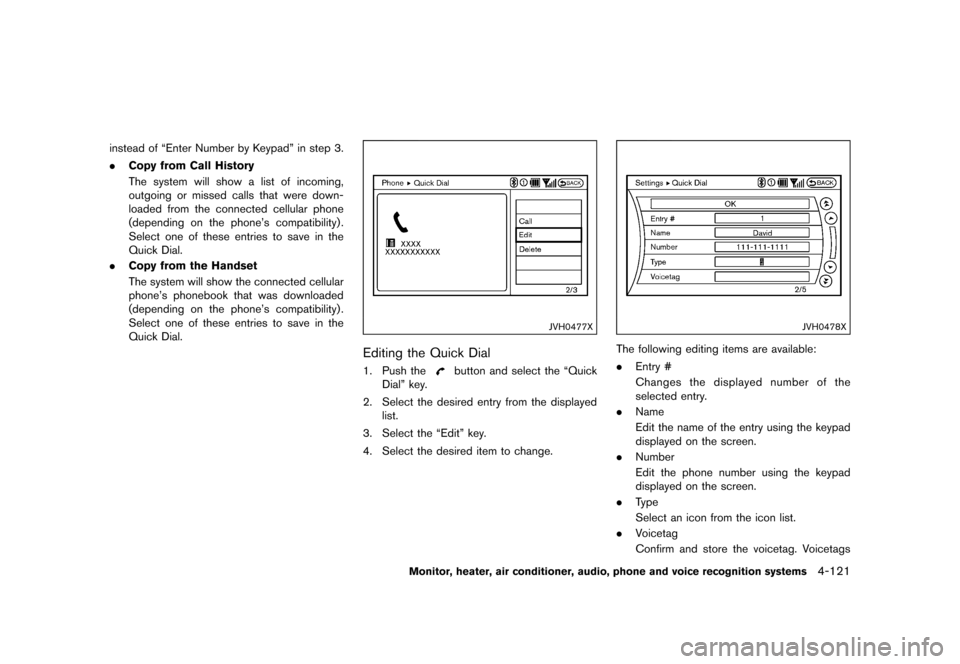

instead of ªEnter Number by Keypadº in step 3.
.Copy from Call History
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
. Copy from the Handset
The system will show the connected cellular
phone's phonebook that was downloaded
(depending on the phone's compatibility) .
Select one of these entries to save in the
Quick Dial.
JVH0477X
Editing the Quick DialGUID-DCA53C75-BAF5-473E-9820-3B6F07F337A61. Push thebutton and select the ªQuick
Dialº key.
2. Select the desired entry from the displayed list.
3. Select the ªEditº key.
4. Select the desired item to change.
JVH0478X
The following editing items are available:
. Entry #
Changes the displayed number of the
selected entry.
. Name
Edit the name of the entry using the keypad
displayed on the screen.
. Number
Edit the phone number using the keypad
displayed on the screen.
. Type
Select an icon from the icon list.
. Voicetag
Confirm and store the voicetag. Voicetags
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-121
&RQGLWLRQ


> (GLW    0RGHO (' @
4-122Monitor, heater, air conditioner, audio, phone and voice recognition systems

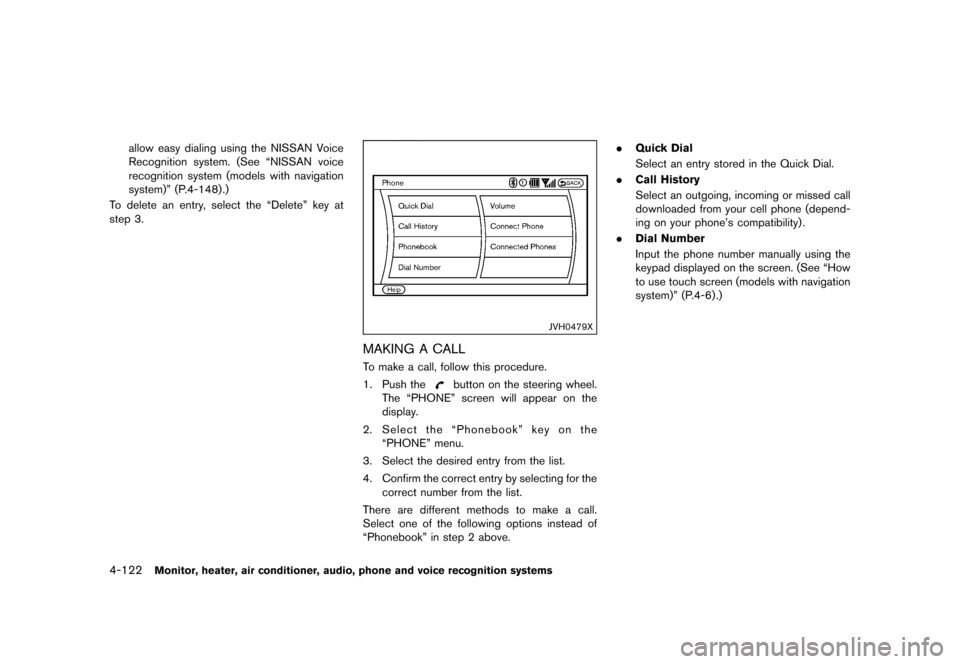

allow easy dialing using the NISSAN Voice
Recognition system. (See ªNISSAN voice
recognition system (models with navigation
system)º (P.4-148) .)
To delete an entry, select the ªDeleteº key at
step 3.
JVH0479X
MAKING A CALLGUID-5F54DB75-9326-47BC-A871-B23ED8640ECDTo make a call, follow this procedure.
1. Push the
button on the steering wheel.
The ªPHONEº screen will appear on the
display.
2. Select the ªPhonebookº key on the
ªPHONEº menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for the correct number from the list.
There are different methods to make a call.
Select one of the following options instead of
ªPhonebookº in step 2 above. .
Quick Dial
Select an entry stored in the Quick Dial.
. Call History
Select an outgoing, incoming or missed call
downloaded from your cell phone (depend-
ing on your phone's compatibility) .
. Dial Number
Input the phone number manually using the
keypad displayed on the screen. (See ªHow
to use touch screen (models with navigation
system)º (P.4-6) .)
&RQGLWLRQ
