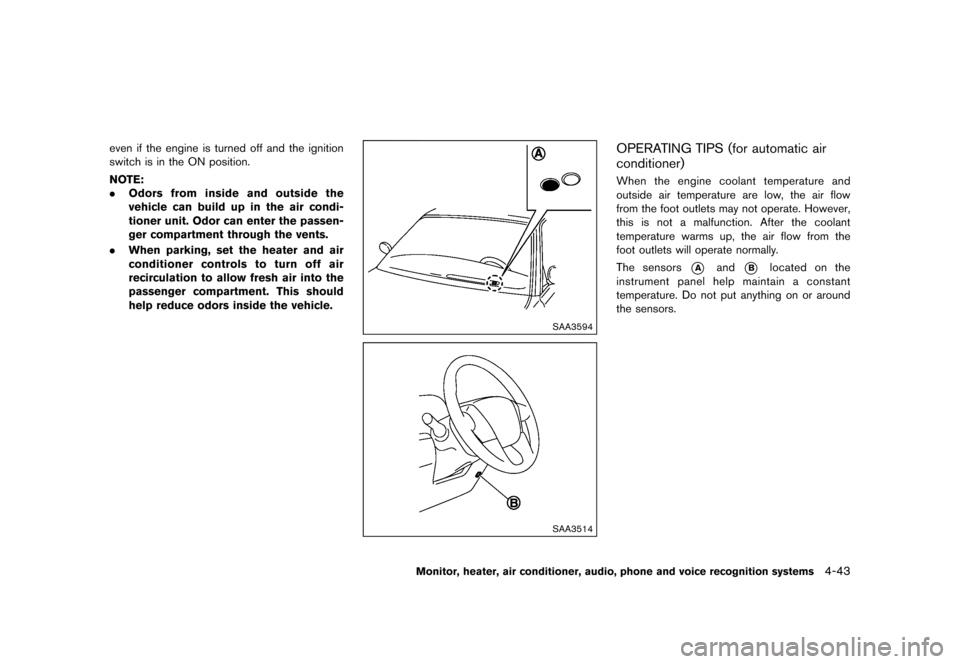

even if the engine is turned off and the ignition
switch is in the ON position.
NOTE:
.Odors from inside and outside the
vehicle can build up in the air condi-
tioner unit. Odor can enter the passen-
ger compartment through the vents.
. When parking, set the heater and air
conditioner controls to turn off air
recirculation to allow fresh air into the
passenger compartment. This should
help reduce odors inside the vehicle.
SAA3594
SAA3514
OPERATING TIPS (for automatic air
conditioner)
GUID-AE24D3AF-44E9-4C60-BD45-827C7F5E7293When the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate. However,
this is not a malfunction. After the coolant
temperature warms up, the air flow from the
foot outlets will operate normally.
The sensors
*Aand*Blocated on the
instrument panel help maintain a constant
temperature. Do not put anything on or around
the sensors.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-43
&RQGLWLRQ


> (GLW    0RGHO (' @
4-44Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA3596
1. Temperature control buttons
2. ª
º air recirculation button
3. ª
º outside air circulation button
4. ª
FRONTº front defroster button
5. Display
6. ª
REARº rear window defroster button (See
ªRear window and outside mirror defroster
switchº (P.2-32) .) 7. ª
º and ªº fan speed control
buttons
8. ªON´OFFº button for air conditioning system
9. ªMODEº air flow control button
10. ªA/Cº air conditioner ON/OFF button
11. ªREARº control button
MANUAL AIR CONDITIONERGUID-CD7203EA-9307-4995-82E3-BD3B0296D19F
ControlsGUID-A04F8617-DF9F-4F48-BC23-EDEDEDFFC3B1To turn off the heater and air conditioner, push
the ªON´OFFº button.
Fan speed control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the fan speed control button ªº to
increase the fan speed.
Push the fan speed control button ª
º to
decrease the fan speed.
A/C (Air Conditioner) operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the A/C button to turn on or off the air
conditioner. When the air conditioner is on, the
A/C indicator light on the button illuminates.
Air flow control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ªMODEº button to change the air flow
mode.
: Air flows from the center and side ventila- tors.
: Air flows from the center and side ventila-tors, and foot outlets.
: Air flows mainly from the foot outlets.
: Air flows from the defroster and foot outlets.
Temperature control:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the temperature control buttons (ªº
and ª
º) to set the desired temperature.
&RQGLWLRQ


> (GLW    0RGHO (' @
Air recirculation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the air recirculation ªº button to
recirculate interior air inside the vehicle. The
indicator light on the air recirculation ª
º
button will illuminate.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting
mode.
Outside air circulation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the outside air circulation ªº button to
draw outside air into the passenger compart-
ment. The indicator light on the outside air
circulation ª
º button will turn on.
Heater operationGUID-30BF5593-2EBA-4BDC-997C-19DD23B575D5
Heating:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to direct heated air to the foot
outlets.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
mode.
3. Push the fan speed control buttons to set the desired fan speed.
4. Push the temperature control buttons to set the desired temperature between the middle
and the hot position. Ventilation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs outside air to the side and
center ventilators.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
mode.
3. Push the fan speed control
buttons to
set the desired position.
Bi-level heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode directs cool air from the side and
center vents and warm air from the foot outlets.
When the temperature is set to the maximum hot
or cool position, the air between the ventilators
and the foot outlets is the same temperature.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
mode.
3. Push the fan speed control buttons to set the desired fan speed.
4. Push the temperature control buttons to set the desired temperature. Heating and defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode heats the interior and defogs the
windows.
1. Push the air flow control button to change to
the
mode.
2. Push the fan speed control
buttons to
set the desired fan speed.
3. Push the temperature control buttons to set the desired temperature.
When the
mode is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows.
Air conditioner operationGUID-803CA434-5D0E-4D2D-BEE1-1F3BD1B898F7The air conditioner system should be operated
for approximately 10 minutes at least once a
month. This helps prevent damage to the air
conditioner system due to the lack of lubrication.
Cooling:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to cool and dehumidify the air.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
mode.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-45
&RQGLWLRQ


> (GLW    0RGHO (' @
4-46Monitor, heater, air conditioner, audio, phone and voice recognition systems
3. Push the fan speed control buttons to setthe desired fan speed.
4. Push the A/C button on. (The A/C indicator light will illuminate.)
5. Push the temperature control buttons to set the desired temperature between the middle
and the cool position.
. For quick cooling when the outside tem-
perature is high, push the air recirculation
button to switch to the air recirculation
mode. (The indicator light turns on.) Be sure
to turn off the air recirculation mode for
normal cooling.
. A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air
is cooled rapidly. This does not indicate a
malfunction.
Dehumidified heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to heat and dehumidify the
air.
1. Push the outside air circulation ª
º button
to switch to the outside air circulation mode.
(The indicator light turns on.)
2. Push the air flow control button to change to the
position.
3. Push the fan speed control buttons to the desired fan speed. 4. Push the A/C button on. (The A/C indicator
light will illuminate.)
5. Push the temperature control buttons to set the desired temperature between the middle
and the hot position.
Dehumidified or defrosting/defogging:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This mode is used to defog the windows and
dehumidify the air.
1. Push the front defroster button
on. (The
indicator light turns on.)
2. Push the fan speed control buttons to set the desired fan speed.
3. Push the temperature control buttons to set the desired temperature.
When the
mode is selected, the air
conditioner will automatically turn on. This will
dehumidify the air and help to defog the
windows.
To remove frost from the outside surface of the
windshield quickly, set the temperature to the
maximum hot position and the fan speed to
maximum position.
Rear air conditioning systemGUID-3B39B36B-520E-49C6-9C2A-A84AF85A5776
Operating from front control buttons:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To control the rear air conditioning system
independently with the front air conditioner
control panel, push the ªREARº button. When
the rear air conditioning system control is on, the
indicator light on the ªREARº button will
illuminate and ªREARº will appear on the display.
In this state, the rear air conditioning system can
be adjusted with the front air conditioner control
panel. However, if no operation is conducted for
approximately 10 seconds after the ªREARº
button is pushed, the front air conditioner
control panel will automatically switch to the
front air conditioning mode.
To cancel the rear air conditioning mode and
switch back to the front air conditioning mode,
push ªREARº button one more time.
. Temperature control
Push the temperature control buttons
(ª
º and ªº) to set the desired
temperature.
. Fan speed control
Push the fan speed control ª
º
button or ª
º button to control the
fan speed.
. Air flow control
Push the ªMODEº button to change the air
&RQGLWLRQ


> (GLW    0RGHO (' @

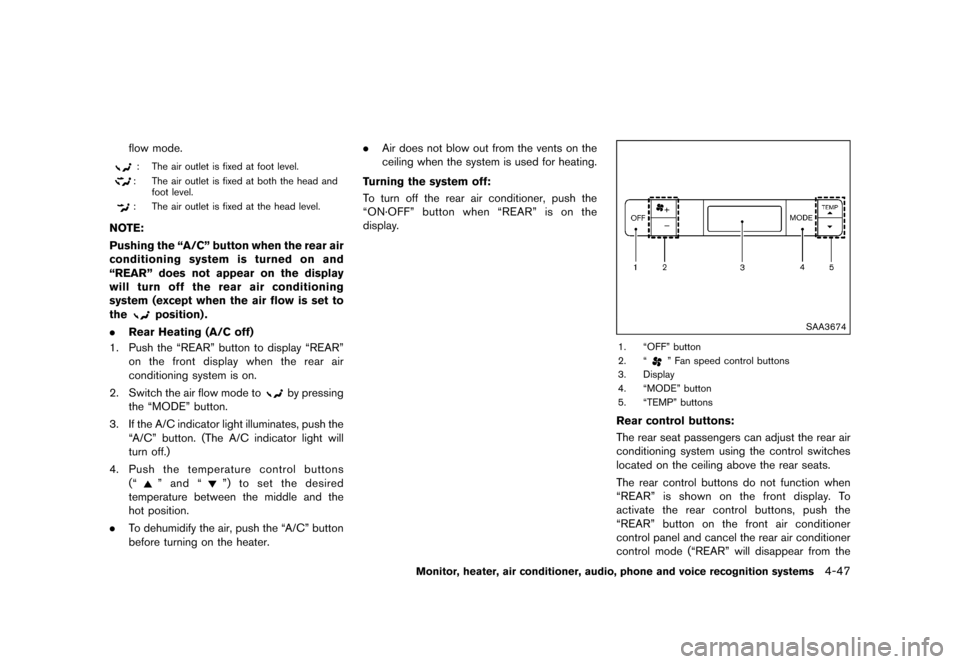

flow mode.
: The air outlet is fixed at foot level.
: The air outlet is fixed at both the head andfoot level.
: The air outlet is fixed at the head level.
NOTE:
Pushing the ªA/Cº button when the rear air
conditioning system is turned on and
ªREARº does not appear on the display
will turn off the rear air conditioning
system (except when the air flow is set to
the
position) .
. Rear Heating (A/C off)
1. Push the ªREARº button to display ªREARº on the front display when the rear air
conditioning system is on.
2. Switch the air flow mode to
by pressing
the ªMODEº button.
3. If the A/C indicator light illuminates, push the ªA/Cº button. (The A/C indicator light will
turn off.)
4. Push the temperature control buttons
(ª
º and ªº) to set the desired
temperature between the middle and the
hot position.
. To dehumidify the air, push the ªA/Cº button
before turning on the heater. .
Air does not blow out from the vents on the
ceiling when the system is used for heating.
Turning the system off:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To turn off the rear air conditioner, push the
ªON´OFFº button when ªREARº is on the
display.
SAA3674
1. ªOFFº button
2. ª
º Fan speed control buttons
3. Display
4. ªMODEº button
5. ªTEMPº buttons
Rear control buttons:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The rear seat passengers can adjust the rear air
conditioning system using the control switches
located on the ceiling above the rear seats.
The rear control buttons do not function when
ªREARº is shown on the front display. To
activate the rear control buttons, push the
ªREARº button on the front air conditioner
control panel and cancel the rear air conditioner
control mode (ªREARº will disappear from the
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-47
&RQGLWLRQ


> (GLW    0RGHO (' @
4-48Monitor, heater, air conditioner, audio, phone and voice recognition systems
front display) .
ªOFFº button: Turns off the rear air conditioning
system.
ª
º Fan speed control buttons: Adjust rear
fan speed
ªMODEº button: Changes the rear air flow
ªTEMPº buttons: Adjust the rear temperature
&RQGLWLRQ


> (GLW    0RGHO (' @

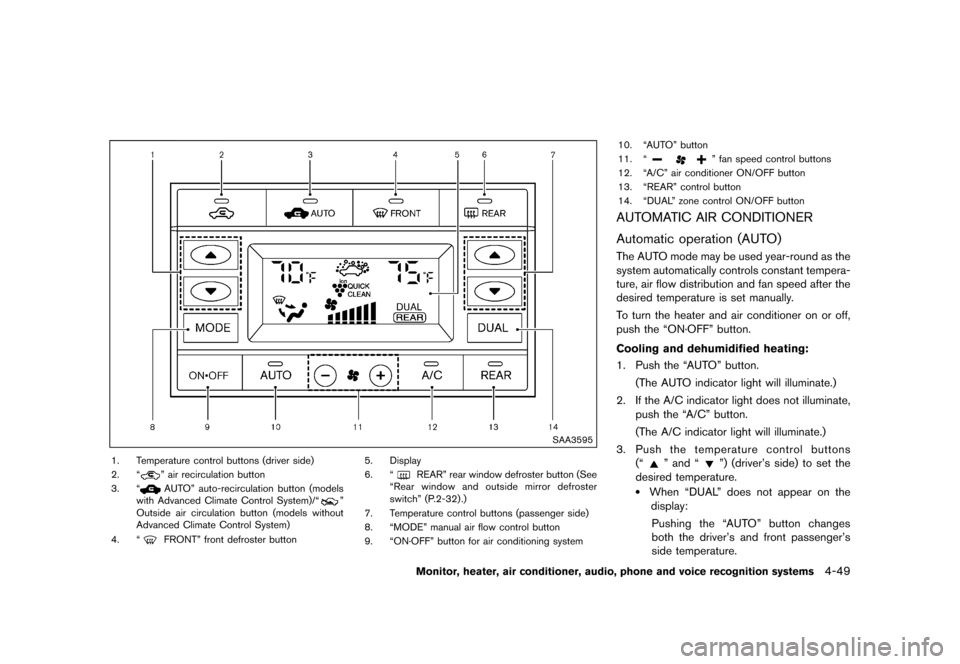

SAA3595
1. Temperature control buttons (driver side)
2. ª
º air recirculation button
3. ª
AUTOº auto-recirculation button (models
with Advanced Climate Control System)/ªº
Outside air circulation button (models without
Advanced Climate Control System)
4. ª
FRONTº front defroster button 5. Display
6. ª
REARº rear window defroster button (See
ªRear window and outside mirror defroster
switchº (P.2-32) .)
7. Temperature control buttons (passenger side)
8. ªMODEº manual air flow control button
9. ªON´OFFº button for air conditioning system 10. ªAUTOº button
11. ª
º fan speed control buttons
12. ªA/Cº air conditioner ON/OFF button
13. ªREARº control button
14. ªDUALº zone control ON/OFF button
AUTOMATIC AIR CONDITIONERGUID-26808BE2-2D7D-4D4F-81C9-3D2D1185C3FD
Automatic operation (AUTO)GUID-D3349AE0-1D21-4681-9BC9-F5E415C17B3AThe AUTO mode may be used year-round as the
system automatically controls constant tempera-
ture, air flow distribution and fan speed after the
desired temperature is set manually.
To turn the heater and air conditioner on or off,
push the ªON´OFFº button.
Cooling and dehumidified heating:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the ªAUTOº button.
(The AUTO indicator light will illuminate.)
2. If the A/C indicator light does not illuminate, push the ªA/Cº button.
(The A/C indicator light will illuminate.)
3. Push the temperature control buttons
(ª
º and ªº) (driver's side) to set the
desired temperature.
.When ªDUALº does not appear on the display:
Pushing the ªAUTOº button changes
both the driver's and front passenger's
side temperature.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-49
&RQGLWLRQ


> (GLW    0RGHO (' @

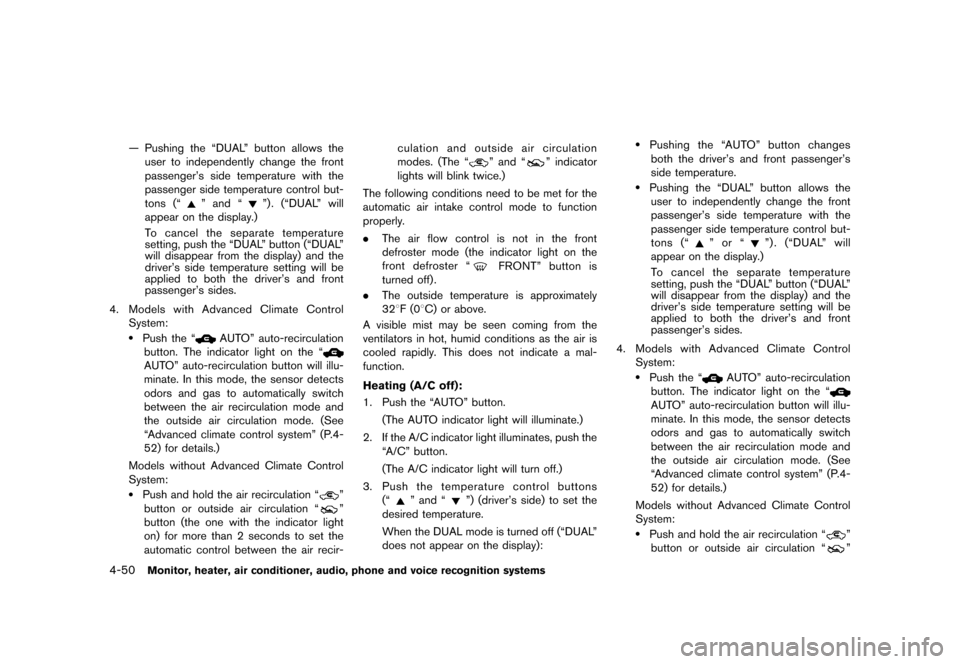

4-50Monitor, heater, air conditioner, audio, phone and voice recognition systems
Ð Pushing the ªDUALº button allows theuser to independently change the front
passenger's side temperature with the
passenger side temperature control but-
tons (ª
º and ªº) . (ªDUALº will
appear on the display.)
To cancel the separate temperature
setting, push the ªDUALº button (ªDUALº
will disappear from the display) and the
driver's side temperature setting will be
applied to both the driver's and front
passenger's sides.
4. Models with Advanced Climate Control
System:
.Push the ªAUTOº auto-recirculation
button. The indicator light on the ª
AUTOº auto-recirculation button will illu-
minate. In this mode, the sensor detects
odors and gas to automatically switch
between the air recirculation mode and
the outside air circulation mode. (See
ªAdvanced climate control systemº (P.4-
52) for details.)
Models without Advanced Climate Control
System:
.Push and hold the air recirculation ªº
button or outside air circulation ª
º
button (the one with the indicator light
on) for more than 2 seconds to set the
automatic control between the air recir- culation and outside air circulation
modes. (The ª
º and ªº indicator
lights will blink twice.)
The following conditions need to be met for the
automatic air intake control mode to function
properly.
. The air flow control is not in the front
defroster mode (the indicator light on the
front defroster ª
FRONTº button is
turned off).
. The outside temperature is approximately
328F (08C) or above.
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
Heating (A/C off):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Push the ªAUTOº button.
(The AUTO indicator light will illuminate.)
2. If the A/C indicator light illuminates, push the ªA/Cº button.
(The A/C indicator light will turn off.)
3. Push the temperature control buttons
(ª
º and ªº) (driver's side) to set the
desired temperature.
When the DUAL mode is turned off (ªDUALº
does not appear on the display):
.Pushing the ªAUTOº button changes both the driver's and front passenger's
side temperature.
.Pushing the ªDUALº button allows the user to independently change the front
passenger's side temperature with the
passenger side temperature control but-
tons (ª
º or ªº) . (ªDUALº will
appear on the display.)
To cancel the separate temperature
setting, push the ªDUALº button (ªDUALº
will disappear from the display) and the
driver's side temperature setting will be
applied to both the driver's and front
passenger's sides.
4. Models with Advanced Climate Control
System:
.Push the ªAUTOº auto-recirculation
button. The indicator light on the ª
AUTOº auto-recirculation button will illu-
minate. In this mode, the sensor detects
odors and gas to automatically switch
between the air recirculation mode and
the outside air circulation mode. (See
ªAdvanced climate control systemº (P.4-
52) for details.)
Models without Advanced Climate Control
System:
.Push and hold the air recirculation ªº
button or outside air circulation ª
º
&RQGLWLRQ
