2015 NISSAN QUEST Owners Manual


> (GLW    0RGHO (' @
station.
toStation memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C40712 stations can be set for the FM band (6 each
for FM1 and FM2) and 6 stations can be set for
the AM band.
1. Choose the radio band using the FM´AMbutton.
2. Tune to the desired station using the
SEEK´TRACK, SCAN button or the TU-
NE´SCROLL control knob.
3. Push and hold the desired station preset button
tountill beep sounds.
4. The station indicator will then come on and the sound will resume. Memorizing is now
complete.
5. Other buttons can be set in the same
manner.
If the battery cable is disconnected, or if the fuse
opens, the station memory will be erased. In that
case, reset the desired stations.
CD player operationGUID-B32C1311-0658-4BF4-9504-3ACD8D495A05Place the ignition switch in the ON or ACC
position. Insert the Compact Disc (CD) into the
slot with the label side facing up. The CD will be
guided automatically into the slot and start
playing.
After loading the CD, the number of tracks on
the CD and the play time will appear on the
display.
If the radio is already operating, it will auto-
matically turn off and the CD will play.
If the system has been turned off while the CD
was playing, pushing the Power/VOL dial will
start the CD.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407With a CD loaded, press the Media button until
the CD mode is displayed on the screen.
SEEK/CAT:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When theorbutton is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed.
When the
orbutton is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current track on the CD will be played.
REPEAT (RPT):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
(Normal)
Û1 Track Repeat
(CD with compressed audio files)
(Normal) ?1 Folder Repeat ?1 Track Repeat
? (Normal)
RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RDM button is pushed while a CD is
being played, the play pattern can be changed
as follows:
(CD)
(Normal) Û1 Disc Random
(CD with compressed audio files)
(Normal) ?1 Disc Random ?1 Folder
Random ?(Normal)
CD eject:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD eject button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-75
&RQGLWLRQ


> (GLW    0RGHO (' @
4-76Monitor, heater, air conditioner, audio, phone and voice recognition systems

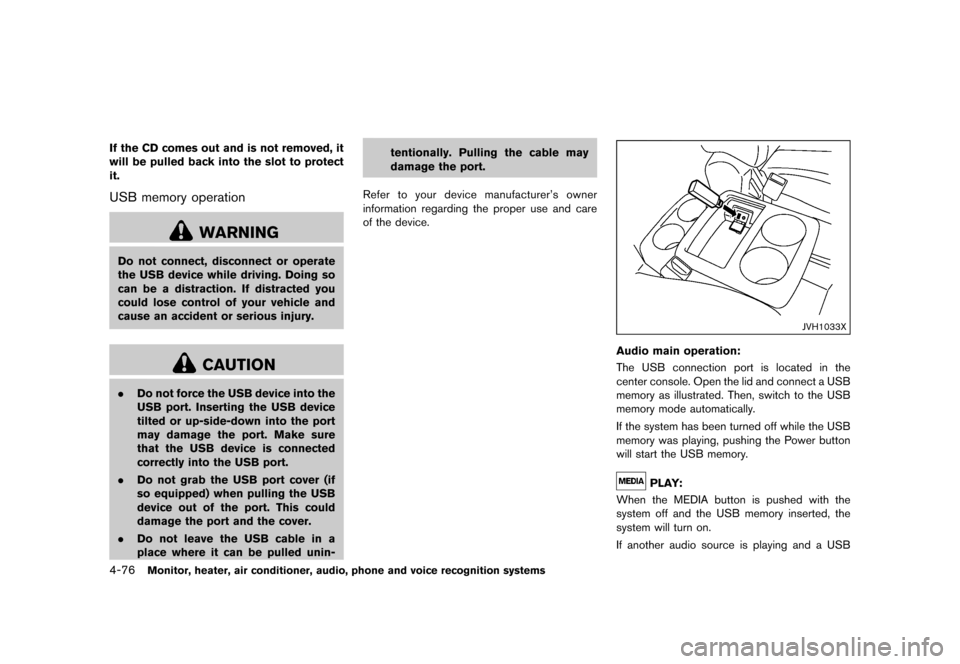

If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
USB memory operationGUID-07070A37-45EE-4F9E-8D3B-A1AC32E165AF
WARNING
Do not connect, disconnect or operate
the USB device while driving. Doing so
can be a distraction. If distracted you
could lose control of your vehicle and
cause an accident or serious injury.
CAUTION
.Do not force the USB device into the
USB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure
that the USB device is connected
correctly into the USB port.
. Do not grab the USB port cover (if
so equipped) when pulling the USB
device out of the port. This could
damage the port and the cover.
. Do not leave the USB cable in a
place where it can be pulled unin- tentionally. Pulling the cable may
damage the port.
Refer to your device manufacturer's owner
information regarding the proper use and care
of the device.
JVH1033X
Audio main operation:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The USB connection port is located in the
center console. Open the lid and connect a USB
memory as illustrated. Then, switch to the USB
memory mode automatically.
If the system has been turned off while the USB
memory was playing, pushing the Power button
will start the USB memory.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the MEDIA button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
&RQGLWLRQ


> (GLW    0RGHO (' @
memory is inserted, push the MEDIA button
repeatedly until the center display changes to
the USB memory mode.
Next/Previous File and Fast
Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the FF or REW button is pushed for more
than 1.5 seconds while a USB memory is being
played, the USB memory will play while for-
warding or rewinding. When the button is
released, the USB memory will return to normal
play speed.
When the FF or REW button is pushed for less
than 1.5 seconds while the USB memory is
being played, the next track or the beginning of
the current track on the USB memory will be
played.
Folder selection:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To change to another folder in the USB memory,
choose a folder displayed on the screen using
the TUNE´SCROLL knob.
REPEAT (RPT):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the USB
memory is played, the play pattern can be
change as follows.
To change the play mode, push the RPT button
repeatedly and the mode will change as follows. (Normal)
?1 Folder Repeat ?1 Track Repeat
? (Normal)
RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RDM button is pushed while a USB
memory is being played, the play pattern can be
changed as follows.
To change the play mode, push the RDM button
repeatedly, and the mode will change as follows.
(Normal) ?All Random ?1 Folder Random ?
(Normal)
BACK button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the BACK button is pushed, it returns to
the previous display.
iPod


> (GLW    0RGHO (' @
4-78Monitor, heater, air conditioner, audio, phone and voice recognition systems

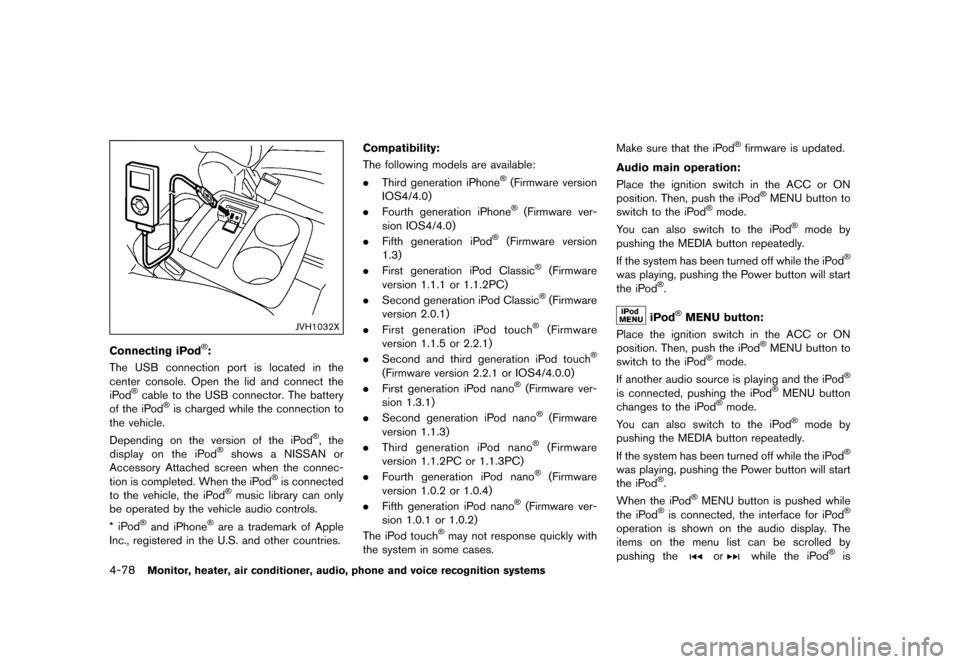

JVH1032X
Connecting iPod


> (GLW    0RGHO (' @

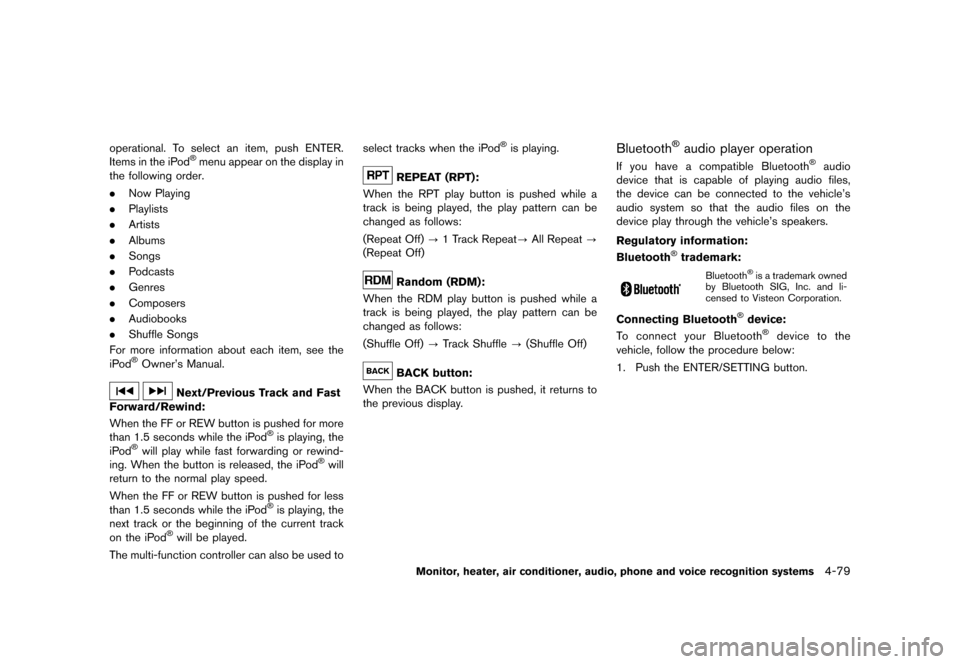

operational. To select an item, push ENTER.
Items in the iPod


> (GLW    0RGHO (' @
4-80Monitor, heater, air conditioner, audio, phone and voice recognition systems
JVH0620X
2. Select the ªBluetoothº key.
3. Select the ªAdd Phoneº key. This samescreen can be accessed to remove, replace
or select a different Bluetooth


> (GLW    0RGHO (' @
device to the audio system. Music may not play
properly when a monaural cable is used.

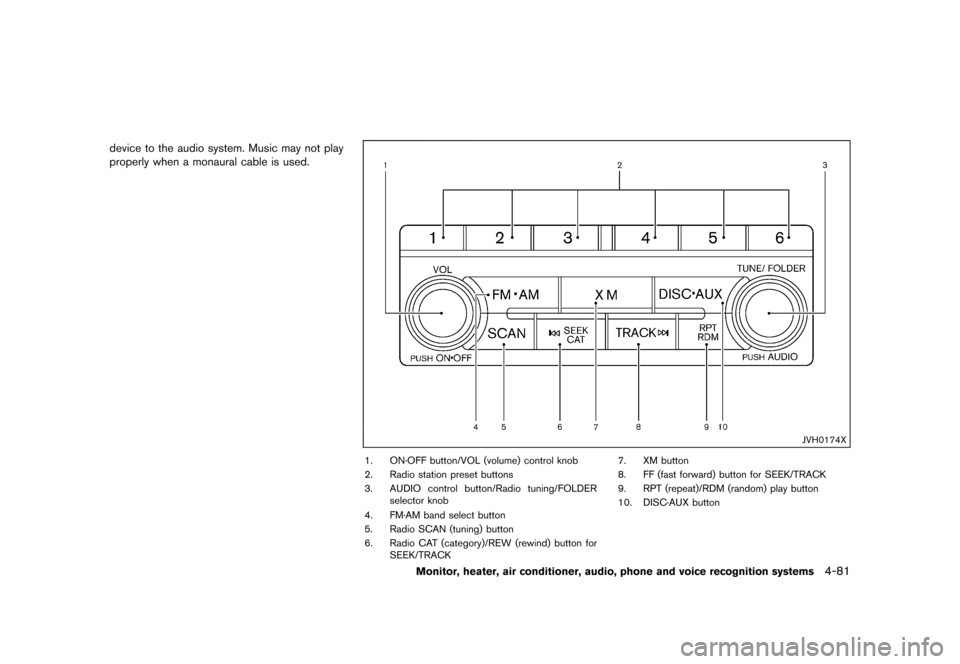

JVH0174X
1. ON´OFF button/VOL (volume) control knob
2. Radio station preset buttons
3.AUDIO control button/Radio tuning/FOLDER
selector knob
4. FM´AM band select button
5. Radio SCAN (tuning) button
6. Radio CAT (category)/REW (rewind) button for SEEK/TRACK 7. XM button
8. FF (fast forward) button for SEEK/TRACK
9. RPT (repeat)/RDM (random) play button
10. DISC´AUX button
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-81
&RQGLWLRQ


> (GLW    0RGHO (' @
4-82Monitor, heater, air conditioner, audio, phone and voice recognition systems
FM-AM-SAT RADIO WITH COMPACT
DISC (CD) PLAYER (Type B)
GUID-D2C875DE-9BFA-4CE3-AE15-5ED2F4DF8392For all operation precautions, see ªAudio opera-
tion precautionsº (P.4-56) .
The satellite radio mode requires an active
SiriusXM Satellite Radio subscription. The sa-
tellite radio is not available in Alaska, Hawaii and
Guam.
It may take some time to receive the activation
signal after subscribing the SiriusXM Satellite
Radio. After receiving the activation signal, an
available channel list will be automatically
updated in the radio. Push the ignition switch
from LOCK to ACC to update the channel list.
Audio main operationGUID-D94FA559-AA63-4E9E-AFB4-0C05BB96C342
Head unit:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The auto loudness circuit enhances the low and
high frequency ranges automatically in both
radio reception and CD playback.
ON´OFF/Volume control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push the ignition switch to the ACC or ON
position, and then push the ON´OFF button
while the system is off to turn on the last audio
source, which was playing immediately before
the system was turned off. While the system is
on, pushing the ON´OFF button turns the system
off.Turn the VOL control knob to adjust the volume.
Adjusting tone quality and speaker bal-
ance:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust Bass, Treble, Balance and Fade, push
the Audio control knob. When the display shows
the setting you want to change (Bass, Treble,
Balance and Fade) , rotate the Audio control
knob to set the desired setting. For the other
setting methods, see ªHow to use SETTING
buttonº (P.4-14).
This vehicle has some sound effect functions as
follows:
.
Speed Sensitive Vol.
For more details, see ªVehicle information and
settings (models with center multi-function
control panel)º (P.4-9) .
Switching the display:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Pushing the DISC´AUX button will switch the
displays as follows:
iPod
