2015 NISSAN MAXIMA 08IT Navigation Manual

Black plate (185,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

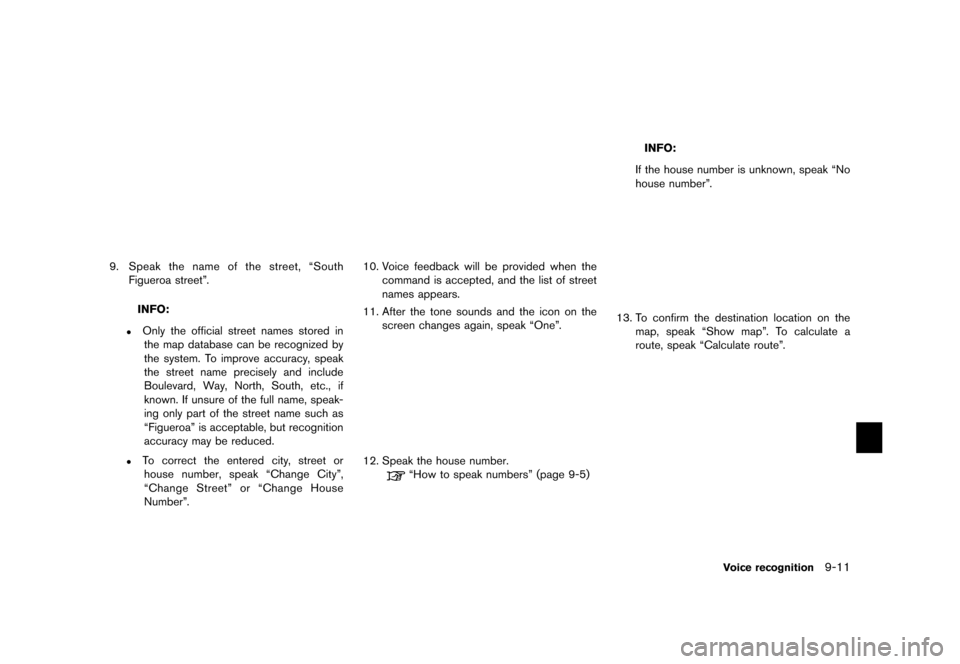

NGT00749.Speak the name of the street, “South
Figueroa street”.
INFO:
.Only the official street names stored in
the map database can be recognized by
the system. To improve accuracy, speak
the street name precisely and include
Boulevard, Way, North, South, etc., if
known. If unsure of the full name, speak-
ing only part of the street name such as
“Figueroa” is acceptable, but recognition
accuracy may be reduced.
.To correct the entered city, street orhouse number, speak “Change City”,
“Change Street” or “Change House
Number”.
NGT007510. Voice feedback will be provided when the command is accepted, and the list of street
names appears.
11. After the tone sounds and the icon on the screen changes again, speak “One”.
NGT007612. Speak the house number.
“How to speak numbers” (page 9-5)
INFO:
If the house number is unknown, speak “No
house number”.
NGT007713. To confirm the destination location on the map, speak “Show map”. To calculate a
route, speak “Calculate route”.
Voice recognition9-11

Black plate (186,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

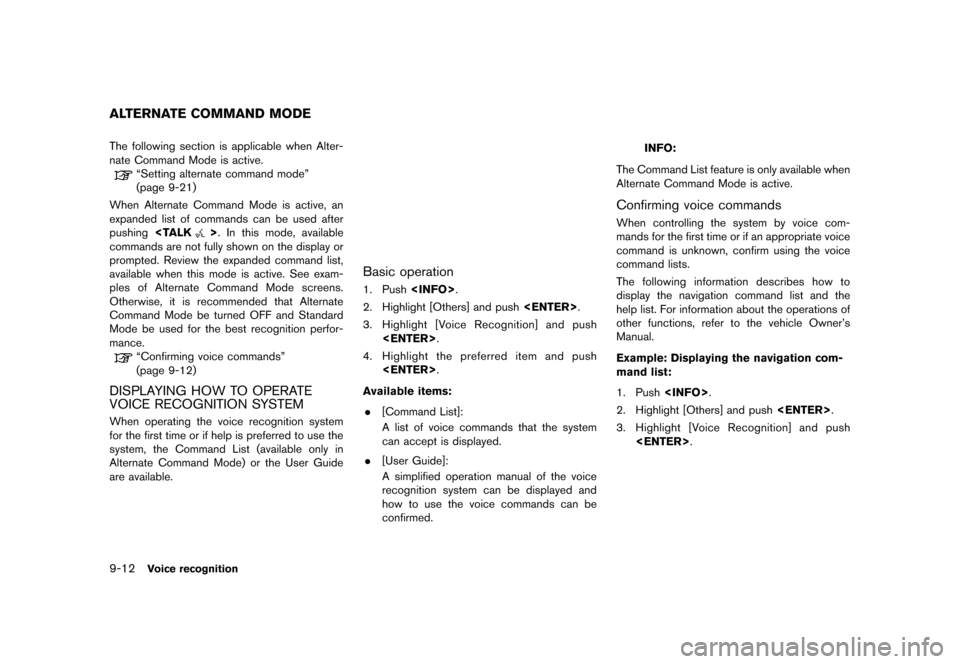

9-12Voice recognition
GUID-398B0A21-C6A1-4482-B4C8-7CA96F02B671The following section is applicable when Alter-
nate Command Mode is active.
“Setting alternate command mode”
(page 9-21)
When Alternate Command Mode is active, an
expanded list of commands can be used after
pushing >. In this mode, available
commands are not fully shown on the display or
prompted. Review the expanded command list,
available when this mode is active. See exam-
ples of Alternate Command Mode screens.
Otherwise, it is recommended that Alternate
Command Mode be turned OFF and Standard
Mode be used for the best recognition perfor-
mance.
“Confirming voice commands”
(page 9-12)
DISPLAYING HOW TO OPERATE
VOICE RECOGNITION SYSTEM
GUID-513B04F0-508D-47B9-8623-BD1BE50A7D33When operating the voice recognition system
for the first time or if help is preferred to use the
system, the Command List (available only in
Alternate Command Mode) or the User Guide
are available.
NVR0018
Basic operationGUID-83F47021-2BC6-48C5-A9E5-A1A529F30AE31. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push
.
4. Highlight the preferred item and push
.
Available items:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E. [Command List]:
A list of voice commands that the system
can accept is displayed.
. [User Guide]:
A simplified operation manual of the voice
recognition system can be displayed and
how to use the voice commands can be
confirmed.
INFO:
The Command List feature is only available when
Alternate Command Mode is active.
Confirming voice commandsGUID-3CD3732D-B528-4D44-807B-B29DFBA0787EWhen controlling the system by voice com-
mands for the first time or if an appropriate voice
command is unknown, confirm using the voice
command lists.
The following information describes how to
display the navigation command list and the
help list. For information about the operations of
other functions, refer to the vehicle Owner’s
Manual.
Example: Displaying the navigation com-
mand list:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push
.
ALTERNATE COMMAND MODE

Black plate (187,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

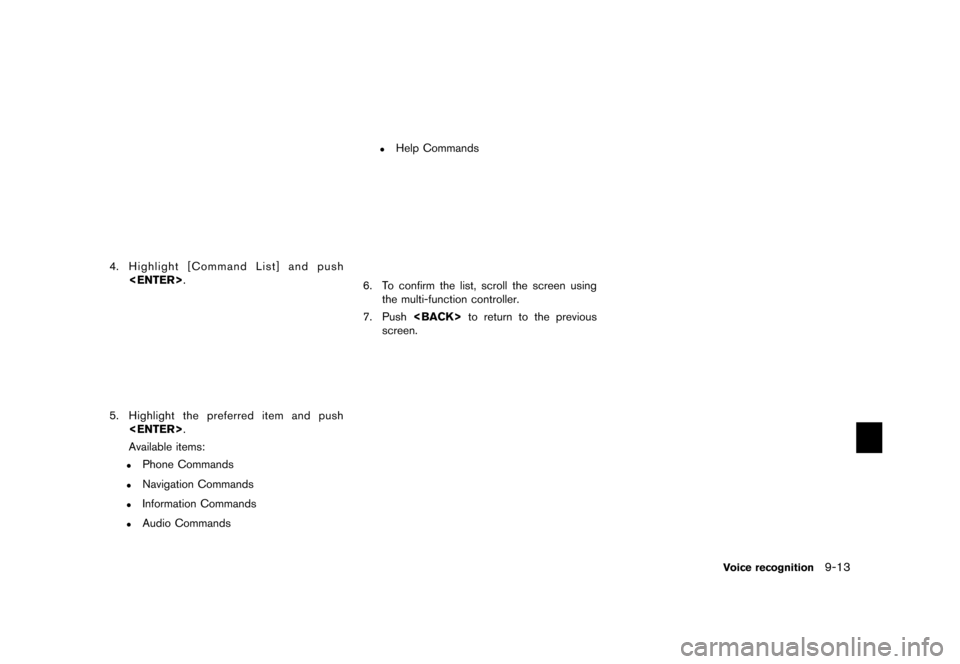

NVR00184.Highlight [Command List] and push
.
NVR00195.Highlight the preferred item and push
.
Available items:
.Phone Commands
.Navigation Commands
.Information Commands
.Audio Commands
.Help Commands
NVR00206. To confirm the list, scroll the screen using
the multi-function controller.
7. Push to return to the previous
screen.
Voice recognition9-13

Black plate (188,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

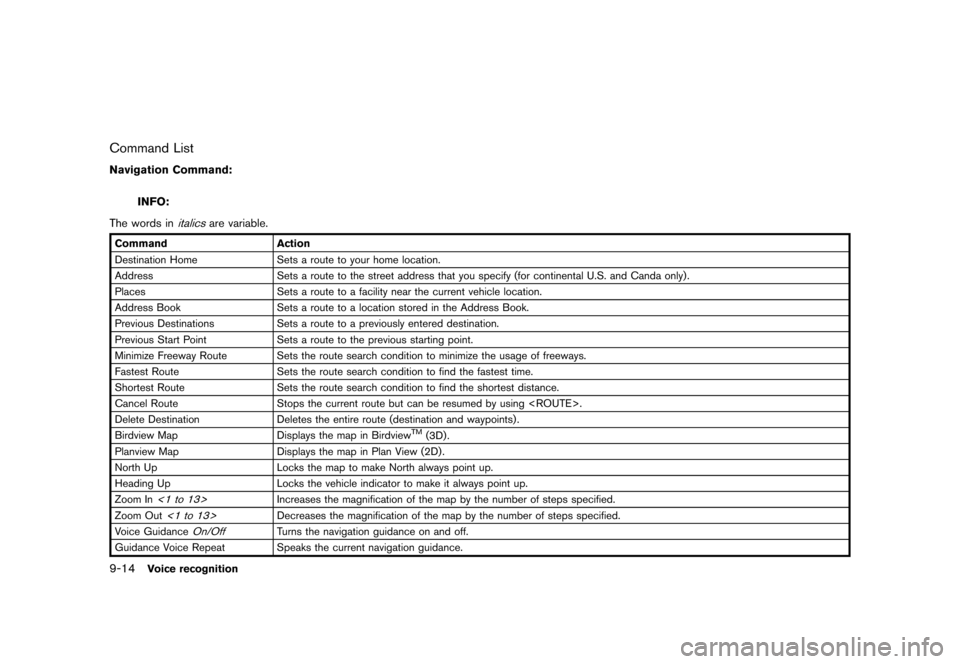

9-14Voice recognition
Command ListGUID-D3321CD1-F219-460D-A884-999540F033C1
Navigation Command:GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E
INFO:
The words in
italicsare variable.
Command Action
Destination Home Sets a route to your home location.
Address Sets a route to the street address that you specify (for continental U.S. and Canda only).
Places Sets a route to a facility near the current vehicle location.
Address Book Sets a route to a location stored in the Address Book.
Previous Destinations Sets a route to a previously entered destination.
Previous Start Point Sets a route to the previous starting point.
Minimize Freeway Route Sets the route search condition to minimize the usage of freeways.
Fastest Route Sets the route search condition to find the fastest time.
Shortest Route Sets the route search condition to find the shortest distance.
Cancel Route Stops the current route but can be resumed by using .
Delete Destination Deletes the entire route (destination and waypoints) .
Birdview Map Displays the map in Birdview
TM(3D).
Planview Map Displays the map in Plan View (2D).
North Up Locks the map to make North always point up.
Heading Up Locks the vehicle indicator to make it always point up.
Zoom In
<1 to 13>Increases the magnification of the map by the number of steps specified.
Zoom Out
<1 to 13>Decreases the magnification of the map by the number of steps specified.
Voice Guidance
On/OffTurns the navigation guidance on and off.
Guidance Voice Repeat Speaks the current navigation guidance.

Black plate (189,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

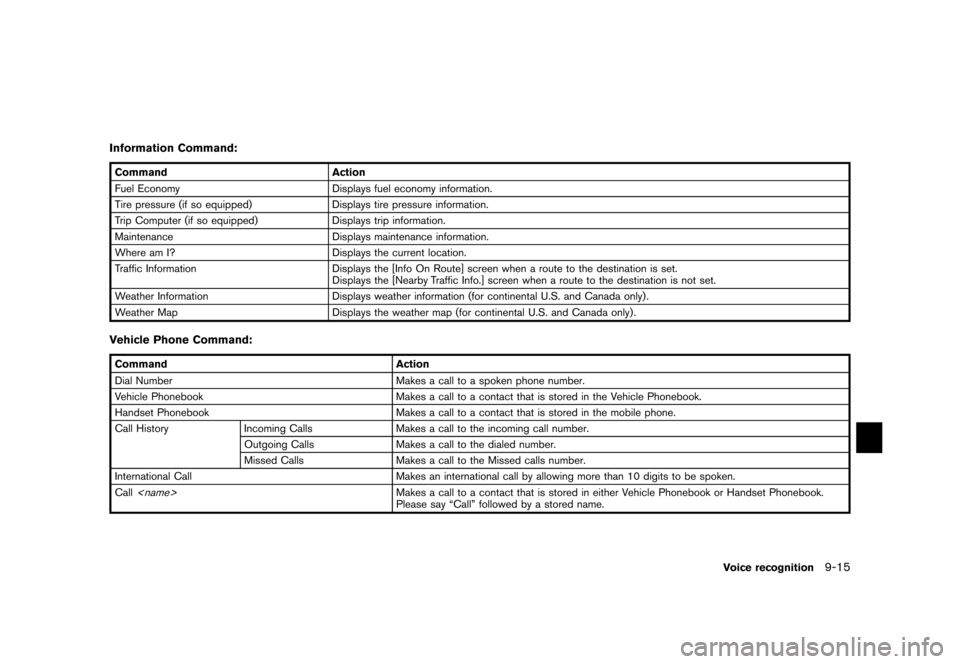

Information Command:GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E
CommandAction
Fuel Economy Displays fuel economy information.
Tire pressure (if so equipped) Displays tire pressure information.
Trip Computer (if so equipped) Displays trip information.
Maintenance Displays maintenance information.
Where am I? Displays the current location.
Traffic Information Displays the [Info On Route] screen when a route to the destination is set.
Displays the [Nearby Traffic Info.] screen when a route to the destination is not set.
Weather Information Displays weather information (for continental U.S. and Canada only).
Weather Map Displays the weather map (for continental U.S. and Canada only) .
Vehicle Phone Command:GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E
Command Action
Dial Number Makes a call to a spoken phone number.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call History Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Call
Makes a call to a contact that is stored in either Vehicle Phonebook or Handset Phonebook.
Please say “Call” followed by a stored name.
Voice recognition
9-15

Black plate (190,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

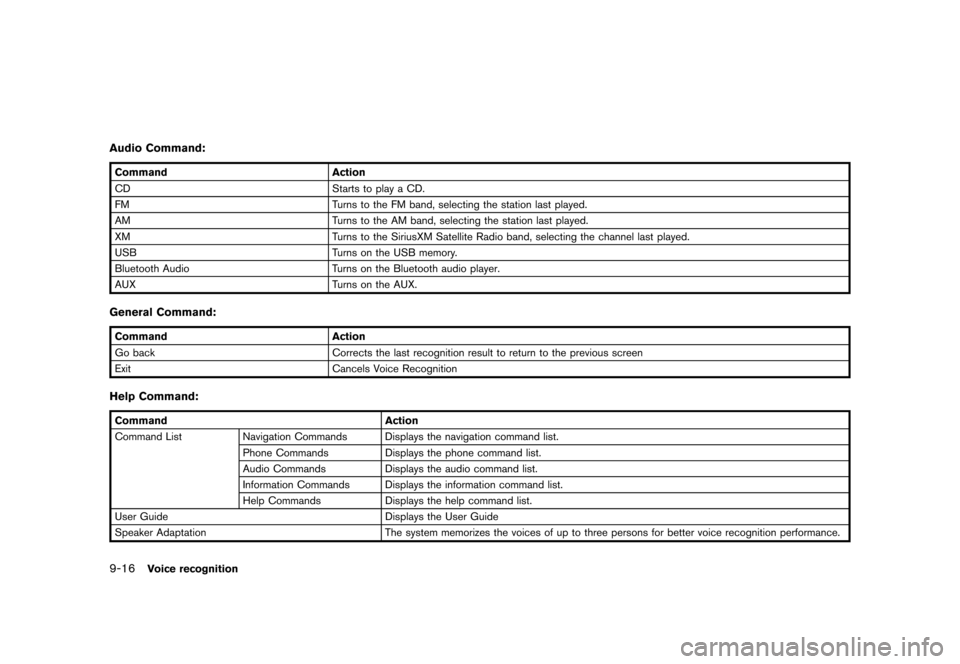

9-16Voice recognition
Audio Command:GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E
CommandAction
CD Starts to play a CD.
FM Turns to the FM band, selecting the station last played.
AM Turns to the AM band, selecting the station last played.
XM Turns to the SiriusXM Satellite Radio band, selecting the channel last played.
USB Turns on the USB memory.
Bluetooth Audio Turns on the Bluetooth audio player.
AUX Turns on the AUX.
General Command:GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E
CommandAction
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition
Help Command:GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E
Command Action
Command List Navigation Commands Displays the navigation command list. Phone Commands Displays the phone command list.
Audio Commands Displays the audio command list.
Information Commands Displays the information command list.
Help Commands Displays the help command list.
User Guide Displays the User Guide
Speaker Adaptation The system memorizes the voices of up to three persons for better voice recognition performance.

Black plate (191,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
INFO:
Refer to the vehicle Owner’s Manual for the
operations related to phone, information and
audio.
CONFIRMING HOW TO USE VOICE
COMMANDS
GUID-A146C84C-5D58-4FD0-9432-A7365ED06DA3It is possible to confirm how to use voice
commands by accessing a simplified User
Guide, which contains basic instructions and
tutorials for several voice commands.
NVR0021
Basic operationGUID-30C58600-F5BB-4048-AD59-59347ACF380C1. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push
.
4. Highlight [User Guide] and push
. 5.
Highlight the preferred item and push
.
Available items:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E. [Getting Started]:
Describes the basics of how to operate the
voice recognition system.
. [Let’s Practice]:
Mode for practice following the system
voice.
. [Using the Address Book]:
Tutorial for setting a destination by the
Address Book.
. [Finding a Street Address]:
Tutorial for entering a destination by street
address.
. [Placing Calls]:
Tutorial for marking a phone call by voice
command operation.
. [Help on Speaking]:
Displays the useful tips of speaking for
correct command recognition by the system.
. [Voice Recognition Settings]:
Describes the available voice recognition
settings. .
[Adapting the System to Your Voice]:
Tutorial adapting the system to the user’s
voice.Getting startedGUID-19E32547-72C6-4F17-8B29-3E02C83FD143Before using the voice recognition system for
the first time, it is possible to confirm how to use
commands by viewing the Getting Started
section of the User Guide.
NVR00221. Highlight [Getting Started] and push
.
2. To confirm the page, scroll the screen using the multi-function controller.
Practicing voice commandsGUID-2502C11E-F99A-430D-A4AC-0B5B26ECAB91Practice for using the voice recognition function
can be performed by repeating a phrase after
the system announces it.
Voice recognition9-17

Black plate (192,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

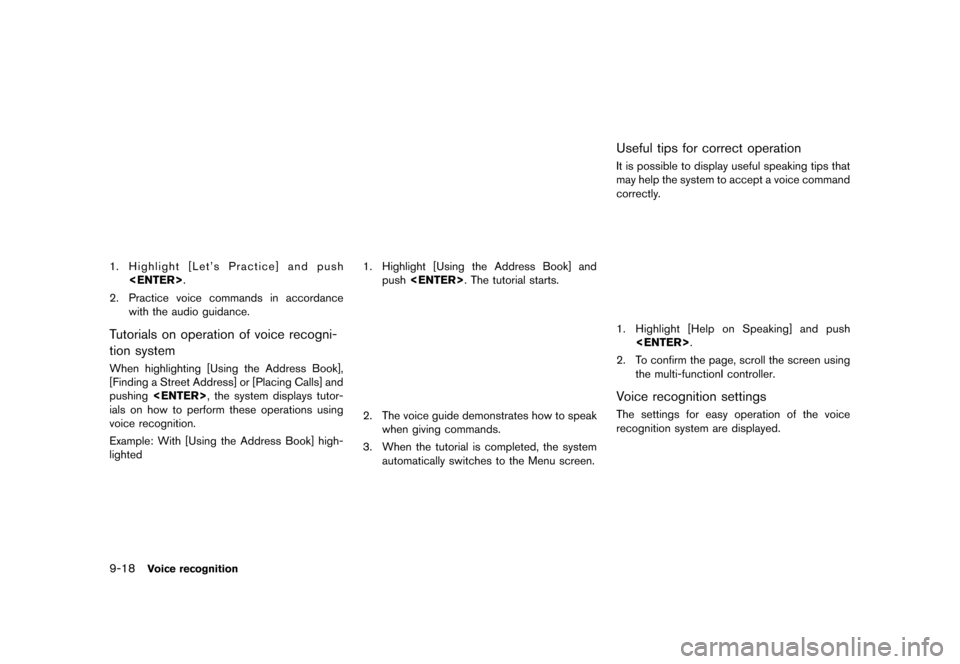

9-18Voice recognition
NVR00241.Highlight [Let’s Practice] and push
.
2. Practice voice commands in accordance with the audio guidance.
Tutorials on operation of voice recogni-
tion system
GUID-BBD2A1BA-97BF-473E-8F13-48CEDE8C4D2EWhen highlighting [Using the Address Book],
[Finding a Street Address] or [Placing Calls] and
pushing , the system displays tutor-
ials on how to perform these operations using
voice recognition.
Example: With [Using the Address Book] high-
lighted
NVR00231. Highlight [Using the Address Book] and push . The tutorial starts.
NVR00252. The voice guide demonstrates how to speak
when giving commands.
3. When the tutorial is completed, the system automatically switches to the Menu screen.
Useful tips for correct operationGUID-147D27A8-EA0F-48F7-9459-55D6B990C3E5It is possible to display useful speaking tips that
may help the system to accept a voice command
correctly.
NVR00271.Highlight [Help on Speaking] and push
.
2. To confirm the page, scroll the screen using the multi-functionI controller.
Voice recognition settingsGUID-C7593FCE-14C4-4774-BF45-B952A4254808The settings for easy operation of the voice
recognition system are displayed.
NVR0028
