2015 NISSAN MAXIMA 08IT Navigation Manual

Black plate (81,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
3.Highlight [City Center] and push
. A character input screen is
displayed.
NDE00694. Enter the name of the city, highlight [List]
and push . A list screen is
displayed.
INFO:
Highlight [Last 5 Cities] and push
to display 5 cities recently set
as destinations.
NDE0070
5. Highlight the preferred destination from the list and push . The position of the
selected location is displayed in the preview
on the right side of the screen.
NDE0071
INFO:
By selecting [By Distance], the list can be
sorted by the nearest distance.
NDE00726. The selected destination is displayed at the center of the map. Highlight [Start] after
confirming the location of the displayed
destination, and push . The system sets the destination to the
selected location and starts calculating a
route.
INFO:
Even after setting a destination, the location
of the destination can be adjusted, the route
can be stored, etc.
“Procedures after setting destination”
(page 5-2)
SETTING POINT ON MAPGUID-180D3527-CD6C-4E3F-8E9D-E1060655A99BA location scrolled to on the map can be set as
the destination to which the system calculates a
route.
NDE00731. Scroll the map, place the cross pointer over the preferred location, and push .
Setting destination4-19

Black plate (82,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
4-20Setting destination
INFO:
.Adjust the map scale to search for alocation more effectively.
.The point on the blinking road where thecenter of the cross pointer is located can
be set as a destination.
NDE00742. Highlight [New Dest.] and push .
INFO:
For the items except for [New Dest.], refer to
“Map menu screen”.
“Scrolled location map screen”
(page 2-18)
NDE00753. The system sets the destination to the
selected location and starts calculating a
route.
NDE0076
INFO:
If a point on a freeway is set as the destination, a
confirmation message is displayed.
GUID-4C7CF8AC-468B-4231-BCE0-FDF0CCE318A6It is possible to delete a destination and all
waypoints that have already been set.
NDE00781. Press .
2. Select [Delete Destination] and press
.
NDE00793. A confirmation message is displayed. Select
[Yes] and press .
The destination and the waypoints are
deleted.
DELETE DESTINATION

Black plate (83,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

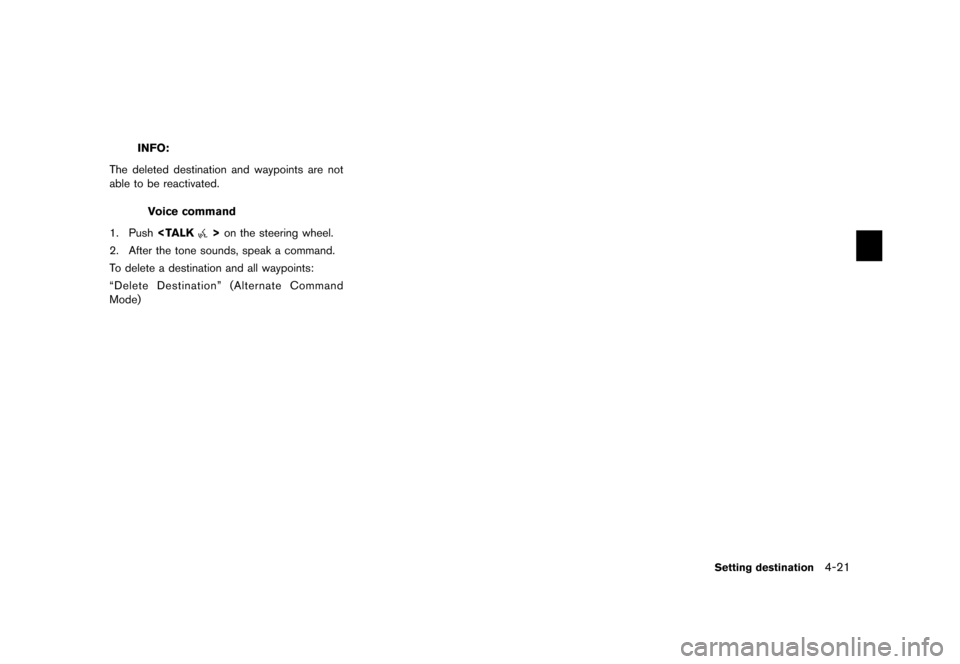

INFO:
The deleted destination and waypoints are not
able to be reactivated.
Voice command
1. Push >on the steering wheel.
2. After the tone sounds, speak a command.
To delete a destination and all waypoints:
“Delete Destination” (Alternate Command
Mode)
Setting destination4-21

Black plate (84,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

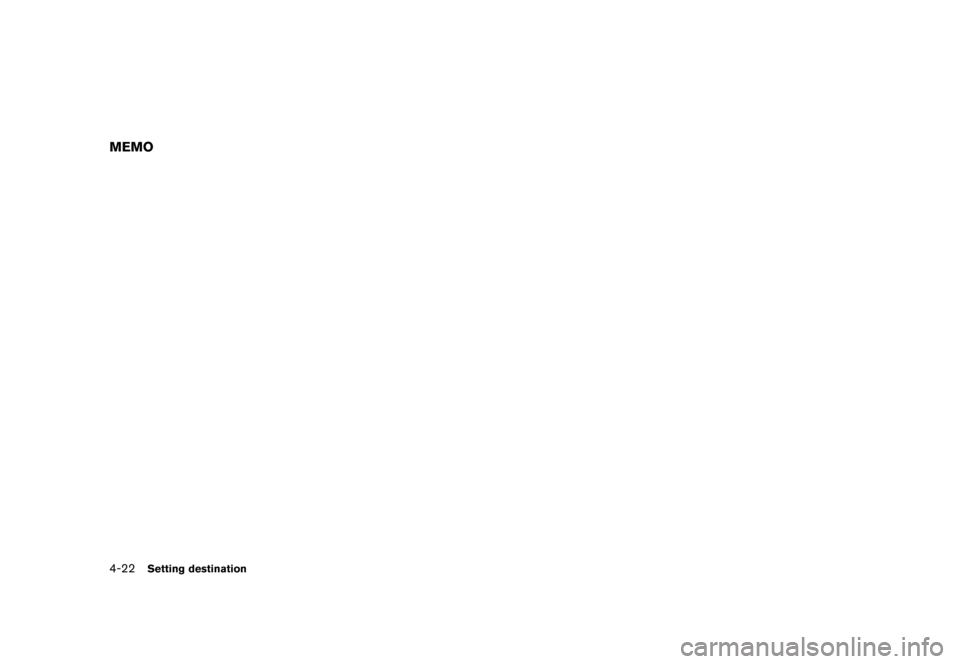

4-22Setting destination
MEMO

Black plate (85,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
5 Route guidance
Procedures after setting destination...
.................................... 5-2
Available items after setting destination ...
........................ 5-2
Starting route guidance ...
..................................................... 5-2
Selecting route ...
.................................................................... 5-3
Confirming route ...
.................................................................. 5-3
Moving location of destination ...
......................................... 5-4
Storing location ...
................................................................... 5-5
Viewing information about searched location ...
.............. 5-5
About route guidance ...
.............................................................. 5-7
Voice guidance during route guidance ...
......................... 5-7
Guidance screens and preview mode ...
........................... 5-7
Guidance screen settings ...
................................................. 5-9
Route screen ...
........................................................................\
... 5-12
Basic operation ...
................................................................. 5-12 Canceling/reactivating route
...
....................................... 5-13
Editing route ...
.................................................................... 5-14
Confirming route ...
............................................................ 5-18
Guidance settings ...
.......................................................... 5-20
Recalculating route ...
........................................................ 5-21
Setting detour route ...
...................................................... 5-22
Searching for detour route taking traffic information
into consideration ...
........................................................... 5-22
Setting conditions for route calculation ...
................... 5-23
Route guidance settings ...
..................................................... 5-26
Basic operation ...
.............................................................. 5-26
Setting voice guidance at intersections ...
................... 5-27
Displaying small turn arrow on map ...
.......................... 5-28
Switching estimated arrival time display ...
.................. 5-28
Set average speeds ...
...................................................... 5-29

Black plate (86,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
5-2Route guidance
GUID-CC70DDA0-1AA2-4D42-8B04-4153E5EBE886After performing a route search, the route
guidance can be started immediately. Also, it is
possible to confirm or change a route.
NRG0001AVAILABLE ITEMS AFTER SETTING
DESTINATION
GUID-A47B4750-176F-4C53-9AC8-51D6C792BCDA.[Start]:
Starts route guidance to the selected
destination.
“Starting route guidance” (page 5-2)
. [More Routes]:
Displays 3 alternative routes.
“Selecting route” (page 5-3)
. [Add/Route Info]:
Displays the route information or add a
destination or a waypoint.
“Confirming route” (page 5-3)
. [Move Location]:
Displays a map screen and allows the
location of the destination to be adjusted.
“Moving location of destination”
(page 5-4)
. [Store Location]:
Stores the location in the Address Book.
“Storing location” (page 5-5)
. [Place Info]:
Displays information about the facility that is
set as the destination if it is included in the
map data.
“Viewing information about searched
location” (page 5-5)
INFO:
. If no operations are performed on the
system for several seconds, [Start] is auto-
matically selected, and the system starts
route guidance.
. When using waypoints, [More Routes] is
disabled. After the route is started, push
then select [Edit/Add to Route]
to change the route between each waypoint.
“Editing route” (page 5-14)
. The same screen as when [Move Location]
is selected can be displayed with the
following operations:
— Touching the map screen — Pushing the directional buttons except
for the up/down button (multi-function
controller with directional buttons)
— Pushing the slide switch except in the upward/downward direction (multi-func-
tion controller without directional but-
tons)
STARTING ROUTE GUIDANCEGUID-78EFC187-01E3-4CA2-A16E-B598AC1FEF23
NRG00011. Highlight [Start] and push .
Route guidance starts.
PROCEDURES AFTER SETTING
DESTINATION

Black plate (87,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
SELECTING ROUTEGUID-081AF529-8C2B-4896-8C34-5CC4E74C4BE8
NRG00021.Highlight [More Routes] and push
.
NRG00032. Highlight the preferred route condition and
push .
3. The display automatically returns to the
previous screen.
Available route conditionsGUID-77C67769-D1D2-4DC8-9B84-9853BACE6F91.[Short. Time] (purple):
Prioritizes by the shortest time. .
[Min. Freeway] (orange):
Minimizes the use of freeways.
. [Short. Dist.] (green):
Prioritizes by the shortest distance.
INFO:
. When a route condition is selected, a
preview is displayed on the right side of
the screen.
. The 3 routes may not always be different.
CONFIRMING ROUTEGUID-E49AECBB-3664-428D-A6E7-801967770B0B
NRG00041. Highlight [Add/Route Info] and push
.
2. Highlight the preferred information item and push .
3. Push to return to the previous
screen.
NRG0005
Available informationGUID-FA3F9A77-9844-4FFF-B2FC-C8511EBE6BE7. [Turn List]:
Displays the details of the suggested route.
“Using turn list” (page 5-19)
. [Preview]:
The system will trace the planned route
going forward or in reverse.
“Using route preview” (page 5-19)
. [Add Way Pt.]:
Add a waypoint or a destination.
“Adding destination or waypoint”
(page 5-4)
. [Store Route]:
A calculated route can be stored. A max-
imum of 5 routes can be stored. Stored
routes can be easily retrieved and set as the
suggested route.
“Storing route” (page 6-5)
Route guidance5-3

Black plate (88,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
5-4Route guidance
.[Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
The same screen as when [Map Scroll] is
touched can be displayed with the following
operations:
— Touching the map screen.
— Pushing the directional buttons except
for the up/down button (multi-function
controller with directional buttons).
— Pushing the slide switch except in the upward/downward direction (multi-func-
tion controller without directional but-
tons) .
Adding destination or waypointGUID-15E53624-2CC6-4105-96F5-4AC26112615EBefore starting route guidance, destinations
and/or waypoints can be added. A total of 6
destinations or waypoints can be set.
NRG0006
1. Highlight [Add Way Pt.] and push
.
NRG00072. Set additional destinations or waypoints and
push .
The method of searching for a location is the
same as the one for a destination.
“4. Setting destination”
NRG00083. Highlight [Add Destination] or [Add Way- point] and push .
NRG00094. The system starts calculating a route that
includes the added destination or waypoint.
When the calculation is finished, the route is
displayed.
INFO:
.If a waypoint was added, [More Routes]
cannot be selected.
.If a destination was added, the priordestination becomes a waypoint.
MOVING LOCATION OF DESTINATIONGUID-D8A18B0E-A092-44A7-8655-FC3F4F0638C2The location of the destination can be adjusted
by moving the cross pointer across the map.
