2015 NISSAN MAXIMA 08IT Navigation Manual

Black plate (137,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

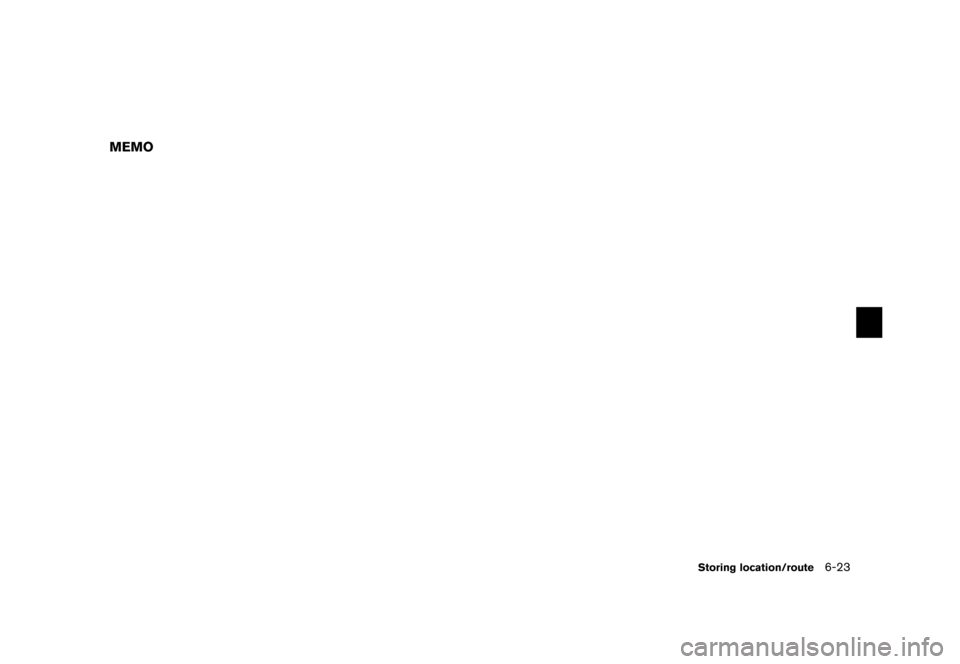

MEMO
Storing location/route6-23

Black plate (138,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

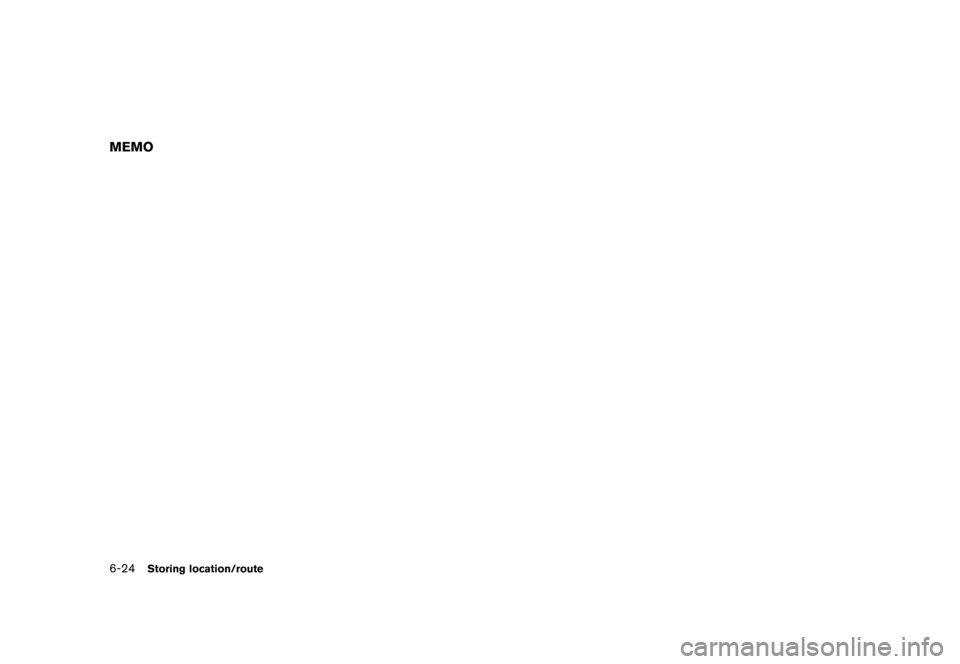

6-24Storing location/route
MEMO

Black plate (139,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
7 Viewing technical information
Information screen...
.................................................................... 7-2
Basic operation ...
.................................................................... 7-2
Viewing information about current vehicle location ...
.......... 7-3
Basic operation ...
.................................................................... 7-3
Viewing available traffic information ...
..................................... 7-3
Basic operation ...
.................................................................... 7-4
Info on route ...
........................................................................\
. 7-4
Nearby traffic info. ...
............................................................... 7-5
Display urgent traffic information ...
.................................... 7-5
Traffic information on map ...
................................................ 7-6
Traffic information settings ...
................................................ 7-7 Viewing available weather information
...
................................ 7-8
Displaying weather information screen ...
....................... 7-9
Destination weather on suggested route screen ...
... 7-15
Automatically display warnings/watches ...
.................. 7-15
Map update ...
........................................................................\
..... 7-17
Viewing navigation system unit identification ...
................. 7-18
Basic operation ...
.............................................................. 7-18
Viewing navigation system version information ...
............. 7-18
Basic operation ...
.............................................................. 7-18
Viewing GPS current location information ...
..................... 7-19
Basic operation ...
.............................................................. 7-19

Black plate (140,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
7-2Viewing technical information
GUID-4EDDA096-FC11-41F0-B857-178F3DC89E9AThis screen sets or displays various information
that is helpful for using the vehicle safely and
comfortably.
Available items include the vehicle information,
Traffic Info. setup, current location information,
GPS information, Voice recognition list and map
version.
Designs and items displayed on the screen may
vary depending on the markets and the models.
INFO:
A NavTraffic subscription is necessary to view
Traffic Info.
BASIC OPERATIONGUID-92A2336D-5526-4004-A06A-F3BC3265AF22
NIN00011. Push .
2. Highlight the preferred item and push
.
Available itemsGUID-6E9C6094-026F-4DBC-BE1B-878A137D9ACD.[Fuel Economy]:
Refer to the vehicle Owner’s Manual.
. [Tire Pressure] (if so equipped):
Refer to the vehicle Owner’s Manual.
. [Trip Computer] (if so equipped):
Refer to the vehicle Owner’s Manual.
. [Maintenance]:
Refer to the vehicle Owner’s Manual.
. [Where am I?]:
Displays information regarding the current
vehicle location.
“Viewing information about current
vehicle location” (page 7-3)
. [Traffic Info]:
Allows Traffic Info. setup.
“Viewing available traffic information”
(page 7-3)
. [Weather Info]:
Displays weather information.
“Viewing available weather informa-
tion” (page 7-8)
. [Others]:
— [Map Update]:
Display the map version and enable
updating of the map data.
“Map update” (page 7-17)
— [Navigation Version]: Displays the current navigation system
version.
“Viewing navigation system version
information” (page 7-18)
— [GPS Position]: Displays GPS information regarding the
current vehicle location.
“Viewing GPS current location in-
formation” (page 7-19)
— [Voice Recognition]: Displays the voice recognition list.
“9. Voice recognition”
INFO:
The displayed items vary depending on the
options that are equipped on the vehicle.
INFORMATION SCREEN

Black plate (141,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
GUID-2E229568-4415-4B37-8F8E-E0BF9708690DThis displays the information about the vehicle
location on the route when driving according to
route guidance.
NIN0054BASIC OPERATIONGUID-4E861DCA-CBDA-4C56-BAD7-BD3911E7E0F31. Push.
2. Highlight [Where am I?] and push
.
3. Push to return to the previous
screen. Push

Black plate (142,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
7-4Viewing technical information
situations can arise without warning.
Relying only on NavTraffic information
may lead to a collision and could result
in serious personal injury.
NOTE:
Flow information is provided only for
roads equipped with traffic sensors and
is not available in all markets covered by
the service. Flow data may not be available
on portions of a road that is under
construction.
NavTraffic information is available in limited
markets. To subscribe or to check if this service
is available in the area:
call 1-866-635-2349 or see www.siriusxm.
com/navtraffic
INFO:
If a contract is not completed for NavTraffic
information service, a message appears, and it
will not be possible to check the information on
the traffic information system.
BASIC OPERATIONGUID-9FCF114A-6464-4FB1-A4EB-592AFDF3522C
NIN00021. Push .
2. Highlight [Traffic Info] and push .
3. Highlight the preferred information and push .
4. Push to return to the previous
screen.
Push

Black plate (143,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

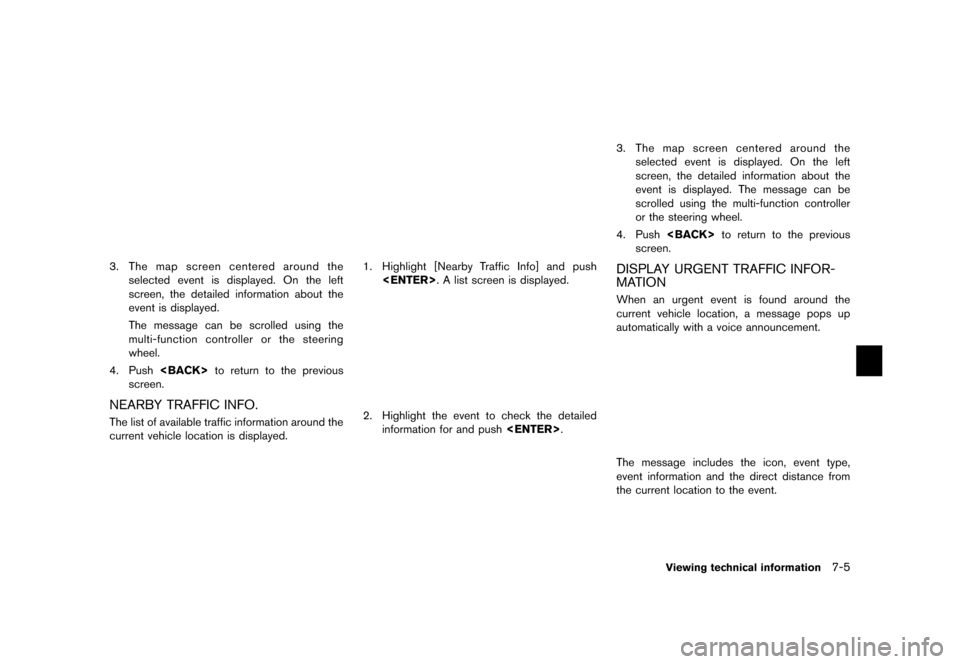

NIN00143.The map screen centered around the
selected event is displayed. On the left
screen, the detailed information about the
event is displayed.
The message can be scrolled using the
multi-function controller or the steering
wheel.
4. Push to return to the previous
screen.
NEARBY TRAFFIC INFO.GUID-6CD2708A-F4E7-4D0D-8188-E427D52DEA05The list of available traffic information around the
current vehicle location is displayed.
NIN00031. Highlight [Nearby Traffic Info] and push
. A list screen is displayed.
NIN00042. Highlight the event to check the detailed
information for and push .
NIN0005
3.The map screen centered around the
selected event is displayed. On the left
screen, the detailed information about the
event is displayed. The message can be
scrolled using the multi-function controller
or the steering wheel.
4. Push to return to the previous
screen.
DISPLAY URGENT TRAFFIC INFOR-
MATION
GUID-1EA8D920-109B-44F0-854E-B222FC440D20When an urgent event is found around the
current vehicle location, a message pops up
automatically with a voice announcement.
NIN0036The message includes the icon, event type,
event information and the direct distance from
the current location to the event.
Viewing technical information7-5

Black plate (144,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
7-6Viewing technical information

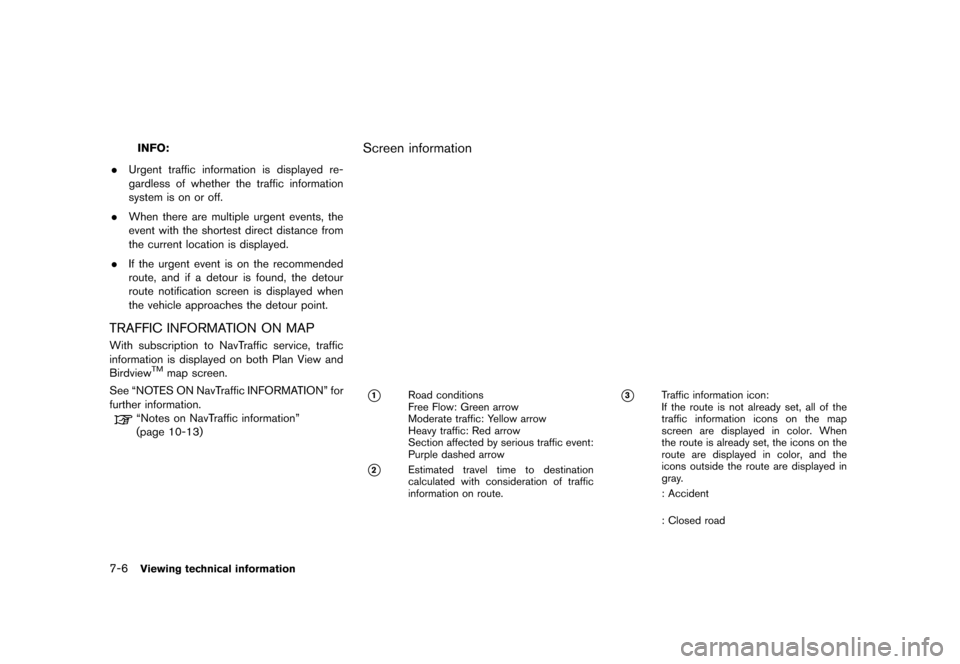

INFO:
. Urgent traffic information is displayed re-
gardless of whether the traffic information
system is on or off.
. When there are multiple urgent events, the
event with the shortest direct distance from
the current location is displayed.
. If the urgent event is on the recommended
route, and if a detour is found, the detour
route notification screen is displayed when
the vehicle approaches the detour point.
TRAFFIC INFORMATION ON MAPGUID-68786295-E02D-4810-A0D9-15AB305F99C1With subscription to NavTraffic service, traffic
information is displayed on both Plan View and
Birdview
TMmap screen.
See “NOTES ON NavTraffic INFORMATION” for
further information.
“Notes on NavTraffic information”
(page 10-13)
Screen informationGUID-9BEED240-4717-48E7-995F-203C8C48F817
NIN0006
*1Road conditions
Free Flow: Green arrow
Moderate traffic: Yellow arrow
Heavy traffic: Red arrow
Section affected by serious traffic event:
Purple dashed arrow
*2Estimated travel time to destination
calculated with consideration of traffic
information on route.
*3Traffic information icon:
If the route is not already set, all of the
traffic information icons on the map
screen are displayed in color. When
the route is already set, the icons on the
route are displayed in color, and the
icons outside the route are displayed in
gray.
: Accident
: Closed road
