2015 NISSAN MAXIMA 08IT Navigation Manual

Black plate (9,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2 Getting started
Control buttons and functions...
............................................... 2-2
Control panel ...
........................................................................\
2-2
Multi-function controller ...
................................................... 2-5
Steering wheel switch ...
....................................................... 2-5
Starting the system ...
................................................................... 2-7
Navigation system status screen ...
.......................................... 2-7
Functions disabled while driving ...
........................................... 2-8
Menu screen and how to operate ...
..................................... 2-10
Menu screens and their purposes ...
............................... 2-10
Using controls to adjust values, levels, etc. ...
.............. 2-11
Start menu ...
........................................................................\
. 2-12
List screen ...
........................................................................\
. 2-13
Touch panel operation ...
.......................................................... 2-14
Example of touch panel operation ...
............................... 2-14
How to input letters and numbers ...
..................................... 2-15
Character (letters and numbers) input screen ...
......... 2-15
Number input screen ...
....................................................... 2-16 Map menu screen
...
................................................................. 2-17
Current location map screen ...
...................................... 2-17
Scrolled location map screen ...
..................................... 2-18
Storing home location/address ...
.......................................... 2-18
How to store home location ...
....................................... 2-18
Setting destination ...
................................................................ 2-20
Searching for destination ...
............................................. 2-20
Starting route guidance ...
................................................ 2-21
Canceling route ...
.............................................................. 2-21
Operating maps ...
..................................................................... 2-22
How to view map screen ...
............................................. 2-22
Setting voice guidance ...
........................................................ 2-23
Turning voice guidance ON/OFF ...
............................... 2-23
Adjusting voice guidance volume ...
.............................. 2-24
NISSAN voice recognition ...
.................................................. 2-25
Using the system ...
........................................................... 2-25
Before starting ...
................................................................ 2-25
Giving voice commands ...
............................................... 2-25
Command list ...
.................................................................. 2-27

Black plate (10,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-2Getting started
GUID-B58C613B-E5FA-494B-BF65-6BD4E91B4EDD
CONTROL PANELGUID-A16CFCE1-3DAD-4C75-AF46-82F712911C89
NGT0091Type A
JNB0091XType B
CONTROL BUTTONS AND
FUNCTIONS

Black plate (11,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
JNB0295XType C
JNB0169XType D
Getting started2-3

Black plate (12,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-4Getting started
JNB0296XType E
*1:
Push multiple times to display audio in-
formation with either the air conditioner
status, fuel economy or navigation direc-
tions.
*2:
Push to enter a destination. Various meth-
ods for entering a destination are available.
“4. Setting destination”
*3:
Push to access guidance control functions
(guidance cancellation, route priority, way-
point setting on the route, etc.).
*4Multi-function controller:
Turn to highlight an item on the screen,
push to select the highlighted item or scroll
the map.
*5:
Push to display the vehicle, traffic, weather
or voice recognition information.
*6:
Push to switch between the day screen
(bright) and the night screen (dark). Push
and hold to turn off the display. Push again
to turn on the display.
*7:
Push to access the system settings.
*8:
Push to hear the current guidance for a
programmed route.
*9:
Push to return to the previous screen. In a
settings screen, this button can also be
used to apply the setting. In a character input screen, this button can
also delete the characters that have been
entered.
*10

Black plate (13,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
MULTI-FUNCTION CONTROLLERGUID-4FA70DB6-5AA5-46E4-BADC-036FB78A2DE0
With Directional buttonsGUID-E7481272-7B19-4197-8455-3CAABB44FEEF
JNB0085X*1:
Push to select the highlighted item on the
screen.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
*2Main directional buttons:
Use to move across the map, highlight an
item on the screen or adjust a setting
(volume, brightness, etc.).
*3Additional directional buttons:
Use to move across the map or highlight an
item on the character input screen.
*4Center dial:
Turn to highlight an item on the screen or
adjust a setting.
Turn the center dial on the map screen. The
map scale is displayed. Use the center dial
to adjust the map scale.
Without Directional buttonsGUID-46122683-56B0-4AF9-9751-8EDFD6077001
JNB0197X*1:
Push to select the highlighted item on the
screen.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
*2Center dial/Slide switch:
Center dial
Turn to highlight an item on the screen or
adjust a setting.The center dial can also be used to adjust
the map scale.
Slide switch
Slide (push upward/downward/leftward/
rightward) to select an item on the screen
or to adjust a setting (volume, brightness,
etc.)
The map can be scrolled in 8 directions by
sliding this switch.
STEERING WHEEL SWITCHGUID-13C6EBE9-78E2-44D1-B1F3-7607F6089D72
JNB0268XType A
Getting started2-5

Black plate (14,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-6Getting started
JNB0270XType B
JNB0298XType C
*1:
Tilt to highlight an item on the screen or
adjust a setting. Push to select the high-
lighted item.
If this button is pushed while a map is
displayed, the map menu screen is dis-played.
“Map menu screen” (page 2-17)
Push and hold while a map or status screen
is shown to display the Start Menu.
“Start menu” (page 2-12)
If this button is tilted up while the audio
function is activated and the map or status
screen is displayed, the audio system can
be operated.
*2<>:
Push this button during a setting operation
to return to the previous screen. In a
settings screen, this button can also be
used to apply the setting.
*3<+−>:
Use to adjust the volume. These buttons
have the same function as that of the
volume control knob. Refer to the vehicle
Owner’s Manual.
*4:
Push to start the voice recognition mode. If
the voice recognition mode is already
activated, pushing this button cancels the
voice guidance and you can speak a voice
command immediately.
*5<>:
Push to display the phone mode screen.
Refer to the vehicle Owner’s Manual.
*6 :
Use to switch the audio mode (source).
Refer to the vehicle Owner’s Manual.
*7<>:
Push to change what is shown on the
vehicle information display.
Refer to the vehicle Owner’s Manual.

Black plate (15,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
GUID-630ABAD4-AF69-4392-8E2B-56108C04179DThe navigation system starts when the ignition
switch is placed in the ACC or ON position.
NOTE:
Do not keep the navigation system on with
the engine stopped. Doing so may dis-
charge the vehicle battery. When you use
the navigation system, always keep the
engine running.
GUID-9C09D7B7-B258-4D8B-9692-81A104A9C62EBy pushing at anytime, you can
display a split screen with audio information that
is always at the top. Each time is
pushed, the bottom part of the screen changes
between air conditioner, fuel economy or navi-
gation directions.
INFO:
There are different status screens displayed
depending on various factors, such as the
currently active mode, whether a destination
has been set or not, etc.
NGT0017When a route to the destination is set and the
audio system is on, a screen similar to the one
above appears.
*1Turning direction at the next intersection
*2Name of the next street
*3Distance to the next intersection
*4Distance remaining to the destination
*5Remaining time to the destination
NGT0018When a route to the destination is not set and
the audio system is off, a screen similar to the
one above appears.
Getting started2-7
STARTING THE SYSTEM NAVIGATION SYSTEM STATUS
SCREEN

Black plate (16,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-8Getting started

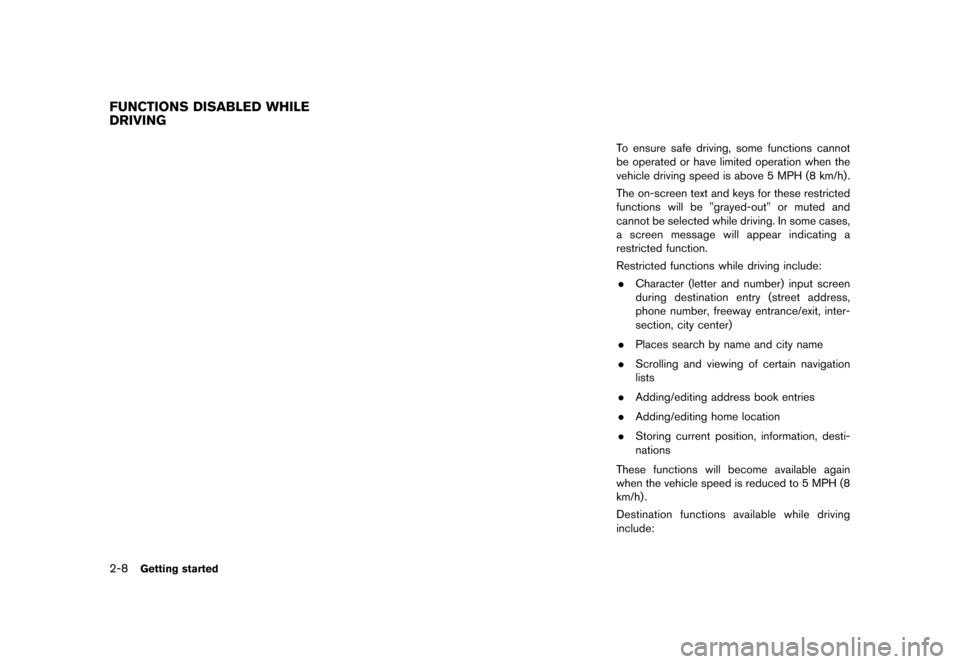

GUID-A20A071E-D0CC-4C9C-9594-50F58EBADD6C
NGT0019
To ensure safe driving, some functions cannot
be operated or have limited operation when the
vehicle driving speed is above 5 MPH (8 km/h).
The on-screen text and keys for these restricted
functions will be "grayed-out" or muted and
cannot be selected while driving. In some cases,
a screen message will appear indicating a
restricted function.
Restricted functions while driving include:. Character (letter and number) input screen
during destination entry (street address,
phone number, freeway entrance/exit, inter-
section, city center)
. Places search by name and city name
. Scrolling and viewing of certain navigation
lists
. Adding/editing address book entries
. Adding/editing home location
. Storing current position, information, desti-
nations
These functions will become available again
when the vehicle speed is reduced to 5 MPH (8
km/h).
Destination functions available while driving
include:
FUNCTIONS DISABLED WHILE
DRIVING
