2015 NISSAN MAXIMA 08IT Navigation Manual

Black plate (193,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

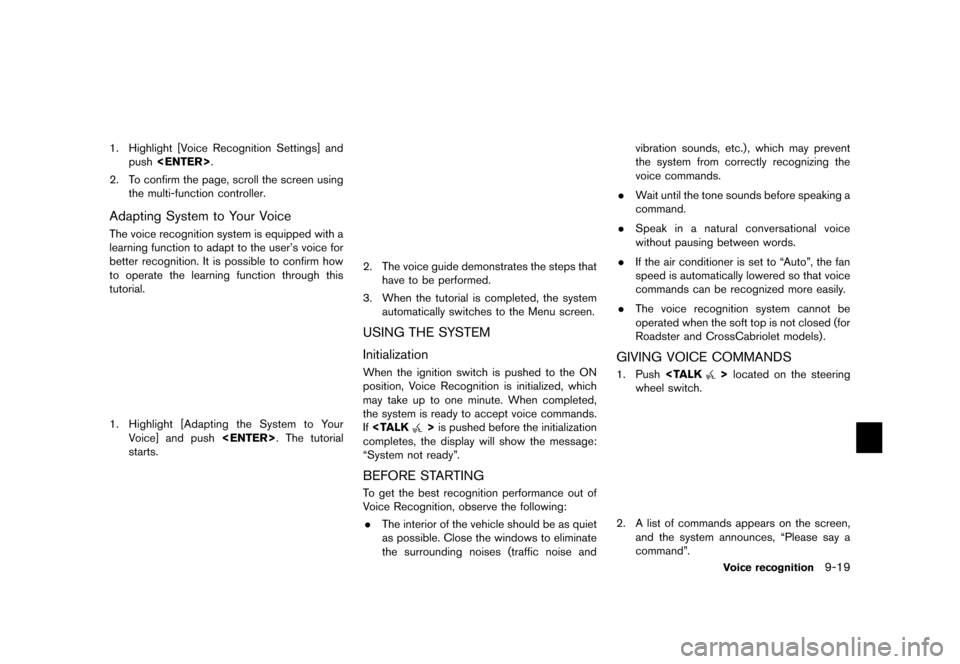

1. Highlight [Voice Recognition Settings] andpush .
2. To confirm the page, scroll the screen using the multi-function controller.
Adapting System to Your VoiceGUID-FFBEE2A4-8E2F-4A43-B43A-2BB065FF292EThe voice recognition system is equipped with a
learning function to adapt to the user’s voice for
better recognition. It is possible to confirm how
to operate the learning function through this
tutorial.
NVR00291.Highlight [Adapting the System to Your
Voice] and push . The tutorial
starts.
NVR00302. The voice guide demonstrates the steps that have to be performed.
3. When the tutorial is completed, the system automatically switches to the Menu screen.
USING THE SYSTEMGUID-5B497BF2-8C21-4BDA-AA46-C140CC39BF65
InitializationGUID-10C36848-7AE0-4EEC-A67A-D866FF588DFAWhen the ignition switch is pushed to the ON
position, Voice Recognition is initialized, which
may take up to one minute. When completed,
the system is ready to accept voice commands.
If > is pushed before the initialization
completes, the display will show the message:
“System not ready”.
BEFORE STARTINGGUID-5C9A995F-D105-4BBB-9BEA-EE1D3AB95C7ATo get the best recognition performance out of
Voice Recognition, observe the following:
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and vibration sounds, etc.), which may prevent
the system from correctly recognizing the
voice commands.
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to “Auto”, the fan
speed is automatically lowered so that voice
commands can be recognized more easily.
. The voice recognition system cannot be
operated when the soft top is not closed (for
Roadster and CrossCabriolet models).
GIVING VOICE COMMANDSGUID-309A48A9-66FB-4FD2-B415-649B94C0B3F41. Push located on the steering
wheel switch.
NVR00322. A list of commands appears on the screen, and the system announces, “Please say a
command”.
Voice recognition9-19

Black plate (194,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

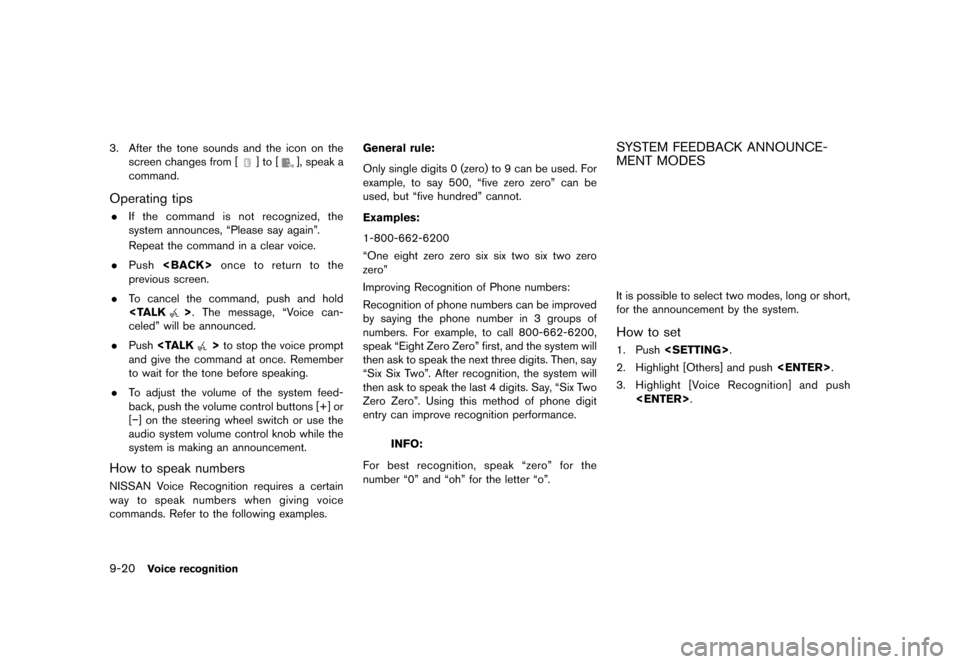

9-20Voice recognition
3. After the tone sounds and the icon on thescreen changes from [
] to [], speak a
command.
Operating tipsGUID-31F5BA7F-5D55-485A-834C-F33DAF430EAA. If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
. Push once to return to the
previous screen.
. To cancel the command, push and hold
>. The message, “Voice can-
celed” will be announced.
. Push >to stop the voice prompt
and give the command at once. Remember
to wait for the tone before speaking.
. To adjust the volume of the system feed-
back, push the volume control buttons [+] or
[−] on the steering wheel switch or use the
audio system volume control knob while the
system is making an announcement.
How to speak numbersGUID-8C5F06B9-97E1-4F59-A1B0-16B74F93E20DNISSAN Voice Recognition requires a certain
way to speak numbers when giving voice
commands. Refer to the following examples. General rule:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0EOnly single digits 0 (zero) to 9 can be used. For
example, to say 500, “five zero zero” can be
used, but “five hundred” cannot.
Examples:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E1-800-662-6200
“One eight zero zero six six two six two zero
zero”
Improving Recognition of Phone numbers:
Recognition of phone numbers can be improved
by saying the phone number in 3 groups of
numbers. For example, to call 800-662-6200,
speak “Eight Zero Zero” first, and the system will
then ask to speak the next three digits. Then, say
“Six Six Two”. After recognition, the system will
then ask to speak the last 4 digits. Say, “Six Two
Zero Zero”. Using this method of phone digit
entry can improve recognition performance.
INFO:
For best recognition, speak “zero” for the
number “0” and “oh” for the letter “o”.
SYSTEM FEEDBACK ANNOUNCE-
MENT MODES
GUID-4A2B4FD5-7D3F-4AD9-B6B6-0C3C7664F69E
NVR0033It is possible to select two modes, long or short,
for the announcement by the system.
How to setGUID-1FFD0B5F-0D6B-446A-9DDC-2CF5489D83661. Push .
2. Highlight [Others] and push .
3. Highlight [Voice Recognition] and push
.
NVR0034

Black plate (195,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

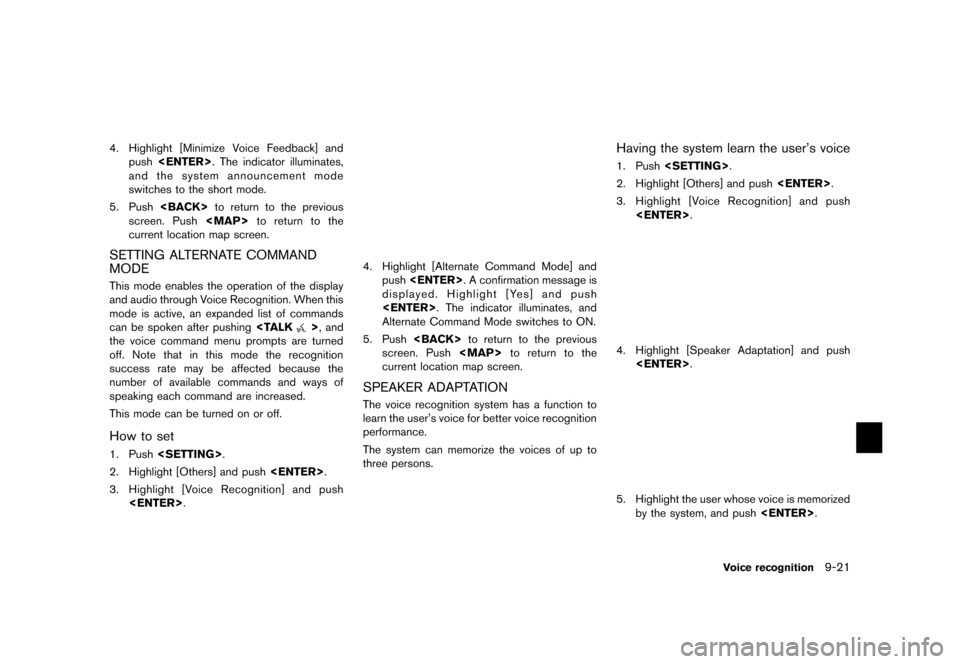

4. Highlight [Minimize Voice Feedback] andpush . The indicator illuminates,
and the system announcement mode
switches to the short mode.
5. Push to return to the previous
screen. Push

Black plate (196,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
9-22Voice recognition
NVR00386. Highlight [Start Speaker Adaptation Learn-ing] and push .
NVR00397. Highlight the voice command category to be
learned by the system, and push .
The voice command category list is dis-
played.
NVR00408. Highlight the voice command to be learned by the system, and push . The
voice recognition system starts.
NVR00419. The system announces, “Please say a
command”.
10. After the tone sounds and the icon on the screen changes from [
] to [], speak a
command.
NVR004211. When the system has recognized the voice command, the voice of the user is learned.
Push once to return to the
previous screen.
INFO:
With [Continuous Learning] set to on, the
system does not go back to the command
list screen, allowing to continue voice
command learning by the system.
12. If the system has learned the command correctly, “None” will change to “Stored”.
Editing registered itemsGUID-380E727C-72C7-4C18-B6AC-A176E9EB4BD8It is possible to edit user names and select
learning function settings.
1. Push .
2. Highlight [Others] and push .

Black plate (197,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
3.Highlight [Voice Recognition] and push
.
NVR00364. Highlight [Speaker Adaptation] and push
.
NVR00375.Highlight a user to edit, and push
.
NVR00446. Highlight [Setting] and push .
NVR00457.Highlight an item to edit, and push
.
Setting items
.[Edit User Name]:
Edit the user name.
.[Delete Voice Data]:Reset the user voice that the voice
recognition system has learned.
.[Continuous Learning]:Have the system learn the voice com-
mands of the user in succession, without
selecting commands one by one.
VOICE COMMAND EXAMPLESGUID-9D05BF03-143B-4815-9BE8-4F9F591054EBTo use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations by voice commands are described
here.
Example 1: Switching the map to 2D
(Plan View) mode
GUID-0A511158-0238-4A62-B8E7-2E76EC470A94
NVR00461. Push located on the steering
wheel switch.
2. The system announces, “Please say a
command”.
3. After the tone sounds and the icon on the screen changes from [
] to [], speak
Voice recognition9-23

Black plate (198,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
9-24Voice recognition
“Plan View Map”.
NVR00474. Voice feedback will be provided when thecommand is accepted, and the map is
displayed in 2D (Plan View) .
Example 2: Setting a destination using
places list
GUID-90CD4F21-5511-42E9-B2AD-34FB8FD05894
NVR00461. Push located on the steering
wheel switch.
2. The system announces, “Please say a
command”. 3. After the tone sounds and the icon on the
screen changes from [
] to [], speak
“Places”.
NVR00504. If a route is already set, choose “Near
Current Location”, “Along Route” or “Near
Destination”.
5. After the tone sounds and the icon on the screen changes again, speak “Along Route”.
NVR00436. Voice feedback will be provided when the
command is accepted, and the list of places
of interest categories appears. 7. After the tone sounds and the icon on the
screen changes again, speak “Two”.
NVR00518. Voice feedback will be provided when thecommand is accepted, and the list of places
of interest in the category specified in the
previous step appears.
9. After the tone sounds and the icon on the screen changes again, speak “One”.
NVR005210. Voice feedback will be provided when the
command is accepted, and the system
starts calculating a route to the selected
facility.

Black plate (199,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
Example 3: Setting a destination by a
street address
GUID-529B59D9-C16C-492C-9D37-2CB3E28E472D
NVR00061. Pushlocated on the steering
wheel switch.
2. The system announces, “Please say a
command”.
JNB0277X3. Speak “Address”.
NVR00554. Speak the name of the state, “California”.
NVR00565. Speak the name of the city, “Gardena”.
NVR0057
6.Speak the name of the street, “South
Figueroa street”.
INFO:
Speak the street name precisely including
boulevard, way, north, south, etc. In Alter-
nate Command Mode, the system does not
recognize abbreviated names when they are
spoken. In this case, the system does not
accept “Figueroa street” or “Figueroa”.
NVR00587. Voice feedback will be provided when the command is accepted, and the list of street
names appears.
8. After the tone sounds and the icon on the screen changes again, speak “One”.
Voice recognition9-25

Black plate (200,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
9-26Voice recognition
NVR00599. Speak the house number.
“How to speak numbers” (page 9-20)
INFO:
If the house number is unknown, speak “No
house number”.
NVR006010. To confirm the destination location on the map, speak “Show map”. To calculate a
route, speak “Calculate route”.
