2015 NISSAN MAXIMA 08IT Navigation Manual

Black plate (25,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

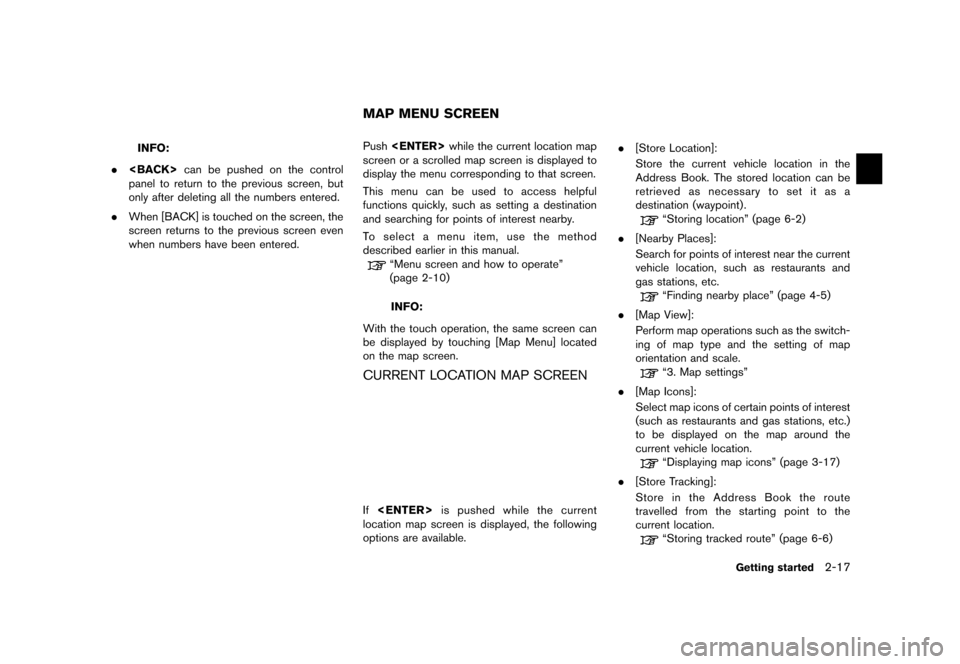

INFO:
. can be pushed on the control
panel to return to the previous screen, but
only after deleting all the numbers entered.
. When [BACK] is touched on the screen, the
screen returns to the previous screen even
when numbers have been entered.
GUID-BB7E41FA-6BB3-465E-8C16-A395BBA2CB31Push while the current location map
screen or a scrolled map screen is displayed to
display the menu corresponding to that screen.
This menu can be used to access helpful
functions quickly, such as setting a destination
and searching for points of interest nearby.
To select a menu item, use the method
described earlier in this manual.
“Menu screen and how to operate”
(page 2-10)
INFO:
With the touch operation, the same screen can
be displayed by touching [Map Menu] located
on the map screen.
CURRENT LOCATION MAP SCREENGUID-CC966A19-43AC-416C-A3F3-7F2A225535FC
NGT0029If is pushed while the current
location map screen is displayed, the following
options are available. .
[Store Location]:
Store the current vehicle location in the
Address Book. The stored location can be
retrieved as necessary to set it as a
destination (waypoint) .
“Storing location” (page 6-2)
. [Nearby Places]:
Search for points of interest near the current
vehicle location, such as restaurants and
gas stations, etc.
“Finding nearby place” (page 4-5)
. [Map View]:
Perform map operations such as the switch-
ing of map type and the setting of map
orientation and scale.
“3. Map settings”
. [Map Icons]:
Select map icons of certain points of interest
(such as restaurants and gas stations, etc.)
to be displayed on the map around the
current vehicle location.
“Displaying map icons” (page 3-17)
. [Store Tracking]:
Store in the Address Book the route
travelled from the starting point to the
current location.
“Storing tracked route” (page 6-6)
Getting started2-17
MAP MENU SCREEN

Black plate (26,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-18Getting started
SCROLLED LOCATION MAP SCREENGUID-A9C2F142-E2DD-4EEB-BF4B-430BF74ECE68
NGT0030If is pushed while a scrolled map
screen is displayed, the following options are
available.
. [New Dest.]:
Set the destination to the map location
where was pushed. If a destina-
tion is already set, the location will be set as
the new destination.
“Setting point on map” (page 4-19)
. [Add to Route]:
Set the map location where was
pushed as a destination or a waypoint.
This is available only when the suggested
route is already set.
“Setting destination or waypoint”
(page 5-14)
. [Nearby Places]:
Search for points of interest near the map
location where was pushed and set them as a destination or waypoint.
Use the same search method as the one for
[Places].
“Finding nearby place” (page 4-5)
. [Store Location]:
Store in the Address Book the map location
where was pushed. The stored
location can be retrieved to set it as a
destination or waypoint.
“Storing location” (page 6-2)
. [Delete]:
Delete a stored location. To delete it, place
the cross pointer over the corresponding
icon.
. [Incident Detail]:
This function can be selected only when the
traffic information icon is displayed.
Display the details of the traffic information
icon.
Place the cross pointer over the icon you
want to check.
INFO:
Incident details are a feature of Traffic Informa-
tion, and that a NavTraffic subscription is
required in order to receive Traffic Information.
GUID-C0C85DD7-5544-4D74-A724-F0326DC92F79
HOW TO STORE HOME LOCATIONGUID-EAAA43F1-D5A0-4847-BF2D-4183C54BA25BIf a home location is already stored in the
Address Book, it can be easily retrieved to set
the route to the stored home location.
The procedure to store the home location is the
same as for storing any other location.
“4. Setting destination”
As an example, the procedure for storing the
home location by searching for a destination by
address is described here.
NGT00311. Push .
2. Highlight [Home (Add New)] and push
.
STORING HOME LOCATION/
ADDRESS

Black plate (27,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
NGT00323. A confirmation message is displayed. Con-firm the contents of the message, highlight
[Yes] and push .
NGT00334.Highlight [Street Address] and push
. A character input screen is
displayed.
NGT00345. Enter the address of the home location,
highlight [OK] and push .
“Finding address” (page 4-4)
The map screen is displayed.
NGT00356. Adjust the location of your home using the muti-function controller, if necessary.
7. After adjusting the location, push
.
NGT00368.A message is displayed and the home
location is stored.
NGT00669. Highlight [OK] and push .
10. Push

Black plate (28,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-20Getting started
GUID-7A83FB78-9705-4073-94D4-BBF4B9200B12
SEARCHING FOR DESTINATIONGUID-66346E6C-FF12-4C98-824C-FD5B49256E6EAs an example, the method for setting a
restaurant as the destination using [Places] is
described here.
NGT00371. Push.
2. Highlight [Places] and push .
NGT00383. Highlight [Nearby RESTAURANT] and push
.
INFO:
The search can also be narrowed down by
selecting [All Categories or Name] or
[ZAGAT] on this screen. By selecting [All
Categories or Name], the area, name of
facility, etc. can be specified. By selecting
[ZAGAT], restaurants registered in the ZA-
GAT database can be searched and sorted
by its rating regarding food, decor, cost,
service, etc.
NGT00394. Highlight the preferred restaurant from the list and push .
INFO:
.The position of the selected location is
displayed in the preview on the right side
of the screen.
.If there is a route already in progress, onlyplaces along the current route will be
listed. Turn off [Show Along Route] at the top of list to display all nearby places.
NGT00405. The entire route is shown on the map.
Highlight [Start] after confirming the location
of the displayed destination, and push
.
The system sets the destination to the
selected location and starts calculating a
route.
INFO:
Even after setting a destination, the location
of the destination can be adjusted, the route
can be stored, etc. if necessary.
“Procedures after setting destination”
(page 5-2)
SETTING DESTINATION

Black plate (29,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
STARTING ROUTE GUIDANCEGUID-DA651AA9-020C-41C5-BA6D-66A6FB6C5D71After setting the destination and performing
route calculation, the suggested route is dis-
played.
NGT00401. Highlight [Start] and push.
NGT00422. Once route guidance is started, the system
navigates through the guide points using
visual and voice guidance.
NGT00433.When approaching a guide point, the
system automatically changes to the split
screen and shows an enlarged view of the
intersection in the left screen.
Push

Black plate (30,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-22Getting started
INFO:
. If a route is canceled, [Cancel Route]
changes to [Resume Route].
Highlight [Resume Route] and push
to reactivate the canceled route.
This is available only until a new route is set
or a currently set destination is deleted.
. The above step does not delete the
destination that has been set. To delete a
destination, push and highlight
[Delete Destination], then push .
“Delete destination” (page 4-20)
GUID-EC233EBE-1592-4D8E-972F-E2F3F43A1E61
HOW TO VIEW MAP SCREENGUID-447D71E9-7977-4E36-AC1E-877BED82B344The navigation system displays various informa-
tion on the map screen.
Screen informationGUID-4CA74274-5369-4F36-861A-EFA2308666F6
NGT0047
*1Vehicle icon:
Indicates the current vehicle location and
the direction of travel.
*2Starting point:
Displays the vehicle location, with which the
route is set, as the starting point.
*3Guide point:
Indicates a guide point on the route.
*4Waypoint:
Displays locations between the starting
point and the destination. A maximum of 5
waypoints can be set.
OPERATING MAPS

Black plate (31,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
*5Destination:
Indicates the destination location of the
route guidance.
When you reach your destination, the
address will be displayed on the map
screen.
*6Suggested route:
Appears in bold yellow during route gui-
dance.
*7Map Menu icon:
Touch the icon to display the Map Menu
screen.
“Map menu screen” (page 2-17)
*8/Direction indicator:
Indicates the directional setting of the map.
Touch the icon to change the setting.
: North always pointing up.
: Traveling direction always pointing up.
“Setting map orientation” (page 3-14)
*9Scale indicator:
Indicates the scale of the map.
Touch the icon to display the scale bar. This
allows the map scale to be adjusted.
“Operating with touch operation”
(page 3-10)
*10Street name:
Displays the name of the street that the
vehicle is currently driving on.GUID-849BE8ED-BA6E-471C-B6E1-B7B5915174E9
TURNING VOICE GUIDANCE ON/OFFGUID-53A18E54-2779-4E1A-A115-2A38B7F39999Voice guidance can be activated or deactivated.
NRG00811. Push .
2. Highlight [Guidance Settings] and push
.
NGT00493.Highlight [Guidance Voice] and push
. The indicator illuminates if voice
guidance is activated.
Getting started2-23
SETTING VOICE GUIDANCE

Black plate (32,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-24Getting started
Other settingsGUID-2B911867-C483-4661-AFB0-53B4A2B9F40FVoice guidance can also be activated or
deactivated using the following procedure.
NGT00501. Push.
2. Highlight [Volume & Beeps] and push
.
3. Highlight [Guidance Voice] and push
.
ADJUSTING VOICE GUIDANCE VO-
LUME
GUID-82DCD0CE-A113-4FA5-B49F-E36EC0E9D794The voice guidance volume can be adjusted.
NRG0081
1. Push .
2. Highlight [Guidance Settings] and push
.
NGT00513.Highlight [Guidance Volume] and push
.
NGT00524. Adjust the volume of voice guidance by
using the multi-function controller.
Other settingsGUID-9B02ECDC-6640-4828-BA30-A00F6055F314Voice guidance volume can also be adjusted
using the following procedure.
NGT00531. Push .
2. Highlight [Volume & Beeps] and push
.
3. Highlight [Guidance Volume] and push
.
4. Adjust the volume of voice guidance by using the multi-function controller.
INFO:
The volume can also be adjusted by turning the
audio system volume control knob or pushing
+/− on the steering wheel switch while voice
guidance is being announced.
“Steering wheel switch” (page 2-5)
