2015 NISSAN MAXIMA 08IT Navigation Manual

Black plate (33,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
GUID-FD1FBD10-75D1-4081-91C2-28EA2D9965C8NISSAN Voice Recognition allows hands-free
operation of the navigation system and other
systems equipped on this vehicle, such as the
phone, vehicle information and audio. NISSAN
Voice Recognition can be used in one of two
selectable modes, Standard Mode or Alternate
Command Mode.
In Standard Mode, the commands that are
available are always shown on the display and
announced by the system. To perform opera-
tions, simply follow the prompts given by the
system.
For advanced operation, change to Alternate
Command Mode. When this mode is active, an
expanded list of commands can be spoken after
pushing >on the steering wheel
switch and the voice command menu prompts
are turned off. Note that in this mode the
recognition success rate may be affected
because the number of available commands
and ways of speaking each command are
increased. Otherwise, it is recommended that
Alternate Command Mode be turned to OFF
and Standard Mode be used for the best
recognition performance.
For U.S. customers, Standard Mode is selected
by default. For Canadian customers, Alternate
Command Mode is the default mode.
Otherwise, it is recommended that Alternate Command Mode be turned to OFF and Stan-
dard Mode be used for the best recognition
performance.
INFO:
. For voice recognition system operation
related to the phone, audio or vehicle
information systems, refer to the Owner’s
Manual of your vehicle.
. When the system language is set to
“Franc¸ ais” (French) or “Espan ˜
ol” (Spanish) ,
the available commands and functions may
differ from those that are available when
using the system in English.
USING THE SYSTEMGUID-217A7C91-A24A-4CAA-8F70-88C9037B64BF
InitializationGUID-3CE79205-468E-4D21-8B8F-B89EA20C4D01When the ignition switch is pushed to the ON
position, NISSAN Voice Recognition is initia-
lized, which may take up to one minute. When
completed, the system is ready to accept voice
commands. If >is pushed before the
initialization completes, the display will show the
message: “System not ready.”
BEFORE STARTINGGUID-6E89E7AB-27A3-461E-A6D4-075A500F249FTo get the best recognition performance from
NISSAN Voice Recognition, observe the follow-
ing points:
. The interior of the vehicle should be as quiet
as possible. Close the windows to eliminate
the surrounding noises (traffic noise and
vibration sounds, etc.), which may prevent
the system from correctly recognizing the
voice commands.
. The voice recognition system cannot be
operated when the soft top is not closed (for
Roadster and CrossCabriolet models).
. Wait until the tone sounds before speaking a
command.
. Speak in a natural conversational voice
without pausing between words.
. If the air conditioner is set to “Auto”, the fan
speed is automatically lowered so that voice
commands can be recognized more easily.
GIVING VOICE COMMANDSGUID-4BB6A4C9-7581-46E3-8A47-EAC62DB10347The method of giving a voice command in
Standard Mode is described in this section.
Getting started2-25
NISSAN VOICE RECOGNITION

Black plate (34,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-26Getting started
NGT0092Type A
JNB0093XType B
JNB0299XType C
1. Pushlocated on the steering
wheel switch.
NGT00682. A list of commands appears on the screen, and the system provides the voice menu
prompt “Would you like to access Phone,
Navigation, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from [
] to [], speak a
command. 4. Continue to follow the voice menu prompts
and speak after the tone sounds until
operation is completed.
Operating tipsGUID-CF72C705-9852-45A8-B220-CDE798C9F69C.Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
. If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
. Push once to return to the
previous screen.
. To cancel the command, push and hold
>. The message, “Voice recogni-
tion is canceled” will be announced.
. Push >to stop the voice prompt
and give the command at once. Remember
to wait for the tone before speaking.
. To adjust the volume of the system feed-
back, push the volume control buttons <+>
or <−> on the steering wheel switch or use
the audio system volume control knob while
the system is making an announcement.

Black plate (35,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

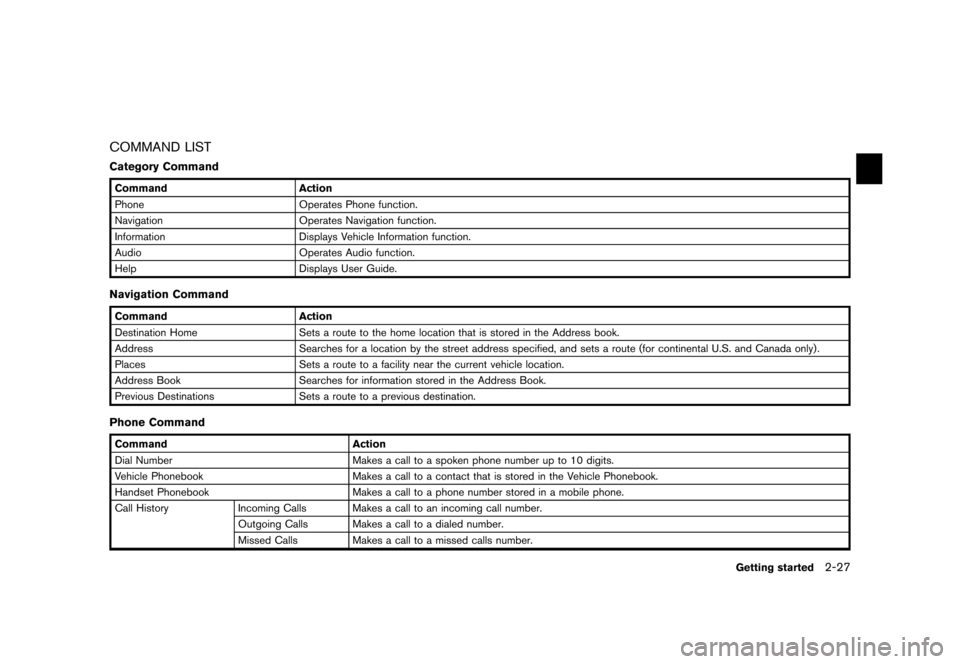

COMMAND LISTGUID-47EF5685-2F6A-4988-BBB2-845A602E21A2
Category CommandGUID-47EF5685-2F6A-4988-BBB2-845A602E21A2
CommandAction
Phone Operates Phone function.
Navigation Operates Navigation function.
Information Displays Vehicle Information function.
Audio Operates Audio function.
Help Displays User Guide.
Navigation CommandGUID-47EF5685-2F6A-4988-BBB2-845A602E21A2
Command Action
Destination Home Sets a route to the home location that is stored in the Address book.
Address Searches for a location by the street address specified, and sets a route (for continental U.S. and Canada only).
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for information stored in the Address Book.
Previous Destinations Sets a route to a previous destination.
Phone CommandGUID-47EF5685-2F6A-4988-BBB2-845A602E21A2
Command Action
Dial Number Makes a call to a spoken phone number up to 10 digits.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a phone number stored in a mobile phone.
Call History Incoming Calls Makes a call to an incoming call number.
Outgoing Calls Makes a call to a dialed number.
Missed Calls Makes a call to a missed calls number.
Getting started
2-27

Black plate (36,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-28Getting started

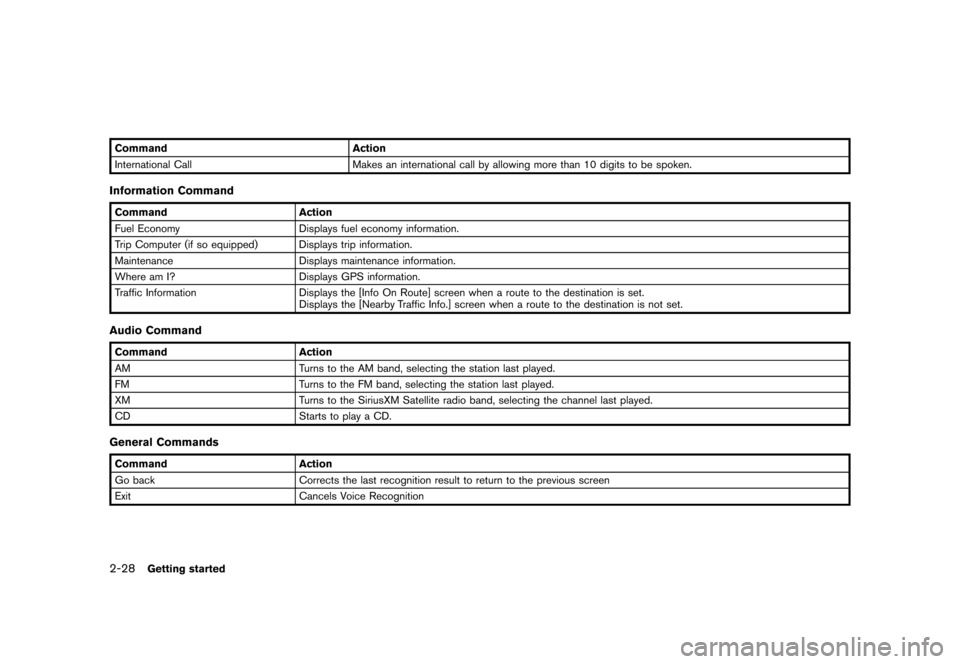

CommandAction
International Call Makes an international call by allowing more than 10 digits to be spoken.
Information CommandGUID-47EF5685-2F6A-4988-BBB2-845A602E21A2
CommandAction
Fuel Economy Displays fuel economy information.
Trip Computer (if so equipped) Displays trip information.
Maintenance Displays maintenance information.
Where am I? Displays GPS information.
Traffic Information Displays the [Info On Route] screen when a route to the destination is set. Displays the [Nearby Traffic Info.] screen when a route to the destination is not set.
Audio CommandGUID-47EF5685-2F6A-4988-BBB2-845A602E21A2
CommandAction
AM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the SiriusXM Satellite radio band, selecting the channel last played.
CD Starts to play a CD.
General CommandsGUID-47EF5685-2F6A-4988-BBB2-845A602E21A2
CommandAction
Go back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition

Black plate (37,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
INFO:
Refer to the vehicle Owner’s Manual for the
operations related to phone, information and
audio.
Voice command examplesGUID-64627AA7-123D-4493-AF6F-AED702C85E6DTo use the voice recognition function, speaking
one command is sometimes sufficient, but at
other times it is necessary to speak two or more
commands. As examples, some additional basic
operations that are performed by voice com-
mands are described here.
Example 1: Placing a call to the phone
number 800-662-6200:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E1. Push located on the steering
wheel switch.
NGT00702. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”. 3. Speak “Phone”.
NGT00794. Speak “Dial Number”.
NGT00805. Speak “800”.
NGT0081
6. The system announces, “Please say next
three digits or dial, or say change number”.
Speak “662”.
NGT00827. The system announces, “Please say last fourdigits or say change number”. Speak
“6200”.
NGT00838. The system announces, “Dial or ChangeNumber?”. Speak “Dial”.
Getting started2-29

Black plate (38,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-30Getting started
NGT00849. The system makes a call to 800-662-6200.
INFO:
. Speaking “800-662-6200” (10 continuous
digits) or “662-6200” (7 continuous digits)
is acceptable, if the area code is not
necessary. However the 3-3-4 digit group-
ing is recommended for improved recogni-
tion.
“How to speak numbers” (page 9-20)
. The NISSAN voice recognition system is not
limited to recognizing phone numbers of
only 7 or 10 digits. To dial a number in a
format other than the 3-3-4 digit grouping,
use the “International Call” command.
. If “Change Number” is spoken during phone
number entry, the system will automatically
request that the number be repeated using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts. .
Do not add a “1” in front of the area code
when speaking phone numbers.
. If the system does not recognize a voice
command, please try repeating the com-
mand using a natural voice. Speaking too
slowly or too loudly may further decrease
recognition performance.
Example 2: Placing an international call to
the phone number 011-81-111-222-3333:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E1. Push located on the steering
wheel switch.
NGT00702. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”.
3. Speak “Phone”.
NGT00794. Speak “International Call”.
NGT00875. Speak “01181111222333”.
NGT0088

Black plate (39,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
6. Speak “Dial”.
NGT00897. The system makes a call to 011-81-111-222-3333.
INFO:
Any digit input format is available in the
International Number input process.
Example 3: Setting a destination by a
street address:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E1. Push located on the steering
wheel switch.
NGT0070
2. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”.
3. Speak “Navigation”.
JNB0277X4. Speak “Address”.
NGT00725. Speak the name of the state, “California”.
NGT00736. Speak the name of the city, “Gardena”.
NGT00937. Voice feedback will be provided when the command is accepted, and the list of city
names is displayed.
8. After the tone sounds and the icon on the screen changes again, speak “One”.
Getting started2-31

Black plate (40,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-32Getting started

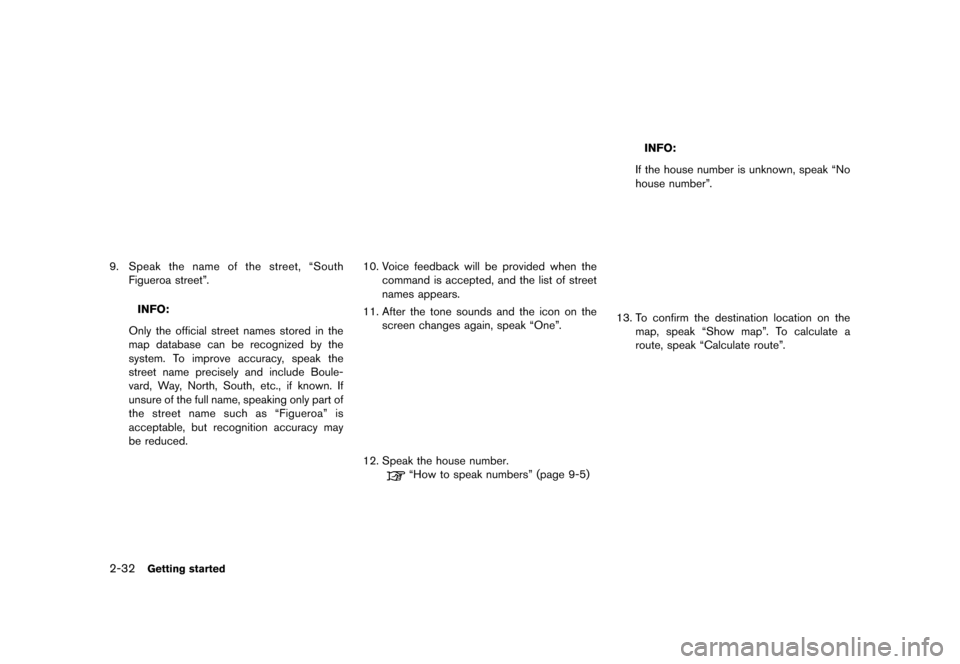

NGT00749.Speak the name of the street, “South
Figueroa street”.
INFO:
Only the official street names stored in the
map database can be recognized by the
system. To improve accuracy, speak the
street name precisely and include Boule-
vard, Way, North, South, etc., if known. If
unsure of the full name, speaking only part of
the street name such as “Figueroa” is
acceptable, but recognition accuracy may
be reduced.
NGT007510. Voice feedback will be provided when the command is accepted, and the list of street
names appears.
11. After the tone sounds and the icon on the screen changes again, speak “One”.
NGT007612. Speak the house number.
“How to speak numbers” (page 9-5)
INFO:
If the house number is unknown, speak “No
house number”.
NGT007713. To confirm the destination location on the map, speak “Show map”. To calculate a
route, speak “Calculate route”.
