2015 NISSAN MAXIMA buttons

Black plate (9,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2 Getting started
Control buttons and functions...
............................................... 2-2
Control panel ...
........................................................................\
2-2
Multi-function controller ...
................................................... 2-5
Steering wheel switch ...
....................................................... 2-5
Starting the system ...
................................................................... 2-7
Navigation system status screen ...
.......................................... 2-7
Functions disabled while driving ...
........................................... 2-8
Menu screen and how to operate ...
..................................... 2-10
Menu screens and their purposes ...
............................... 2-10
Using controls to adjust values, levels, etc. ...
.............. 2-11
Start menu ...
........................................................................\
. 2-12
List screen ...
........................................................................\
. 2-13
Touch panel operation ...
.......................................................... 2-14
Example of touch panel operation ...
............................... 2-14
How to input letters and numbers ...
..................................... 2-15
Character (letters and numbers) input screen ...
......... 2-15
Number input screen ...
....................................................... 2-16 Map menu screen
...
................................................................. 2-17
Current location map screen ...
...................................... 2-17
Scrolled location map screen ...
..................................... 2-18
Storing home location/address ...
.......................................... 2-18
How to store home location ...
....................................... 2-18
Setting destination ...
................................................................ 2-20
Searching for destination ...
............................................. 2-20
Starting route guidance ...
................................................ 2-21
Canceling route ...
.............................................................. 2-21
Operating maps ...
..................................................................... 2-22
How to view map screen ...
............................................. 2-22
Setting voice guidance ...
........................................................ 2-23
Turning voice guidance ON/OFF ...
............................... 2-23
Adjusting voice guidance volume ...
.............................. 2-24
NISSAN voice recognition ...
.................................................. 2-25
Using the system ...
........................................................... 2-25
Before starting ...
................................................................ 2-25
Giving voice commands ...
............................................... 2-25
Command list ...
.................................................................. 2-27

Black plate (10,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-2Getting started
GUID-B58C613B-E5FA-494B-BF65-6BD4E91B4EDD
CONTROL PANELGUID-A16CFCE1-3DAD-4C75-AF46-82F712911C89
NGT0091Type A
JNB0091XType B
CONTROL BUTTONS AND
FUNCTIONS

Black plate (13,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
MULTI-FUNCTION CONTROLLERGUID-4FA70DB6-5AA5-46E4-BADC-036FB78A2DE0
With Directional buttonsGUID-E7481272-7B19-4197-8455-3CAABB44FEEF
JNB0085X*1:
Push to select the highlighted item on the
screen.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
*2Main directional buttons:
Use to move across the map, highlight an
item on the screen or adjust a setting
(volume, brightness, etc.).
*3Additional directional buttons:
Use to move across the map or highlight an
item on the character input screen.
*4Center dial:
Turn to highlight an item on the screen or
adjust a setting.
Turn the center dial on the map screen. The
map scale is displayed. Use the center dial
to adjust the map scale.
Without Directional buttonsGUID-46122683-56B0-4AF9-9751-8EDFD6077001
JNB0197X*1:
Push to select the highlighted item on the
screen.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
*2Center dial/Slide switch:
Center dial
Turn to highlight an item on the screen or
adjust a setting.The center dial can also be used to adjust
the map scale.
Slide switch
Slide (push upward/downward/leftward/
rightward) to select an item on the screen
or to adjust a setting (volume, brightness,
etc.)
The map can be scrolled in 8 directions by
sliding this switch.
STEERING WHEEL SWITCHGUID-13C6EBE9-78E2-44D1-B1F3-7607F6089D72
JNB0268XType A
Getting started2-5

Black plate (14,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-6Getting started
JNB0270XType B
JNB0298XType C
*1:
Tilt to highlight an item on the screen or
adjust a setting. Push to select the high-
lighted item.
If this button is pushed while a map is
displayed, the map menu screen is dis-played.
“Map menu screen” (page 2-17)
Push and hold while a map or status screen
is shown to display the Start Menu.
“Start menu” (page 2-12)
If this button is tilted up while the audio
function is activated and the map or status
screen is displayed, the audio system can
be operated.
*2<>:
Push this button during a setting operation
to return to the previous screen. In a
settings screen, this button can also be
used to apply the setting.
*3<+−>:
Use to adjust the volume. These buttons
have the same function as that of the
volume control knob. Refer to the vehicle
Owner’s Manual.
*4:
Push to start the voice recognition mode. If
the voice recognition mode is already
activated, pushing this button cancels the
voice guidance and you can speak a voice
command immediately.
*5<>:
Push to display the phone mode screen.
Refer to the vehicle Owner’s Manual.
*6 :
Use to switch the audio mode (source).
Refer to the vehicle Owner’s Manual.
*7<>:
Push to change what is shown on the
vehicle information display.
Refer to the vehicle Owner’s Manual.

Black plate (19,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
USING CONTROLS TO ADJUST VALUES, LEVELS, ETC.GUID-2B56568D-42AA-4A6E-8888-34490DA77665
NGT0022With directional buttons
Getting started2-11

Black plate (20,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-12Getting started
JNB0174MWithout directional buttons
There are five main methods to control the
navigation system: the center dial, the main
directional buttons, the slide switch, the touch
panel and the switches on the steering wheel.
Use these controls to adjust the volume of the
phone and voice guidance, the display bright-
ness, etc.
How to adjustGUID-0A8CAEAA-ADB4-4CA2-A921-E83B08C7AE4D1.Highlight the preferred setting item and
push . The color of the corre-
sponding adjustment item changes. 2. Adjust the value or level of the indicator bar
using the multi-function controller.
3. Push or to apply the
setting.
INFO:
. The volume of phone and voice guidance,
the display brightness, etc. can be adjusted
by tilting on the steering wheel
up and down. .
These same adjustments can also be
performed using the touch panel operation.
“Adjusting volume and others”
(page 2-14)
START MENUGUID-1A734B7E-5380-4301-8BAB-97B411A6083FThe start menu can be displayed using the
steering wheel switch.
NGT00231. Push and hold on the steering
wheel.
2. Highlight the preferred item and push
.
INFO:
on the steering wheel switch can be
used to display the start menu only when the
map or status screen is displayed.

Black plate (34,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
2-26Getting started
NGT0092Type A
JNB0093XType B
JNB0299XType C
1. Pushlocated on the steering
wheel switch.
NGT00682. A list of commands appears on the screen, and the system provides the voice menu
prompt “Would you like to access Phone,
Navigation, Information, Audio or Help?”.
3. After the tone sounds and the icon on the screen changes from [
] to [], speak a
command. 4. Continue to follow the voice menu prompts
and speak after the tone sounds until
operation is completed.
Operating tipsGUID-CF72C705-9852-45A8-B220-CDE798C9F69C.Say a command after the tone.
. Commands that are available are always
shown on the display and spoken through
voice menu prompts. Commands other than
those that are displayed are not accepted.
Please follow the prompts given by the
system.
. If the command is not recognized, the
system announces, “Please say again”.
Repeat the command in a clear voice.
. Push once to return to the
previous screen.
. To cancel the command, push and hold
>. The message, “Voice recogni-
tion is canceled” will be announced.
. Push >to stop the voice prompt
and give the command at once. Remember
to wait for the tone before speaking.
. To adjust the volume of the system feed-
back, push the volume control buttons <+>
or <−> on the steering wheel switch or use
the audio system volume control knob while
the system is making an announcement.

Black plate (41,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

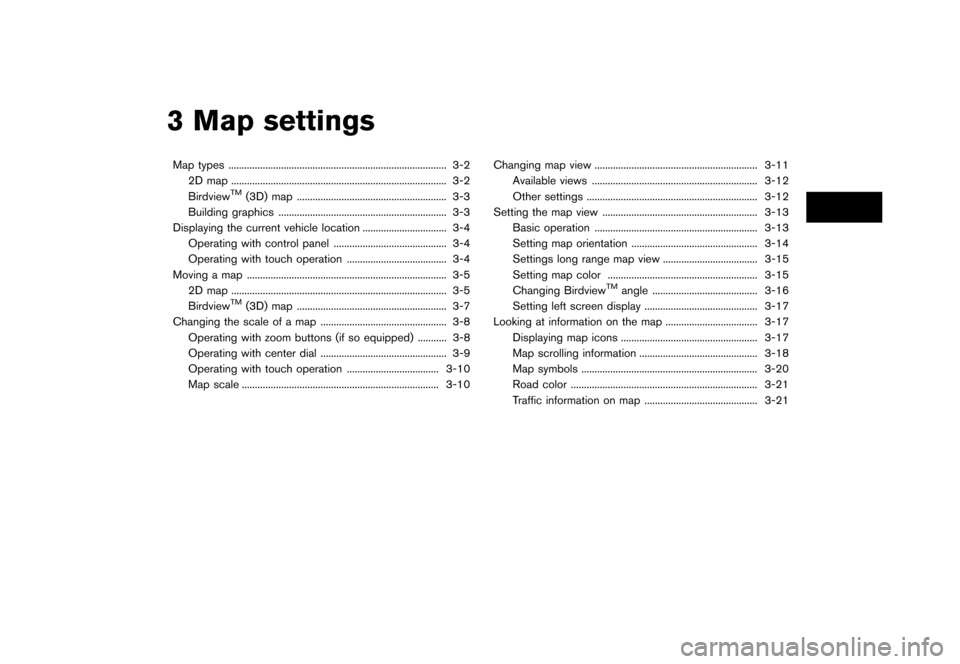

3 Map settings
Map types...
........................................................................\
........... 3-2
2D map ...
........................................................................\
.......... 3-2
Birdview
TM(3D) map ...
......................................................... 3-3
Building graphics ...
................................................................ 3-3
Displaying the current vehicle location ...
................................ 3-4
Operating with control panel ...
........................................... 3-4
Operating with touch operation ...
...................................... 3-4
Moving a map ...
........................................................................\
.... 3-5
2D map ...
........................................................................\
.......... 3-5
Birdview
TM(3D) map ...
......................................................... 3-7
Changing the scale of a map ...
................................................ 3-8
Operating with zoom buttons (if so equipped) ...
........... 3-8
Operating with center dial ...
................................................ 3-9
Operating with touch operation ...
................................... 3-10
Map scale ...
........................................................................\
... 3-10 Changing map view
...
.............................................................. 3-11
Available views ...
............................................................... 3-12
Other settings ...
................................................................. 3-12
Setting the map view ...
........................................................... 3-13
Basic operation ...
.............................................................. 3-13
Setting map orientation ...
................................................ 3-14
Settings long range map view ...
.................................... 3-15
Setting map color ...
......................................................... 3-15
Changing Birdview
TMangle ...
........................................ 3-16
Setting left screen display ...
........................................... 3-17
Looking at information on the map ...
................................... 3-17
Displaying map icons ...
.................................................... 3-17
Map scrolling information ...
............................................. 3-18
Map symbols ...
................................................................... 3-20
Road color ...
....................................................................... 3-21
Traffic information on map ...
........................................... 3-21
