The operations for moving across the map are
different between the 2D and BirdviewTMmaps.
2D MAPGUID-521C6A55-58B6-45AD-9C60-919B2607BE77
Operating with the multi-function con-
troller
GUID-B1B79164-1D44-47D4-A02A-276D2E7921E6Push one of the directional buttons or the slide
switch. Press and hold a directional button or
the slide switch to move continuously across the
map in a direction.
While moving across the map, the cross pointer
appears.
If the map scale is set to 1/8 mile (200 m) orless, the cross pointer will blink in pink when
positioned on a street, and the street name will
be displayed.
Screen information:
*1Cross pointer
*2Distance from the current location to the
cross pointer
*3Street name
Operating with touch operationGUID-7753D029-1306-462F-8CD9-11ED318724D6
NMA00081. Touch the screen.
Displays the cross pointer, and the touched
position is set as the center of the screen.
NMA00092. Touch the direction to move to. The mapcontinues to scroll while the screen is
touched.
Map settings3-5
MOVING A MAP

Black plate (48,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
3-8Map settings
NMA00153. Touch [] or [] to change the direction of
the map.
Rotates the map clockwise.
Rotates the map counterclockwise.
INFO:
While driving, scrolling on the map is limited to a
specified distance.
GUID-8E2F45DB-FDC8-47F4-949D-B351E680797B
OPERATING WITH ZOOM BUTTONS (if so equipped)GUID-CBE67C65-72FD-4F77-87EE-BBB21DD1F6C0
NMA0016
CHANGING THE SCALE OF A MAP

Black plate (52,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
3-12Map settings
NMA00243. Highlight [Change View] and push the rightbutton of the directional buttons.
4. Highlight the preferred map view and push . The indicator of the selected
map view illuminates.
5. The display automatically returns to the map screen.
AVAILABLE VIEWSGUID-3846B375-BC2C-4941-B1CA-70825D89A947.[2D map]:
Switches to the 2D map.
. [Birdview (3D)]:
Switches to the Birdview
TMmap.
. [Split: 2D Map]:
Changes to the split screen mode and both
halves display maps in 2D.
. [Split: Birdview
TMMap]:
Changes to the split screen mode and the
left half displays the map in 2D and the right half displays the map in Birdview
TM.
INFO:
. When the split screen mode is selected, the
map settings for the left screen can be
changed independently.
“Setting left screen display”
(page 3-17)
. If the split screen mode is selected, the
normal map scrolling and scale adjustment
are set in the right screen. However, if an
icon is touched before adjusting the map
direction or scale, then each screen can be
adjusted independently.
NMA0025Split: 2D Map
NMA0026Split: BirdviewTMMap
OTHER SETTINGSGUID-80415649-C47F-4665-B7AB-B3843E261AB5The map view can also be set using the
following procedure.
NMA00271. Push .
2. Highlight [Navigation] and push .
3. Highlight [Map View] and push .
4. Highlight [Change View] and push
.
5. Highlight the preferred item and push
.

Black plate (86,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
5-2Route guidance
GUID-CC70DDA0-1AA2-4D42-8B04-4153E5EBE886After performing a route search, the route
guidance can be started immediately. Also, it is
possible to confirm or change a route.
NRG0001AVAILABLE ITEMS AFTER SETTING
DESTINATION
GUID-A47B4750-176F-4C53-9AC8-51D6C792BCDA.[Start]:
Starts route guidance to the selected
destination.
“Starting route guidance” (page 5-2)
. [More Routes]:
Displays 3 alternative routes.
“Selecting route” (page 5-3)
. [Add/Route Info]:
Displays the route information or add a
destination or a waypoint.
“Confirming route” (page 5-3)
. [Move Location]:
Displays a map screen and allows the
location of the destination to be adjusted.
“Moving location of destination”
(page 5-4)
. [Store Location]:
Stores the location in the Address Book.
“Storing location” (page 5-5)
. [Place Info]:
Displays information about the facility that is
set as the destination if it is included in the
map data.
“Viewing information about searched
location” (page 5-5)
INFO:
. If no operations are performed on the
system for several seconds, [Start] is auto-
matically selected, and the system starts
route guidance.
. When using waypoints, [More Routes] is
disabled. After the route is started, push
then select [Edit/Add to Route]
to change the route between each waypoint.
“Editing route” (page 5-14)
. The same screen as when [Move Location]
is selected can be displayed with the
following operations:
— Touching the map screen — Pushing the directional buttons except
for the up/down button (multi-function
controller with directional buttons)
— Pushing the slide switch except in the upward/downward direction (multi-func-
tion controller without directional but-
tons)
STARTING ROUTE GUIDANCEGUID-78EFC187-01E3-4CA2-A16E-B598AC1FEF23
NRG00011. Highlight [Start] and push .
Route guidance starts.
PROCEDURES AFTER SETTING
DESTINATION

Black plate (88,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
5-4Route guidance
.[Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
The same screen as when [Map Scroll] is
touched can be displayed with the following
operations:
— Touching the map screen.
— Pushing the directional buttons except
for the up/down button (multi-function
controller with directional buttons).
— Pushing the slide switch except in the upward/downward direction (multi-func-
tion controller without directional but-
tons) .
Adding destination or waypointGUID-15E53624-2CC6-4105-96F5-4AC26112615EBefore starting route guidance, destinations
and/or waypoints can be added. A total of 6
destinations or waypoints can be set.
NRG0006
1. Highlight [Add Way Pt.] and push
.
NRG00072. Set additional destinations or waypoints and
push .
The method of searching for a location is the
same as the one for a destination.
“4. Setting destination”
NRG00083. Highlight [Add Destination] or [Add Way- point] and push .
NRG00094. The system starts calculating a route that
includes the added destination or waypoint.
When the calculation is finished, the route is
displayed.
INFO:
.If a waypoint was added, [More Routes]
cannot be selected.
.If a destination was added, the priordestination becomes a waypoint.
MOVING LOCATION OF DESTINATIONGUID-D8A18B0E-A092-44A7-8655-FC3F4F0638C2The location of the destination can be adjusted
by moving the cross pointer across the map.

Black plate (89,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

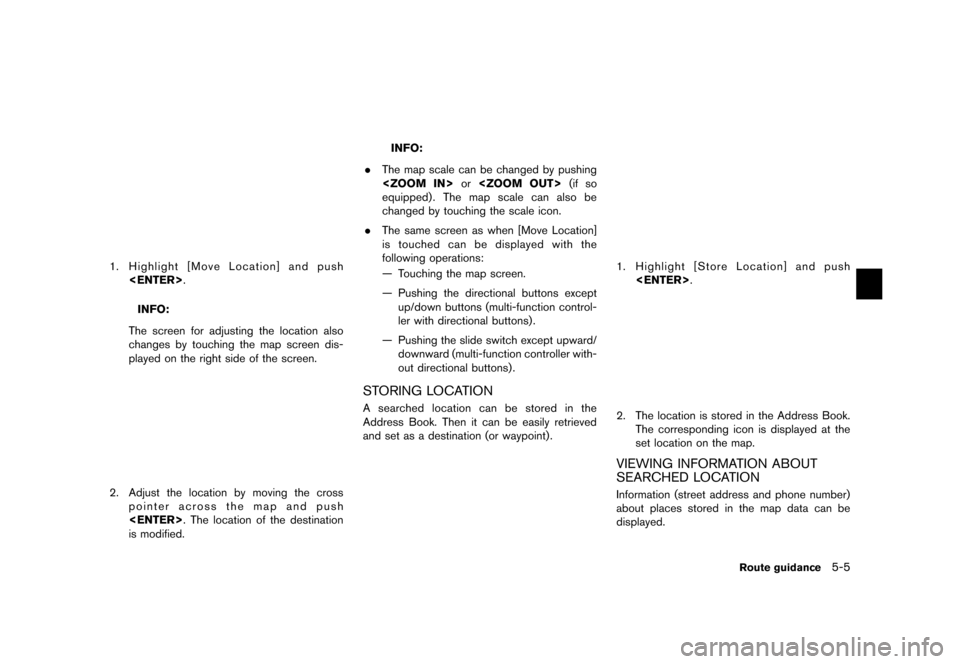

NRG00851.Highlight [Move Location] and push
.
INFO:
The screen for adjusting the location also
changes by touching the map screen dis-
played on the right side of the screen.
NRG00862. Adjust the location by moving the cross pointer across the map and push
. The location of the destination
is modified.
INFO:
. The map scale can be changed by pushing
or (if so
equipped) . The map scale can also be
changed by touching the scale icon.
. The same screen as when [Move Location]
is touched can be displayed with the
following operations:
— Touching the map screen.
— Pushing the directional buttons except
up/down buttons (multi-function control-
ler with directional buttons).
— Pushing the slide switch except upward/ downward (multi-function controller with-
out directional buttons).
STORING LOCATIONGUID-2C0D9103-16C4-4B17-8344-FD9DDDFAEA38A searched location can be stored in the
Address Book. Then it can be easily retrieved
and set as a destination (or waypoint).
NRG00871. Highlight [Store Location] and push
.
NRG00882. The location is stored in the Address Book.
The corresponding icon is displayed at the
set location on the map.
VIEWING INFORMATION ABOUT
SEARCHED LOCATION
GUID-9D0F6DB1-9A69-4BAB-8D5B-154EBC40AC56Information (street address and phone number)
about places stored in the map data can be
displayed.
Route guidance5-5

Black plate (93,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

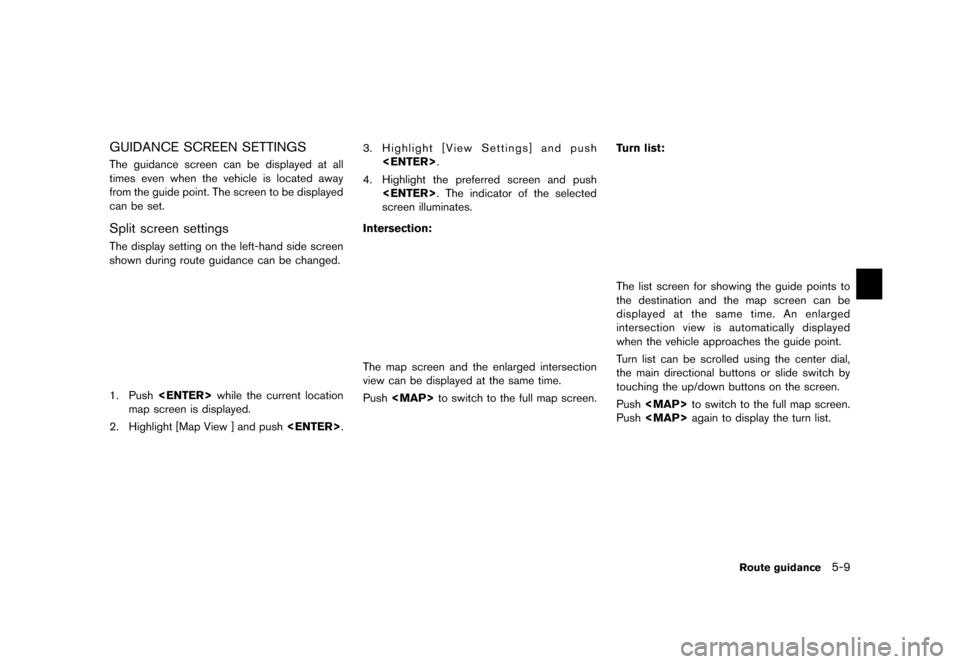

GUIDANCE SCREEN SETTINGSGUID-5906E02A-C1F4-4496-988E-D7B293738590The guidance screen can be displayed at all
times even when the vehicle is located away
from the guide point. The screen to be displayed
can be set.
Split screen settingsGUID-41170BA2-E8EE-4109-BED4-AFBC9756B80FThe display setting on the left-hand side screen
shown during route guidance can be changed.
NRG00141. Push while the current location
map screen is displayed.
2. Highlight [Map View ] and push .
NRG0015
3.Highlight [View Settings] and push
.
4. Highlight the preferred screen and push . The indicator of the selected
screen illuminates.
Intersection:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E
NRG0011The map screen and the enlarged intersection
view can be displayed at the same time.
Push

Black plate (103,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
Basic operationGUID-C8286242-0660-45FA-8545-269B1BBE27421. Push.
2. Highlight [Route Info] and push .
NRG00443.Highlight the preferred item and push
.
Available items:
GUID-C7C06D28-6C87-4C20-A441-213FED35BE0E. [Turn List]:
Displays the details of the suggested route.
“Using turn list” (page 5-19)
. [Preview]:
The system will trace the planned route
going forward or in reverse.
“Using route preview” (page 5-19)
. [Simulation]:
Simulate the suggested route. This function
provides a detailed image of the route with
voice guidance.
“Confirming route by simulation” (page 5-20)
. [Store Route]:
A calculated route can be stored. A max-
imum of 5 routes can be stored. Stored
routes can be easily retrieved and set as the
suggested route.
“Storing route” (page 6-5)
. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
The same screen as when [Map Scroll] is
touched can be displayed with the following
operations:
— Touching the map screen.
— Pushing the directional buttons except
for the up/down buttons (multi-function
controller with directional buttons).
— Pushing the slide switch except in the upward/downward direction (multi-func-
tion controller without directional but-
tons) .
Using turn listGUID-A4885766-9DEB-4AE1-B298-24A085BF6EDE
NRG00451. Highlight [Turn List] and push .
2. The information (e.g., intersections) can be confirmed on the route to the destination by
scrolling the screen pushing the up and
down switches of the main directional
buttons, pushing the slide switch upward
or downward or rotating the center dial.
3. Push
