Supplemental Restraint System (SRS) - airbag
4-24 Seat and restraint systems
4
The EDR is designed to record data related to
vehicle dynamics and safety systems for a
short period of time, typically 30 seconds or
less.
The EDR in this vehicle is designed to record
such data as: How various systems in your vehicle were
operating;
 Whether or not the driver and passenger
safety belts were buckled/fastened;
 How far (if at all) the driver was depress-
ing the accelerator and/or brake pedal;
and,
 How fast the vehicle was traveling.
These data can help provide a better under-
standing of the circumstances in which
crashes and injuries occur. To read data recorded by an EDR, special
equipment is required, and access to the vehi-
cle or the EDR is needed. In addition to the
vehicle manufacturer, other parties, such as
law enforcement, that have the special equip-
ment, can read the information if they have
access to the vehicle or the EDR.
N00417900193
The driver’s seat position sensor is attached
to the seat rail and provides the airbag control
unit with information on the seat’s fore-aft
position. The airbag control unit controls
deployment of the driver’s front airbag in
accordance with the information it receives
from this sensor.
If there is a problem involving the driver’s
seat position sensor, the SRS warning in the
instrument panel will come on. Refer to “SRS
warning light/display” on page 4-26.
N00418001387
The passenger’s seat weight sensors are
attached to the seat rails and provide the air-
bag control unit with information regarding
the weight on the front passenger seat. The
airbag control unit controls deployment of the
passenger’s front airbag in accordance with
the information it receives from this sensor.
The passenger’s front airbag will not deploy
in an impact when the weight on the seat is
sensed to be less than approximately
66 pounds (30 kg). In this case, the passen-
ger’s airbag off indicator will come on.
Refer to “Passenger’s airbag off indicator” on
page 4-25.
If there is a problem involving the passen-
ger’s seat weight sensors, the SRS warning in
the instrument panel will come on. Refer to
“SRS warning light/display” on page 4-26.
NOTE

EDR data are recorded by your vehicle only
if a non-trivial crash situation occurs; no data
are recorded by the EDR under normal driv-
ing conditions and no personal data (e.g.,
name, gender, age, and crash location) are
recorded. However, other parties, such as
law enforcement, could combine the EDR
data with the type of personally identifying
data routinely acquired during a crash inves-
tigation.
Driver’s seat position sensor
WA R N I N G If the SRS warning comes on, have the
vehicle inspected by an authorized Mit-
subishi Motors dealer as soon as possible.Please observe the following instructions
to ensure that the driver’s seat position
sensor can operate correctly.• Adjust the seat to the correct position,
and sit well back against the seatback.
Refer to “Front seats” on page 4-3.
• Do not recline the seatback more than
necessary when driving.• Do not place metallic objects or luggageunder the front seat. If the vehicle is involved in a severe
impact, have the SRS sensor inspected by
an authorized Mitsubishi Motors dealer as
soon as possible.Passenger’s seat weight sensors
WA R N I N G
SC00000500-2.fm 24 ページ ２０１４年４月１８日　金曜日　午後５時４９分

Supplemental Restraint System (SRS) - airbagSeat and restraint systems 4-25
4
N00418100251
The passenger’s airbag off indicator is
located in the instrument panel. The indicator normally comes on when the
ignition switch is turned to the “ON” position
and goes out a few seconds later.
In the following situations, the indicator will
stay on to show that the passenger’s front air-
bag is not operational.
 The passenger’s seat weight sensors sense
a weight of less than approximately 66
pounds (30 kg) on the front passenger
seat.
 The front passenger’s seat is not occupied.
When the weight applied to the front passen-
ger seat is sensed to be approximately 66
pounds (30 kg) or greater, the indicator goes
out to show that the passenger’s front airbag
is operational.
WA R N I N G If any of the following conditions occur,
you should immediately have your vehicle
inspected by an authorized Mitsubishi
Motors dealer as soon as possible:• The SRS warning does not initially come
on when the ignition switch is turned to
the “ON” or “START” position.• The SRS warning does not go out afterseveral seconds.• The SRS warning comes on while you aredriving. To ensure that the passenger’s seat weight
sensors can correctly sense the weight
being applied to the seat, observe the fol-
lowing instructions. Failure to follow these
instructions can adversely affect the per-
formance of the passenger’s airbag sys-
tem.• Adjust the seat to the correct position,
and sit well back against the seatback.
Refer to “Front seats” on page 4-3.• Do not recline the seatback more thannecessary.• Never have more than one person (adultor child) sitting on the seat.• Do not place anything between the seatand the floor console.• Do not hang anything on the front pas-senger’s seatback.• Do not remove the head restraints.• When attaching a child restraint system,secure it firmly.
• Do not place luggage or other objects on
the seat.• Do not use a seat cover or a cushion.• Do not modify or replace the seat andseat belt.• Do not place luggage or other objectsunder the seat.• Do not place the floor mat on the seatrails.• Do not expose the sensors to liquids orvapors.• Do not subject the sensors to shock.• Do not allow rear-seat occupants to pushthe front passenger seat with their feet or
force the front passenger seat upward.• Do not allow rear-seat occupants to grasp
the front passenger’s seatback or put
their arms around it.• When attaching a child restraint systemin the rear seat, make sure it does not
interfere with the front seat. If the vehicle is involved in a severe
impact, have the SRS sensors inspected by
an authorized Mitsubishi Motors dealer as
soon as possible.Passenger’s airbag off indicator
WA R N I N G
SC00000500-2.fm 25 ページ ２０１４年４月１８日　金曜日　午後５時４９分

Supplemental Restraint System (SRS) - airbag 4-26 Seat and restraint systems
4
N00408301622
Warning light
Warning display The system checks itself every time the igni- tion switch is turned to the “ON” position. The SRS warning light will come on for sev-eral seconds and then go out. This is normal and means the system is work- ing properly.If there is a problem involving one or more of the SRS components, the warning light will come on and stay on. At the same time, thewarning display will appear on the informa- tion screen in the multi information display. The SRS warning light/display is shared bythe SRS airbag and the seat belt pre-tensioner system.
N00407900028
The driver’s airbag is located under the pad-ded cover in the middle of the steering wheel. The front passenger’s airbag is contained inthe instrument panel above the glove com- partment. The driver’s airbag and the front passenger’s airbag are designed to deploy atthe same time. However,
the front passen-
ger’s airbag does not deploy when the front passenger seat is not occupied or when theweight sensor in the front passenger seat senses a weight on the seat of less than approximately 66 pounds (30 kg).
WA R N I N G If any of the following conditions occur, you should immediately have the airbag system in your vehicle inspected by an authorized Mitsubishi Motors dealer as soon as possible:• The passenger’s airbag off indicatorcomes on when an adult is sitting on thefront passenger seat.• The passenger’s airbag off indicator doesnot come on when the front passenger’s seat is not occupied.• The passenger’s airbag off indicator doesnot come on when the ignition switch is turned to the “ON” position.• The passenger’s airbag off indicatorcomes on and goes out repeatedly.
 Do not attach any accessory to your vehi- cle that makes the passenger’s airbag offindicator difficult or impossible to see. You must be able to see the passenger’s airbag off indicator and verify the statusof the passenger’s airbag system.
SRS warning light/display
WA R N I N G If any of the following conditions occur, there may be a problem with the SRS air- bags and/or seat belt pre-tensioners, and they may not function properly in a colli-sion or may suddenly activate without a collision:• Even when the ignition switch is in ON,the SRS warning light does not come on or it remains on.
• The SRS warning light and/or the warn- ing display comes on while driving.The SRS airbags and seat belt pre-ten- sioners are designed to help reduce therisk of serious injury or death in certain collisions. If either of the above conditions occurs, immediately have your vehiclechecked by an authorized Mitsubishi Motors dealer.
Driver’s and passenger’s front airbag system
WA R N I N G
BK0210800US.bo
ok 26 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-27
4
N00404500023
The driver’s knee airbag is located under the steering wheel. The driver’s knee airbag isdesigned to deploy at the same time as the driver’s front airbag.
N00408000518
Driver Front passenger
Driver’s knee airbag system

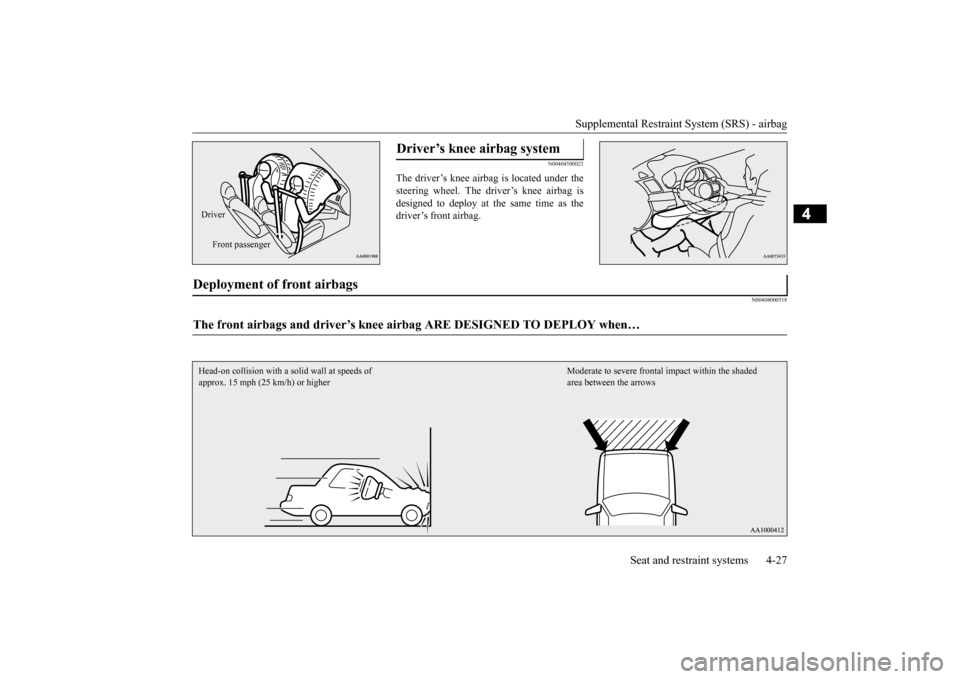

Deployment of front airbags The front airbags and driver’s knee airb
ag ARE DESIGNED TO DEPLOY when…
Head-on collision with a so
lid wall at speeds of
approx. 15 mph (25 km/h) or higher
Moderate to severe frontal
impact within the shaded
area between the arrows
BK0210800US.bo
ok 27 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Supplemental Restraint System (SRS) - airbag
4-28 Seat and restraint systems
4
The front airbags and driver’s knee airbag are
designed to deploy when the vehicle suffers a
moderate to severe frontal impact. A typical
condition is shown in the illustration to the
left.
The front airbags and driver’s knee airbag are
designed to deploy only in certain moderate
to severe frontal collisions within the shaded
area between the arrows in the illustration to
the right.
The front airbags and driver’s knee airbag
will deploy if the impact to the vehicle’s main
structure is above a specific threshold level.
The threshold level is approximately 15 mph
(25 km/h) for a frontal collision straight into a
solid flat wall that does not bend or deform. If
the impact to the vehicle’s main structure is
below this threshold level, the front airbags
and driver’s knee airbag may not deploy. This
threshold level may also be higher if the vehi-
cle hits something that absorbs the impact,
either by bending or moving (for example,
another stationary vehicle, a pole or a guard
rail).
The beginning stage of airbag inflation is the
most forceful, and can cause serious injuries
or death if you are too close to the deploying
airbag. Accordingly, it is important that you
always wear the available seat belt. In certain types of front collisions, the front
airbags and driver’s knee airbag may not
deploy, even if the deformation of the body
seems to be large, because the vehicle’s body
structure is designed to absorb the impact and
deform in order to help protect the occupants.
Some typical situations where the front air-
bags and driver’s knee airbag may not deploy
are shown in the illustrations.
Because the front airbags and driver’s knee
airbag do not protect the occupant in all types
of frontal collisions, be sure to always wear
your seat belts properly.
The front airbags and driver’s
knee airbag MAY NOT DEPLOY
when …
Collision with a utility pole
, tree or other narrow
objects
Collision where the vehicle slides under the rear
body of a truck
Oblique frontal impact
SC00000500-2.fm 28 ページ ２０１４年４月１６日　水曜日　午後２時２分

Supplemental Restraint System (SRS) - airbagSeat and restraint systems 4-29
4
The front airbags and driver’s knee airbag are
not designed to deploy in situations where
they cannot provide protection to the occu-
pants.
Some typical situations are shown in the
illustrations.
Because the front airbags and driver’s knee
airbag do not protect the occupants in all
types of collisions, be sure to always wear
your seat belts properly. The front airbags and driver’s knee airbag
may deploy if the underside of the vehicle
suffers a moderate to severe impact (under-carriage impact). Some typical situations are
shown in the illustrations.
Because the front airbags and driver’s knee
airbag may deploy in certain types of unex-
pected impacts, as shown in the illustrations,
and these unexpected impacts can move you
out of position, it is important to always wear
your seat belts properly. When worn properly,
seat belts can help maintain your distance
from the airbags and driver’s knee airbag
when they begin to inflate. The beginning
stage of airbag inflation is the most forceful
and can cause serious injury or death if you

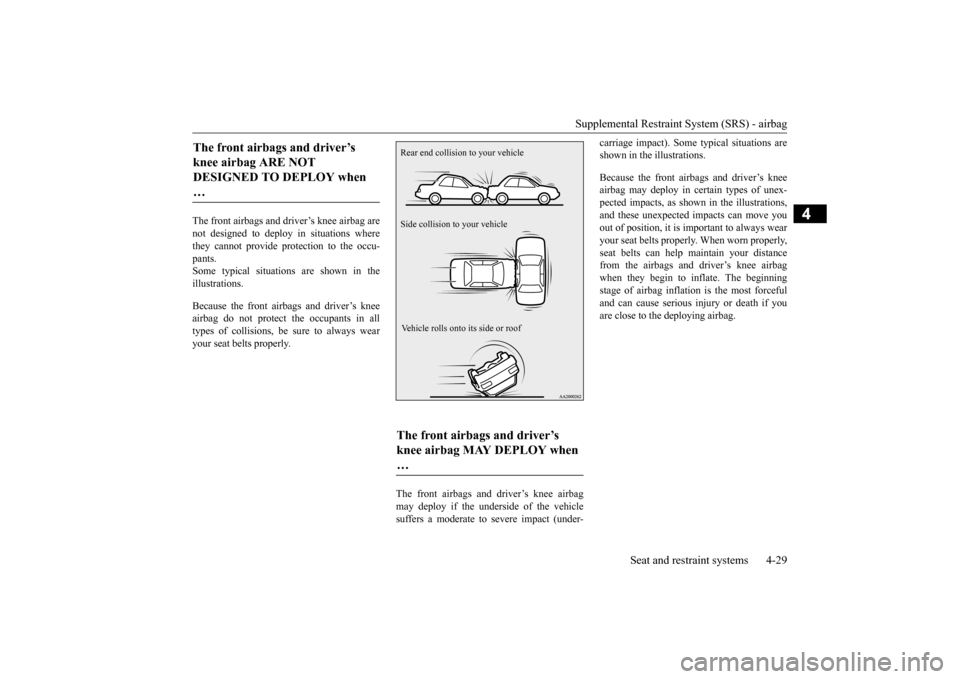

are close to the deploying airbag.The front airbags and driver’s
knee airbag ARE NOT
DESIGNED TO DEPLOY when
…
The front airbags and driver’s
knee airbag MAY DEPLOY when
… Rear end collision
to your vehicle
Side collision to your vehicle
Vehicle rolls onto its side or roof
SC00000500-2.fm 29 ページ ２０１４年４月１６日　水曜日　午後２時２分

Supplemental Restraint System (SRS) - airbag
4-30 Seat and restraint systems
4
Collision with an elevated median/island or curb
Vehicle travels over a deep hole/pothole
Vehicle drives down a steep slope and hits the
ground
WA R N I N G Do not attach anything to the steering
wheel’s padded cover, such as trim mate-
rial, badges, etc. These could strike and
injure an occupant if the airbag inflates. Do not set anything on, or attach anything
to, the instrument panel above the glove
compartment. Such items could strike and
injure an occupant if the airbag inflates. WA R N I N GDo not attach accessories to, or put them
in front of, the windshield. They could
restrict the airbag inflation, or strike and
injure an occupant, when the airbag
inflates.
Do not attach additional keys or accesso-
ries (hard, pointed or heavy objects) to the
ignition key. Such objects could prevent
the driver’s knee airbag from inflating
normally or could be propelled to cause
serious injury if the airbag inflates. Do not attach accessories to the lower por-
tion of the driver’s side instrument panel.
Such objects could prevent the driver’s
knee airbag from inflating normally or
could be propelled to cause serious injury
if the airbag inflates.WA R N I N GDo not attempt to remove, install, disas-
semble or repair the SRS airbags.WA R N I N G
SC00000500-2.fm 30 ページ ２０１４年４月１６日　水曜日　午後２時２分

Supplemental Restraint System (SRS) - airbag
Seat and restraint systems 4-31
4
N00408101444
The side airbags (A) are contained in the driver and front passenger seatbacks.The side airbag is designed to inflate only on the side of the vehicle that is impacted, even with no passenger in the front seat.
A label is attached to the seatbacks in vehi- cles with side airbags.
N00419201256
The curtain airbags are contained in the frontand rear pillars and roof side rail. The curtain airbag is designed to inflate only on the side of the vehicle that is impacted, even with nopassenger in the front seat.
 Do not place objects, such as packages or pets, between the airbags and the driver or the front passenger. Such objects can adversely affect airbag performance, or cause serious injury or death when theairbag deploys. Immediately after airbag inflation, some parts of the airbag system will be hot. Do not touch them. You could be burned.  The airbag system is designed to work only once. After the airbags deploy, they will not work again. They must promptlybe replaced and the entire airbag system must be inspected by an authorized Mit- subishi Motors dealer.WA R N I N G
Side airbag system Except for RECARO seats RECARO seats
Curtain airbag system Except for RECARO seat RECARO seat
BK0210800US.bo
ok 31 ページ ２０１４年４月８日　火曜日　午前１１時２８分
