Replacement of light bulbs 9-34 Vehicle care and maintenance
9
5. To install the bulb, perform the removal steps in reverse.
N00917300466
1. To create enough work space, turn thesteering wheel all the way in the direction opposite to the side you wish to replace. 2. Remove the clips (A), clip (B) and screw(C) to turn up the cover (D).
3. Turn the socket (E) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
N00943400338
1. Remove the clips (A) and clips (B), thenremove the duct (C) and the upper cover(D).
Front side-marker and parking lights (for vehicles with high intensity discharge headlights)
Front turn signal lights
BK0210800US.bo
ok 34 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
2. Remove the entire socket and bulb assem- bly (E) by turning it counterclockwise. 3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
N00943600646
1. Remove the clips (A) and clips (B), thenturn up the cover (C).
2. While pressing the tab (D), pull out the socket (E). 3. Turn the bulb (F) counterclockwise to remove it. 4. To install the bulb, perform the removal steps in reverse.
* - Front of the vehicle
Front fog lights
BK0210800US.bo
ok 35 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Replacement of light bulbs 9-36 Vehicle care and maintenance
9
N00943700399
1. Remove the screws (A) from the light unit. 2. Remove the light unit in the rear direc- tion.
3. Remove the socket and bulb assemblies by turning them counterclockwise. 4. Remove the bulb by pulling it out.
CAUTION Handle halogen light bulbs with care. The gas inside a halogen light bulb is highly pres- surized, so dropping, knocking, or scratching a halogen light bulb can cause it to shatter. Never hold the halogen lights bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the nexttime the fog lights are used. If the glass surface is dirty, clean it with alcohol and let it dry completely beforeinstalling the bulb.
Rear combination lights Tail and stop lights, rear turn sig- nal lights and rear side-marker lights
B- Tail and stop light C- Rear turn signal light D- Rear side-marker light
BK0210800US.bo
ok 36 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Replacement of light bulbs
Vehicle care and maintenance 9-37
9
5. To install the bulb, perform the removal steps in reverse.
1. Open the trunk lid. Remove the clips (A) and remove the cover (B). 2. Remove the socket and bulb assemblies by turning them counterclockwise.
3. Remove the bulb by pulling it out. 4. To install the bulb, perform the removal steps in reverse.
N00944000344
1. Remove the screws (A) from the licenseplate lamp lens (B). Then, remove the lensand gasket (C), and withdraw the bulb.
NOTE
 When mounting the light unit, align the pins (E) on the light unit with the holes in the body.
Rear side-marker light
Tail and stop light and Rear turn signal light
Tail lights and back-up lights C- Tail light D- Back-up light
License plate light
Tail light
Back-up light
BK0210800US.bo
ok 37 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Replacement of light bulbs 9-38 Vehicle care and maintenance
9
2. Remove the socket and bulb assembly together by turning it counterclockwise. 3. Remove the bulb by pulling it out.4. To install the bulb, perform the removal steps in reverse.
N00944500264
1. Insert a screwdriver into the notch of thelight assembly. Gently pry to remove the lens.
2. While holding down
the tab (A), pull out
the bulb.
Dome light (front)/Reading lights
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.
BK0210800US.bo
ok 38 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Replacement of light bulbs
Vehicle care and maintenance 9-39
9

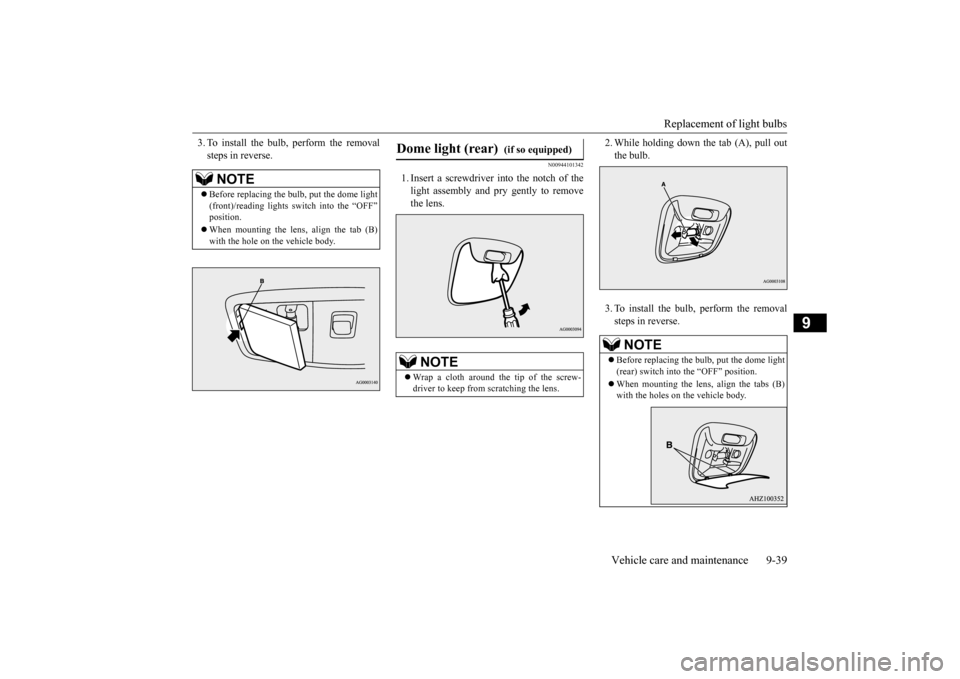

3. To install the bulb, perform the removal steps in reverse.
N00944101342
1. Insert a screwdriver into the notch of thelight assembly and pry gently to removethe lens.
2. While holding down
the tab (A), pull out
the bulb. 3. To install the bulb, perform the removal steps in reverse.
NOTE
 Before replacing the bulb, put the dome light (front)/reading lights switch into the “OFF”position.  When mounting the lens, align the tab (B) with the hole on the vehicle body.
Dome light (rear)
(if so equipped)
NOTE
 Wrap a cloth around the tip of the screw- driver to keep from scratching the lens.
NOTE
 Before replacing the bulb, put the dome light (rear) switch into the “OFF” position.  When mounting the lens, align the tabs (B) with the holes on
the vehicle body.
BK0210800US.bo
ok 39 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Vehicle care precautions 9-40 Vehicle care and maintenance
9

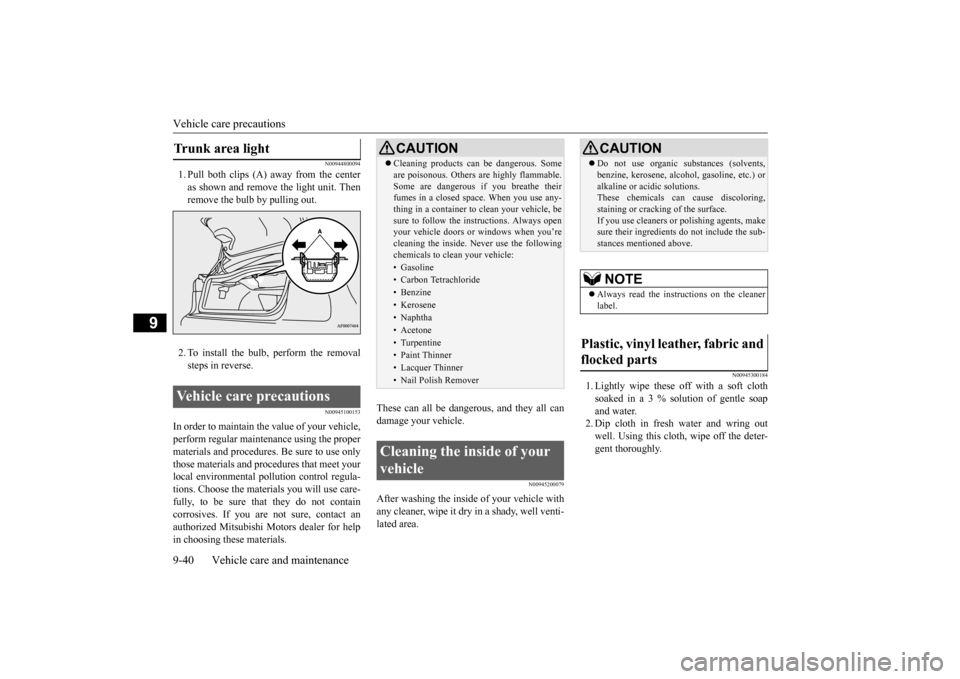

N00944800094
1. Pull both clips (A) away from the center as shown and remove the light unit. Thenremove the bulb by pulling out. 2. To install the bulb, perform the removal steps in reverse.
N00945100153
In order to maintain the value of your vehicle, perform regular maintenance using the proper materials and procedures. Be sure to use only those materials and procedures that meet yourlocal environmental pollution control regula- tions. Choose the materials you will use care- fully, to be sure that they do not containcorrosives. If you are not sure, contact an authorized Mitsubishi Motors dealer for help in choosing these materials.
These can all be dangerous, and they all can damage your vehicle.
N00945200079
After washing the inside of your vehicle withany cleaner, wipe it dry in a shady, well venti-lated area.
N00945300184
1. Lightly wipe these off with a soft clothsoaked in a 3 % solution of gentle soapand water. 2. Dip cloth in fresh water and wring out well. Using this cloth, wipe off the deter-gent thoroughly.
Trunk area light Vehicle care precautions
CAUTION Cleaning products can be dangerous. Some are poisonous. Others are highly flammable. Some are dangerous if you breathe their fumes in a closed space. When you use any- thing in a container to clean your vehicle, besure to follow the instructions. Always open your vehicle doors or windows when you’re cleaning the inside. Never use the followingchemicals to clean your vehicle:• Gasoline• Carbon Tetrachloride• Benzine• Kerosene• Naphtha• Acetone• Turpentine• Paint Thinner• Lacquer Thinner• Nail Polish Remover
Cleaning the inside of your vehicle
CAUTION Do not use organic substances (solvents, benzine, kerosene, alcohol, gasoline, etc.) or alkaline or acidic solutions. These chemicals can cause discoloring, staining or cracking of the surface.If you use cleaners or polishing agents, make sure their ingredients do not include the sub- stances mentioned above.NOTE
 Always read the instructions on the cleaner label.
Plastic, vinyl leather, fabric and flocked parts
BK0210800US.bo
ok 40 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Cleaning the outside of your vehicle Vehicle care and maintenance 9-41
9
N00945500131
1. To maintain the value of your new vehi- cle, maintain the upholstery carefully and keep the interior clean. Use a vacuum cleaner and brush to cleanthe seats. If stained, vinyl and synthetic leather should be cleaned with an appro- priate cleaner. Cloth fabrics can becleaned with either upholstery cleaner or a 3 % solution of gentle soap in lukewarm water. 2. Clean the carpeting with a vacuum cleaner and remove any stains with carpet cleaner. Oil and grease can be removed bylightly dabbing with a clean white cloth and spot remover.
N00945600259
1. To clean, lightly wipe the leather with a soft cloth soaked in a 5 % solution of gen-tle soap and water. 2. To rinse, dip the cloth in fresh water, wring it out well, and wipe off all thesoap. 3. To preserve and protect, use a leather pro- tecting agent on the genuine leather sur-face.
N00945700016
To protect your vehicle’s finish, wash it often and thoroughly. If desired, you may wax your vehicle using a nonabrasive automobile wax.
N00945800017
Industrial pollution, road tar, bird droppings,tree sap, insect remains, sea water and otherforeign matters can damage the finish on your vehicle. Generally, the longer any foreign materialstays on the finish, the worse the damage. Wash your vehicle as s
oon as possible when-
ever the finish gets soiled.
NOTE
 Do not use cleaners, conditioners, and pro- tectants containing silicones or wax. Such products, when applied to the instru- ment panels or other parts, may cause reflec- tions on the windshield and obscure vision.Also, if such products get on the switches of the electrical accessories, it may lead to fail- ure of these accessories.
Upholstery
NOTE
 If fuzzing is difficult to remove from the seat upholstery, draw a suitable defuzzing brush over the surface in one direction.
Genuine leather
(if so equipped)
NOTE
 If genuine leather is wet with water, wipe it with a dry, soft cloth. If left damp, mildew may grow.  The genuine leather surface can be damaged if brushed with a nylon or synthetic fiber brush.  Organic solvents such as benzine, kerosene, alcohol, gasoline, acid or alkaline solvents can discolor the genuine leather surface and should not be used.  Genuine leather can mildew if not kept clean. Clean up any oil stains immediately.
 The genuine leather surface may harden and shrink if it is exposed to the direct sunlight for long hours. When your vehicle is parked, place it in the shade as much as possible.  When the temperature of the vehicle interior rises in summer, vinyl products left on the genuine leather seat may deteriorate andstick to the seat.
Cleaning the outside of your vehicle Foreign material
NOTE
BK0210800US.bo
