2015 MITSUBISHI LANCER EVOLUTION Owners Manual

Important facts to know in case of an accident 10-4 Customer assistance/Reporting Safety Defects
10

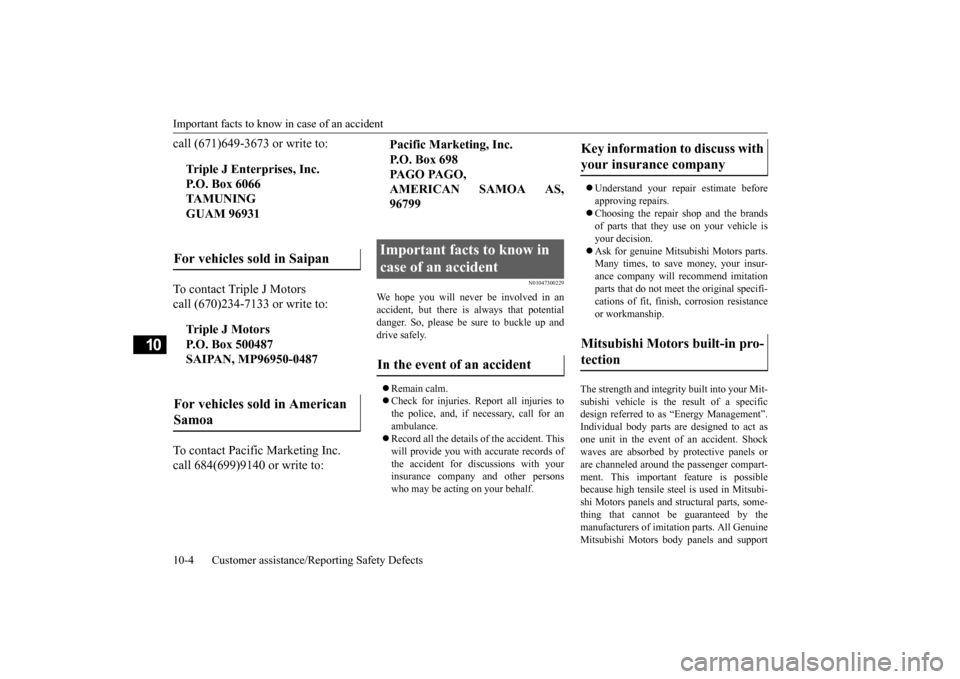

call (671)649-3673 or write to: To contact Triple J Motors call (670)234-7133 or write to: To contact Pacific Marketing Inc. call 684(699)9140 or write to:
N01047300229
We hope you will never be involved in an accident, but there is always that potential danger. So, please be sure to buckle up and drive safely.  Remain calm.  Check for injuries. Report all injuries to the police, and, if necessary, call for anambulance.  Record all the details of the accident. This will provide you with accurate records ofthe accident for discussions with your insurance company and other persons who may be acting on your behalf.
 Understand your repair estimate before approving repairs. Choosing the repair shop and the brands of parts that they use on your vehicle is your decision. Ask for genuine Mitsubishi Motors parts. Many times, to save money, your insur- ance company will recommend imitationparts that do not meet the original specifi-cations of fit, finish, corrosion resistance or workmanship.
The strength and integrity built into your Mit- subishi vehicle is the result of a specificdesign referred to as “Energy Management”. Individual body parts are designed to act as one unit in the event of an accident. Shockwaves are absorbed by protective panels or are channeled around the passenger compart- ment. This important feature is possiblebecause high tensile steel is used in Mitsubi- shi Motors panels and structural parts, some- thing that cannot be guaranteed by themanufacturers of imitation parts. All Genuine Mitsubishi Motors body panels and support
Triple J Enterprises, Inc. P.O. Box 6066 TA M U N I N G GUAM 96931
For vehicles sold in Saipan
Triple J Motors P.O. Box 500487 SAIPAN, MP96950-0487
For vehicles sold in American Samoa
Pacific Marketing, Inc. P.O. Box 698PA G O PA G O , AMERICAN SAMOA AS, 96799Important facts to know in case of an accident In the event of an accident
Key information to discuss with your insurance company Mitsubishi Motors built-in pro- tection
BK0210800US.bo
ok 4 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Important facts to know in case of an accident
Customer assistance/Reporting Safety Defects 10-5
10

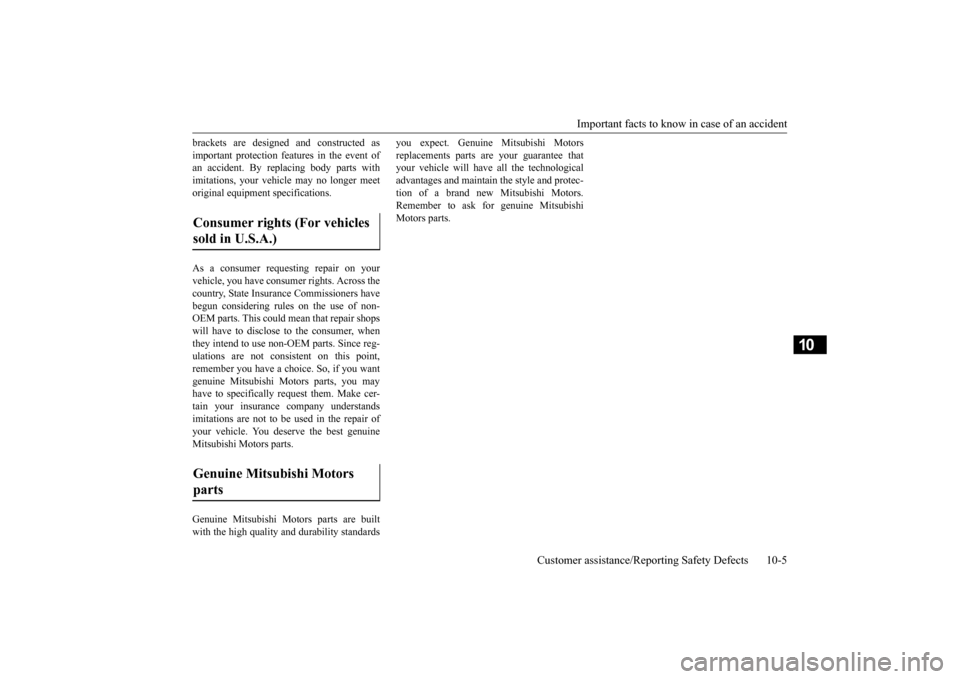

brackets are designed and constructed as important protection features in the event of an accident. By replacing body parts with imitations, your vehicle may no longer meetoriginal equipment specifications. As a consumer requesting repair on your vehicle, you have consumer rights. Across the country, State Insurance Commissioners have begun considering rules on the use of non-OEM parts. This could mean that repair shops will have to disclose to the consumer, when they intend to use non-OEM parts. Since reg-ulations are not consistent on this point, remember you have a choice. So, if you want genuine Mitsubishi Motors parts, you mayhave to specifically request them. Make cer- tain your insurance company understands imitations are not to be used in the repair ofyour vehicle. You deserve the best genuine Mitsubishi Motors parts. Genuine Mitsubishi Motors parts are built with the high quality and durability standards
you expect. Genuine Mitsubishi Motors replacements parts are your guarantee that your vehicle will have all the technological advantages and maintain the style and protec-tion of a brand new Mitsubishi Motors. Remember to ask for genuine Mitsubishi Motors parts.
Consumer rights (For vehicles sold in U.S.A.) Genuine Mitsubishi Motors parts
BK0210800US.bo
ok 5 ページ ２０１４年４月８日　火曜日　午前１１時２８分

BK0210800US.bo
ok 6 ページ ２０１４年４月８日　火曜日　午前１１時２８分

11
SpecificationsVehicle labeling ....
.................................................
........................ 11-2
Vehicle dimensions
................................................
........................ 11-3
Vehicle weights ...............
............................................................... 11-4
Engine specifications
.............................................
........................ 11-4
Battery .......................................
..................................................... 11-5
Tires and wheels .............
............................................................... 11-5
Refill capacities ..............
............................................................... 11-5
BK0210800US.bo
ok 1 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Vehicle labeling 11-2 Specifications
11
N01147400713
Keep a record of the vehicle identification number. This information will assist thepolice if your vehicle is stolen. The vehicle emission control information label is affixed on the inside panel of the engine hood.
The vehicle identification number is stamped on the plate riveted to the left front corner of the vehicle body. It is visible from outside of the vehicle through the windshield. The air conditioning label is affixed on the inside panel of the engine compartment. The vehicle information code plate is located on the front passenger door sill.
The chassis number is stamped as shown in the illustration. The engine serial number is stamped on the cylinder block as shown in the illustration.
Vehicle labeling 1 - Vehicle emission control information label
2 - Vehicle identification num- ber plate 3 - Air conditioning label 4 - Vehicle information code plate
Chassis number Engine serial number
BK0210800US.bo
ok 2 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Vehicle dimensions
Specifications 11-3
11
N01148100560
The tire and loading information placard is located on the driver’s door sill.
Ty p e 1 Ty p e 2
N01148200213
The certification label (A) is located on the driver’s door sill.
N01147500352
* - Front of the vehicleTire and loading information placard
Certification label
Vehicle dimensions Overall length 177.0 in (4,495 mm)Overall width 71.3 in (1,810 mm) Overall height 58.3 in (1,480 mm)Wheel base 104.3 in (2,650 mm)
BK0210800US.bo
ok 3 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Vehicle weights 11-4 Specifications
11
N01147600643
GVWR: maximum total weight (load) limit specified for the vehicle GAWR: maximum weight (load) limit sp
ecified for the front or rear axle
Seating capacity: the number of maximum occupants
N01147700468
Vehicle weights Gross vehicle weight rating (GVWR) 4,542 lb (2,060 kg)Gross axle weight rating (GAWR)
Front 2,381 lb (1,080 kg)Rear 2,315 lb (1,050 kg)
Vehicle capacity weight 827 lb (375 kg)Seating capacity
5 persons
Engine specifications Engine model 4B11Engine displacement 121.9 CID (1,998 cm³)No. of cylinders and cylinder arrangement 4 in-lineBore
3.39 in (86.0 mm)
Stroke 3.39 in (86.0 mm)Compression ratio 9.0Thermostat valve opening temperature 180 °F (82 °C)Spark plugs
NGK DILKR8B6
Spark plug gap .020 to .023 in (0.5 to 0.6 mm)Firing order 1-3-4-2BK0210800US.bo
ok 4 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Battery
Specifications 11-5
11
N01147800212
Battery is a 12 volt type.
N01147900633
PCD: Pitch Circle Diameter (installation holes)
N01148002114
Battery
S65D26L
NOTE
 This is a Valve Regulated Lead Acid type battery, which is a special type of sealed bat- tery.
Tires and wheels Tire 245/40R18 93YWheel
Size 18 x 8 1/2JJPCD 4.5 in (114.3 mm)Offset 1.50 in (38 mm)
NOTE
 This tire satisfies vehicle loading conditions described in this owner’s manual.
Refill capacities
Item
Capacity
Lubricants
Fuel (approximate) 14.5 gal (55.0 L) Refer
to “Fuel selection” on page 3-2.
Engine oil
Oil pan 5.0 qt (4.8 L) Engine oils displaying the ILSAC certification mark
(“starburst” symbol) on the container.If these oils are not available,
an API classification SN or
higher can be used.
Oil filter .32 qt (0.3 L)Oil cooler .53 qt (0.5 L)
Power steering As required Mitsubishi
Motors Genuine Power Steering Fluid
Twin Clutch SST
8.0 qt (7.6 L) {Include .53 qt
(0.5 L) in oil cooler}
Refer to “Twin Clutch Sportronic shift transmission (Twin Clutch SST) fluid” on page 9-9.
Manual transaxle 2.6 qt (2.5 L)
Mitsubishi Motors Genuine NEW MULTI GEAR OIL API classification GL-3, SAE 75W-80
Transfer oil .85 qt (0.8 L) Mitsubishi Motors Genuine LSD gear oilAWC Control fluid
1.57 qt (1.0 L) {Includes hydrau-
lic piping}
MITSUBISHI MOTORS Genuine ATF SP III
