2015 MITSUBISHI LANCER EVOLUTION Owners Manual

Multi-information display 5-108 Features and controls
5
1. Press and hold the multi-information meter switch for about 2 seconds or more to switch from the setting mode screen to the menu screen.Refer to “Changing the function settings (With ignition switch in the “ON” posi- tion)” on page 5-103.2. Lightly press the multi-information meter switch to select . (changing the turn signal sound) 3. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from 1 (turn signalsound 1)
 2 (turn signal sound 2)
 1
(turn signal sound 1). The setting changes to the selected turnsignal sound.
N00563600026
It is possible to change the bar graph setting of the momentary fuel consumption display. 1. Press and hold the multi-information meter switch for about 2 seconds or moreto switch from the setting mode screen to the menu screen. Refer to “Changing the function settings(With ignition switch in the “ON” posi-tion)” on page 5-103. 2. Lightly press the multi-information meter switch to select . (changing the momentary fuel consumption display)
3. Press and hold the multi-information meter switch for about 2 seconds or more to switch in sequence from ON (with the green bar graph)
 OFF (without the
green bar graph)
 ON (with the green
bar graph). The setting changes to the selected bargraph setting.
N00557600177
All of the function settings can be returned totheir factory settings. 1. Press and hold the multi-information meter switch (for about 2 seconds or more) to switch from the setting mode screen to the menu screen.Refer to “Changing the function settings (With ignition switch in the “ON” posi- tion)” on page 5-103.2. Lightly press the multi-information meter switch to select “RESET” (return to the factory settings).
Changing the momentary fuel con- sumption display
Returning to the factory settings
BK0210800US.book
108 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Multi-information display
Features and controls 5-109
5
3. Press and hold the multi-information meter switch (for about 5 seconds or more), the buzzer sounds and all of thefunction settings are returned to the fac- tory settings.NOTE
 The factory settings are as follows. • Average fuel consumption and average speed reset mode: A (Auto reset) • Fuel consumption display unit: mpg (US) or (L/100 km) • Temperature unit: °F (Fahrenheit) or {°C (Celsius)} • Display language: ENGLISH• Cooperative language setting: A • Operation sounds: ON (Operation sound on) • “REST REMINDER” display: OFF • Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph : ONNOTE
BK0210800US.book
109 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list
5-110 Features and controls
5
N00557700019 N00557800212
Indicator light, warning light, and information screen display list Indicator and warning light list Type 1 Type 21- Position indicator
 P.5-120
2- High beam indicator
 P.5-120
3- Charging system warning light

P.5-122
4- Turn signal indicator/Hazard warning
light
 P.5-120
5- Front fog light indicator
 P.5-120
6- Anti-lock braking system warning light
 P.5-75, 5-75
7- Tire pressure monitoring system warn-
ing light
 P.5-86
8- Brake warning light
 P.5-121
9- Cruise control indicator
 P.5-81
10- Seat belt reminder/warning light

P.4-10
11- Supplemental Restraint System (SRS)
warning light
 P.4-26
12- Engine malfunction indicator (“SER-
VICE ENGINE SOON” or “Check engine light”)
 P.5-121
13- Active stability co
ntrol (ASC) indicator
 P.5-78
14- Information screen display list

P.5-111
BK0210800US.book
110 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list Features and controls 5-111
5
N00557900066
When there is information to be announced, such as light remind
er, the tone sounds and the screen
switches to the displays show
n below. Refer to
the appropriate page and take the necessary measures.When the cause of the warning display is eliminated, the warning display goes out automatically. Refer to “Warning display list (With ignition switch in the “OFF” position)” on page 5-111. Refer to “Warning display list (With ignition switch in the “ON” position)” on page 5-114.Refer to “Other interrupt displays (With igni
tion switch in the “ON” position)” on page 5-119.
N00558000194
Information screen display list
NOTE
In the following cases, a warning may be displayed on the informa
tion screen and the buzzer may sound for a few seconds, at tim
es.
This is caused by the system picking up interference such as stro
ng electromagnetic waves or nois
e, and is not a functional pro
blem.
• An extremely strong electromagnetic wave is received from a source
such as an illegal radio set,
a spark from a wire, or a rad
ar station.
• Abnormal voltage or a static electricity discharge is genera
ted by the operation of your vehicle’s electronics (including afte
r-market parts).
If the warning display has occurred a number of times, take your ve
hicle to an authorized Mitsubishi Motors dealer or a repair
facility of your choice and
have the system checked.
Warning display list (With ignition switch in the “OFF” position)
Screen
Cause
Do this (Reference)
 You have forgotten to remove the key from the ignition switch.
 Remove the key. Refer to “Key reminder system” on page 5-35.
BK0210800US.book
111 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list
5-112 Features and controls
5
 You have forgotten to turn off the lights. R
efer to “Light auto-cutout function (head- lights and other lights)” on page 5-126.
 The theft-alarm system is operating. Refer
to “Theft-alarm system” on page 5-39.
 Immobilizer is registered. Refer to “Customer key programming (Except
for vehicles sold in Canada)” on page 5-6.Refer to “Customer F.A.S.T.-key program- ming (Except for vehicles sold in Canada)” on page 5-27.
 After turning off the engine, an attempt was made to open the driver’s door with the ignition switch in any position other than “LOCK” (PUSH OFF).
 Turn the ignition switch to the “LOCK” (PUSH OFF) position. Refer to “Ignition switch return reminder system” on page 5-35.
 An attempt was made to lock all the doors and the trunk lid with the ignition switch in any position other than “LOCK” (PUSH OFF).
 Turn the ignition switch to the “LOCK” (PUSH OFF) position. Refer to “Ignition switch turn-off reminder system” on page 5-18.
Screen
Cause
Do this (Reference)
BK0210800US.book
112 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list Features and controls 5-113
5
 There is a fault in the F. A. S. T. -key. Refer to “F. A. S. T. -key” on page 5-11.
Screen
Cause
Do this (Reference)
BK0210800US.book
113 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Indicator light, warning light, an
d information screen display list
5-114 Features and controls
5
N00558101336
Warning display list (With ignition switch in the “ON” position)
Screen
Cause
Do this (Reference)
 There is a fault in the F.A.S.T.-key. Refer to “F.A.S.T.-key” on page 5-11.
BK0210800US.book
114 ページ ２０１４年４月８日　火曜日　午前１１時２８分

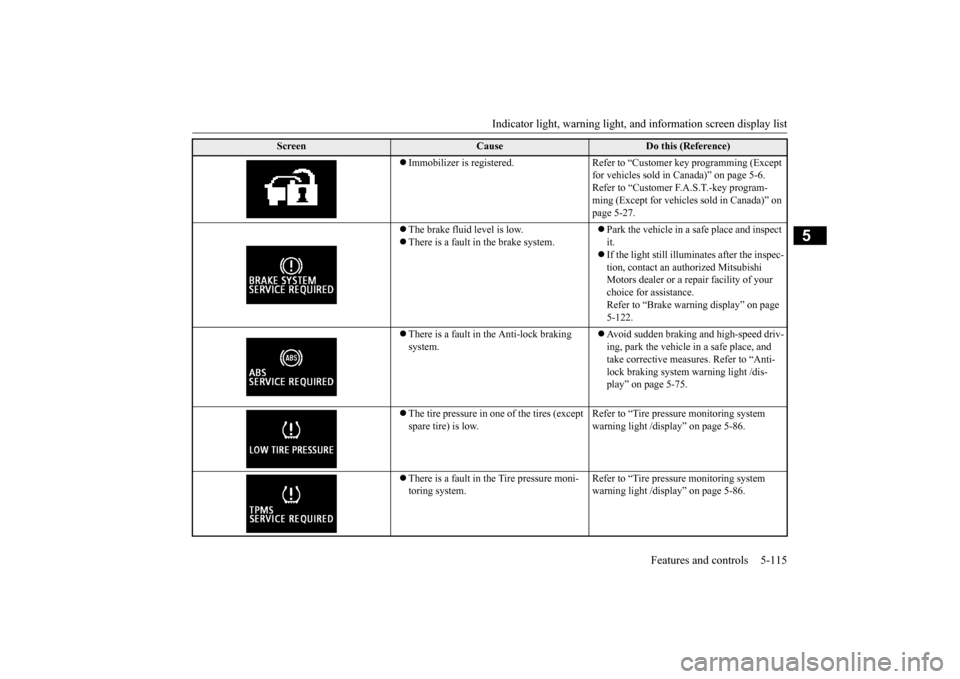

Indicator light, warning light, an
d information screen display list Features and controls 5-115
5
 Immobilizer is registered. Refer to “Customer key programming (Except
for vehicles sold in Canada)” on page 5-6. Refer to “Customer F.A.S.T.-key program-ming (Except for vehicles sold in Canada)” on page 5-27.
 The brake fluid level is low.  There is a fault in the brake system.
 Park the vehicle in a safe place and inspect it. If the light still illuminates after the inspec- tion, contact an authorized Mitsubishi Motors dealer or a repair facility of your choice for assistance. Refer to “Brake warning display” on page 5-122.
 There is a fault in the Anti-lock braking system.
 Avoid sudden braking and high-speed driv- ing, park the vehicle in a safe place, and take corrective measures. Refer to “Anti- lock braking system warning light /dis-play” on page 5-75.
 The tire pressure in one of the tires (except spare tire) is low.
Refer to “Tire pressure monitoring system warning light /display” on page 5-86.
 There is a fault in the Tire pressure moni- toring system.
Refer to “Tire pressure monitoring system warning light /display” on page 5-86.
Screen
Cause
Do this (Reference)
