2015 MITSUBISHI LANCER EVOLUTION sunroof

Interior
Overview 1-4
1
N00100302330
Interior
Electric remote-controlled out- side mirror switch P.5-49
Sunroof switch (if so equipped) P.5-44
Dome light (Front)/R
eading lights P.5-161,
9-30, 9-38
Window lock switch P.5-43 Power window switches P.5-42
Power door lock switch P.5-35
Bluetooth
® 2.0 interface microphone P.5-137
Adjustable seat belt shoulder anchor (for front seats) P.4-11 Seat belts P.4-8
Inside rearview mirror P.5-48 Sun visors P.5-160 Vanity mirror P.5-160Card holder P.5-160
Bottle holder P.5-165
Front seats P.4-3
Supplemental restraint
system - side airbag
(for front seats) P.4-31
Head restraints P.4-6
BK0210800US.bo
ok 4 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Outside (Front) 1-7 Overview
1
N00100602506
Outside (Front)
Locking and unlocking P.5-33 Keyless entry system (if so equipped) P.5-7F.A.S.T.-key (Free-hand Advanced Security Transmitter) (if so equipped) P.5-11
Sunroof (if so equipped) P.5-44
Windshield wiper and washer P.5-131
Fuel tank filler P.3-4
Engine hood P.9-3 Engine compartment P.9-5
Outside rearview mirrors P.5-49 Side turn signal lights P.5-129, 9-28
Headlights, high beam
P.5-124, 9-28, 9-31
Front turn signal light
s P.5-129, 9-28, 9-34
Headlights, low beam P.5-124, 9-28, 9-30Daytime running lights (if so
equipped) P.5-124, 9-28, 9-32
Front side-marker and parking lig
hts P.5-124, 9-28, 9-33, 9-34
Front fog lights P.5-130, 9-28, 9-35
BK0210800US.bo
ok 7 ページ ２０１４年４月８日　火曜日　午前１１時２８分

5
Features and controlsBreak-in period ...............
.................................................................5-3
Keys ..........................................
.......................................................5-3
Electronic immobilizer (Anti-thef
t starting system) ........................5-4
Keyless entry system (if so equipped) ..............................................5-7Free-hand Advanced Security Transmitter (F.A.S.T.-key) (if so equipped) .
.................................................
........................ 5-11
Door locks .......................
...............................................................5-33
Power door locks ............
...............................................................5-35
“Child safety locks” for
rear door ..................................................5-36
Trunk lid ...................................
.....................................................5-37
Inside emergency trunk lid
release ................................................5-38
Theft-alarm system
................................................
........................5-39
Power windows ...............
...............................................................5-42
Sunroof (if so equipped
) .........................................
........................5-44
Parking brake ..................
...............................................................5-46
Steering wheel tilt lock lever .........................................................5-47Inside day/night rearview
mirror ...................................................5-48
Outside rearview mirr
ors ...............................................................5-49
Ignition switch ......
.................................................
........................5-50
Steering wheel lock
................................................
........................5-52
Starting and stopping the e
ngine ....................................................5-52
Turbocharger operation
..........................................
........................5-55
Clutch pedal operation (if so equipped)..........................................5-56Manual transaxle (if so equipped) ..................................................5-56 Twin Clutch SST (Sportronic Shift Transmission) (if so equipped) .
.................................................
........................5-58
All-wheel drive system
..........................................
........................5-70
Cautions on handling of all-wheel drive vehicles ..........................5-70
S-AWC (Super-All Wheel C
ontrol) ............................................... 5-71
Anti-lock braking syst
em .....................................
......................... 5-74
Active stability control
(ASC) ....................
................................... 5-76
Limited-slip differenti
al ..............................
................................... 5-78
Service brake .................
.................................................
............... 5-79
Brake assist system
...............................................
......................... 5-80
Power steering system
..........................................
......................... 5-80
Cruise control ................
.................................................
............... 5-80
Tire pressure monitoring
system ................................................... 5-85
Instrument cluster
.................................................
......................... 5-89
Multi-information disp
lay ....................................
......................... 5-90
Indicator light, warning light, and information screen display list ...........................
.................................................... 5-110
Indicators .................................
.................................................... 5-120
Warning lights ................
.................................................
............. 5-121
Information screen disp
lay ...................................
....................... 5-122
Combination headlights and dimmer switch ............................... 5-124 Turn signal lever ..
.................................................
....................... 5-129
Hazard warning flasher
switch .................................................... 5-130
Front fog light switch
...........................................
....................... 5-130
Wiper and washer swit
ch ......................................
....................... 5-131
Electric rear window def
ogger switch ......................................... 5-135
Horn switch .............................
.................................................... 5-136
Link System .............................
.................................................... 5-136
Bluetooth
® 2.0 interface ..........
.................................................... 5-136
USB input terminal
...............................................
....................... 5-157
Sun visors ......................
.................................................
............. 5-160
12 V power outlet ..........
.................................................
............. 5-160
BK0210800US.bo
ok 1 ページ ２０１４年４月８日　火曜日　午前１１時２８分

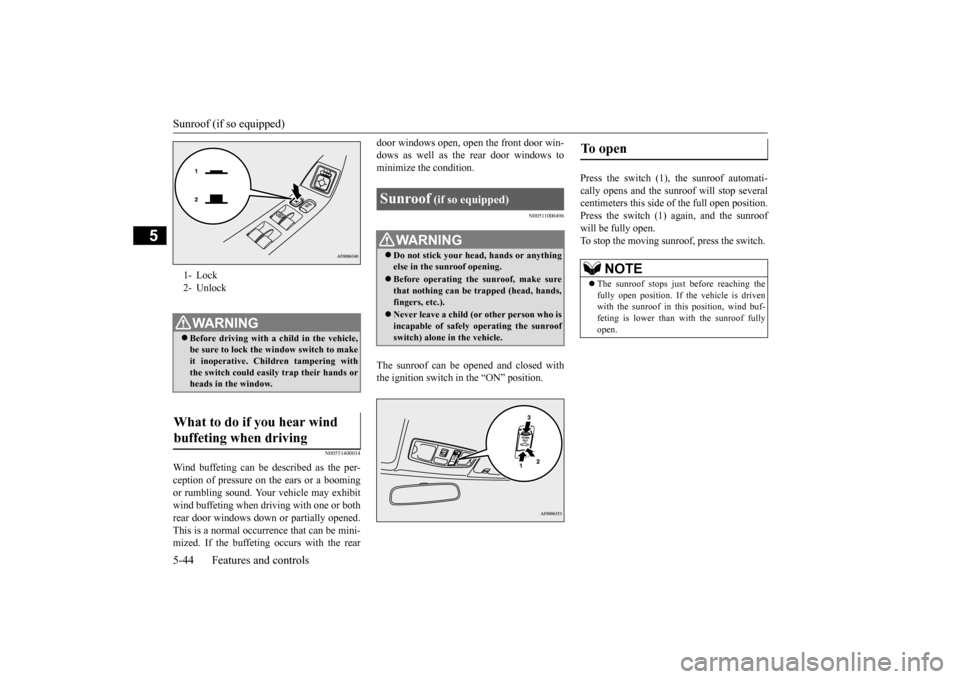

Sunroof (if so equipped)
5-44 Features and controls
5
N00551400014
Wind buffeting can be described as the per-
ception of pressure on the ears or a booming
or rumbling sound. Your vehicle may exhibit
wind buffeting when driving with one or both
rear door windows down or partially opened.
This is a normal occurrence that can be mini-
mized. If the buffeting occurs with the reardoor windows open, open the front door win-
dows as well as the rear door windows to
minimize the condition.
N00511000496
The sunroof can be opened and closed with
the ignition switch in the “ON” position.
Press the switch (1), the sunroof automati-
cally opens and the sunroof will stop several
centimeters this side of
the full open position.
Press the switch (1) again, and the sunroof
will be fully open.
To stop the moving sunroo f, press the switch.
1- Lock
2- Unlock
WA R N I N G Before driving with a child in the vehicle,
be sure to lock the window switch to make
it inoperative. Children tampering with
the switch could easily trap their hands or
heads in the window. What to do if you hear wind
buffeting when driving
Sunroof
(if so equipped)
WA R N I N GDo not stick your head, hands or anything
else in the sunroof opening. Before operating the sunroof, make sure
that nothing can be trapped (head, hands,
fingers, etc.).Never leave a child (or other person who is
incapable of safely operating the sunroof
switch) alone in the vehicle.
To open

NOTE
The sunroof stops just before reaching the
fully open position. If the vehicle is driven
with the sunroof in this position, wind buf-
feting is lower than with the sunroof fully
open.
SC00000600-3.fm 44 ページ ２０１４年４月１６日　水曜日　午後２時６分

Sunroof (if so equipped)
Features and controls 5-45
5
Press the switch (3), the sunroof automati- cally closes.To stop the moving sunroof, press the switch. When the switch (2) is pressed, the rear edge of sunroof raises for ventilation. Press the switch (3).
N00544800029
The sunroof can be oper
ated when the igni-
tion switch is in the “ON” position. The sun- roof can be opened or closed for a 30 secondsperiod after the ignition
switch is turned to
the “ACC” or “LOCK” position. However, once the driver’s door or the front passenger’sdoor is opened, the sunroof cannot be oper- ated until the ignition switch is turned on again.
N00544900059
If a hand or head is trapped in the closingsunroof opening, the safety mechanism willcause the sunroof to re-open automatically. The opened sunroof will become operational again after a few seconds.If the safety mechanism is activated 5 or more times consecutively, normal closing of the sunroof will be aborted.As an emergency measure, the sunroof can beclosed in small increments until it is com- pletely closed by repeatedly pressing the switch (2).After performing the emergency measure, consult an authorized Mitsubishi Motors dealer.
To close

To tilt up

To tilt down

Timer function

Safety mechanism

NOTE
 The safety mechanism can be activated if the driving conditions or other circumstances cause the sunroof to be subjected to a physi-cal shock similar to that caused by a trapped hand or head.WA R N I N G The safety mechanism is deactivated while the switch (2) is pressed continuously. Therefore be especially careful that handsor head are not trapped in the sunroof opening.
 Do not deliberately trap your hands or head in order to activate the safety mecha- nism. Personal injury and malfunction of the sunroof could result.CAUTION The safety mechanism is deactivated just before the sunroof closes. This allows the sunroof to close completely. Therefore be especially careful that fingers are not trappedin the sunroof opening.NOTE
 When leaving the vehicle unattended, be sure to close the sunr
oof and if a key was
used to start the engine, remove the key from the ignition switch.  Do not try to operate the sunroof if it is fro- zen closed (after snowfall or during extreme cold).  Do not sit on or place heavy luggage on the sunroof or roof opening edge.  Do not apply any force that may cause dam- age to the sunroof.  Release the switch when the sunroof has reached a completely open or completely closed position.WA R N I N G
BK0210800US.bo
ok 45 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Parking brake 5-46 Features and controls
5
N00545000028
The sunshade can be opened or closed manu- ally while the sunroof is closed.When the sunroof is opened, the sunshade will also open automatically.
N00511400360
To park the vehicle, first bring it to a com- plete stop, fully engage the parking brake,and then move the gearshift lever to 1st (on a uphill) or “R” (Reverse) (on a downhill) posi- tion, for vehicles with a manual transaxle orset the gearshift lever to “P” (PARK) position on Twin Clutch SST vehicles.
 If the sunroof does not operate when the sun- roof switch is operated, release the switch and check whether something is trapped by the sunroof. If nothing is trapped, have the sunroof checked at an authorized MitsubishiMotors dealer.  Be careful when tilting
up the sunroof if a ski
carrier or a roof carrier is installed. Depend- ing on the model of ski car
rier or roof carrier,
the sunroof may contact the carrier when thesunroof is tilted up.  Be sure to close the sunroof completely when washing the vehicle or when leaving the vehicle.  Do not put any wax on the weatherstrip (black rubber) around the sunroof opening. If it is waxed, the weatherstrip cannot maintaina weatherproof seal with the sunroof.  After washing the vehicle or after rain be sure to wipe off any water that is on the sun- roof before operating it.  Operating the sunroof repeatedly with the engine turned off will run down the battery. Operate the sunroof only while the engine isrunning.NOTE
Sunshade

CAUTION Do not attempt to close the sunshade when the sunroof is opened. Be careful that hands are not trapped when closing the sunshade.NOTE
 Be sure to tilt down the sunroof before clos- ing the sunshade.
Parking brake To apply 1- Pull the lever up without pushing the
button at the end of hand grip. When the parking brake is set and the ignition switch is in the “ON” position, the brake warning light in the instru-ment cluster will come on. Before driving, be sure to release the parking brake.
BK0210800US.bo
ok 46 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Fuses
Vehicle care and maintenance 9-25
9
* - Fusible link  Some fuses may not be installed on your vehicle, depending on the vehicle modelor specifications.  The table above shows the main equip- ment corresponding to each fuse.
Passenger compartment fuse loca- tion table No.
Sym- bol
Electrical system
Capac-ity
1 Heater 30 A
*
2
Stop lights (Brake lights)
15 A
3 Rear fog light 10 APassenger compartment fuse location
Main fuse block
Sub fuse block
4 Windshield wiper 30 A 5 Optional 10 A 6 Door locks 20 A 7Radio15 A8 Control unit relay 7.5 A 9
Interior lights (Dome lights)
15 A
10
Hazard warning
flasher
15 A
11 Rear window wiper 15 A 12 Gauges 7.5 A 13
Cigarette
lighter/Accessory
socket
15 A
14 Ignition switch 10 A 15 Sunroof 20 A 16
Outside rearview
mirrors
10 A
17
All-wheel drive system
10 A
18 Back-up lights 7.5 A 19 Accessory socket 15 ANo.
Sym- bol
Electrical system
Capac-ity
20
Power window
control
30 A
*
21 Defogger 30 A
*
22
Heated outside rearview mirrors
7.5 A
23 115V Power outlet 15 A24 Power seats
25 (20) A
25 Heated seats 30 ANo.
Sym- bol
Electrical system
Capac-ity
BK0210800US.bo
ok 25 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Cleaning the outside of your vehicle Vehicle care and maintenance 9-43
9
After washing your vehicle, wipe off all waterdrops from the rubber parts around the doors to prevent the doors from freezing.
N00946000221
Wax your vehicle once or twice a year, or when water does not bead up on the paint.Use a soft cloth to put a small amount of wax on the painted surfaces. After the wax has dried, polish with a dry soft cloth.Do not wax your vehicle in direct sunlight. You should wax when the painted surfaces are cool.
N00946100017
If painted surfaces have been severely dam- aged and lost their original luster and color tone, polish the surface lightly with a finepolishing compound. Avoid limiting your polishing to the damaged surface only; polish a somewhat wider area, moving the polishing
cloth in one direction. After polishing, flush the compound from the surface and apply a coat of wax to regain a beautiful luster.
N00946200018
Small cracks and scratches in the paint coatshould be touched up as soon as possible with touch-up paint to prevent corrosion.Check body areas facing the road or the tirescarefully for damage to the paint caused by flying stones, etc. The paint code number for your vehicle can be found on the vehicleinformation code plate in the engine compart- ment.
N00946300178
Use a sponge or chamois to clean these parts.If a vehicle wax sticks to a gray or black rough surface of the bumper, molding orlights, the surface may appear white in color. In this case, wipe it
off using lukewarm water
and a soft cloth or chamois.
NOTE
 When the door is frozen, opening it by force may tear off or crack the rubber gasket installed around the door. Pour warm water to melt the ice. Be sure to thoroughly wipeoff the water after opening the door. To pre- vent freezing of the weatherstripping on the doors, hood, etc., treat
with silicone lubri-
cant.
Waxing
CAUTION Waxes containing high abrasive compounds should not be used. These waxes remove rust and stain effectively from the paintwork, but are harmful to the finish
on the paint and the
plate, because they also remove clearcoat.They are also harmful to other glossy sur- faces such as the grill
e, trim, moldings, etc.
Do not use gasoline, kerosene, benzine or paint thinners to remove road tar or other dirt from the vehicle surface. Do not put wax on the areas having black matte coating because it can cause unevendiscoloration, patches, blurs, etc. If these get wax on them, wipe the wax off right away with a soft cloth and warm water. If your vehicle is equipped with a sunroof, be careful not to apply any wax on the weather-strip (black rubber) when waxing the area around the sunroof opening. If stained with wax, the weatherstrip cannotmaintain a weatherproof seal with the sun- roof.
Polishing
Damaged paint Cleaning plastic parts
CAUTION Do not use a scrubbing brush or other rough scrubber as these may damage the plasticsurface.
BK0210800US.bo
ok 43 ページ ２０１４年４月８日　火曜日　午前１１時２８分
