2015 CITROEN DS3 CABRIO DAG Handbook (in English)

215
DS3_en_Chap10_info-pratiques_ed01-2014
Changing a bulb
The headlamps are fitted with polycarbonate   glass   with   a   protective
c

oating:
F

d
o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u
se   a   sponge   and   soapy   water   or   a
p

H neutral product,
F

w
hen   using   a   high   pressure
w

asher   on   persistent   marks,   do   not
k

eep   the   lance   directed   towards
t

he   lamps   or   their   edges   for   too
l

ong,   so   as   not   to   damage   their
p

rotective   coating   and   seals.
Halogen headlamps
1. direction indicators (PY21W amber).
2. S
idelamps (W5W).
3.
M

ain beam headlamps (H1-55W).
4.
di

pped beam headlamps (H7-55W).
5.
F

ront foglamps (PSX24W).
6.
L

E d
la
mps (LE d s).
Changing

a

bulb

should

only

be

done

a

fter

the

headlamp

has

been

switched

o

ff

for

several

minutes

(risk

of

serious

b

urns).
F

D

o not touch the bulb directly with
your

fingers,

use

a

lint-free

cloth.
It

is

imperative

to

use

only

anti-
ultraviolet (UV) type bulbs to avoid
damaging
 t

he
 h

eadlamp.
al

ways replace a failed bulb with a
new

bulb

with

the

same

type

and
 s
pecification.
Practical information

DS3_en_Chap10_info-pratiques_ed01-2014
changing direction indicator
bulbs
Rapid flashing of the direction indicator warning   lamp   (right   or   left)   indicates   the
f

ailure   of   a   bulb   on   that   side.
F

T

urn the bulb holder a quarter of a turn and
extract
  it.
F

P

ull   out   the   bulb   and   change   it.
To refit, carry out these operations in reverse
o r d e r.
changing dipped beam headlamp
bulbs
F Remove   the   protective   cover   by   pulling   the  t
ab.
F

D
isconnect   the   bulb   connector.
F

S
pread   the   springs   to   release   the   bulb.
F

P
ull   the   bulb   out   and   change   it.
To refit, carry out these operations in reverse
o r d e r.
Amber

coloured

bulbs,

such

as

the

d

irection

indicators,

must

be

replaced

w

ith bulbs of identical specifications
and

colour.
When

refitting,

close

the

protective

c

over

carefully

to

preserve

the

sealing

o

f

the

headlamp.

217
DS3_en_Chap10_info-pratiques_ed01-2014
changing main beam headlamp bulbschanging sidelamp bulbs
F Remove  the   protective   cover   by   pulling   the  t
ab.
F

D
isconnect   the   bulb   connector.
F

S
pread   the   springs   to   release   the   bulb.
F

R
emove   the   bulb   and   change   it.
To refit, carry out these operations in reverse
o r d e r. F
 R emove   the   protective   cover   by   pulling   the  t
ab.
F

P
ull   the   bulb   holder   pressing   on   the   tabs   on
bo

th
 s
ides.
F

P
ull   the   bulb   and   change   it.
To refit, carry out these operations in reverse
o r d e r.
LEd* / Xenon front lamps
* LED: light-emitting diode.
1.

di
rection indicators (LE
ds
).
2.
S
idelamps (LE d s).
3.
di
pped beam headlamps (Xenon).
4.
M
ain beam headlamps (LE
ds / Xe
non).
5.
da
ytime running lamps (LE d s).
6.
F
ront foglamps (PSX24W).
For   replacements   on   of   these   types   of   lamps
(

LED   /   Xenon),   contact   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop.
Practical information

DS3_en_Chap10_info-pratiques_ed01-2014
To obtain a replacement module, contact your CITRoË N dealer or a
qualified
 w

orkshop.
If
  you   experience   any   difficulty   in
r

eplacing   bulbs,   contact   your   CITROËN
d

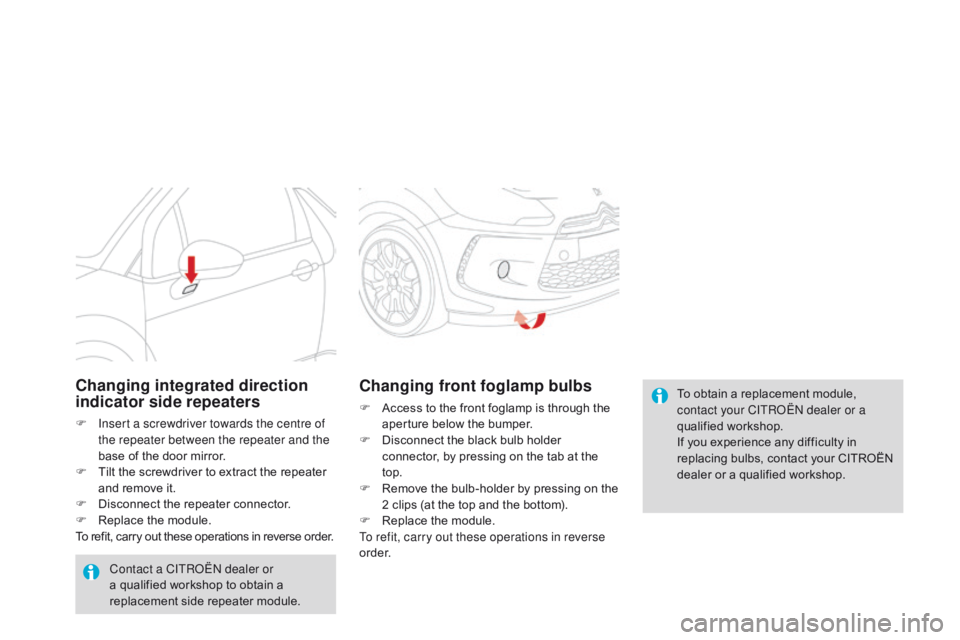

ealer   or   a   qualified   workshop.changing front foglamp bulbs
F Access  to   the   front   foglamp   is   through   the  a
perture   below   the   bumper.
F

D
isconnect   the   black   bulb   holder
c

onnector,   by   pressing   on   the   tab   at   the
t

op.
F

R
emove   the   bulb-holder   by   pressing   on   the
2

  clips   (at   the   top   and   the   bottom).
F

R
eplace   the   module.
To refit, carry out these operations in reverse
o r d e r.
changing integrated direction
indicator side repeaters
F Insert a screwdriver towards the centre of the repeater between the repeater and the
base
  of   the   door   mirror.
F

T
ilt   the   screwdriver   to   extract   the   repeater
a

nd   remove   it.
F

D
isconnect   the   repeater   connector.
F

R
eplace   the   module.
To
  refit,   carry   out   these   operations   in   reverse   order.
Contact a CITR
oË

N dealer or
a
  qualified   workshop   to   obtain   a
r

eplacement   side   repeater   module.

219
DS3_en_Chap10_info-pratiques_ed01-2014
changing the LEd lamps
For the replacement of this type of LED lamp, c
ontact a CITRoË N dealer or a qualified
workshop.
Practical information

DS3_en_Chap10_info-pratiques_ed01-2014
1. Brake lamps / sidelamps (P21/5W).
2. Sidelamps (P5W).
3.
di

rection indicators (PY21W amber)
4.
F

oglamp, offside (PR21W red)


R
eversing lamp, nearside (P21W).
Rear lamps
Amber or red bulbs, such as those for the direction indicators and rear
foglamp,
  must   be   replaced   by   bulbs   of
t

he   same   rating   and   colour.
changing bulbs
F Open  the   boot.
F  R emove   the   access   flap   from   the
c

orresponding   side   trim   panel.
F

U
nscrew   the   butter fly   nut   securing   the
lam

p
 u
nit.
F

U
nclip   the   lamp   unit   connector.
F

E
xtract   the   lamp   unit   carefully   pulling   in   its
m

iddle   towards   the   outside. F
 S pread   the   four   tabs   and   remove   the   bulb  h
o l d e r.
F

T
urn the bulb a quarter of a turn and
change
 it

.
To refit, carry out these operations in reverse
o r d e r.
Take
  care   to   engage   the   lamp   unit   in   its   guides,
w

hile   keeping   it   in   line   with   the   vehicle.

221
DS3_en_Chap10_info-pratiques_ed01-2014
changing direction indicator (4)
and foglamp or reversing
lamp
(5) bulbs
F Turn   the   bulb   a   quarter   turn   and   change   it.
changing LEd sidelamps and
brake lamps (LEds )
For the replacement of this type of LED lamp, c
ontact a CITRoË N dealer or a qualified
workshop.
3d rear lamps
Access to the bulbs
F Open   the   boot.
F  R emove   the   access   flap   from   the
c

orresponding   side   trim   panel.
F

U
nscrew   the   butter fly   nut   securing   the
lam

p
 u
nit.
F

U
nclip   the   lamp   unit   connector.
F

E
xtract   the   lamp   unit   carefully   pulling   it   in
l

ine   towards   the   outside.
To
  refit,   carry   out   these   operations   in   reverse   order.
Take
  care   to   engage   the   lamp   unit   in   its   guides,
w

hile   keeping   it   in   line   with   the   vehicle.
1.
3

d
L

E
d
s

idelamps (LE
d
s).
2. L
Ed
brake lamps / sidelamps (LEds
).
3. L
E
d la
teral sidelamps (LE
d
s).
4.
di

rection indicators (PY21W amber)
5.
F

oglamp, offside (H21W red)


R

eversing lamp, nearside (H21W).
Amber

or

red

bulbs,

such

as

those

f

or the direction indicators and rear
foglamp,

must

be

replaced

by

bulbs

of

t

he

same

rating

and

colour.
Practical information

DS3_en_Chap10_info-pratiques_ed01-2014
Third brake lamp (4 W5W bulbs)
F Open  the   boot.
F  R emove   the   plugs   A   on   the   inner   panel.
F

P
ush   on   the   centre   of   the   lamp   using   two
s

crewdrivers   to   lever   it   outwards.
F

D
isconnect the connector and if necessary
the
  screenwash   pipe   from   the   lamp.
F

T
urn the bulb holder for the faulty bulb a
quarter
  of   a   turn.
F

P
ull   out   the   bulb   and   change   it.
To refit, carry out these operations in reverse
o r d e r.
Third brake lamp (LEds )
For the replacement of this type of LED lamp, c
ontact a CITRoË N dealer or a qualified
workshop.
changing the number plate lamp
bulbs (W5W)
F Insert a thin screwdriver into one of the outer   holes   of   the   lens.
F

P
ush   it   outwards   to   unclip.
F

R
emove   the   lens.
F

P
ull   the   bulb   out   and   change   it.
