OWNER'S HANDBOOK - SUPPLEMENT

DS3-Cabrio_en_Chap00_couv-debut_ed02-2014
Welcome
This document describes the special features relating to the presentation and use of your DS3 CABRIO. Refer to the DS3 owner's handbook for all other descriptions and specifications, and also to maintenance and warranty guide for servicing information for your vehicle.

DS3-Cabrio_en_Chap00a_sommaire_ed02-2014
Contents
ACCESS
2 Soft top
11 Boot
003 PR ACTICAL
INFORMATION
14 Rear shelf
012
010
TECHNICAL DATA
15 Changing a fuse
16 Recommendations on care
17 Petrol engines
18 Petrol weights
19 Diesel engines
20 Diesel weights
21 Dimensions
Key
safety warning
additional information
contributes to the protection of the environment
refer to the page indicated FITTINGS 005

2Access
DS3-Cabrio_en_Chap04_ouvertures_ed02-2014
Soft top
Your vehicle is fitted with an electric soft top roof.
The roof is opened and closed by pressing the control at the interior lamp, in the opening direction 1 and in the closing direction 2 .
Electric opening and
closing

3Access
DS3-Cabrio_en_Chap04_ouvertures_ed02-2014
In order to maintain the state of charge of the battery, it is recommended that the roof be operated with the engine running .
Operation of the roof is possible: - engine running, or - ignition on.
During operation of the roof with just the ignition on, starting the engine may cause the roof to stop, depending on the state of charge of the battery. To have the roof continue the operation, operate the control again after the engine has started.
Operating zones
There are two operating zones: Zone A : horizontal operating zone, in manual or automatic mode. Zone B : vertical operating zone, in automatic mode only.
Before operating the roof, ensure that no occupant of the vehicle or person outside the vehicle could be subject to any risk related to the movement of the roof or the rear screen and that no object could inter fere with the operation.
Roof positions
Position 0 : Roof completely closed. Position 1 : Stop position for automatic roof closing. Position 2 : Roof open horizontally. Position 3 : Roof completely open.

4Access
DS3-Cabrio_en_Chap04_ouvertures_ed02-2014
Opening
Manual mode
Opening of the roof in zone B can only be done in automatic mode.
 In zone A , press and hold the control without passing the point of resistance to open the roof.
 The roof stops as soon as you release the control.

5Access
DS3-Cabrio_en_Chap04_ouvertures_ed02-2014
Automatic mode
During automatic operation of the roof in zone A , pressing the control stops the roof.
During complete opening of the roof, the rear screen comes down onto the rear shelf. Ensure that no object is left on the shelf which might damage the rear screen or the roof.
Automatic opening of the roof in zone B
is not possible if the boot is open. In the event of a problem, check that the boot is fully closed
During an operation in zone B , an instruction to stop the roof is not possible. Pressing the control reverses the direction of movement of the roof, whichever direction the control is pressed. This "anti-panic" function allows a quick change in direction of movement of the roof if suddenly required.
 Release the control: opening of the roof continues up to the maximum horizontal position (position 2 ).
 In zone B , a press on the control opens the roof completely (position 3 ).  In zone A , press the control beyond the point of resistance to begin opening the roof.

6Access
DS3-Cabrio_en_Chap04_ouvertures_ed02-2014

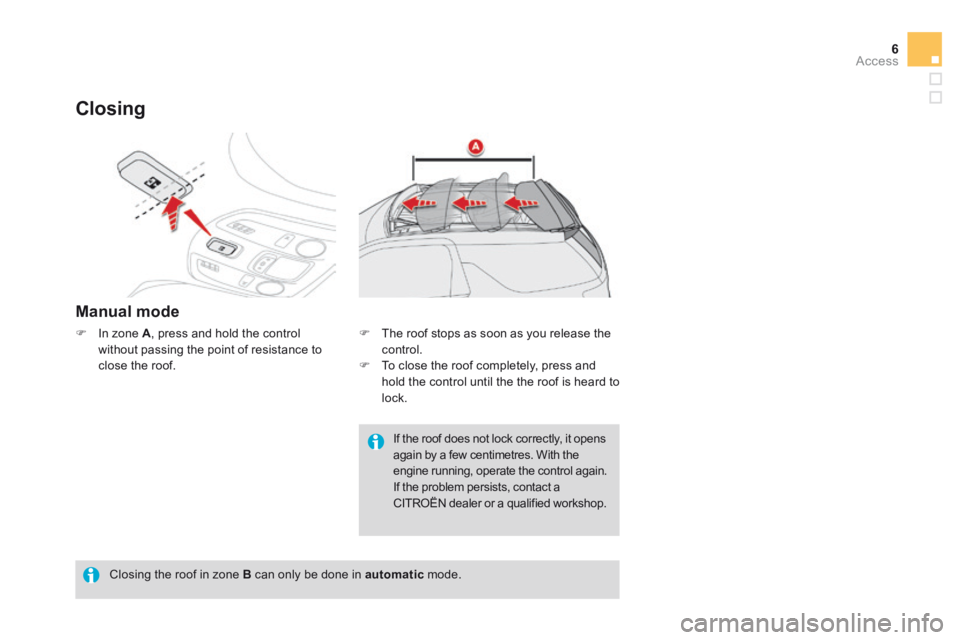

Closing
Manual mode
 In zone A , press and hold the control without passing the point of resistance to close the roof.
Closing the roof in zone B can only be done in automatic mode.
If the roof does not lock correctly, it opens again by a few centimetres. With the engine running, operate the control again. If the problem persists, contact a CITROËN dealer or a qualified workshop.
 The roof stops as soon as you release the control.  To close the roof completely, press and hold the control until the the roof is heard to lock.
