2015 CITROEN DS3 CABRIO DAG Handbook (in English)

135
DS3_en_Chap07_visibilite_ed01-2014
The temporary illumination of the dipped beam headlamps   after   the   vehicle's   ignition   has   been
s

witched   off   makes   the   driver's   exit   easier
w

hen   the   light   is   poor.
Switching on
F With  the   ignition   off,   "flash"   the   headlamps  u
sing   the   lighting   stalk.
F

A
  further   "headlamp   flash"   switches   the
f

unction   off.
Switching off
The manual guide-me-home lighting switches off   automatically   after   a   set   time.
Manual guide-me-home
lighting
Visibility

DS3_en_Chap07_visibilite_ed01-2014
The sidelamps and dipped beam headlamps are   switched   on   automatically,   without   any
a

ction on the part of the driver, when a low level
of
  external   light   is   detected   or   in   certain   cases
o

f   activation   of   the   windscreen   wipers.
As
  soon   as   the   brightness   returns   to   a
s

ufficient level or after the windscreen wipers
are
  switched   off,   the   lamps   are   switched   off
au

tomatically.
Automatic illumination of headlamps
Activation
F Turn   ring   to   the   "AUTO"  position.   The  a
utomatic   illumination   of   headlamps   is
a

ccompanied   by   a   message   in   the   screen.
deactivation
F Turn  ring   to   a   position   other   than   "AUTO".  D
eactivation   is   accompanied   by   a   message
i

n   the   screen.
Association with the automatic
"Guide-me-home" lighting
Association with the automatic illumination of headlamps   provides   "guide-me-home"   lighting
w

ith   the   following   additional   options:
-

s
election   of   the   lighting   duration   to   15,
30 or 60 seconds in the functions that can
be
  set   in   the   vehicle   configuration   menu
(

except   in   the   case   of   the   monochrome
s

creen   A,   for   which   the   duration   is   set:
60 seconds),
-

a
utomatic   activation   of   "guide-me-home"
l

ighting   when   automatic   illumination   of
h

eadlamps   is   in   operation.
Operating fault
In the event of a fault with the
sunshine  sensor,   the   lighting
c

ome

on,

this   warning   lamp   is   displayed   in   the
i

nstrument

panel   and/or   a   message   appears   in
t

he

screen,
  accompanied   by   an   audible   signal.
Contact a CITR
oË

N dealer or a qualified
workshop.
In

fog   or   snow,   the   sunshine   sensor
m

ay

detect   sufficient   light.   Therefore,
t

he

lighting   will   not   come   on
au

tomatically.
Do not cover the sunshine sensor,
coupled with the rain sensor and
located in the centre of the windscreen
behind
  the   rear   view   mirror;   the
a

ssociated   functions   would   no   longer
be c

ontrolled.

137
DS3_en_Chap07_visibilite_ed01-2014
LED lampsThis daytime lighting, a signature of the vehicle, comprises two sets of light-emitting diodes (LEDs), located   in   vertical   cutouts   below   each   headlamp.
On
  starting   the   vehicle,   in   daylight   the   LED
l

amps   come   on   automatically,   if   the   lighting
s

talk   is   in   position   "0" or "AUTO" .
If
  the   sidelamps   and   headlamps   are   switched
o

n   manually   or   automatically,   the   LED   lamps
s

witch   off. For
  countries   where   exterior   lighting   by   day   is
n

ot   a   legal   requirement,   you   can   activate   or
d

eactivate   the   function   via   the   multifunction
s

creen   configuration   menu.
ProgrammingIn countries where it is a legal requirement:
-

t
his function is activated by default
and cannot be deactivated,
-

i
n   daylight,   the   sidelamps   and
n

umber   plate   lamps   also   come   on,
-

I
f   the   sidelamps   or   headlamps
a

re   switched   on   manually   or
a

utomatically,   the   LED   lamps
s

witch   off.
For
  versions   not   fitted   with   LED   lamps,
i

t   is   the   dipped   beam   headlamps   that
c

ome   on   automatically   on   starting
t

he vehicle.
Visibility

DS3_en_Chap07_visibilite_ed01-2014
Travelling abroad
LEd / Xenon front lamps
For motoring in countries that drive on the other s
ide of the road, it is necessary to adapt the
adjustment
  of   the   dipped   beams   so   as   to   not
d

azzle   the   drivers   of   approaching   vehicles.
F

R
aise   the   bonnet   for   access   to   the   adjuster
(

one   adjuster   per   headlamp).
F

I
nsert   a   suitable   allen   key   (not   supplied)
i

nto   the   hexagonal   head   of   the   adjuster.
F

T
urn   the   allen   key   half   a   turn   clockwise.
Headlamp adjustment
To avoid causing a nuisance to other road u
sers,   the   height   of   the   headlamps   should   be
a

djusted   in   relation   to   the   load   in   the   vehicle.
0.

D
river   only   or   driver   +   front   passenger.
-.
 I

ntermediate
 s
etting.
1.
 5

  people.
-.

5
  people   +   load   in   the   boot.
2.
 D

river   only   +   maximum   authorised   load   in
t

he   boot.
This
  position   is   sufficient   to   avoid   causing
d

azzle.
Higher
  settings   may   limit   the   spread   of   light
f

rom   the   headlamps.
The
  initial   setting   is   position   "0". On
  your   return,   don't   forget   to   return
y

our   headlamps   to   their   initial   setting,
b

y   carrying   out   these   operations   in
r

everse
 o
rder.

139
DS3_en_Chap07_visibilite_ed01-2014
System for selection and control of the various front   and   rear   wiping   modes   for   the   elimination
o

f   rain   and   cleaning.
The vehicle's front and rear wipers are
designed
  to   improve   the   driver's   visibility
p

rogressively   according   to   the   climatic
c

onditions.
Wiper controls
Programming
Various automatic wiper control modes are also a vailable   according   to   the   following   options:
-
 a

utomatic
 r
ain
 sen
sitive
 w
indscreen
 w
ipers,
-

r
ear   wiping   on   engaging   reverse   gear.
Model with AUTO wiping
The wiper commands are issued directly by the driver   by   means   of   the   stalk   A   and   the   ring   B.
Manual controls
Windscreen wipers
A. Wiping   speed   selection   stalk.
Single   wipe   (press   down   and
r

elease).Automatic,
  then   single   wipe
(see
  the   corresponding   section).
Fast
  (heavy   rain).
Normal
  (moderate   rain).
Intermittent
  (proportional   to   the
s

peed   of   the   vehicle).
Of f.
or
Model without AUTO wiping
Visibility

DS3_en_Chap07_visibilite_ed01-2014

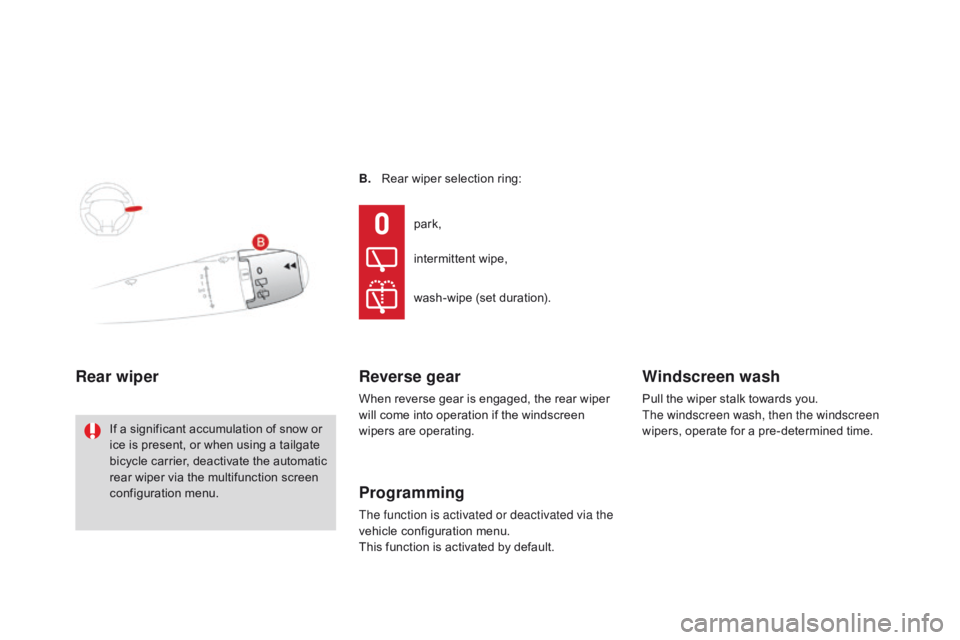

B. Rear  wiper   selection   ring:
Rear wiper
If a significant accumulation of snow or i
ce   is   present,   or   when   using   a   tailgate
b

icycle
c
arrier,
d
eactivate
t
he
a
utomatic
r

ear   wiper   via   the   multifunction   screen
c

onfiguration
 m
enu. park,
intermittent
 w

ipe,
wash-wipe   (set   duration).
Reverse gear
When reverse gear is engaged, the rear wiper w
ill   come   into   operation   if   the   windscreen
w

ipers   are   operating.
Programming
The function is activated or deactivated via the
vehicle  configuration   menu.
This
  function   is   activated   by   default.
Windscreen wash
Pull the wiper stalk towards you. The windscreen wash, then the windscreen
wipers,
  operate   for   a   pre-determined   time.

141
DS3_en_Chap07_visibilite_ed01-2014
Automatic rain sensitive
windscreen wipers
The windscreen wipers operate automatically, without any action on the part of the driver, if
rain is detected (sensor behind the rear view
mirror),
  adapting   their   speed   to   the   intensity   of
t

he   rainfall.
Activation
This is controlled manually by the driver by pushing s talk A to the "AUTO" p osition.
It
  is   accompanied   by   the   illumination
o

f   this   indicator   lamp   in   the
i

nstrument   panel   and   a   message   in
t

he   multifunction   screen.
Switching off
This is controlled manually by the driver by   moving   stalk   A   upwards,   returning   it   to
p

osition

"0".
It
  is   accompanied   by   the   indicator   lamp
 i

n   the   instrument   panel   going   off   and   a
 m

essage   in   the   multifunction   screen.The
  automatic   wiping   must   be  r
eactivated   if   the   ignition   has   been   off
f

or   more   than   one   minute,   by   pushing
s

talk   A   downwards.
Visibility

DS3_en_Chap07_visibilite_ed01-2014
Operating fault
If an automatic wiping fault occurs, the wipers will   operate   in   intermittent   mode.
Have
  it   checked   by   a   CITROËN   dealer   or   a
q

ualified
 w
orkshop. To retain the effectiveness of the flat
wiper
  blades,   it   is   advisable   to:
-

h
andle   them   with   care,
-

c
lean   them   regularly   using   soapy
w

ater,
-

n
ot   use   them   to   hold   a   sheet   of
c

ardboard   against   the   windscreen,
-

r
eplace   them   at   the   first   signs   of
w

e a r.
Do
  not   cover   the   rain   sensor,   linked
w

ith the sunshine sensor and located in
the centre of the windscreen behind the
rear
  view   mirror.
Switch
  off   the   automatic   wiping   when
u

sing   an   automatic   car   wash.
In winter, it is advisable to wait until the
windscreen
  is   completely   clear   of   ice
b

efore   activating   the   automatic   wiping.This position allows the wiper blades to
be
  lifted   for   winter   parking,   cleaning   or
r

eplacement   without   damaging   the   bonnet.
In
  the   minute   following   switching   off   of   the
i

gnition,   any   action   on   the   wiper   stalk   positions
t

he   wipers   vertically.
To
  park   the   wipers   after   this   has   been   done,
 s

witch   on   the   ignition   and   operate   the   wiper   stalk.
Vertical windscreen wiper
position
