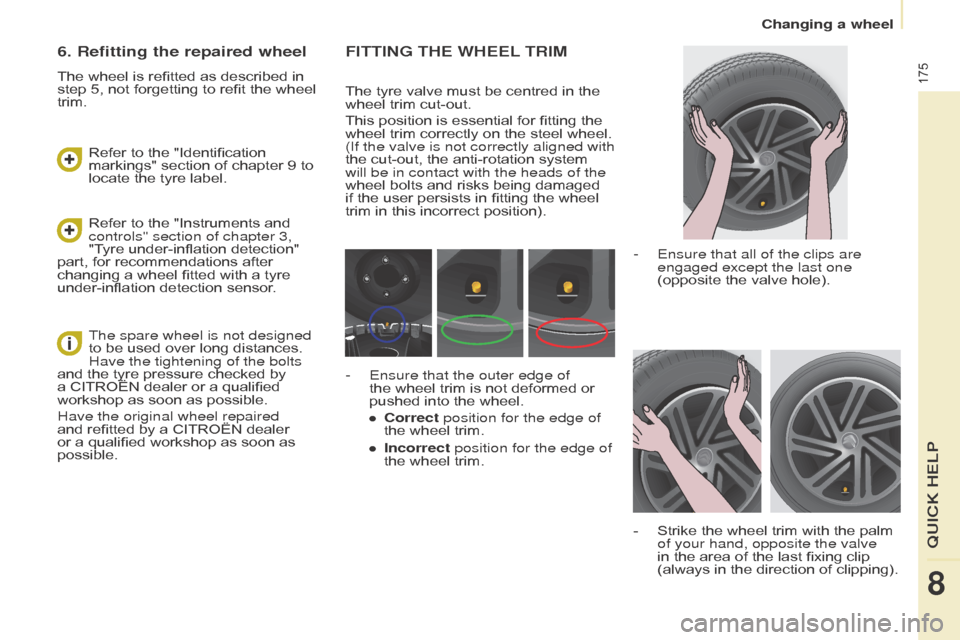

FITTING THE WHEEL TRIM
The tyre valve must be centred in the wheel
  trim   cut-out.
This
  position   is   essential   for   fitting   the
wheel

  trim   correctly   on   the   steel   wheel.
(If

the valve is not correctly aligned with
the
  cut-out,   the   anti-rotation   system
will be in contact with the heads of the
wheel

  bolts   and   risks   being   damaged
if

  the   user   persists   in   fitting   the   wheel
trim

  in   this   incorrect   position). -

Ensure that all of the clips are
engaged except the last one
(opposite

  the   valve   hole).
-

Strike
  the   wheel   trim   with   the   palm
of your hand, opposite the valve
in

  the   area   of   the   last   fixing   clip
(always

  in   the   direction   of   clipping).
-

Ensure that the outer edge of
the

  wheel   trim   is   not   deformed   or
pushed

  into   the   wheel.
●

Correct
position for the edge of
the
  wheel   trim.
●

Incorrect
position for the edge of
the
  wheel   trim.
6. Refitting the repaired wheel
The wheel is refitted as described in step  5,   not   forgetting   to   refit   the   wheel
trim.
Refer

  to   the   "Instruments   and
controls" section of chapter 3,
"T

yre   under-inflation   detection"
part,

  for   recommendations   after
changing

  a   wheel   fitted   with   a   tyre
under-inflation

  detection   sensor.
Refer
  to   the   "Identification
markings"

  section   of   chapter   9   to
locate

  the   tyre   label.
The spare wheel is not designed
to
  be   used   over   long   distances.
Have the tightening of the bolts
and

  the   tyre   pressure   checked   by
a

  CITROËN   dealer   or   a   qualified
workshop

  as   soon   as   possible.
Have the original wheel repaired
and
  refitted   by   a   CITROËN   dealer
or

  a   qualified   workshop   as   soon   as
possible.
QUICk HELP
8
Changing a wheel

176
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
Check the position of the tyre
valve relative to the ring of the
wheel trim.
Valve not positioned correctly:
  below
the


ring. Observe the wheel trim fitting
procedure, so as to avoid
breaking the fixing clip and
deformation at the edge of the
wheel trim.
Deformation
  of   the   edge   of   the   wheel
trim

  at   the   valve,   because   it   is   fitted
incorrectly

.Valve positioned correctly:
  below   the
ring.
Changing a wheel

177
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
REMOVABLE SNOW SCREEN
(
BLANKING COVER )
According to country, the removable snow screen is installed on the lower
part
  of   the   front   bumper   to   prevent   the
accumulation

  of   snow   at   the   radiator
cooling

  fan.
Fitting Removal
- offer up the snow screen facing its
centring pin A   on   the   front   bumper.
-

Put it in place by pressing at each
clip

B   located   in   the   four   corners.
Do

not

forget

to

remove

the

snow screen when the exterior
temperature


is

higher

than

10°C

(no


risk

of

snowfall)

and

when

towing. -
Pass a screwdriver into the hole
located
  near   each   of   the   clips.
-

Use the screwdriver as a lever to
unclip the four clips

B   in   turn.
QUICk HELP
8
Snow screen

178
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
SNOW CHAINS
In wintry conditions, snow chains
improve  traction   as   well   as   the
behaviour

  of   the   vehicle   when   braking.
 The

  snow   chains   must   be   fitted
only

  to   the   driving   wheels.
They

must

  never   be   fitted   to   "space-
saver"
  type   spare   wheels.
 T

ake   account   of   the   legislation   in
force in your country on the use
of

  snow   chains   and   the   maximum
running

  speed   authorised.Advice on installation
F

If
  you   have   to   fit   the   chains   during
a

  journey,   stop   the   vehicle   on   a   flat
surface

  on   the   side   of   the   road.
F

Apply
  the   parking   brake   and
position

  any   wheel   chocks   to
prevent

  movement   of   your   vehicle.
F

Fit the chains following the
instructions provided by the
manufacturer

.
F

Move of
f gently and drive for a
few
  moments,   without   exceeding
30

  mph   (50   km/h).
F

Stop
  your   vehicle   and   check   that
the snow chains are correctly
tightened.It

  is   recommended   that   before   you
leave,

  you   practise   fitting   the   snow
chains

  on   a   level   and   dry   surface.
Use only the chains designed to be
fitted
  to   the   type   of   wheel   fitted   to   your
vehicle:
For

  more   information   on   snow   chains,
contact a CITR

o Ë n dealer or a
qualified
  workshop.
o
riginal
tyre size Maximum
  link
size.
195/65

  R159
  mm
195/70
  R15
205/65
  R15
215/55
  R16
215/50
  R17
avoid driving with chains on roads
that have been cleared of snow

,
to
  avoid   damaging   your   vehicle's   tyres
and

  the   road   surface.   If   your   vehicle
is

  fitted   with   alloy   wheels,   check   that
no

  part   of   the   chain   or   its   fixings   is   in
contact

  with   the   wheel   rim.
Snow chains

179
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
CHANGING A BULB
Type A
All  glass   bulb:   pull   gently
as

  it   is   fitted   by   pressure.
Type C
Halogen
  bulb:   release   the
retaining

  spring   from   its
housing. T
ype B
Bayonet
  bulb:   press
on the bulb then turn it
anticlockwise.
T

ypes of bulb
Various

types
  of   bulb   are   fitted   to   your
vehicle.


T

o

remove   them:
Type D
Light-emitting   diode
(LED):

  for   replacement
of

  the   daytime   running
lamps,

  contact   a
CITR

o Ë n dealer or a
qualified
  workshop.
QUICk HELP
8
Changing a bulb

180
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
2. Sidelamps
T ype A, W5W - 5W
-

Remove
  the   cover   by   pulling   the
flexible

  rubber   tab.
-

Remove
  the   bulb   holder   fitted   by
pressure

  by   pulling   the   connector.
-

Change
  the   bulb.
-

Ensure
  that   the   cover   is   refitted
correctly all round to assure correct
sealing.
Front lamps
1. Dipped / Main beam headlamps
T ype C, H4 - 55W
-

Remove
  the   centre   cover   by   pulling
the

  flexible   rubber   tab.
-

Disconnect
  the   electrical   connector.
-

Release
  the   retaining   tab.
-

Change
  the   bulb   taking   care
to

  align   the   metal   part   with   the
grooves

  on   the   lamp.
-

Reposition
  the   retaining   tab.
-

Ensure
  that   the   cover   is   refitted
correctly all round to assure correct
sealing.
High pressure washing Open


the

bonnet.

T

o

access

the

bulbs,

reach


behind

the

headlamp

unit.
Carry out the operations in reverse
order

to

refit

each

bulb

and

check

that

the


bonnet

is

closed

securely.
Halogen

bulbs

must

be

changed

with


the

headlamp

off.

Wait

a

few

minutes


(risk

of

serious

burns).

d
o not touch the bulb directly with your
fingers,

use

a

lint-free

cloth.
It

is

normal

for

condensation

to

form

inside


the

headlamps.

Regular

use

of
 the

vehicle

eliminates

this

misting.
The

bulbs

must

be

changed

with

the ignition of

f or with the battery
disconnected.

Wait

approximately


3

minutes

after

changing

the

bulb

before


reconnecting

the

battery.
Check

that

the

lamps

operate

correctly

after


each

operation.
When using this type of washing
on stubborn dirt, do not persist on
the

headlamps,

the

lamps

and

their

edges


to

avoid

damaging

their

coating

and


seals.
Changing a bulb

181
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
3. Direction indicators
T ype B,   PY21W   -   21W   (amber)
-

Remove
  the   cover   by   pulling   the
flexible

  rubber   tab.
-

T
urn the bulb holder a quarter turn
anticlockwise.
-

Remove
  the   bulb   by   pressing   it
lightly

  while   turning   it   anticlockwise.
-

Change
  the   bulb.
-

Ensure
  that   the   cover   is   refitted
correctly all round to assure correct
sealing. 4.

Front foglamps
T ype C, H1 - 55W
-

Remove
  the   three   clips   and   the
screw securing the wheel arch liner

,
located
  below   the   bumper.
-

Move
  the   wheel   arch   liner   upwards.
-
d isconnect the bulb holder
connector by pressing the tab at
the
  top.-

Remove
  the   bulb   holder   by
squeezing the two clips (at top and
bottom)

  using   a   finger   and   thumb.
-

Replace
  the   module   (bulb   holder
and

  bulb.
-

Carry out the operations in reverse
order

  to   fit   the   module   and   refit   the
wheel

  arch   liner.
QUICk HELP
8
Changing a bulb

182
Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015Berlingo-2-VP_en_Chap08_aide-rapide_ed01-2015
Side repeater
Type A, WY5W - 5W (amber)
-
Push the repeater towards the rear
and disengage it by pullin

g the
front.
-

Contact a CITR
o Ë n dealer to
obtain a new repeater which is a
sealed
  component.
-

T
o   refit,   engage   the   repeater
towards the rear and bring it
towards

  the   front.
Courtesy lamps
Type A, 12V5W - 5W
-
Unclip the lens by sliding a
screwdriver in the slots on each
side

  of   the   courtesy   lamp.
-

Pull
  the   bulb   out   and   change   it.
-

Clip the lens in its housing and
ensure

  that   it   is   secured   correctly.
Front / Rear
