2015 Citroen BERLINGO MULTISPACE Owner's Manual

103
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
12 volt socket (120 W max)
It is advisable to limit the use of this socket  to   avoid   discharging   the   battery.
Protective net
Open the cover located in the hook support.
Fix the top of the net in the notches,
having
  first   turned   the   bar   1/4   of   a   turn.
Ensure that the end of the bar engages
correctly
  in   the   metal   part   of   its
location.
Fix the straps in the locations provided
on

  the   floor.
Tighten
  the   net   using   the   straps.
Stowing rings
Use these rings to secure loads on the
floor.
EaSE oF USE and CoMFoRT
4
Practical information

104
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
REAR FITTINGS
(7 SEAT VERSION )
Cup holder
Any liquid carried in a cup (mug or other) on board which could spill,
presents   a   risk.
Take
  care.
12 volt socket (120 W max)
It is advisable to limit the use of this socket   to   avoid   discharging   the   battery.
Stowing rings
Use the stowing rings on the floor to secure  and   retain   your   loads   firmly.
The
  seat   belt   anchorages   must   not   be
used

  for   this   purpose.
It
  is   recommended   that   the   load   is
 immobilised

  by   securing   it   firmly
 using

  the   stowing   rings   on   the   floor.
Practical information

105
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
Storage flaps
Raise the corresponding flap.next to the boot sill, the recess is
intended to receive the roller tube
containing
  the   load   space   cover.
Seat belts
Ensure that the centre seat belt has
reeled in correctly to its carrier in the
roof.
Prevent
  the   row   3   seat   belt   buckles
from

  knocking   by   raising   them   as   close
as possible to the anchorages in the
roof.
The

  seat   belt   buckle   attachment   rings
on

  each   side   of   the   boot   must   not   be
used

  to   retain   loads.
EaSE oF USE and CoMFoRT
4
Practical information

106
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
BLIND, LOAD SPACE COVER
Position the load space screen so as to
present  the   rear   load   space   cover   flaps
towards

  you.
Engage the left-hand lug of the roller in
the support A.
The load space cover is the roller blind
type.

T

ake

care

not

to

place

heavy

objects


on

the

load

space

cover

when

unreeled.
Compress
  then   place   the   right-hand  lug facing the support
B.
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side
  pillars.
Engage the ends in the rear notches to
keep
  it   taut.
To install it
Place the row 3 seats in the fully folded
position.
Raise

the

storage

flap

at

the

boot

sill.
Take

hold

of

the

roller

in

the

centre

and

compress


it

towards

the

left-hand

pillar.
Raise

the

assembly.
Practical information

 107
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
To remove it
From  the   boot,   pull   the   load   space
cover

  towards   you   to   release   it   from
the

  side   pillars.
Guide
  the   load   space   cover   as   it   rolls   up.
Remove
  the   clips   of   the   three   flaps
from

  the   base   of   each   row   2   head
restraint.
Compress

  the   roller   to   the   left   to
remove

  it   from   the   support   B.
Raise
  it   and   pivot   it   forwards. To store it
Store it in the recess at the boot sill,
with
  the   two   rear   flaps   uppermost.
First,
  compress   the   load   space   screen
to

  the   left.
Release.
Arrange
  the   two   flaps   and   close   the
storage

  flap.
The

roller

is

fitted

with

three

flaps

permitting


concealment

of

the

boot, whether the row 2 seats
are


in

the

normal

position

or

the

comfort


position.
Each

flap

has

two

clips

which

are

hooked


on

the

base

of

each

head

restraint.
EASE OF USE and COMFORT
4
Practical information

108
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
Adjusting electric door mirrors
- Move the control to the right or to
the left to select the corresponding
mirror.
-

Move the control in all four
directions

  to   adjust.
-

Return the control to the central
position.
MIRRORS
Heated mirrors
Adjusting manual door mirrors
Forced folding
If the mirror casing has come out of its initial location, with the vehicle
stationary  reposition   the   mirror   casing
manually

  or   use   the   electric   folding
control.Press the heated rear screen
button.
Move the lever in all four directions to
adjust.
When


the

vehicle

is

parked,

the

door

mirrors


can

be

folded

back

manually.
The

mirrors

are

not

equipped

with

automatic


heating.
Electric folding / Unfolding
The mirrors can be folded or unfolded electrically
  from   the   inside,   with   the
vehicle

  parked   and   the   ignition   on:
-

Place the control in the central
position.
-


T
urn   the   control   downwards. The
  mirrors   that   have   electric   folding/
unfolding   can   be   heated.
Mirrors and windows

 109
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
SURVEILLANCE MIRROR
This mirror, placed on top of the central  mirror,   enables   the   driver   or
front passenger to observe all the rear
seats.
Fitted

  on   its   own   ball   joint,   it's   manual
adjustment

  is   simple   and   provides   a
view

  of   the   rear   interior   of   the   vehicle.
It
  can   also   be   adjusted   for   improved
visibility

  during   manoeuvres   or   when
overtaking.
REAR WINDOWS
To partially open the rear windows, tilt
the  lever   and   push   it   fully   to   lock   the
windows

  in   the   open   position.
Manual rear view mirror
The rear view mirror has two positions:
-
day
  (normal),
-

night
  (anti-dazzle).
To
  change   from   one   to   the   other,   push
or pull the lever on the lower edge of
the

  mirror.
EASE OF USE and COMFORT
4
Mirrors and windows

11 0
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015

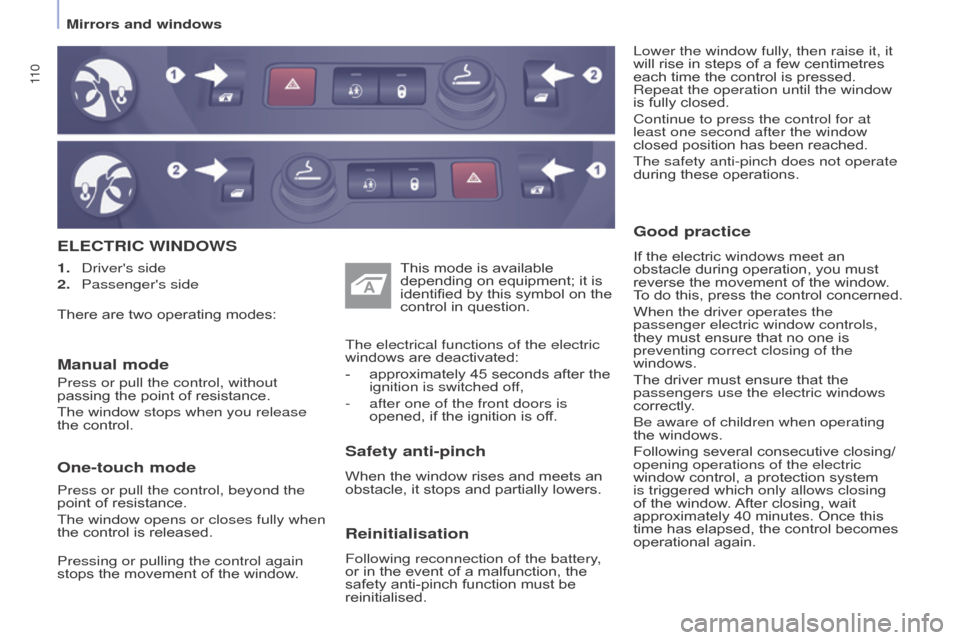

ELECTRIC WINDOWS
Lower the window fully, then raise it, it
will  rise   in   steps   of   a   few   centimetres
each

  time   the   control   is   pressed.
Repeat the operation until the window
is

  fully   closed.
Continue to press the control for at
least one second after the window
closed
  position   has   been   reached.
The safety anti-pinch does not operate
during
  these   operations.
Safety anti-pinch
When the window rises and meets an obstacle,  it   stops   and   partially   lowers.
Manual mode
This mode is available depending  on   equipment;   it   is
identified

  by   this   symbol   on   the
control

  in   question.
Good practice
If the electric windows meet an obstacle  during   operation,   you   must
reverse

  the   movement   of   the   window.
T

o
do

this,

press

the

control

concerned.
When the driver operates the
passenger electric window controls,
they

  must   ensure   that   no   one   is
preventing correct closing of the
windows.
The

  driver   must   ensure   that   the
passengers use the electric windows
correctly

.
Be aware of children when operating
the
  windows.
Following
  several   consecutive   closing/
opening operations of the electric
window
  control,   a   protection   system
is triggered which only allows closing
of

  the   window.
After
  closing,   wait
approximately

  40   minutes.   Once   this
time

  has   elapsed,   the   control   becomes
operational

  again.
1.
d
river's side
2.

Passenger's side
Reinitialisation
Following reconnection of the battery,
or   in   the   event   of   a   malfunction,   the
safety

  anti-pinch   function   must   be
reinitialised. The electrical functions of the electric
windows
  are   deactivated:
-
approximately
  45   seconds   after   the
ignition is switched of

f,
-
after one of the front doors is
opened,

  if   the   ignition   is   off.
There

are

two

operating

modes:
Press or pull the control, without
passing

the

point

of

resistance.
The window stops when you release
the

control.
One-touch mode
Press or pull the control, beyond the
point
  of   resistance.
The window opens or closes fully when
the
  control   is   released.
Pressing or pulling the control again
stops
  the   movement   of   the   window.
Mirrors and windows
