2015 Citroen BERLINGO MULTISPACE Owner's Manual

55
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
DIRECTION INDICATORS
"Motorway" function
Press  the   control   up   or   down   to   flash
the corresponding direction indicator
three

  times.
LIGHTING
Left: downwards passing the point  of   resistance.
Right:
  upwards   passing   the
point

  of   resistance.
Front and rear lighting
Lighting off
Automatic
  illumination   of
headlamps
SidelampsDipped

  beam   (green)
Dipped beam/main beam change
Pull

the

stalk   fully   towards   you.
Lighting-on audible warning
o

n switching off the ignition, all of the
lamps

turn   off,   except   dipped   beam   if
automatic

  guide-me-home   lighting   has
been


activated.
 Checking


by

means

of

the

indicator
 lamps


in

the

instrument

panel

is
 described


in

the

"Instruments

and
 controls"


section

of

chapter

3.
Direction indicators
Selection is by turning this
ring. Main
  beam   (blue)
To activate the lighting
control, turn this ring to
the lighting off position "0"
then to the selection of
your   choice.
o

n opening the driver's door, there is
an audible warning if you have left the
lighting
  on.
Steering mounted controls
EaSE oF USE and CoMFoRT
4

56
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
LED DAYTIME RUNNING LAMPS
Rear foglamps (amber,
2nd rotation of the ring
forwards).
Front
  foglamps   (green,   1st
rotation

  of   the   ring   forwards).
Rotate this ring forwards
to switch on and
rearwards   to   switch   off.
Their   state   is   confirmed   by
the

  warning   lamps   in   the
instrument

  panel. Do   not   forget   to   switch   them   off
when

  they   are   no   longer   needed.
Operation   of   the   automatic   illumination
of

  headlamps   switches   off   the   rear
foglamps,

  but   the   front   foglamps
remain

  on.
To switch off the front and
rear   foglamps,   turn   the
ring rearwards twice in
succession.
Automatic illumination of headlamps
In foggy weather or in snow,
the  sunshine   sensor   may   detect
sufficient

  light.
As
  a   consequence,
the


lighting   will   not   come   on
automatically

.
If
  necessary,   you   must   switch
on

  the   dipped   beam   headlamps
manually

.
d

o not cover the sunshine sensor
located on the windscreen, behind
the

mirror.   It   is   used   for   the   automatic
illu

mination   of   headlamps   and   for   the
automatic

  rain   sensitive   wipers.
Activation
Turn the ring to the AUTO
  position.
The activation of this function is
accompanied

  by   a   message   in   the
screen.
Deactivation
T

urn
  the   ring   forwards   or   rearwards.
The deactivation of this function is
accompanied

  by   a   message   in   the
screen.
The


function   is   deactivated   temporarily
when

  you   use   the   manual   lighting
control

  stalk. The
  sidelamps
and

  dipped   beam
headlamps

  switch
on

  automatically   if
the light is poor

, or
during operation of the windscreen
wipers.
They
  switch   off   as   soon   as   the
light

  becomes   bright   enough   or   the
windscreen

  wipers   stop.
This
  function   is   not   compatible   with   the
daytime

  running   lamps.
o

n starting the vehicle, in daylight the
LED

daytime

running

lamps

come

on

automatically

.
If

the

sidelamps

and

headlamps

are

switched


on

manually

or

automatically,

the


daytime

running

lamps

go

off.
Programming
For countries where exterior lighting by
day   is   not   a   legal   requirement,   you   can
activate or deactivate the function via
the

  configuration   menu.
If the user does not operate any
equipment

for

30

minutes,

the

Economy


mode

engages

to

avoid

discharging


the

battery.

Electrical

functions are put on standby and the
battery


warning

lamp

flashes.
Sidelamp

operation

is

not

affected

by

Economy


mode.
In clear weather or in rain, both day
and  night,   rear   foglamps   dazzle   and
their

  use   is   prohibited.
Refer to chapter 8, "Battery
section".
Front and rear foglamps
They

operate

with

the

sidelamps

and

dipped


beam

headlamps.
Steering mounted controls

 57
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
If the sunshine sensor
does not function correctly,
the  lighting   comes   on
accompanied

  by   the   service
warning

  lamp,   an   audible
signal


and   a   message   in   the   screen.
Contact a CITR
o Ë n dealer or a
qualified
  workshop.
Guide-me-home lighting
Keeping the dipped beam headlamps on   temporarily   with   the   ignition   off,
makes

  the   driver's   exit   easier   when   the
light

  is   poor.
HEADLAMP BEAM
The beam setting must be adjusted to suit
  the   load   in   the   vehicle.
0 -
  No   load.
1 -
  Partial   load.
2 -

A
verage   load.
3 -
  Maximum   authorised   load.
Manual operation
-
 With

the

ignition

off,

"flash"

the
 headlamps

within

one

minute

after

switching


off

the

ignition.
The

guide-me-home

lighting

switches

of

f

automatically

after

a

set

time.
Automatic operation
Refer to chapter 10, "Screen
menu

map"

section. Initial setting is position 0.
a

ctivate the function via the
vehicle

configuration

menu. Programming
The

system

is

activated

or

deactivated

in


the

vehicle

configuration

menu.
The

system

is

activated

by

default.
Switching off
The

system

does

not

operate:
-

below a certain angle of rotation of
the steering wheel,
-


above


25

mph

(40

km/h),
-

when


reverse

gear

is

engaged.
Switching on
This

function

starts:
-

when the corresponding direction
indicator is switched on,
or
-


from


a

certain

angle

of

rotation

of

the


steering

wheel.
With

dipped

or

main

beam

headlamps,

this


function

makes

use

of

the

beam

from


a

front

foglamp

to

illuminate

the

inside of a bend, when the vehicle
speed


is

below

25

mph

(approximately

40


km/h)

(urban

driving,

winding

road,

intersections,


parking

manouevres...).
Cornering lighting
Travelling abroad
If using your vehicle in a country
that drives on the other side of the
road,
  the   headlamps   must   be   adjusted
to


avoid   dazzling   on-coming   drivers.
Contact a CITR
o Ë n dealer or a
qualified
  workshop.
Steering mounted controls
EASE OF USE and COMFORT
4

58
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015

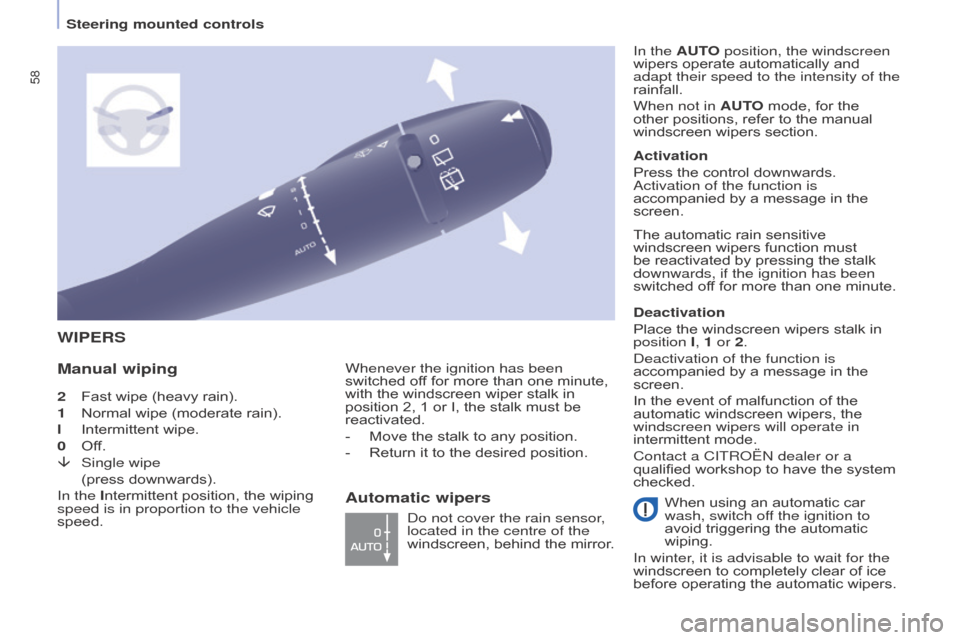

2 Fast  wipe   (heavy   rain).
1
Normal
  wipe   (moderate   rain).
l

Intermittent
  wipe.
0

Of
f.
â

Single wipe
 (press

  downwards).
In the Intermittent
  position,   the   wiping
speed is in proportion to the vehicle
speed.
WIPERS
Manual wipingWhenever the ignition has been
switched  off   for   more   than   one   minute,
with

  the   windscreen   wiper   stalk   in
position

  2,   1   or   I,   the   stalk   must   be
reactivated.
-


Move
  the   stalk   to   any   position.
-

Return
  it   to   the   desired   position.
d

o not cover the rain sensor,
located in the centre of the
windscreen,
  behind   the   mirror.Activation
Press
  the   control   downwards.
a ctivation of the function is
accompanied   by   a   message   in   the
screen.
Deactivation
Place

  the   windscreen   wipers   stalk   in
position

I, 1 or 2.d
eactivation of the function is
accompanied   by   a   message   in   the
screen.
In

  the   event   of   malfunction   of   the
automatic

  windscreen   wipers,   the
windscreen wipers will operate in
intermittent

  mode.
Contact a CITR
o Ë n dealer or a
qualified
  workshop   to   have   the   system
checked. In the
AUTO position, the windscreen
wipers   operate   automatically   and
adapt their speed to the intensity of the
rainfall.
When not in

AUTO   mode,   for   the
other

  positions,   refer   to   the   manual
windscreen

  wipers   section.
The   automatic   rain   sensitive
windscreen

  wipers   function   must
be

  reactivated   by   pressing   the   stalk
downwards, if the ignition has been
switched

  off   for   more   than   one   minute.
When   using   an   automatic   car
wash, switch of

f the ignition to
avoid
  triggering   the   automatic
wiping.
In winter

, it is advisable to wait for the
windscreen
  to   completely   clear   of   ice
before

  operating   the   automatic   wipers.
Automatic wipers
Steering mounted controls

 59
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
Screenwash and headlamp wash
Pull the stalk towards you, the wash-
wipe   is   accompanied   by   a   timed   sweep
of

  the   wipers.
The
  headlamp   wash   is   linked   with   the
wash-wipe, it is triggered if the dipped
headlamps

  are   on.
Turn
  the   ring   past   the   first
position:

  the   rear   screenwash
then the rear wiper operates
for

  a   fixed   time.
In winter, in the event of a
considerable
  amount   of   snow
or ice, switch on the heated
rear

  screen.   Once   the   screen   is
clear

,   remove   the   snow   or   ice   which
has

  accumulated   on   the   rear   wiper
blade.


Y
ou   can   then   operate   the   rear
windscreen

  wiper.
To top up the levels, refer to the
"Levels"
  section   of   chapter   7.
Special position of the
windscreen wipers
In the minute following switching off of the ignition, any action on the
stalk
  positions   the   wipers   against   the
windscreen

  uprights.
This action enables you to position
the
  wiper   blades   for   winter   parking,
cleaning

  or   replacement.
Refer to the "Changing a windscreen
wiper
  blade"   section   of   chapter   8.
To
  park   the   wipers   in   their   normal
position after this has been done,
switch

  on   the   ignition   and   move   the
stalk. T

urn   the   ring   to   the   first
position.
Rear wiperRear screenwash
Steering mounted controls
EASE OF USE and COMFORT
4

60
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
TRIP COMPUTER
A

few definitions
Range: displays the distance which
can  travelled   with   the   remaining   fuel
detected

  in   the   tank,   basd   on   the
average

  consumption   over   the   last   few
miles

  (kilometres).
This
  displayed   value   may   vary
significantly

  following   a   change   in   the
vehicle

  speed   or   the   relief   of   the   route.Current fuel consumption:
only
calculated and displayed above
20   mph   (30   km/h).
Average fuel consumption: this is the
average   fuel   consumption   since   the
last

  trip   computer   zero   reset.
Distance travelled: calculated since
the   last   trip   computer   zero   reset.
Distance remaining to the
destination: calculated with reference to
the   final   destination,   entered   by   the   user.
 If guidance is activated, the navigation


system   calculates   it   as   a   current   value.
Average speed: this is the average
speed calculated since the last trip
computer
  zero   reset   (ignition   on).
Each press of the button, located at
the

end

of

the

wiper

stalk,

displays

the

dif

ferent

trip

computer

information

in

turn,


depending

on

the

screen.
When the required trip is displayed,
press  the   control   for   more   than
two seconds. When
  the   range   falls   below   20   miles
(30

  km),   dashes   are   displayed.
After

fillin

g   with   at   least   10   litres   of   fuel,   the
range is recalculated and is displayed
when

  it   exceeds   60   miles   (100   km).
If, whilst driving, dashes are displayed
continuously in place of the digits,
contact   a   CITROËN   dealer.
The "vehicle" tab with the range,
current

fuel

consumption

and

the
 remaining

distance

to

run.
The "1" tab (trip 1) with the average
speed,

the

average

fuel

consumption

and the distance travelled in trip

"1".
The

"2"

tab

(trip

2)

with

the

same

information


for

a

2
nd trip.
Reset
Steering mounted controls

 61
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
CRUISE CONTROL
"CRUISE"
"This is the speed at which the driver
wishes  to   drive".
This
  aid   to   driving   in   free-flowing
traffic

  enables   the   vehicle   to   maintain
the

  speed   programmed   by   the   driver,
unless

  a   steep   gradient   makes   this
impossible.
For

  the   system   to   be   programmed   or
activated,

  the   vehicle   speed   must   be
greater

  than   25   mph   (40   km/h)   with
4th gear

  or   higher   engaged. The
  state   of   the   cruise   control   system
can

  be   seen   in   the   instrument   panel
together

  with   the   the   programmed
speed

  setting.
Function selected,
display of the "Cruise
Control"   symbol.
Function off
OFF
Function on
Vehicle speed above,
the   programmed
speed

  flashes.
o

perating fault
detected,
OFF - the dashes
flash.
1.
 Cruise

control

mode

On

/

Off.
2.

Reduce


cruise

speed

setting.
3.

Increase


cruise

speed

setting.
4.

Pause


/

Resume

cruise

control.
Steering mounted controls
EASE OF USE and COMFORT
4

62
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
Selecting the functionFirst activation /
Programming a
speed Temporarily exceeding the
speed setting
Deactivation (off)
- Press this button or
the  brake   or   clutch
pedal.
Reactivation
- Following deactivation of the cruise
control,  press   this   button.
Your vehicle will return to the last
programmed
  speed.
Alternatively,
  you   can   repeat   the   "first
activation"

  procedure.
It is possible to accelerate and drive
momentarily

at

a

speed

greater

than

the


programmed

speed

setting.

The


value


programmed

flashes.
When the accelerator pedal is
released, the vehicle will return to the
programmed

speed.
-

Reach the chosen speed by
pressing


the

accelerator.
-

Press the

SET - or SET +

button.
This

programmes/activates

the

speed

setting


and

the

vehicle

will

maintain

this


speed.
-

Place the switch in the

CRUISE
position.

The


cruise

control

is

selected but is not yet active and
no


speed

has

been

programmed.
Steering mounted controls
