2015 Citroen BERLINGO MULTISPACE Owner's Manual

 87
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
Removing a seat
-
If
  necessary,   move   the   front   seats
forward.
-


Lower
  the   head   restraint.
-

Place the seat in the fully folded
position.
-


T
ilt the entire seat forwards then
lift it. Refitting the seat
The label on the seat indicates the
position
  in   which   it   must   be   installed.
-

Place
  the   hooks   of   the   front   feet
between

  the   two   bars.
-

Fold
  back   the   seat   to   fix   the   rear
anchoring

  points.
-
o perate the control to raise the
seat
  back   to   its   initial   position.
-

Raise
  the   head   restraint.Ensure
  that   no   object   or   foot   of   a  passenger seated in the rear is
obstructing the anchorage points
or
  preventing   correct   locking   of
the

  seat.
Operating the Row 2 seats
EASE OF USE and COMFORT
4
Seats

88
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
Operating the Row 3 seats
Removing the seat
-
Lower
  the   head   restraint.
-

Place the seat in the fully folded
position.
-


T
ilt   the   entire   seat   forwards.
-

On
  each   side,   take   hold   of   the
uprights of the folded seat, tilting it
forward

  slightly,   and   lift   it.Refitting the seat
The label on the seat indicates the
position
  in   which   it   must   be   installed.
-

Place
  the   hooks   of   the   front   feet
between

  the   two   bars.
-

Ensure
  that   no   object   or   foot   is
obstructing the rear anchorage
points and that the seat belt is
positioned correctly and available
for

  use.
-

Fold
  back   the   seat   to   fix   its   rear
anchoring

  feet.
-
o perate the control to raise the
seat
  back   to   its   initial   position.
-

Raise
  the   head   restraint.
Good practice
Following the various operations:
-
do
  not   remove   a   head   restraint
without stowing it; secure it inside
the vehicle,
-


ensure that the passengers can
always access the seat belts and
fasten

  them   easily,
-

passengers
  must   never   take
their

  seat   without   adjusting   and
fastening

  their   seat   belt.
-

a
  passenger   seated   in   row   3   must
ensure that he does not obstruct
the row 2 seat anchorage points,
-


a
  passenger   seated   in   row   3   must
not

  have   the   seat   in   front   of   them   in
row 2 in the folded position; this is
in case the seat could tip towards
the passenger unexpectedly and
injure

  them.
Do
  not   place   hard   or   heavy   objects   on
the

  seat   backs   forming   a   table,   they
could

  become   dangerous   projectiles   in
the

  event   or   sharp   braking   or   impact.
Seats

 89
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
MODULARITY AND DIFFERENT SEAT CONFIGURATIONS
5 seat layouts
EASE OF USE and COMFORT
4
Seats

90
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
7 seat layouts
The various operations
must  be   carried   out   while
stationary

.
Seats

 91
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
FRONT FITTINGS
1. Lower glove box
This may or may not be fitted with a lid.
Upper storage compartment
This is located on the dashboard,
behind  the   steering   wheel.
A


recess   makes   lifting   of   the   lid   easier
when

  opening.   Guide   it   to   its   rest
position.
T

o close, guide the lid then press the
centre
  gently.
Any
  liquid   which   could   spill   risks
causing an electrical short circuit and
therefore

  a   potential   fire.
3. Side storage compartment
4. Bag hook
Only hang flexible bags which are not too  heavy   on   this   hook.
2. Storage pocket and bottle
holder (1.5 L)
EASE OF USE and COMFORT
4
Practical information

92
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
Overhead storage unit
This is located above the sun visors
and  can   accommodate   various   objects
(a

  jumper,   file,   gloves...).
The openings concealed by the sun
visors allow you to see and access the
objects
  stored   in   the   overhead   storage
unit.
The

  maximum   weight   permitted   in   the
overhead

  storage   unit   is   5   Kg.
Do
  not   place   objects   in   this   storage
unit

  which   could   present   a   risk   to   the
occupants.
Central storage console
This console offers an appreciable
additional  storage   area:   it   can   be
removed

  and   clips   onto   a   base   which
also incorporates two cup holders at
the

  rear.
Ensure
  that   the   object   (bottle,   can...)
placed in the cup holder is retained
securely

  and   does   not   risk   being
dislodged

  while   driving.
a

ny liquid which could spill presents
a
  risk   of   damage   on   contact   with   the
instrument

  panel   and   centre   console
controls.
T

ake   care.
Sun visor
To prevent dazzle from ahead, fold the sun  visor   down.
A


pocket   is   provided   in   the   driver's   sun
visor

  for   storing   toll   cards,   tickets,   ...
Practical information

 93
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015

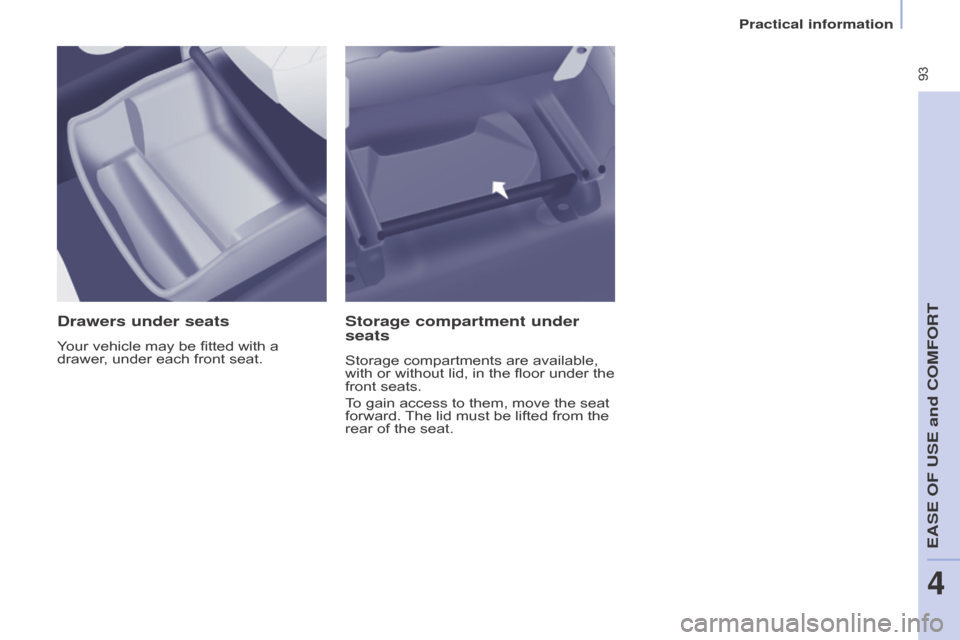

Drawers under seats
Your vehicle may be fitted with a drawer,   under   each   front   seat.
Storage compartment under
seats
Storage compartments are available, with  or   without   lid,   in   the   floor   under   the
front

  seats.
To
  gain   access   to   them,   move   the   seat
forward.


The
  lid   must   be   lifted   from   the
rear

  of   the   seat.
EASE OF USE and COMFORT
4
Practical information

94
Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed01-2015
SEATING AREA FITTINGS
Floor boxes
Two boxes are available, located under
the  rear   passenger   footwells.
To
  open   them,   slide   your   fingers   into
the

  recess   and   lift   the   lid.
Aircraft style tables
To put the table in place, pull it
upwards  and   fold   it   down.
a

s a safety precaution, above a high
pressure, the table is designed to
unhook.
To
  put   it   back   in   place,   with   the   table
vertical, engage one side then the
other

,   forcing   slightly.
Do
  not   place   hard   or   heavy   objects
on

  the   table.
They
  could   become
dangerous

  projectiles   in   the   event   of
sharp

  braking   or   impact.
A


bag   hook   is   provided   on   the   side   of
each

  table.
Side blinds
Side blinds may be available on the sliding   side   doors.
Pull the side blind by the tab to install
it.
To
  avoid   damaging   the   blind   when
opening

  the   door,   check   that   the   tab   is
hooked

  securely.
a

lways guide the blind slowly
using the tab, both when raising
and
  when   lowering.
Practical information
