168 Vehicle Care
4. Remove protective cover.
5. Press spring clip, disengage it.
6. Remove bulb from reflectorhousing.
7. When fitting a new bulb, engage the lugs in the
recesses on the reflector.
8. Engage the spring clip.
9. Place headlight protective cover in position and close.
Parking/Daytime running light
1. Rotate the bulb holderanticlockwise and remove it.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 169
2. Detach bulb from the bulbholder and replace it.
3. Insert the bulb holder into the reflector and rotate clockwise.
Fog Lamps
Have bulbs replaced by a workshop.
Front Indicator Lamps
1. Rotate the bulb holderanticlockwise and remove it.
2. Rotate bulb anticlockwise andremove from bulb holder.
3. Replace bulb.
4. Insert the bulb holder into the reflector and rotate clockwise.
Taillights
Tail lights, indicator, brake
lamps, and reversing lamps
1. Unscrew both screws.
2. Remove tail light assembly.Take care that the cable duct
remains in position.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
170 Vehicle Care
3. Tail light/brake lamp (1)Indicator lamp (2)
Auxiliary Tail light (3)
Reversing lamp (Passenger's
side)/Rear fog lamp(Driver's
side) (4).4. Rotate bulb holderanticlockwise.
5. Remove bulb holder. Push bulbinto socket slightly, rotate
anti-clockwise, remove and
renew bulb.
6. Insert bulb holder into the tail light assembly and screw into
place.
Connect wiring plug. Install tail
light assembly in body and
tighten screws. Close covers
and engage.
7. Switch on ignition, operate and check all lights.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 171
Side Indicator Lamps
To replace bulb, remove lamp
housing :
1. Slide lamp to the front andremove it out of the front wing
with the rear end.
2. Turn bulb holder anticlockwiseand remove from housing.
3. Pull bulb from bulb holder andreplace it. 4. Insert bulb holder and turn
clockwise.
5. Insert front end into front wing, slide forward and insert
rear end.
Centre High-Mounted
Brake lamp (CHMBL)
Have LEDs replaced by a
workshop.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
172 Vehicle Care

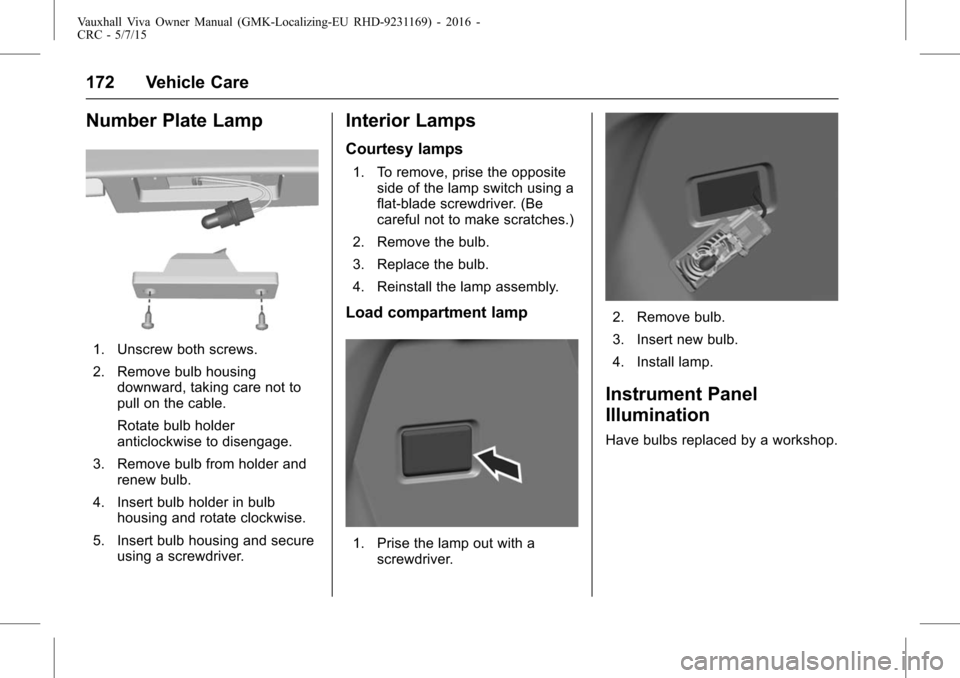

Number Plate Lamp
1. Unscrew both screws.
2. Remove bulb housingdownward, taking care not to
pull on the cable.
Rotate bulb holder
anticlockwise to disengage.
3. Remove bulb from holder and renew bulb.
4. Insert bulb holder in bulb housing and rotate clockwise.
5. Insert bulb housing and secure using a screwdriver.
Interior Lamps
Courtesy lamps
1. To remove, prise the oppositeside of the lamp switch using a
flat-blade screwdriver. (Be
careful not to make scratches.)
2. Remove the bulb.
3. Replace the bulb.
4. Reinstall the lamp assembly.
Load compartment lamp
1. Prise the lamp out with a screwdriver.
2. Remove bulb.
3. Insert new bulb.
4. Install lamp.
Instrument Panel
Illumination
Have bulbs replaced by a workshop.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 173
Electrical System
Fuses
Data on the replacement fuse must
match the data on the defective
fuse. There are three fuse boxes in
the vehicle :
.In the front left of the engine
compartment
. In left-hand drive vehicles, in the
interior behind the storage
compartment, or, in right-hand
drive vehicles, behind the
glovebox
. Behind a cover on the left side
of the load compartment
Before replacing a fuse, turn off the
respective switch and the ignition.
A blown fuse can be recognised by
its melted wire. Do not replace the
fuse until the cause of the fault has
been remedied.
Some functions are protected by
several fuses.
Fuses may also be inserted without
existence of a function.
Fuse extractor
A fuse extractor may be located in
the fuse box in the engine
compartment.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
174 Vehicle Care
Place the fuse extractor on the
various types of fuse from the top or
side, and withdraw fuse.
Engine Compartment
Fuse Block
The fuse box is in the front left of
the engine compartment.
Disengage the cover, lift it upwards
and remove.
After having changed defective
fuses close the fuse box cover and
press until it engages.
If the fuse box cover is not closed
correctly, malfunctions may occur.
No. Circuit1 Tailgate latch
2 -

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 175
3 Rear demist
4 Outside rear-view mirrorheater
5 Sunroof
6 Continuously Variable transmission control module
7 Mass air flow sensor
8 Auxiliary heater pump
9 Anti-lock brake system valve
10 Regulated voltage control 11 Rear view camera
12 -
13 -
14 Engine control module/ Transmission control
module
15 Fuel injection control module/Starter
16 Fuel pump motor
17 Engine control module1
18 Engine control module2
19 Injector, Ignition 20 Air conditioning system
21 Intelligent battery sensor
22 Electric steering
column lock
23 Cooling fan low
24 -
25 Outside rear-view mirror switch
26 Engine control module/ Automated manual gearbox
module
27 Canister vent solenoid
28 Brake pedal switch
29 Auxiliary occupant sensing
30 Headlight levelling motor
31 Horn
32 Front fog lamp
33 Main beam left
34 Main beam right
35 -
36 Rear wiper motor
37 Cornering lamp left 38 Washer pump motor
39 Cornering lamp right
40 -
41 -
42 Starter 2
43 In-panel bussed electric
centre
44 Automated manual gearbox
45 Starter 1
46 Anti-lock brake system pump
47 Cooling fan hi
48 Front wiper motor
49 In-panel bussed electric centre accessory/RAP
power
