2015.75 VAUXHALL VIVA Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
184 Vehicle Care
Tyres age, even if they are not
used. We recommend tyre
replacement every 6 years.
Changing tyre and wheel size
If tyres of a different size than those
fitted at the factory are used, it may
be necessary to reprogramme the
speedometer as well as the nominal
tyre pressure and to make other
vehicle modifications
After converting to a different tyre
size, have the label with tyre
pressures replaced.
{Warning
Use of unsuitable tyres or wheels
may lead to accidents and will
invalidate the vehicle type
approval.
Wheel Covers
Wheel covers and tyres that are
factory approved for the respective
vehicle and comply with all of the
relevant wheel and tyre combination
requirements must be used.If the wheel covers and tyres used
are not factory approved, the tyres
must not have a rim protection
ridge.
Wheel covers must not impair brake
cooling.
{Warning
Use of unsuitable tyres or wheel
covers could lead to sudden
pressure loss and thereby
accidents.
Tyre Chains
Tyre chains are only permitted on
the front wheels.
Always use fine mesh chains that
add no more than 10 mm to the tyre
tread and the inboard sides
(including chain lock).
{Warning
Damage may lead to tyre
blowout.
Tyre chains are only permitted on
tyres of size 165/65 R14.
Tyre chains are not permitted on
tyres of size 185/55 R15 and
195/45 R16.
The use of tyre chains is not
permitted on the temporary spare
wheel.
Tyre Repair Kit
Minor damage to the tyre tread can
be repaired with the tyre repair kit.
Do not remove foreign bodies from
the tyres.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 185
Tyre damage exceeding 4 mm or
that is at tyre's side wall near the
rim cannot be repaired with the tyre
repair kit.
{Warning
Do not drive faster than 50 mph.
Do not use for a lengthy period.
Steering and handling may be
affected.
If you have a flat tyre :
Apply the parking brake.
For manual gearbox, engage first
gear or reverse gear.
The tyre repair kit is in the tool box
under the floor cover in the load
compartment. 1. Open the storage.
2. Remove the compressor and the sealant bottle.
3. Remove the electricalconnection cable (1) and air
hose (2) from the stowage
compartments on the
underside of the compressor.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
186 Vehicle Care

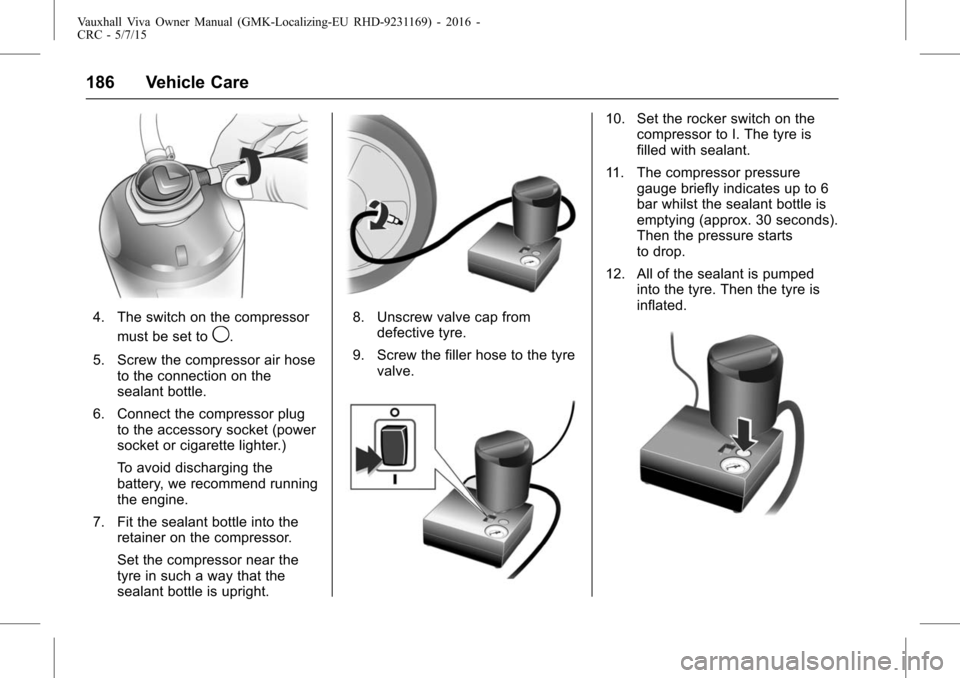

4. The switch on the compressormust be set to
9.
5. Screw the compressor air hose to the connection on the
sealant bottle.
6. Connect the compressor plug to the accessory socket (power
socket or cigarette lighter.)
To avoid discharging the
battery, we recommend running
the engine.
7. Fit the sealant bottle into the retainer on the compressor.
Set the compressor near the
tyre in such a way that the
sealant bottle is upright.
8. Unscrew valve cap from
defective tyre.
9. Screw the filler hose to the tyre valve.
10. Set the rocker switch on the compressor to I. The tyre is
filled with sealant.
11. The compressor pressure gauge briefly indicates up to 6
bar whilst the sealant bottle is
emptying (approx. 30 seconds).
Then the pressure starts
to drop.
12. All of the sealant is pumped into the tyre. Then the tyre is
inflated.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 187
13. The prescribed tyre pressure(approx. 2.4 bar) should be
obtained within 10 minutes.
When the correct pressure is
obtained, switch off the
compressor.
If the prescribed tyre pressure
is not obtained within
10 minutes, remove the tyre
repair kit. Move the vehicle one
tyre rotation.
Reattach the tyre repair kit and
continue the filling procedure
for 10 minutes. If the
prescribed tyre pressure is still
not obtained, the tyre is too
badly damaged. Seek the
assistance of a workshop.
Drain excess tyre pressure with
the button over the pressure
indicator.
Do not run the compressor
longer than 10 minutes. 14. Detach the tyre repair kit. Push
catch on bracket to remove
sealant bottle from bracket.
Screw tyre inflation hose to
free connection of sealant
bottle. This prevents sealant
from escaping.
Stow tyre repair kit in tailgate.
15. Remove any excess sealant using a cloth.
16. Take the label indicating maximum permitted speed
(approx. 50 mph) from the
sealant bottle and affix in the
driver's field of view.17. Continue driving immediatelyso that sealant is evenly
distributed in the tyre. After
driving approx. 6 miles (but no
more than 10 minutes), stop
and check tyre pressure.
Screw compressor air hose
directly onto tyre valve and
compressor when doing this.
If tyre pressure is more than
1.3 bar, set it to the correct
value (approx.2.4 bar).
Repeat the procedure until
there is no more loss of
pressure.
If the tyre pressure has fallen
below 1.3 bar, the vehicle must
not be used. Seek the
assistance of a workshop.
18. Stow away tyre repair kit in tailgate.
Note: The driving characteristics of
the repaired tyre is severely
affected, therefore have this tyre
replaced.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
188 Vehicle Care
If unusual noise is heard or the
compressor becomes hot, turn
compressor off for at least
30 minutes.
Note the expiry date of the kit. After
this date its sealing capability is no
longer guaranteed. Pay attention to
storage information on sealant
bottle.
Replace the used sealant bottle.
Dispose of the bottle as prescribed
by applicable laws.
The compressor and sealant can be
used from approx. -30°C ~ 70°C
(-22 ~ 158°F).
Tyre Changing
Some vehicles are equipped with a
tyre repair kit instead of a spare
wheel.
Make the following preparations and
observe the following information :
.Park the vehicle on a level, firm
and non-skid surface. The front
wheels must be in the
straight-ahead position. .
Apply the parking brake.
For manual gearbox, engage
first gear or reverse gear.
. Remove the spare wheel.
See "Temporary spare wheel"
under Compact Spare
Tyre 0191.
. Never change more than one
wheel at once.
. Use the jack only to change
wheels in case of puncture, not
for seasonal winter or summer
tyre change. The jack is
maintenance-free.
. If the ground on which the
vehicle is standing is soft, a solid
board (max. 1cm (0.4 inches)
thick) should be placed under
the jack. Take heavy objects out
of the vehicle before jacking up.
. No people or animals may be in
the vehicle when it is jacked-up.
. Never crawl under a jacked-up
vehicle.
. Do not start the vehicle when it
is raised on the jack. .
Clean wheel nuts and thread
before mounting the wheel.
Do not grease wheel bolt, wheel
nut and wheel nut cone.
Wheel changing
Make the following preparations and
observe the following information:
.Park the vehicle on a level, firm
and non-skid surface. The front
wheels must be in the
straight-ahead position.
. Apply the parking brake and
engage first gear, reverse gear
or P.
. Never change more than one
wheel at once.
. Use the jack only to change
wheels in case of puncture, not
for seasonal winter or summer
tyre change.
. The jack is maintenance-free.
. If the ground on which the
vehicle is standing is soft, a solid
board (max. 1 cm thick) should
be placed under the jack.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 189
.Take heavy objects out of the
vehicle before jacking up.
. No people or animals may be in
the vehicle when it is jacked-up.
. Never crawl under a jacked-up
vehicle.
. Do not start the vehicle when it
is raised on the jack.
. Clean wheel nuts and thread
with a clean cloth before
mounting the wheel.
{Warning
Do not grease wheel bolt, wheel
nut and wheel nut cone. 1.
Steel wheels:
Pull off the wheel cover.
Alloy wheels with bolt caps:
Disengage wheel bolt caps
with a screwdriver and remove.
To protect the wheel, place a
soft cloth between the
screwdriver and the alloy
wheel.
Alloy wheels with centre cap:
Insert extractor in the open slot
of the centre cap and withdraw
the cap from the wheel. Vehicle
tools0Tools 0177.
2. Install the wheel wrench
ensuring that it locates
securely and loosen each
wheel bolt by half a turn.
The wheels might be protected
by locking wheel bolts. To
loosen these specific bolts, first
attach the adapter for the
locking wheel bolts onto the
head of the bolt before
installing the wheel wrench.
The adapter is located in the
glovebox.
3. Ensure the jack is correctlypositioned under the relevant
vehicle jacking point.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
190 Vehicle Care
4. Set the jack to the necessaryheight. Position it directly below
the jacking point in a manner
that prevents it from slipping.
Attach jack handle and with the
jack correctly aligned rotate
handle until wheel is clear of
the ground.
5. Unscrew the wheel bolts.
6. Change the wheel.
7. Screw on the wheel bolts.
8. Lower vehicle.
9. that it locates securely and tighten each bolt in a crosswise
sequence. Tightening torque is
140 Nm. 10. Align the valve hole in the
wheel cover of the steel wheel
with the tyre valve before
installing.
Install wheel bolt caps or
centre cap on alloy wheel.
11. Install vehicle jacking point cover.
12. Stow and secure the replaced wheel, the vehicle tools and the
adapter for the locking wheel
bolts.
13. Check the tyre pressure of the installed tyre and the wheel
bolt torque as soon as
possible.
Have the defective tyre
renewed or repaired as soon
as possible.
Jacking position for lifting
platform
Rear arm position of the lifting
platform located centrally under the
recess of the sill.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Vehicle Care 191
Front arm position of the lifting
platform at the underbody.
Compact Spare Tyre
Some vehicles are equipped with a
tyre repair kit instead of a spare
wheel.
If mounting a spare wheel, which is
different from the other wheels, this
wheel might be classified as a
temporary spare wheel and the
corresponding speed limits apply,
even though no label indicates this.
Seek the assistance of a workshop
to check the applicable speed limit.
The spare wheel has a steel rim.
Caution
Use of a spare wheel that is
smaller than the other wheels or
together with winter tyres could
affect drive ability. Have the
defective tyre replaced as soon
as possible.
The spare wheel is located in the
load compartment beneath the floor
covering. It is secured in the recess
with a wing bolt.
The spare wheel well is not
designed for all permitted tyre sizes.
If a wheel wider than the spare mustbe stowed in the spare wheel well
after changing wheels, the floor
cover can be placed on the
projecting wheel.
Temporary spare wheel
Use of the temporary spare wheel
could affect drive ability. Have the
defective tyre renewed or repaired
as soon as possible.
Only mount one temporary spare
wheel. Do not drive faster than
50 mph. Take bends slowly. Do not
use for a long period of time.
Storing a replaced wheel in the
load compartment using a
strap
Use the strap placed in the tool box.
Vehicle tools
0Tools
0177.
1. Remove load compartment cover and lift up load
compartment floor. Position the
Tool box and the damaged
wheel to stand upright into the
tool box spare.
