2015.75 VAUXHALL VIVA Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
64 Instruments and Controls
Do not connect any
current-delivering accessories, e.g.
electrical charging devices or
batteries.
Do not damage the outlet by using
unsuitable plugs.
Stop-start system
0Automatic
Engine Start/Stop Feature 0141.
Warning Lights,
Gauges, and
Indicators
Speedometer
Indicates vehicle speed.
Mileometer
The bottom line displays the
recorded distance in miles.
Trip Odometer
The top line displays the recorded
distance since the last reset.
To reset, press SET/CLRon the
indicator lever for a few seconds
0
Driver Information Centre
(DIC) 075.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Instruments and Controls 65

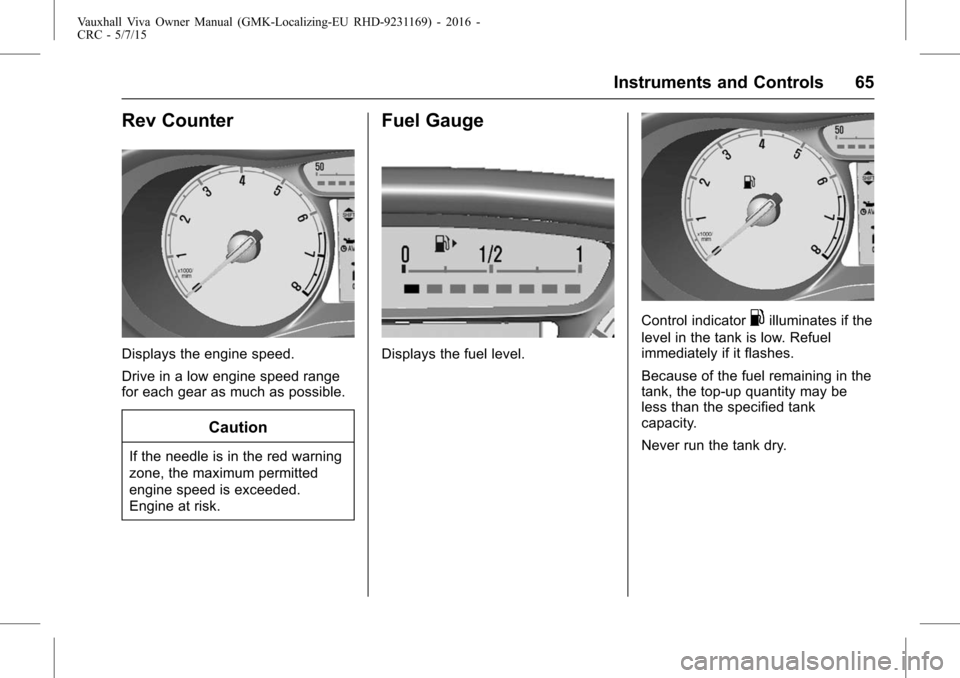

Rev Counter
Displays the engine speed.
Drive in a low engine speed range
for each gear as much as possible.
Caution
If the needle is in the red warning
zone, the maximum permitted
engine speed is exceeded.
Engine at risk.
Fuel Gauge
Displays the fuel level.
Control indicator.illuminates if the
level in the tank is low. Refuel
immediately if it flashes.
Because of the fuel remaining in the
tank, the top-up quantity may be
less than the specified tank
capacity.
Never run the tank dry.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
66 Instruments and Controls

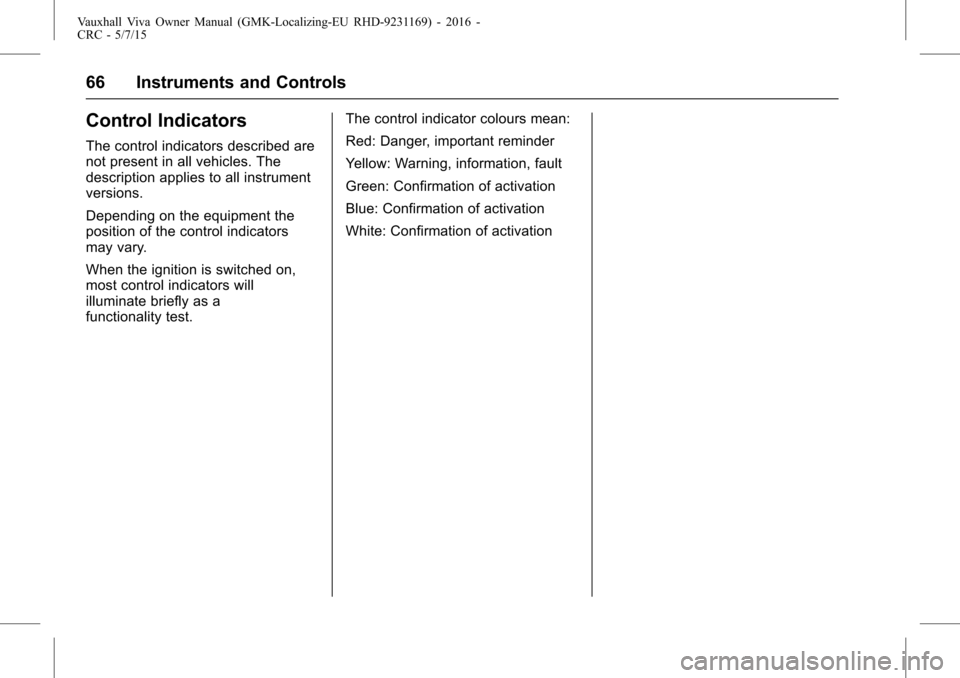

Control Indicators
The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions.
Depending on the equipment the
position of the control indicators
may vary.
When the ignition is switched on,
most control indicators will
illuminate briefly as a
functionality test.The control indicator colours mean:
Red: Danger, important reminder
Yellow: Warning, information, fault
Green: Confirmation of activation
Blue: Confirmation of activation
White: Confirmation of activation

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Instruments and Controls 67

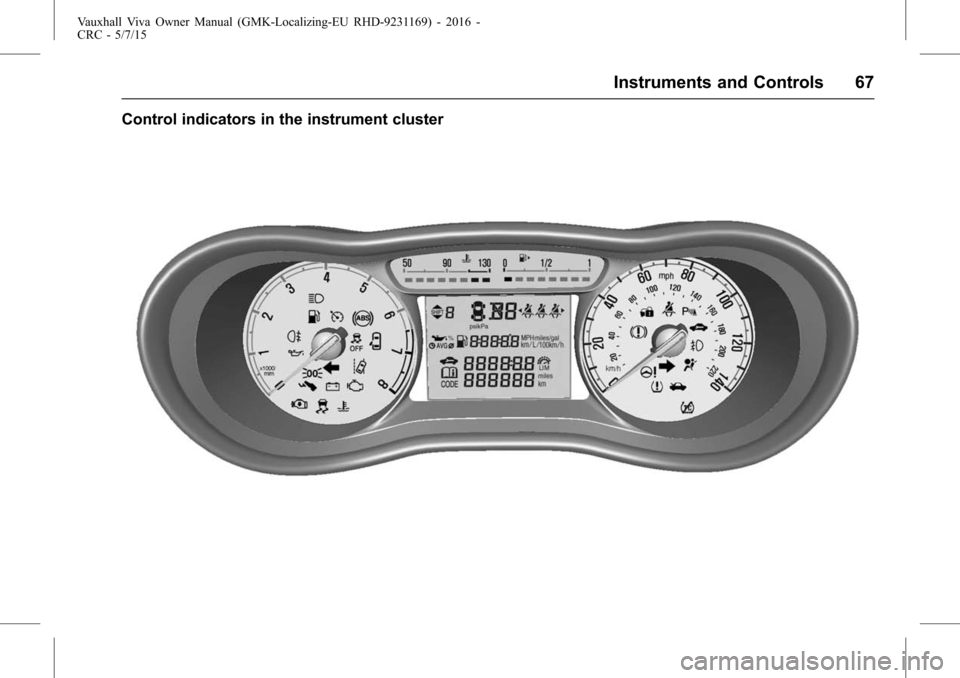

Control indicators in the instrument cluster

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
68 Instruments and Controls
Control indicators in the centreEngine Coolant
Temperature Gauge
Displays the coolant temperature.
Left area: Engine operating
temperature not yet reached
Central area: Normal operating
temperature
Right area: Temperature too high
Caution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
Service Display
The engine oil life system lets you
know when to change the engine oil
and filter. Based on driving
conditions, the interval at which an
engine oil and filter change will be
indicated can vary considerably.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Instruments and Controls 69
The menu and function can be
selected via the buttons on the
indicator lever.
To display the remaining engine oil
life duration:
PressMENU to select the Vehicle
Information Menu.
Turn the adjuster wheel to select
Remaining Oil Life.
The system must be reset every
time the engine oil is changed to
allow proper functionality. Seek the
assistance of a workshop. Press
SET/CLR to reset. The
ignition must be switched on, with
the engine not running.
When the system has calculated
that engine oil life has been
diminished, Change Engine Oil
Soon or a warning code appears in
the Driver Information Centre. Have
engine oil and filter changed by a
workshop within one week or
300 miles (whichever occurs first).
Driver Information Centre
0Driver
Information Centre (DIC) 075.
Service information
0Service
Information 0198.
Indicator
G
illuminates or flashes green.
Illuminates briefly
The parking lights are switched on.
Flashes
An indicator or the hazard warning
lights are activated.
Rapid flashing: failure of an
indicator light or associated fuse,
failure of indicator light on trailer. Bulb replacement
0Bulb
Replacement 0167.
Fuses
0Fuses 0173.
Indicators
0Indicator Signals 086.
Seat Belt Reminders
Seat belt reminder on front
seats
>illuminates or flashes red.
Illuminates
After the ignition has been switched
on until the seat belt has been
fastened.
Flashes
After having started the engine for a
maximum of 100 seconds until the
seat belt has been fastened.
Fastening the seat belt
0
Three-Point Seat belt 036.
Seat belt status on rear seats
>in the Driver Information Centre
flashes or illuminates.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
70 Instruments and Controls
Flashes
After starting off when the seat belt
is unfastened.
Fastening the seat belt
0
Three-Point Seat belt036.
Airbag and Safety Belt
Tensioner Light
9
illuminates red.
When the ignition is switched on,
the control indicator illuminates for a
few seconds. If it does not
illuminate, does not go out after few
seconds or illuminates whilst
driving, there is a fault in the airbag
system. Seek the assistance of a
workshop. The airbags and belt
pretensioners may fail to trigger in
the event of an accident.
Deployment of the belt
pretensioners or airbags is indicated
by continuous illumination of
9.
{Warning
Have the cause of the fault
remedied immediately by a
workshop.
Seat belts, airbag system
0Seat
belts 035, Airbag System 038.
Airbag On-Off Light
/
illuminates yellow.
Illuminates for a few seconds after
the ignition is switched on. The front
passenger airbag is activated.
+illuminates yellow.
The front passenger airbag is
deactivated
0Airbag On-Off
Switch 043.
{Danger
Risk of fatal injury for a child
using a child restraint system
together with activated front
passenger airbag. Risk of fatal
(Continued)
Danger (Continued)
injury for an adult person with
deactivated front passenger
airbag.
Charging System Light
"
illuminates red.
Illuminates when the ignition is
switched on and extinguishes
shortly after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.
Malfunction
Indicator Lamp
*
illuminates or flashes yellow.
Illuminates when the ignition is
switched on and extinguishes
shortly after the engine starts.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Instruments and Controls 71
Illuminates when the engine is
running
Fault in the emission control
system. The permitted emission
limits may be exceeded. Seek the
assistance of a workshop
immediately.
Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.
Service Vehicle Soon
Light
B
illuminates yellow.
Additionally a warning code is
displayed.
The vehicle needs a service.
Seek the assistance of a workshop.
Vehicle messages
0Vehicle
Messages 080.
Brake and Clutch System
Warning Light
$
illuminates red.
The brake and clutch fluid level is
too low
0Brake Fluid 0164.
{Warning
Stop. Do not continue your
journey. Consult a workshop.
Operate pedal
#illuminates or flashes yellow.
Clutch pedal needs to be
depressed to start the engine in
Autostop mode.
Stop-start system
0Automatic
Engine Start/Stop Feature 0141.
Flashes
Clutch pedal needs to be depressed
for a main start of the engine
0
Automatic Engine Start/Stop
Feature 0141,
0New Vehicle
Run-In 0139.
Antilock Brake System
(ABS) Warning Light
!
illuminates yellow.
Illuminates for a few seconds after
the ignition is switched on. The
system is ready for operation when
the control indicator extinguishes.
If the control indicator does not go
out after a few seconds, or if it
illuminates while driving, there is a
fault in the ABS. The brake system
remains operational but without ABS
regulation.
Anti-lock brake system
0Antilock
Brake System (ABS) 0146.
Gear Shifting Light
*
orkwith the number of the
next higher or lower gear is
indicated, when upshifting or
downshifting is recommended for
fuel saving reasons.
