2015.75 VAUXHALL VIVA Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
8 In Brief
Exterior Mirrors
Select the relevant exterior mirror
and adjust it.
Convex exterior mirrors
0Power
Mirrors 026.
Steering Wheel
Adjustment
Unlock the lever, adjust the steering
wheel, then engage the lever and
ensure it is fully locked.
Do not adjust the steering wheel
unless the vehicle is stationary and
the steering wheel lock has been
released.
Airbag system
0Airbag
System 038,
Ignition positions
0Ignition
Positions 0139.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 9

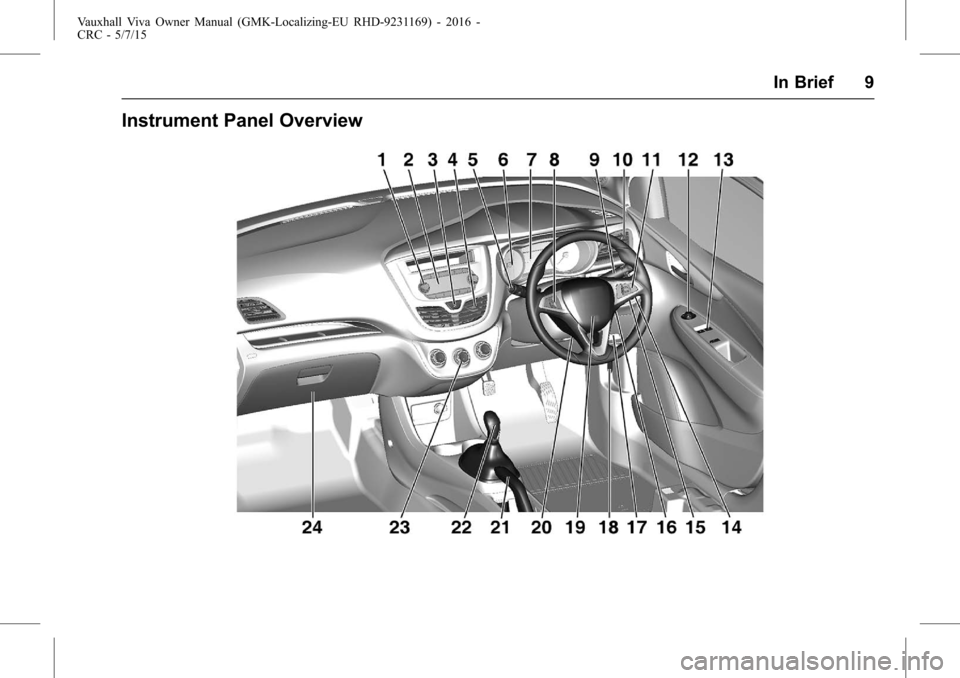

Instrument Panel Overview

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
10 In Brief
1. Infotainment system on pageOperation 099.
2. Info-Display on page Overview 093.
3. Hazard warning lights on page Hazard Warning Flashers 086.
4. Centre air vents on page Adjustable Air Vents 0135.
5. Turn and lane-change signals, headlight flash, dipped beam
and main beam on page
Indicator and Lane-Change
Signals 086.
Exit lighting on page Exit
Lighting 090.
Parking lights on page Parking
Lights 088.
6. Instruments on page Steering
Wheel Adjustment 060.
7. Driver Information Centre on page Driver Information Centre
(DIC) 075. 8. Cruise control, Speed limiter on
page Driver Assistance
Systems 0152.
Heated steering wheel on page
Heated Steering Wheel 060.
9. Windscreen wiper, Windscreen washer system, rear wiper, rear
washer system on page
Windscreen Wiper/
Washer 061.
10. Side air vents on page Fixed
Air Vents 0136.
11. Steering wheel controls on page Steering Wheel
Controls 060.
12. Exterior mirrors on page Convex Mirrors 026
13. Power windows on page Power
Windows 027.
Central locking system on page
Central Locking System 021. 14. Light switch,
Headlight range adjustment,
Front fog lights,
Rear fog light,
Instrument illumination on page
Exterior Lamp Controls 085.
15. Traction control system on page Traction Control System
(TCS) 0147.
Automatic engine start/stop on
page Automatic Engine Start/
Stop Feature 0141.
City mode on page Electronic
Stability Control (ESC) 0148.
Lane departure warning on
page Lane Departure Warning
(LDW) 0154.
16. Ignition switch with steering wheel lock on page Ignition
Positions 0139.
17. Fuse box on page Fuses 0173.
18. Bonnet release lever on page Bonnet 0161.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 11
19. Horn on pageHorn061.
Driver airbag on page Airbag
System 038.
20. Steering wheel adjustment on page Steering Wheel
Adjustment 060.
21. Parking brake on page Handbrake 0146.
22. Selector lever, manual gearbox on page Manual
Gearbox 0145.
23. Climate control system on page Electronic Climate
Control System 0132.
24. Glove box on page Glove
Box 053.Exterior Lighting
Turn light switch.
9:Lights off
;:Sidelights
5:Dipped beam
Fog lights
Press light switch.
#: Front fog light
s:Rear fog light
Lighting
0Exterior Lamp
Controls 085.
Headlight flash, main beam
and dipped beam
Headlight flash : Pull lever
Main beam : Push lever
Dipped beam : Push or pull lever
Main beam
0Headlamp Main/
Dipped Beam Changer 085.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
12 In Brief

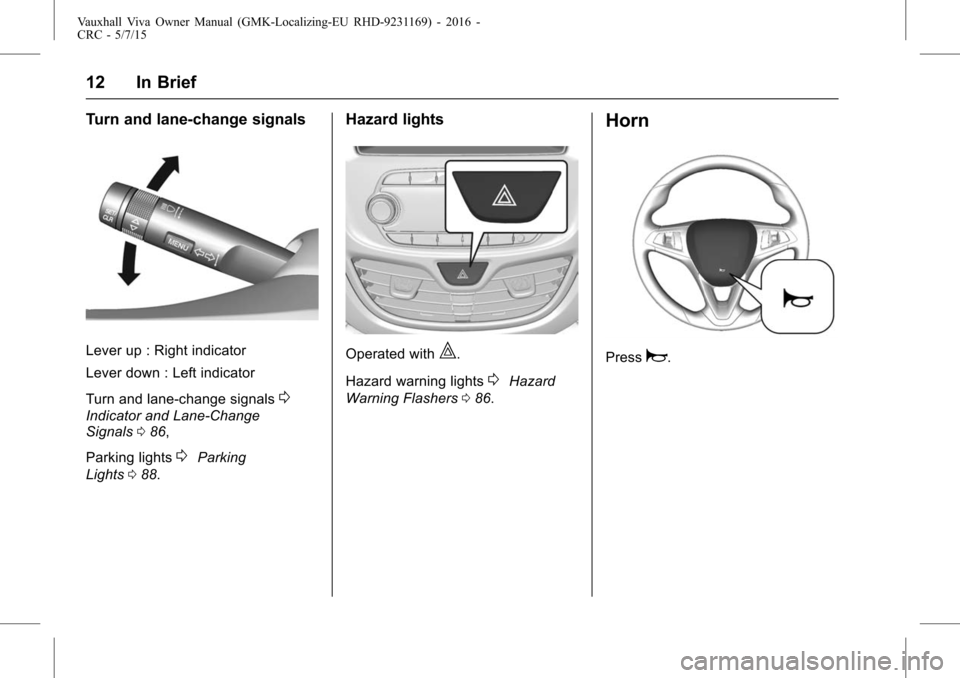

Turn and lane-change signals
Lever up : Right indicator
Lever down : Left indicator
Turn and lane-change signals
0
Indicator and Lane-Change
Signals086,
Parking lights
0Parking
Lights 088.
Hazard lights
Operated with|.
Hazard warning lights
0Hazard
Warning Flashers 086.
Horn
Pressa.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 13

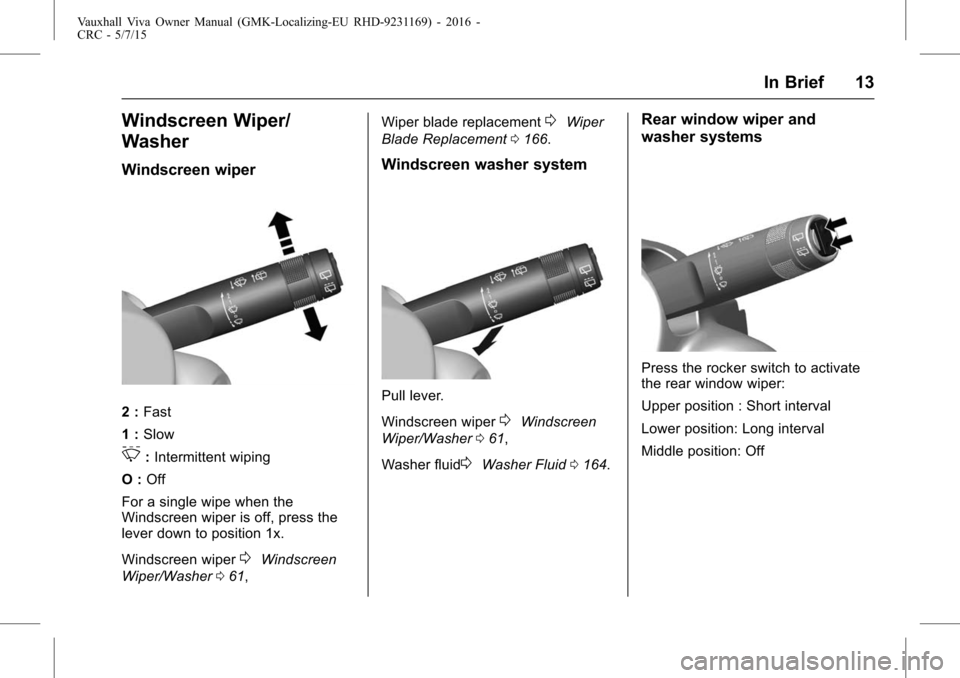

Windscreen Wiper/
Washer
Windscreen wiper
2 :Fast
1 : Slow
3:Intermittent wiping
O : Off
For a single wipe when the
Windscreen wiper is off, press the
lever down to position 1x.
Windscreen wiper
0Windscreen
Wiper/Washer 061, Wiper blade replacement
0Wiper
Blade Replacement 0166.
Windscreen washer system
Pull lever.
Windscreen wiper
0Windscreen
Wiper/Washer 061,
Washer fluid
0Washer Fluid 0164.
Rear window wiper and
washer systems
Press the rocker switch to activate
the rear window wiper:
Upper position : Short interval
Lower position: Long interval
Middle position: Off

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
14 In Brief
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper/washer
0Rear
Window Wiper/Washer 062.
Climate Controls
Heated rear window, heated
exterior mirrors
The heating is operated by pressing
the
=.
Heated rear window
0Heated
Rear Window 029.
Demisting and defrosting the
windows
Press5.
Set the temperature control to the
highest level.
Heated rear window
=on.
Climate control system
0Heating
and Ventilation System 0129.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 15
Transmission
Manual gearbox
Reverse: with the vehicle stationary,
depress clutch pedal and engage
the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then
repeat gear selection.
Manual gearbox
0Manual
Gearbox 0145.
Starting the Engine
Check before starting off
.
Tyre pressure and condition0
Tyre Pressure 0179.
. Engine oil level and fluid levels
0Engine Oil 0162.
. All windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational.
. Proper position of mirrors, seats,
and seat belts
0Convex
Mirrors 026, Seat Position 033,
Three-Point Seat belt 036.
. Brake function at low speed,
particularly if the brakes are wet.
Starting the engine
.
Turn key to position 1.
. Move the steering wheel slightly
to release the steering
wheel lock.
. Operate clutch and brake.
. Automatic transmission in P
or N.
. Do not operate accelerator
pedal.
. Turn key to position 3 and
release Starting the engine.
0
Starting the Engine 0140.
