2015.75 VAUXHALL VIVA check engine

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 15
Transmission
Manual gearbox
Reverse: with the vehicle stationary,
depress clutch pedal and engage
the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then
repeat gear selection.
Manual gearbox
0Manual
Gearbox 0145.
Starting the Engine
Check before starting off
.
Tyre pressure and condition0
Tyre Pressure 0179.
. Engine oil level and fluid levels
0Engine Oil 0162.
. All windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational.
. Proper position of mirrors, seats,
and seat belts
0Convex
Mirrors 026, Seat Position 033,
Three-Point Seat belt 036.
. Brake function at low speed,
particularly if the brakes are wet.
Starting the engine
.
Turn key to position 1.
. Move the steering wheel slightly
to release the steering
wheel lock.
. Operate clutch and brake.
. Automatic transmission in P
or N.
. Do not operate accelerator
pedal.
. Turn key to position 3 and
release Starting the engine.
0
Starting the Engine 0140.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Keys, Doors, and Windows 25
LED flashes quickly : doors, tailgate
or bonnet not completely closed,
or system fault.
Deactivation
Unlocking the vehicle by pressingK
on the radio remote control
deactivates anti-theft alarm system.
Alarm
The alarm can be silenced by
pressing any button of the radio
remote control or by switching on
the ignition.
The anti-theft alarm system can be
deactivated by pressing the
Kor
switching on the ignition.
Auto door lock
If any of the doors is not opened or
the position of Ignition key is not
located in position 1 or position 2
within 3 minutes after unlocking
doors using the transmitter, all the
doors are locked and anti-theft
alarm system is activated
automatically.
Automatic door unlocks
All doors will be automatically
unlocked when the impact is
delivered to impact sensors while
the ignition is position 2.
However, the doors may not be
unlocked if mechanical problems
occur with the door lock system or
battery.
Immobiliser
The system is part of the ignition
switch and checks whether the
vehicle is allowed to be started with
the key being used.
The immobiliser is activated
automatically after the key has been
removed from the ignition switch.
If control indicator
Aflashes when
the ignition is on, there is a fault in
the system; the engine cannot be
started. Switch off the ignition and
then repeat the start attempt. If control indicator
Acontinues
flashing, attempt to start the engine
using the spare key and seek the
assistance of a workshop.
Note: The immobiliser does not
lock the doors. You should always
lock the vehicle after leaving it and
switch on the anti-theft alarm
system
0Central Locking System
0 21, Anti-theft Alarm System 024.
Control indicator
A 0Immobiliser
Light 074.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 35
Heated Front Seats
Activate seat heating by pressingL
for the respective front seat.
Activation is indicated by the LED in
the button.
Pressing
Lonce more deactivates
seat heating.
The passenger seat may take
longer to heat up.
Seat heating is operational when
engine is running and during an
Autostop.
Stop-start system
0Automatic
Engine Start/Stop Feature 0141.
Safety Belts
The seat belts are locked during
heavy acceleration or deceleration
of the vehicle holding the occupants
in the sitting position. Therefore the
risk of injury is considerably
reduced.
{Warning
Fasten safety belt before
each trip.
(Continued)
Warning (Continued)
In the event of an accident,
people not wearing safety belts
endanger their fellow occupants
and themselves.
Seat belts are designed to be used
by only one person at a time.
0
Child Restraint Systems 044.
Periodically check all parts of the
belt system for damage, pollution
and proper functionality.
Have damaged components
replaced. After an accident, have
the belts and triggered belt
pretensioners replaced by a
workshop.
Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.
Seat belt reminder
> 0Safety
Belt Reminders 069.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
68 Instruments and Controls
Control indicators in the centreEngine Coolant
Temperature Gauge
Displays the coolant temperature.
Left area: Engine operating
temperature not yet reached
Central area: Normal operating
temperature
Right area: Temperature too high
Caution
If engine coolant temperature is
too high, stop vehicle, switch off
engine. Danger to engine. Check
coolant level.
Service Display
The engine oil life system lets you
know when to change the engine oil
and filter. Based on driving
conditions, the interval at which an
engine oil and filter change will be
indicated can vary considerably.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Instruments and Controls 73
Engine Coolant
Temperature Warning
Light
C
illuminates red.
This light tells you that the engine
coolant has overheated.
If you have been operating your
vehicle under normal driving
conditions, you should pull off the
road, stop your vehicle and let the
engine idle for a few minutes.
If the light does not go out, you
should switch the engine off and
consult a workshop as soon as
possible. We recommend that you
consult your authorised workshop.
Tyre Pressure Monitoring
System Light
7
illuminates or flashes yellow.
Illuminates
Tyre pressure loss. Stop
immediately and check tyre
pressure. Flashes
Fault in system or tyre without
pressure sensor mounted (e.g.
spare wheel). After 60-90 seconds
the control indicator illuminates
continuously. Consult a workshop.
Tyre pressure monitoring system
0
Tyre Pressure
0179.
Engine Oil Pressure Light
:
illuminates red.
Illuminates when the ignition is
switched on and extinguishes
shortly after the engine starts.
Illuminates when the engine is
running
Caution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels. If the engine oil pressure warning
light comes on while driving, Pull off
the road, stop the engine and check
the oil level.
1. Depress clutch.
2. Select neutral gear, set selector lever to N.
3. Move out of the flow of traffic as quickly as possible without
impeding other vehicles.
4. Switch off ignition.
{Warning
When the engine is off,
considerably more force is
needed to brake and steer.
Autostop the brake servo unit will
still be operational.
Do not remove key until vehicle is
stationary, otherwise the steering
wheel lock could engage
unexpectedly.
Check oil level before seeking
assistance of a workshop
0Engine
Oil 0162.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
80 Instruments and Controls
Vehicle Messages
Messages are indicated mainly in
the Driver Information Centre (DIC),
in some cases together with a
warning and signal buzzer.
PressSET/CLR, MENUor turn the
adjuster wheel to confirm a
message.
The vehicle messages are
displayed as code numbers.
No. Vehicle message
2 No remote detected, Press clutch
to restart
3 Coolant level low add coolant 4 A/C Off due to high engine temp
5 Steering column is locked
6 Step on brake to release park
brake
7 Turn steering wheel, Turn key Off,
Then On
8 Turn key Off, Then On
–repeat
breath test
9 Turn steering wheel, Start vehicle
again
11 Brakes worn
12 Vehicle overloaded
13 Compressor overheated
15 Check high mounted brake lamp
16 Check brake lamps
17 Headlight levelling malfunction
18 Left dipped beam failure
19 Check rear fog lamp
20 Check right dipped beam lamp
21 Check left position lamp
22 Check right position lamp
23 Reversing light failure
24 Number plate light failure 25 Check left front indicator lamp
26 Left rear turn indicator failure
27 Check right front indicator lamp
28 Check right rear indicator lamp
29 Check trailer brake lamp
30 Check trailer reversing lamp
31 Check left trailer indicator lamp
32 Check right trailer indicator lamp
33 Check trailer rear fog lamp
34 Check trailer rear lamp
35 Replace Battery In Remote Key
36 Stabilitrak Initialising
38 Take steering (text approval still
pending)
48 Side detection system
unavailable
49 Lane departure warning
unavailable
50 Reset bonnet
–see owners
manual
52 Change timing belt
53 Tighten fuel cap / Electric
vehicles

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15

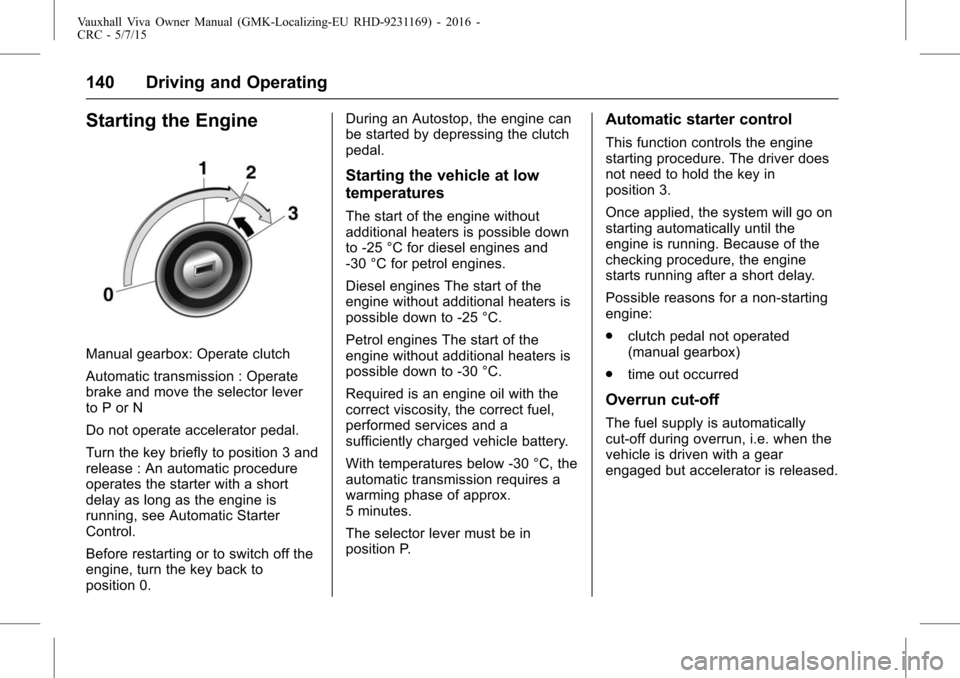

140 Driving and Operating
Starting the Engine
Manual gearbox: Operate clutch
Automatic transmission : Operate
brake and move the selector lever
to P or N
Do not operate accelerator pedal.
Turn the key briefly to position 3 and
release : An automatic procedure
operates the starter with a short
delay as long as the engine is
running, see Automatic Starter
Control.
Before restarting or to switch off the
engine, turn the key back to
position 0.During an Autostop, the engine can
be started by depressing the clutch
pedal.
Starting the vehicle at low
temperatures
The start of the engine without
additional heaters is possible down
to -25 °C for diesel engines and
-30 °C for petrol engines.
Diesel engines The start of the
engine without additional heaters is
possible down to -25 °C.
Petrol engines The start of the
engine without additional heaters is
possible down to -30 °C.
Required is an engine oil with the
correct viscosity, the correct fuel,
performed services and a
sufficiently charged vehicle battery.
With temperatures below -30 °C, the
automatic transmission requires a
warming phase of approx.
5 minutes.
The selector lever must be in
position P.
Automatic starter control
This function controls the engine
starting procedure. The driver does
not need to hold the key in
position 3.
Once applied, the system will go on
starting automatically until the
engine is running. Because of the
checking procedure, the engine
starts running after a short delay.
Possible reasons for a non-starting
engine:
.
clutch pedal not operated
(manual gearbox)
. time out occurred
Overrun cut-off
The fuel supply is automatically
cut-off during overrun, i.e. when the
vehicle is driven with a gear
engaged but accelerator is released.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
142 Driving and Operating
During an Autostop, the heating and
brake performance will be
maintained.
Conditions for an Autostop
The stop-start system checks if
each of the following conditions is
fulfilled.
.The stop-start system is not
manually deactivated.
. The bonnet is fully closed.
. The driver's door is closed or the
driver's seat belt is fastened.
. The vehicle battery is sufficiently
charged and in good condition.
. The engine is warmed up.
. The engine coolant temperature
is not too high.
. The engine exhaust temperature
is not too high, e.g. after driving
with high engine load.
. The ambient temperature is not
too low.
. The defrost selection does not
inhibit an Autostop. .
The climate control system
allows an Autostop.
. The brake vacuum is sufficient.
. The vehicle has moved since the
last Autostop.
Otherwise an Autostop will be
inhibited.
An Autostop may become less
available as the ambient
temperature approaches the
freezing point.
Certain settings of the climate
control system may inhibit an
Autostop. See Climate control
chapter for more details.
Immediately after motorway driving
an Autostop may be inhibited.
New vehicle running-in
0New
Vehicle Run-In 0139.
Vehicle battery discharge
protection
To ensure reliable engine restarts,
several vehicle battery discharge
protection features are implemented
as part of the stop-start system. Power saving measures
During an Autostop, several
electrical features such as auxiliary
electric heater or rear window
heating are disabled or switched
into a power saving mode. The fan
speed of the climate control system
is reduced to save power.
Restart of the engine by the
driver
Depress the clutch pedal to restart
the engine.
The engine start is indicated by the
needle at the idle speed position in
the tachometer.
If the selector lever is shifted out of
neutral before depressing the clutch
first, control indicator
#illuminates
or is shown as a symbol in the
Driver Information Centre.
Control indicator
# 0Control
Indicators 066.
