2014 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

5
When trouble arises
569
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

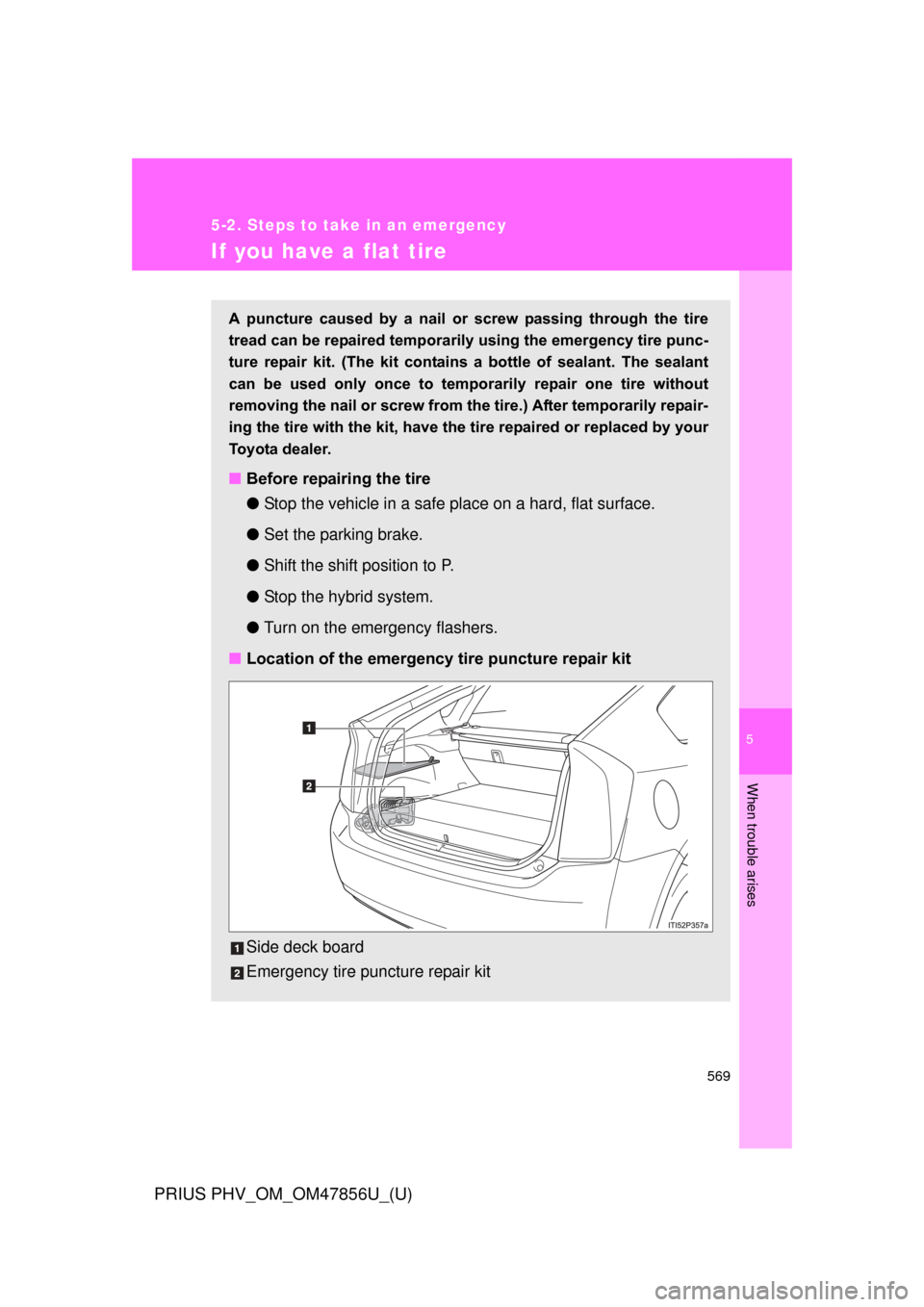

If you have a flat tire
A puncture caused by a nail or screw passing through the tire
tread can be repaired temporarily using the emergency tire punc-
ture repair kit. (The kit contains a bottle of sealant. The sealant
can be used only once to temporarily repair one tire without
removing the nail or screw from the tire.) After temporarily repair-
ing the tire with the kit, have the tire repaired or replaced by your
Toyota dealer.
■ Before repairing the tire
●Stop the vehicle in a safe pl ace on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
● Turn on the emergency flashers.
■ Location of the emergency tire puncture repair kit
Side deck board
Emergency tire puncture repair kit

570 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

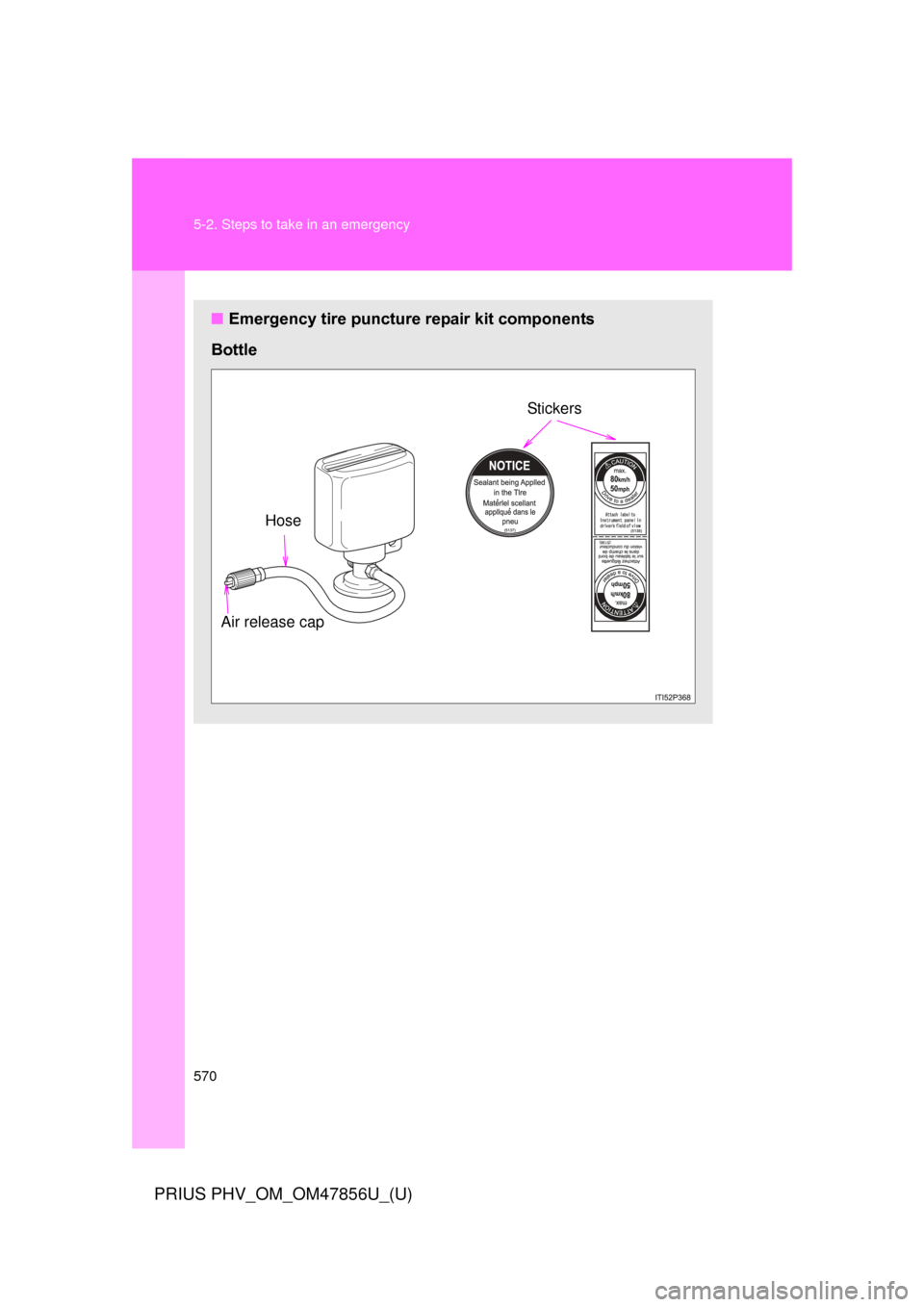

■Emergency tire puncture repair kit components
Bottle
Air release cap Hose Stickers

5
When trouble arises
571
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

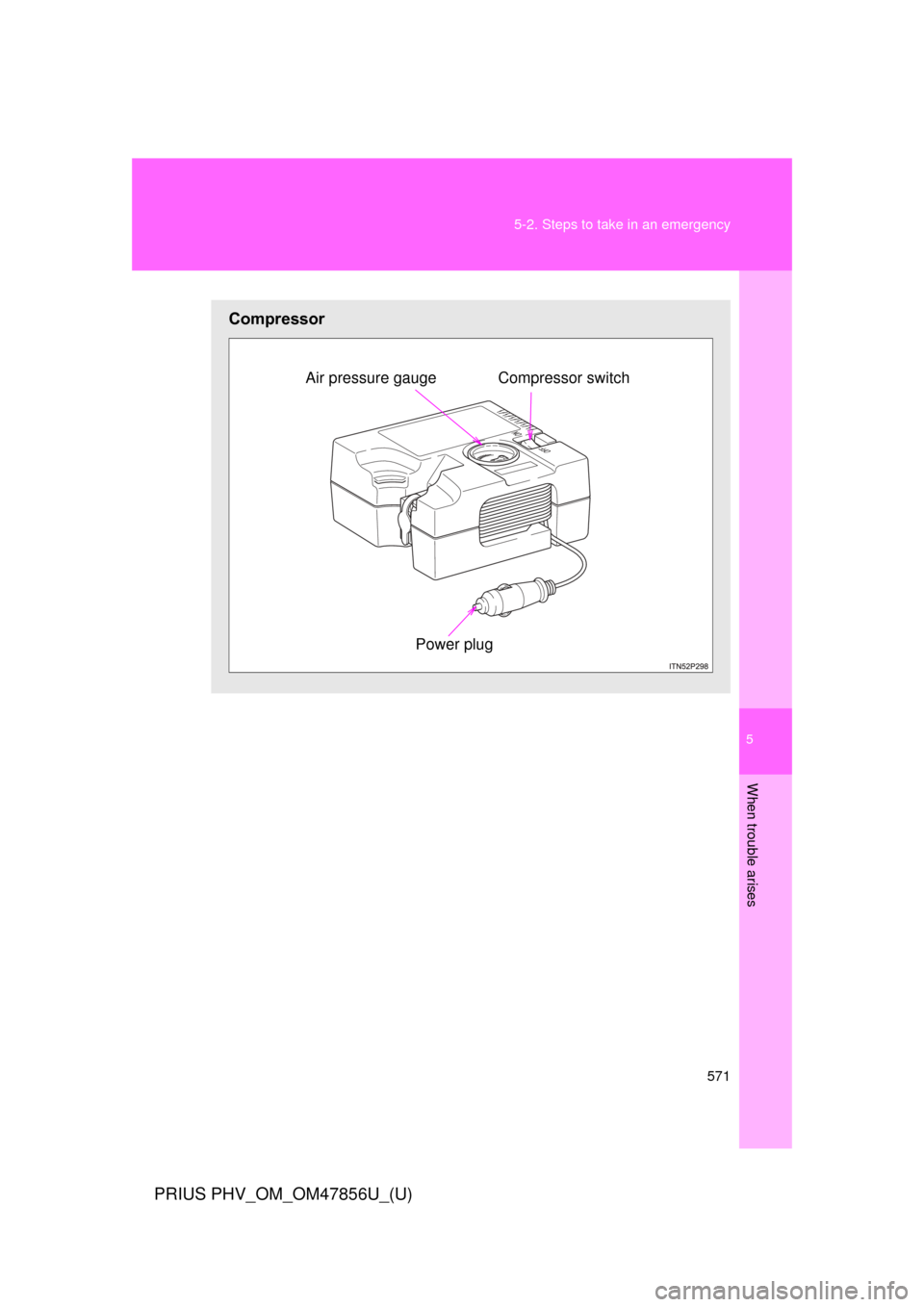

Compressor
Power plug
Air pressure gauge Compressor switch

572 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Before performing emergency repairCheck the degree of the tire damage. A tire should only be repaired
with the emergency tire puncture
repair kit if the damage is caused
by a nail or screw passing
through the tire tread.
• Do not remove the nail orscrew from the tire. Removing
the object may widen the
opening and prevent emer-
gency repair with the repair kit.
• To avoid sealant leakage,
move the vehicle until the area
of the puncture, if known, is
positioned at the top of the
tire.

5
When trouble arises
573
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
■In the following cases, the tire cannot be repaired with the emer-
gency tire puncture repair kit. Contact your Toyota dealer.
●When the tire is damaged due to dr
iving without sufficient air pres-
sure
●When there are any cracks or damage at any location on the tire,
such as on the side wall, except the tread
●When the tire is visibly separated from the wheel
●When the cut or damage to the trea d is 0.16 in. (4 mm) long or more
●When the wheel is damaged
●When two or more tires have been punctured
●When more than 2 sharp objects such as nails or screws have
passed through the tread on a single tire
●When the sealant has expired

574 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Taking out the emergency tire puncture repair kitLift the side deck board.
Unhook the tightening strap.
Take out the emergency tire
puncture repair kit.
STEP 1
STEP 2

5
When trouble arises
575
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Emergency repair method
Take out the repair kit from the plastic bag. Remove the valve cap from the
valve of the punctured tire.
Remove the air release cap from
the hose.
You will use the air release cap
again. Therefore keep it in a
safe place.
STEP 1
STEP 2
STEP 3

576 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Connect the hose to the valve.
Screw the end of the hose
clockwise as far as possible.
Make sure that the compressor
switch is off.
Remove the rubber stopper from
the compressor.
STEP 4
STEP 5
STEP 6
