2014 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

5
When trouble arises
545
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
CAUTION
■If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could
cause a loss of vehicle control and result in death or serious injury.
●Stop your vehicle in a safe place as
soon as possible. Adjust the tire
inflation pressure immediately.
●If the tire pressure warning light comes on even after tire inflation pres-
sure adjustment, it is pr obable that you have a flat tire. Check the tires.
If a tire is flat, repair the flat ti re by using emergency tire puncture
repair kit.
●Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate,
you could lose control of the steering wheel or the brakes.
■If a blowout or sudden air leakage should occur
The tire pressure warning syste m may not activate immediately.
■Maintenance of the tires
Each tire, including the spare (if provided), should be checked monthly
when cold and inflated to the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or tire inflation pressure
label (tire and load information label). (If your vehicle has tires of a differ-
ent size than the size indicated on the vehicle placard or tire inflation
pressure label [tire and load information label], you should determine the
proper tire inflation pr essure for those tires.)

546 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
CAUTION
As an added safety feature, your vehicle has been equipped with a tire
pressure monitoring system (TPMS-ti re pressure warning system) that
illuminates a low tire pressure telltal e (tire pressure warning light) when
one or more of your tires is significantly under-inflated. Accordingly,
when the low tire pressu re telltale (tire pressure warning light) illumi-
nates, you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly under-
inflated tire causes the tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel effi ciency and tire tread life, and may
affect the vehicle’s handling and stopping ability.
Please note that the TPMS (tire pressure warning system) is not a sub-
stitute for proper tire main tenance, and it is the driver’s responsibility to
maintain correct tire pressure, even if under-inflation has not reached the
level to trigger illu mination of the TPMS low tire pressure telltale (tire
pressure warning light).
Your vehicle has also been equipped with a TPMS (tire pressure warning
system) malfunction indicator to indi cate when the system is not operat-
ing properly. The TPMS (tire pressure warning system) malfunction indi-
cator is combined with the low tire pressure telltale (tire pressure
warning light). When the system det ects a malfunction, the telltale will
flash for approximately one minute an d then remain continuously illumi-
nated. This sequence will continue upon subsequent vehicle start-ups as
long as the malfunction exists. When the malfunction indi cator is illumi-
nated, the system may not be able to detect or signal low tire pressure
as intended.

5
When trouble arises
547
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
CAUTION
TPMS (tire pressure warning system) malfunctions may occur for a vari-
ety of reasons, including the installati
on of replacement or alternate tires
or wheels on the vehicle that prevent the TPMS (tire pressure warning
system) from functioning properly. Always check the TPMS (tire pres-
sure warning system) malfunction te lltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or alter-
nate tires and wheels allow the TPMS (tire pressure warning system) to
continue to function properly.
NOTICE
■Precaution when installing a different tire
When a tire of a different specification or maker is installed, the tire pres-
sure warning system may not operate properly.

548
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

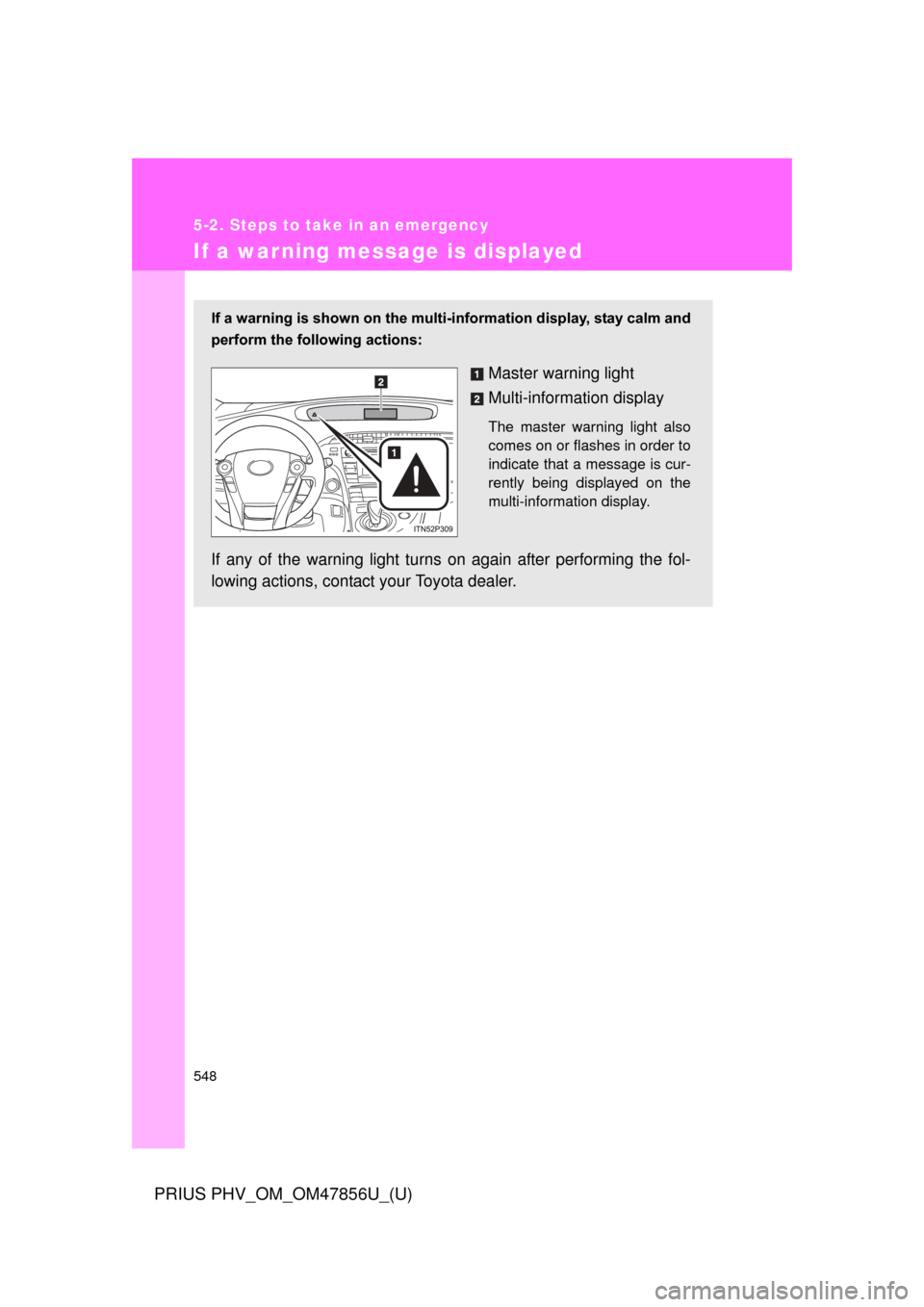

If a warning message is displayed
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
Master warning light
Multi-information display
The master warning light also
comes on or flashes in order to
indicate that a message is cur-
rently being displayed on the
multi-information display.
If any of the warning light turns on again after performing the fol-
lowing actions, contact your Toyota dealer.

5
When trouble arises
549
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Stop the vehicle immediately.
A buzzer sounds and a warning message is shown on the multi-infor-
mation display. The following warnin gs indicate the possibility of dam-
age to the vehicle that may lead to an accident. Immediately stop the
vehicle in a safe place and contact your Toyota dealer.
Warning messageDetails
(U.S.A.)
(Canada) Indicates an abnormal engine oil pressure.
The warning light may turn on if the engine oil pres-
sure is too low.
Indicates a malfunction in the hybrid system.

550 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Have the vehicle inspected immediately.Failure to investigate the cause of the following warnings may lead to
the system operating abnormally and possibly cause an accident.
Have the vehicle inspected by your Toyota dealer immediately.
Warning messageDetails
(If equipped) Indicates a malfunction in the LED headlight system.
Indicates a malfunction in the P position control sys-
tem.
In this situation, there is a possibility that the parking
lock mechanism will not work.
When parking, park the vehicle on a flat surface and
apply the parking brake securely. Also, it may not be
possible to turn the “POWER” switch off. If this hap-
pens, applying the parking brake will enable the
switch to be turned off.
(Flashes)
(If equipped) Indicates a malfunction in the pre-collision system.
A buzzer also sounds.

5
When trouble arises
551
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Warning messageDetails
(Flashes)
(If equipped) Indicates a malfunction in the radar cruise control sys-
tem.
A buzzer also sounds.
Press the “ON-OFF” button once to deactivate the
system, and then press the button again to reacti-
vate the system.
Hybrid battery (traction battery) inspection or replace-
ment time. Have the hybrid battery (traction battery) inspected
by your Toyota dealer immediately.
Hybrid system restarting will soon be disabled. A buzzer also sounds.
If you continue to use the vehicle in this state, you
will soon become unable to restart the hybrid sys-
tem. Have the hybrid battery (traction battery)
inspected by your Toyota dealer immediately.
Indicates that restarting of the hybrid system is not
possible. Contact your Toyota dealer immediately.

552 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
Follow the correction procedures.After taking the specified steps to correct the suspected problem,
check that the warning message turns off.
*: Refer to the separate “Scheduled Maintenance Guide” or “Owner’s Manual Supplement” for the maintenance interval applicable to your vehicle.
Warning messageDetailsCorrection procedure
(U.S.A. only) Indicates that all maintenance
according to the driven dis-
tance on the maintenance
schedule
* should be per-
formed soon. If necessary, per-
form maintenance.
Comes on approximately 4500
miles (7200 km) after the main-
tenance data has been reset.
(U.S.A. only) Indicates that all maintenance
is required to correspond to
the driven distance on the
maintenance schedule
*.
Perform the neces-
sary maintenance.
Please reset the
maintenance data
after the mainte-
nance is per-
formed. (
P. 434)
Comes on approximately 5000
miles (8000 km) after the main-
tenance data has been reset.
(The indicator will not work
properly unless the mainte-
nance data has been reset.)
