2014 TOYOTA PRIUS PLUG-IN HYBRID Owners Manual

5
When trouble arises
609
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
NOTICE
■
To avoid damage to the hybrid transmission and other components
● Avoid spinning the wheels and depressing the accelerator pedal more
than necessary.
● If the vehicle remains stuck even after these procedures are performed,
the vehicle may require towing to be freed.

610
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

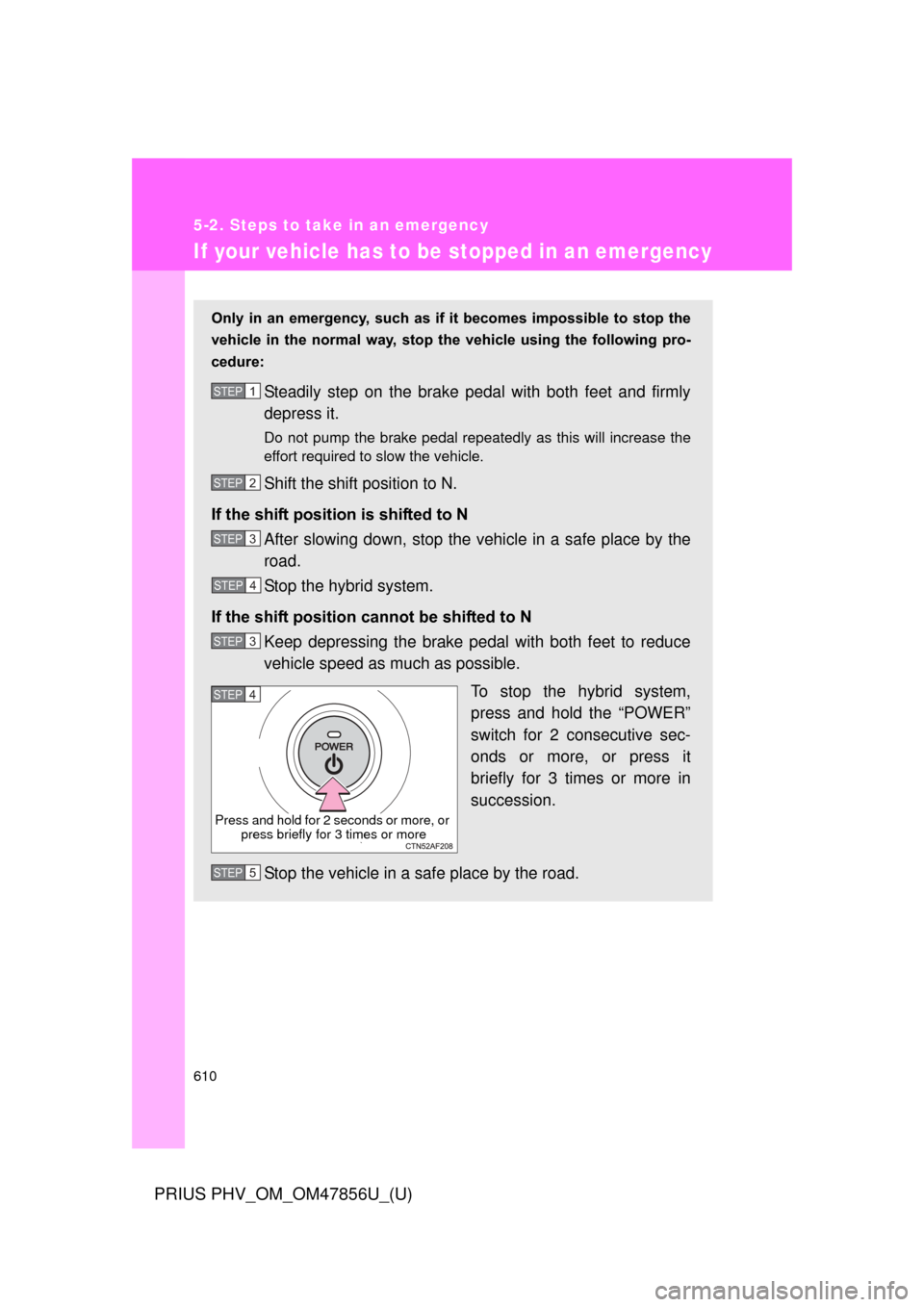

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift position to N.
If the shift position is shifted to N After slowing down, stop the vehi cle in a safe place by the
road.
Stop the hybrid system.
If the shift position cannot be shifted to N Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
To stop the hybrid system,
press and hold the “POWER”
switch for 2 consecutive sec-
onds or more, or press it
briefly for 3 times or more in
succession.
Stop the vehicle in a safe place by the road.
STEP 1
STEP 2
STEP 3
STEP 4
STEP 3
STEP 4
Press and hold for 2 seconds or more, or press briefly for 3 times or more
STEP 5

5
When trouble arises
611
5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)
CAUTION
■
If the hybrid system has to be turned off while driving
Power assist for the steering will be lost, making the steering wheel heavier
to turn. Decelerate as much as possible before turning off the hybrid system.

612 5-2. Steps to take in an emergency
PRIUS PHV_OM_OM47856U_(U)

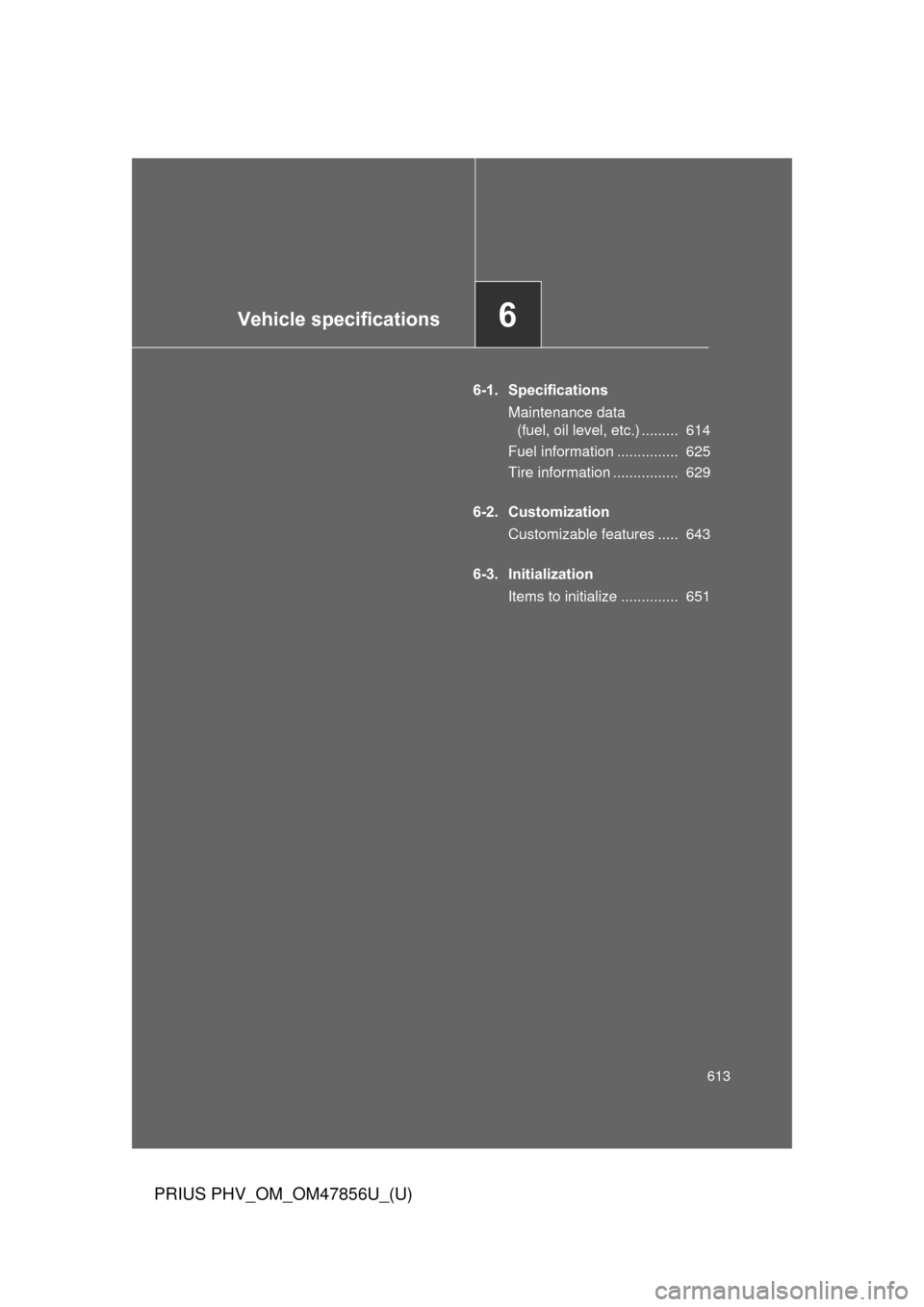

Vehicle specifications6
613
PRIUS PHV_OM_OM47856U_(U)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) ......... 614
Fuel information ............... 625
Tire information ................ 629
6-2. Customization Customizable features ..... 643
6-3. Initialization Items to initialize .............. 651

614
PRIUS PHV_OM_OM47856U_(U)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weight
*: Unladen vehicle
Overall length176.4 in. (4480 mm)
Overall width68.7 in. (1745 mm)
Overall height*58.7 in. (1490 mm)
Wheelbase106.3 in. (2700 mm)
TreadFront60.0 in. (1525 mm)
Rear59.8 in. (1520 mm)
Vehicle capacity weight
(Occupants + luggage) 825 lb. (370 kg)

615
6-1. Specifications
6
Vehicle specifications
PRIUS PHV_OM_OM47856U_(U)
Vehicle identification
■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primar y identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
top left of the instrument panel.
This number is also on the Certi-
fication Label.
This number is also stamped
under the right-hand front seat.
ITO61P101

616 6-1. Specifications
PRIUS PHV_OM_OM47856U_(U)
■Engine number
The engine number is stamped
on the engine block as shown.
Engine
Model1.8 L 4-cylinder (2ZR-FXE)
Type4-cylinder in line, 4-cycle, gasoline
Bore and stroke 3.17  3.48 in. (80.5  88.3 mm)
Displacement 109.7 cu.in. (1798 cm3)
Valve clearance
(engine cold) Automatic adjustment
