4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
CAUTION
■
When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
●When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat, level
surface.
● Do not start the hybrid system while the vehicle is supported by the floor
jack.
● Stop the vehicle on level, firm ground, firmly set the parking brake and shift
the shift position to P.
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.

450 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
CAUTION
●Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any object on top of or underneath
the floor jack.

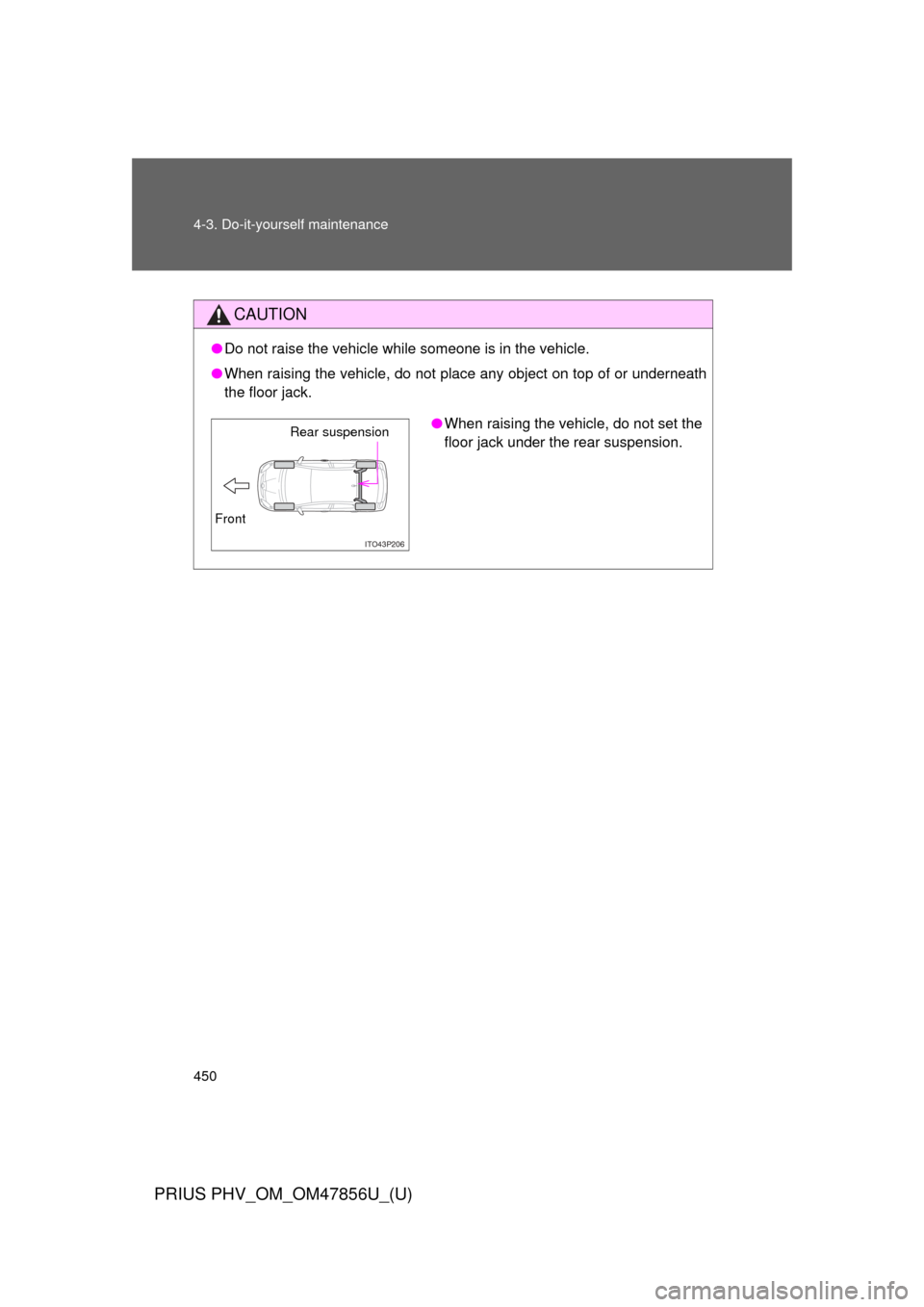

●When raising the vehicle, do not set the
floor jack under the rear suspension.
ITO43P206
Rear suspension
Front

451
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care
Replacing the tire
When raising your vehicle with a jack, position the jack correctly.
Improper placement may damage your vehicle or cause injury.
■Before jacking up the vehicle
●Stop the vehicle on a hard, flat surface.
● Set the parking brake.
● Shift the shift position to P.
● Stop the hybrid system.
■ Location of the jack and tools
Tool box lid
Wheel nut wrench
Jack
Jack handle
Towing eyelet

452 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

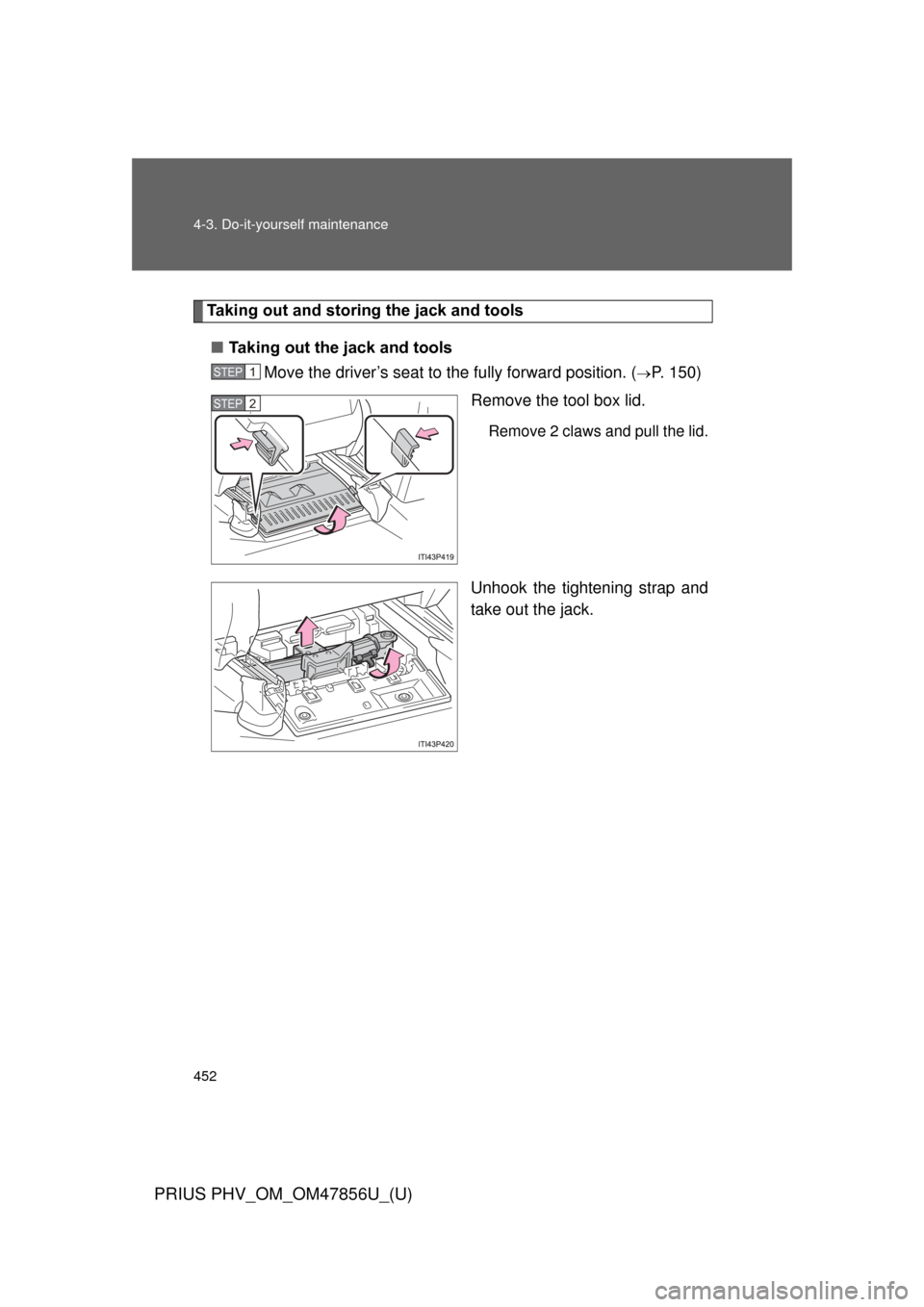

Taking out and storing the jack and tools■ Taking out the jack and tools
Move the driver’s seat to the fully forward position. (
P. 150)

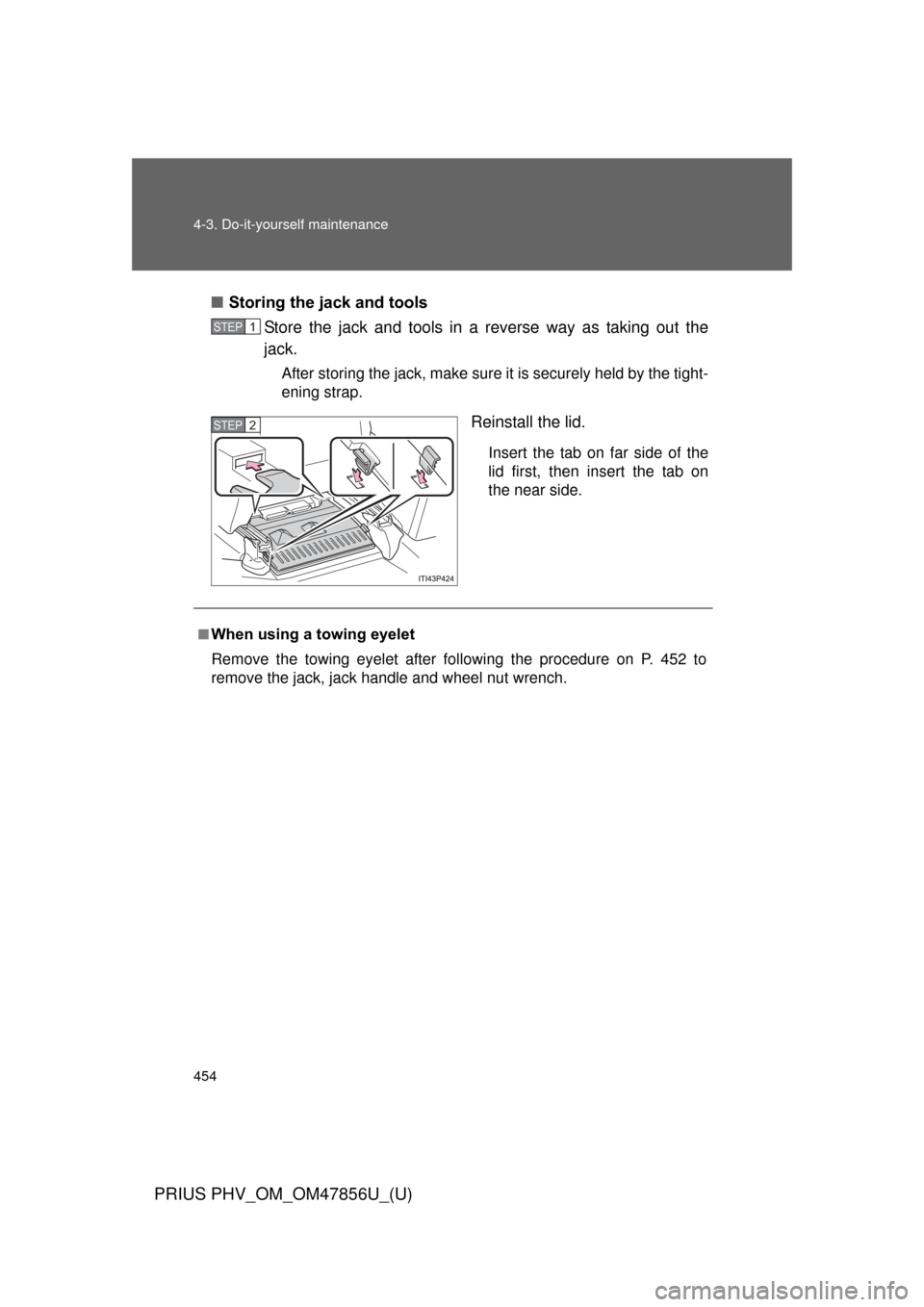

Remove the tool box lid.
Remove 2 claws and pull the lid.
Unhook the tightening strap and
take out the jack.
STEP 1
STEP 2

453
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

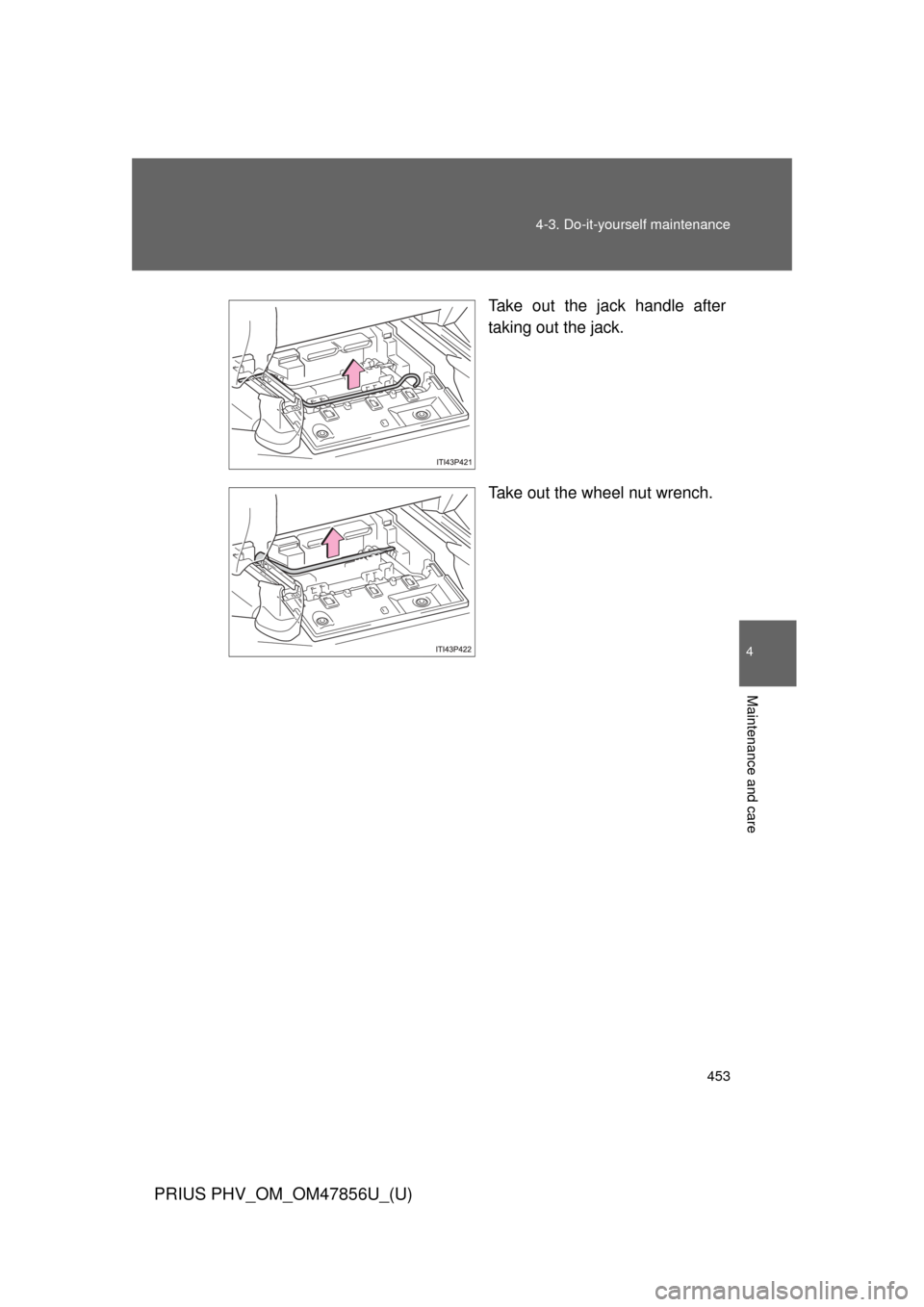

Take out the jack handle after
taking out the jack.
Take out the wheel nut wrench.

454 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
■Storing the jack and tools
Store the jack and tools in a reverse way as taking out the
jack.
After storing the jack, make sure it is securely held by the tight-
ening strap.
Reinstall the lid.
Insert the tab on far side of the
lid first, then insert the tab on
the near side.
STEP 1
STEP 2
■When using a towing eyelet
Remove the towing eyelet after following the procedure on P. 452 to
remove the jack, jack handle and wheel nut wrench.

455
4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)
4
Maintenance and care

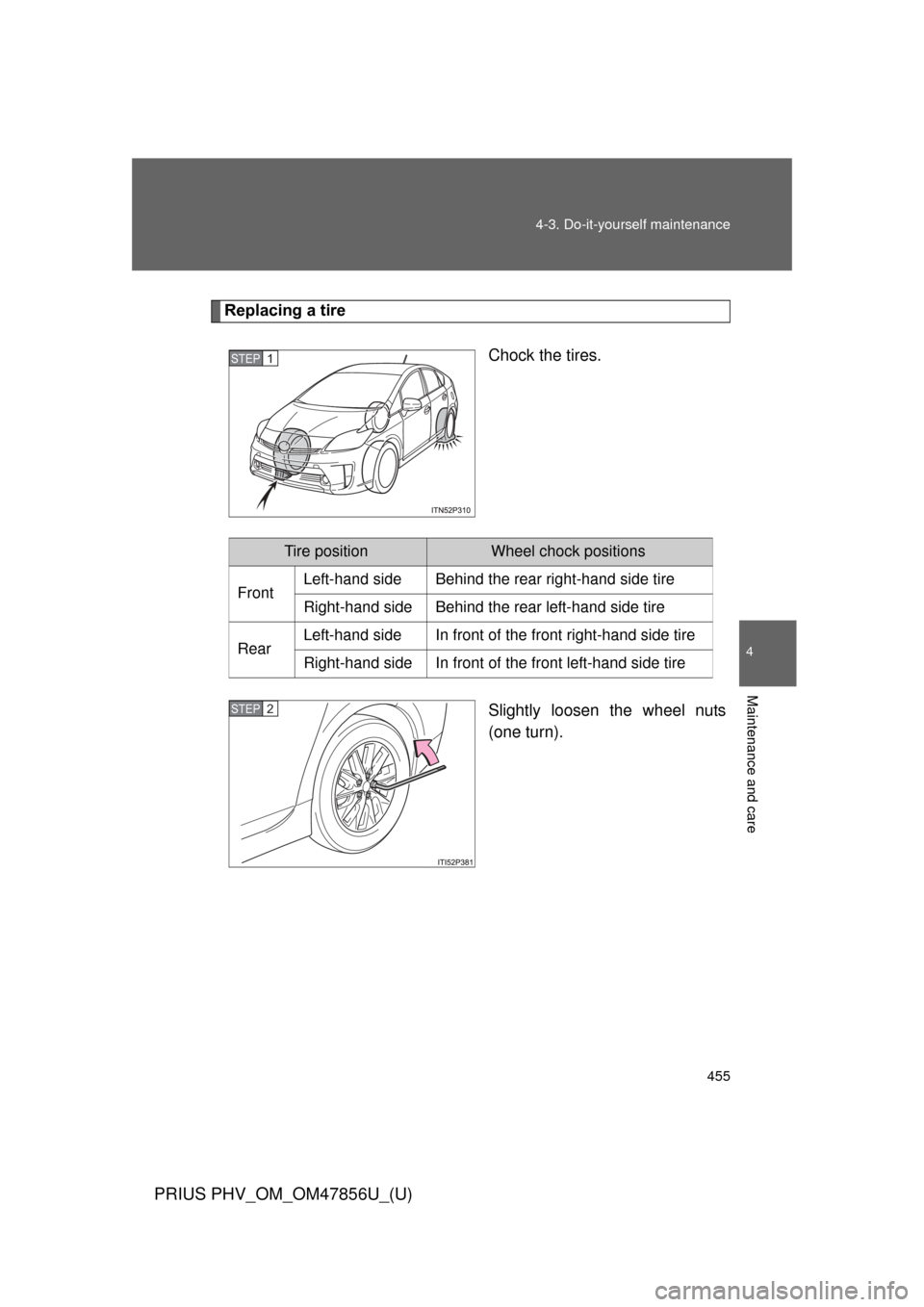

Replacing a tire
Chock the tires.
Slightly loosen the wheel nuts
(one turn).
STEP 1
Tire positionWheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire
STEP 2

456 4-3. Do-it-yourself maintenance
PRIUS PHV_OM_OM47856U_(U)

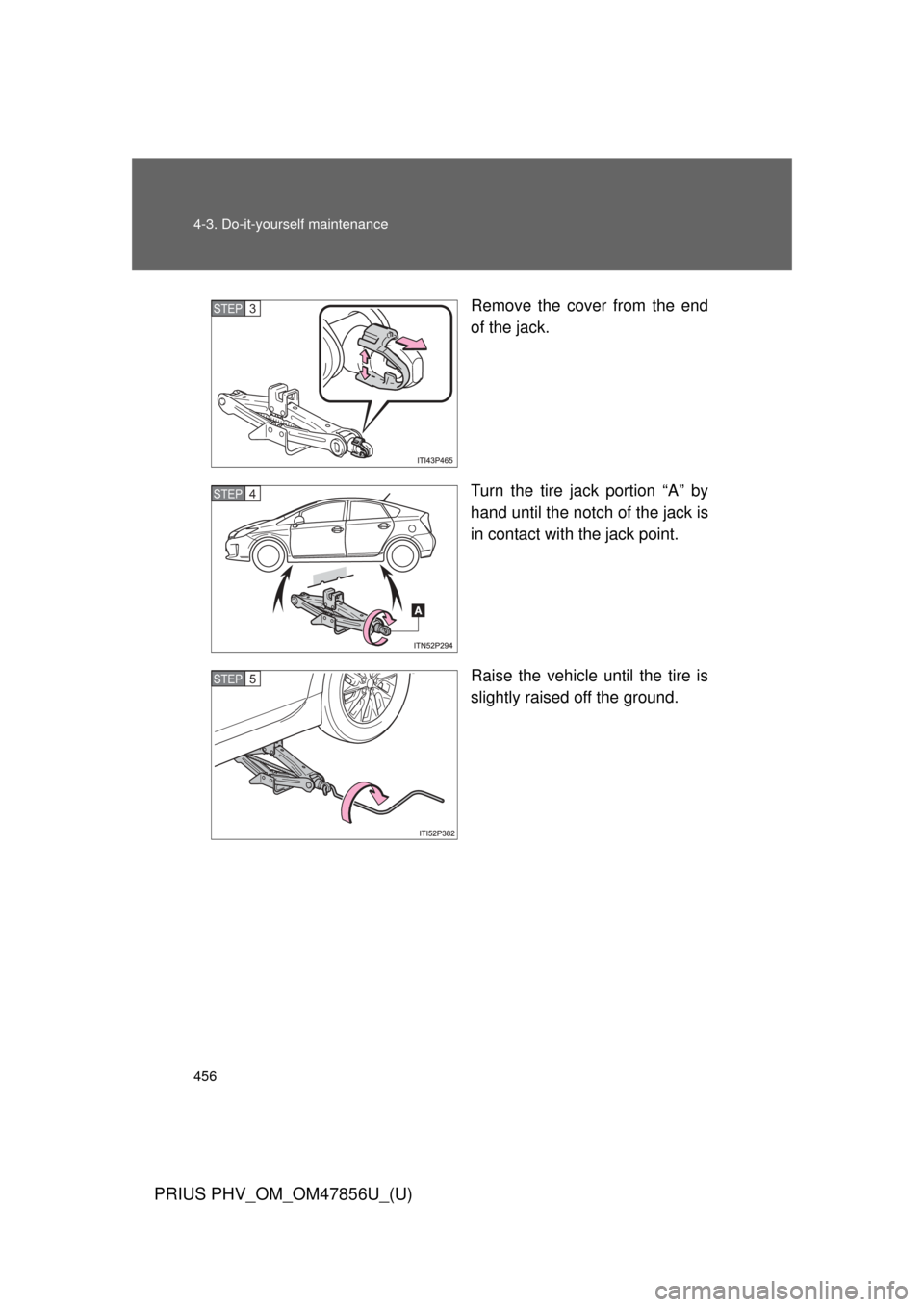

Remove the cover from the end
of the jack.
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.STEP 3
STEP 4
STEP 5
