Air Fuel Ratio (A/F) Sensor 1
INFOID:0000000009462072
The sensor element of the A/F sensor 1 is composed an electrode
layer, which transports ions. It has a heater in the element.
The sensor is capable of precise measurement = 1, but also in the lean and rich range. Together with its
control electronics, the sensor outputs a cl ear, continuous signal throughout a wide range.
The exhaust gas components diffuse through the diffusi on layer at the sensor cell. An electrode layer is
applied voltage, and this current relati ve oxygen density in lean. Also this current relative hydrocarbon density
in rich.
Therefore, the A/F sensor 1 is able to indicate air fuel ratio by this
electrode layer of current. In additi on, a heater is integrated in the
sensor to ensure the required operating temperature of approxi-
mately 760 °C (1,400 °F).
A/F SENSOR 1 HEATER
A/F sensor 1 heater is integrated in the sensor.
The ECM performs ON/OFF duty control of the A/F sensor 1 heater corresponding to the engine operating
condition to keep the temperature of A/F s ensor 1 element within the specified range.
Heated Oxygen Sensor 2INFOID:0000000009462073
The heated oxygen sensor 2, after three way catalyst (manifold),
monitors the oxygen level in the exhaust gas.
Even if switching characteristics of the air fuel ratio (A/F) sensor 1
are shifted, the air fuel ratio is controlled to stoichiometric, by the sig-
nal from the heated oxygen sensor 2.
This sensor is made of ceramic zirconia. The zirconia generates volt-
age from approximately 1 V in richer conditions to 0 V in leaner con-
ditions.
Under normal conditions the heated ox ygen sensor 2 is not used for
engine control operation.
HEATED OXYGEN SENSOR 2 HEATER
Heated oxygen sensor 2 heater is integrated in the sensor.
The ECM performs ON/OFF control of the heated oxy gen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.
JPBIA4038GB
JPBIA5446GB
SEF327R
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSEC-33
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
Knock SensorINFOID:0000000009462074
The knock sensor is attached to t
he cylinder block. It senses engine
knocking using a piezoelectric el ement. A knocking vibration from
the cylinder block is sensed as vibrational pressure. This pressure is
converted into a voltage signal and sent to the ECM.
Engine Oil Pressure SensorINFOID:0000000009462075
The engine oil pressure (EOP) sens or is detects engine oil pressure
and transmits a voltage signal to the ECM.
Engine Oil Temperature SensorINFOID:0000000009462076
The engine oil temperature sensor is used to detect the engine oil
temperature. The sensor modifies a voltage signal from the ECM.
The modified signal returns to the ECM as the engine oil tempera-
ture input. The sensor uses a ther mistor which is sensitive to the
change in temperature. The electrical resistance of the thermistor
decreases as temperature increases.
Engine speed Heated oxygen sensor 2 heater
Above 3,600 rpm OFF
Below 3,600 rpm after the following conditions are met.
• Engine: After warming up
• Keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no load ON
JSBIA0284ZZ
JSBIA0292ZZ
JPBIA5280ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

COMPONENT PARTSEC-35
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
EVAP Canister Vent Control ValveINFOID:0000000009462080
The EVAP canister vent control valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows “EVAP
Control System” diagnosis.
EVAP Control System Pressure SensorINFOID:0000000009462081
The EVAP control system pressure sensor detects pressure in the
purge line. The sensor output voltage to the ECM increases as pres-
sure increases.
Battery Current Sensor (With Battery Temperature Sensor)INFOID:0000000009462082
OUTLINE
The power generation voltage variable control enables fuel con-
sumption to be decreased by reducing the engine load which is
caused by the power generation of the generator.
Based on sensor signals, ECM judges whether or not the power
generation voltage variable contro l is performed. When performing
the power generation voltage variable control, ECM calculates the
target power generation voltage based on the sensor signal. And
ECM sends the calculated value as the power generation command
value to IPDM E/R. For the details of the power generation voltage
variable control, refer to CHG-10, "System Description"
.
CAUTION:
Never connect the electrical co mponent or the ground wire
directly to the battery terminal. The connection cau ses the malfunction of the power generation volt-
age variable control, and then the battery discharge may occur.
BATTERY CURRENT SENSOR
The battery current sensor is installed to the battery negative cable. The sensor measures the charging/dis-
charging current of the battery.
BATTERY TEMPERATURE SENSOR
PBIB1263E
PBIB3370E
JPBIA3262ZZ
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-36
< SYSTEM DESCRIPTION >[QR25DE]
COMPONENT PARTS
Battery temperature sensor is int
egrated in battery current sensor.
The sensor measures temperature around the battery.
The electrical resistance of the t hermistor decreases as temperature
increases.

*: These data are reference values and are measured between battery temperature
sensor signal terminal and sensor ground.
Malfunction Indicator lamp (MIL)INFOID:0000000009462083
The Malfunction Indicator lamp (MIL) is located on the combination
meter.
The MIL will illuminate when the ignition switch is turned ON without
the engine running. This is a bulb check.
When the engine is started, the MI L should turn OFF. If the MIL
remains illuminated, the on board diagnostic system has detected an
engine system malfunction.
For details, refer to EC-74, "DIAGNOSIS DESCRIPTION : Malfunc-
tion Indicator Lamp (MIL)".
Oil Pressure Warning LampINFOID:0000000009462084
Oil pressure warning lamp is located on the combination meter.
It indicates the low pressure of the engine oil and the malfunction of
the engine oil pressure system.
Combination meter turns the oil pressure warning lamp ON/OFF
according to the oil pressure warning lamp signal received from
ECM via CAN communication.
For details, refer to EC-55, "ENGINE PROTECTION CONTROL AT
LOW ENGINE OIL PRESSURE : System Description".
Refrigerant Pressure SensorINFOID:0000000009462085
The refrigerant pressure sensor is installed at the c ondenser of the air conditioner system. The sensor uses an
electrostatic volume pressure transducer to convert refrigerant pressure to voltage. The voltage signal is sent
to ECM, and ECM controls cooling fan system.
Stop Lamp Switch & Brake Pedal Position SwitchINFOID:0000000009462086
Stop lamp switch and brake pedal position switch are installed to brake pedal bracket.
ECM detects the state of the brake pedal by those two types of input (ON/OFF signal).
Temperature [°C ( °F)]
Vo l ta g e* (V) Resistance (k
Ω)
25 (77) 3.333 1.9 - 2.1
90 (194) 0.969 0.222 - 0.258
SEF012P
JSBIA1315ZZ
PBIA8559J
PBIB2657E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-42
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
Fail Safe Pattern
Fail Safe List
× :Applicable —: Not applicable
Fail safe mode Vehicle behavior
Traveling con-
trol mode Accelerator an-
gle variation
control ECM controls the accelerator pedal depression speed to make it slower than actual speed. This
causes a drop in accelerating performance and encourages the driver to repair malfunction.
NOTE:
ECM does not control the accelerator pedal releasing speed.
Engine output
control ECM reduces the engine output, according to the rise in engine speed. This reduces the vehicle
speed to encourage the driver to repair malfunction.
Device fix mode • This mode fixes the IVT control solenoid valve and the EVT control solenoid valve in the refer-
ence position.
• The intake manifold runner control valve motor is turned OFF (intake manifold runner control valve opens).
Pattern Fail safe mode
A Traveling control mode Accelerator angle variation control
B Engine output control
C Device fix mode
DTC No. Detected items Vehicle behavior
Pattern Others
ABC
P0011 Intake valve timing control ——×ECM activates the IVT intermediate lock control solenoid
valve to bring the cam sprocket into an intermediate lock con-
dition.
P0014
P0078 Exhaust valve timing control
——× —
P0101
P0102
P0103 Mass air flow sensor circuit
××× —
P0122
P0123
P0222
P0223
P2135 Throttle position sensor
———The ECM controls the electric throttle control actuator in reg-
ulating the throttle opening in order for the idle position to be
within +10 degrees.
The ECM regulates the opening speed of the throttle valve to
be slower than the normal condition.
So, the acceleration will be poor.
P0171
P0172 Fuel injection system
×—— —
P0197
P0198 Engine oil temperature sensor
———Exhaust valve timing control does not function.
P0300
P0301
P0302
P0303
P0304 Misfire
×—— —
P0500 Vehicle speed sensor ×—— —
P050A Cold start control ×—— —
P0524 Engine oil pressure
———• ECM illuminates oil pressure warning lamp on the combina-
tion meter.
• Engine speed will not rise more than 4,000rpm due to the
fuel cut.
• Fail-safe is canceled when ignition switch OFF → ON.
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEMEC-43
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
MULTIPORT FUEL INJECTION SYSTEM
MULTIPORT FUEL INJECTION SYSTEM : S
ystem Description (with automatic air
P052A
P052B Intake valve timing intermedi-
ate lock control ——
× —
P0603 ECM power supply circuit — ×——
P0605 ECM — ×——
P0643 Sensor power supply ———ECM stops the electric throttle control actuator control, throttle
valve is maintained at a fixed opening (approx. 5 degrees) by
the return spring.
P1078 Exhaust valve timing control position sensor circuit ×
— × —
P1805 Brake switch
———ECM controls the electric throttle control actuator by regulat-
ing the throttle opening to a small range.
Therefore, acceleration will be poor.
Vehicle condition Driving condition
When engine is idling Normal When accelerating Poor acceleration
P2004 Intake manifold runner control valve —
×× —
P2100
P2103 Throttle contro
l motor relay
——— ECM stops the electric throttle control actuator control, throttle
valve is maintained at a fixed opening (approx. 5 degrees) by
the return spring.
P2101 Electric throttle control func- tion ——— ECM stops the electric throttle control actuator control, throttle
valve is maintained at a fixed opening (approx. 5 degrees) by
the return spring.
P2118 Throttle control motor ———ECM stops the electric throttle control actuator control, throttle
valve is maintained at a fixed opening (approx. 5 degrees) by
the return spring.
P2119 Electric thro ttle control actua-
tor —
×——
P2122
P2123
P2127
P2128
P2138 Accelerator pedal position
sensor
———The ECM controls the electric throttle control actuator in reg-
ulating the throttle opening in order for the idle position to be
within +10 degrees.
The ECM regulates the opening speed of the throttle valve to
be slower than the normal condition.
So, the acceleration will be poor.
DTC
No. Detected items Vehicle behavior
Pattern Others
ABC
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

EC-44
< SYSTEM DESCRIPTION >[QR25DE]
SYSTEM
conditioner)
INFOID:0000000009462093
SYSTEM DIAGRAM
SYSTEM DESCRIPTION
The amount of fuel injected from the fuel injector is determined by the ECM. The ECM controls the length of
time the valve remains open (injection pulse duration). T he amount of fuel injected is a program value in the
ECM memory. The program value is preset by engi ne operating conditions. These conditions are determined
by input signals (for engine speed and intake air) from t he crankshaft position sensor (POS), camshaft position
sensor (PHASE) and the ma ss air flow sensor.
VARIOUS FUEL INJECTION I NCREASE/DECREASE COMPENSATION
In addition, the amount of fuel injected is compens ated to improve engine performance under various operat-
ing conditions as listed below.

• During warm-up
• When starting the engine
• During acceleration
• Hot-engine operation
• When selector lever is changed from N to D
• High-load, high-speed operation
• During deceleration
• During high engine speed operation

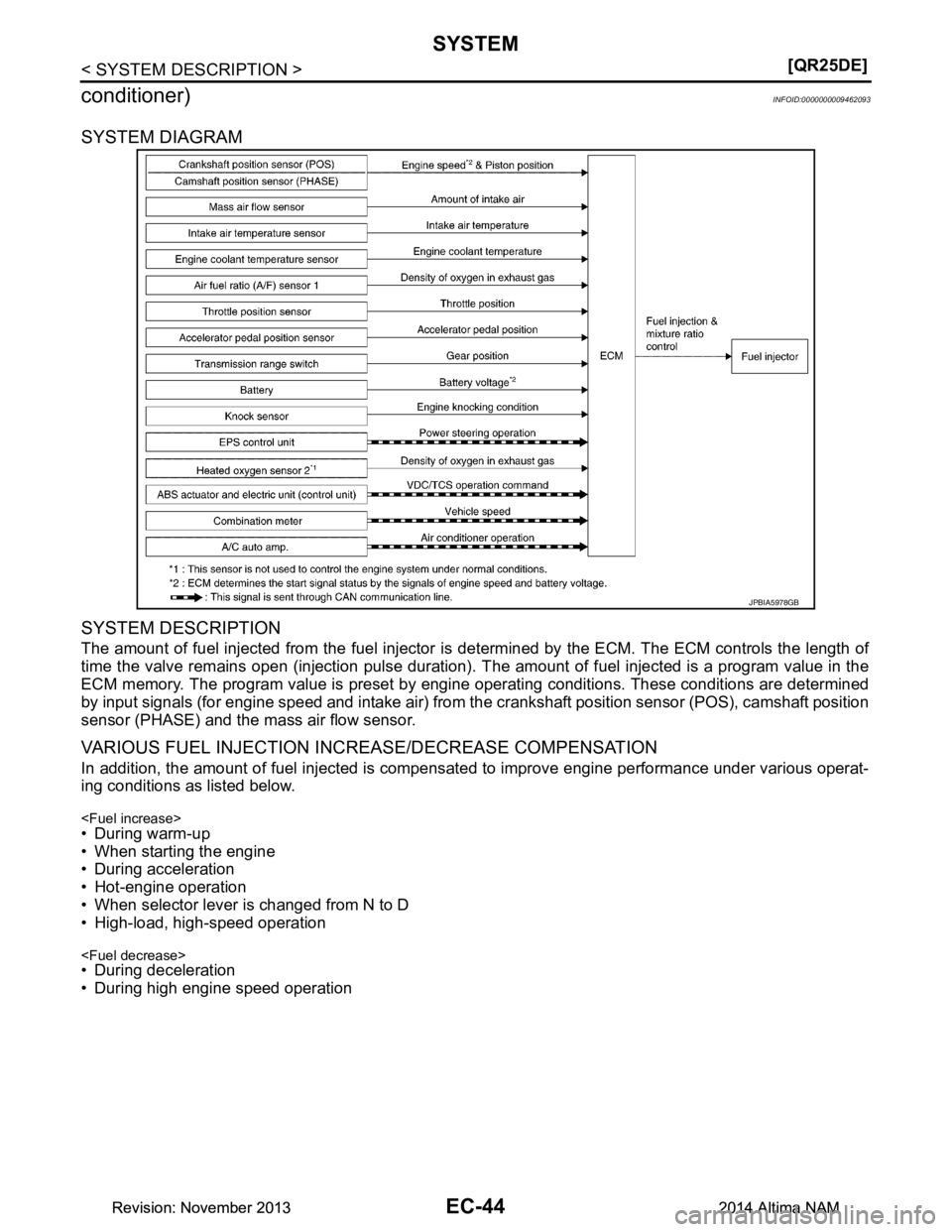

JPBIA5978GB
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM

SYSTEMEC-45
< SYSTEM DESCRIPTION > [QR25DE]
C
D E
F
G H
I
J
K L
M A
EC
NP
O
MIXTURE RATIO FEEDBACK CONTROL (CLOSED LOOP CONTROL)
The mixture ratio feedback system prov
ides the best air-fuel mixture ratio for driveability and emission control.
The three way catalyst (manifold) can then better r educe CO, HC and NOx emissions. This system uses A/F
sensor 1 in the exhaust manifold to monitor whether t he engine operation is rich or lean. The ECM adjusts the
injection pulse width according to the sensor voltage si gnal. For more information about A/F sensor 1, refer to
EC-32, "Air Fuel Ratio (A/F) Sensor 1"
. This maintains the mixture rati o within the range of stoichiometric
(ideal air-fuel mixture).
This stage is referred to as the closed loop control condition.
Heated oxygen sensor 2 is located downstream of the th ree way catalyst (manifold). Even if the switching
characteristics of A/F sensor 1 shift, the air-fuel rati o is controlled to stoichiometric by the signal from heated
oxygen sensor 2.
• Open Loop Control
The open loop system condition refers to when the EC M detects any of the following conditions. Feedback
control stops in order to maintain stabilized fuel combustion.
- Deceleration and acceleration
- High-load, high-speed operation
- Malfunction of A/F sensor 1 or its circuit
- Insufficient activation of A/F sensor 1 at low engine coolant temperature
- High engine coolant temperature
- During warm-up
- After shifting from N to D
- When starting the engine
MIXTURE RATIO SELF-LEARNING CONTROL
The mixture ratio feedback control system monitors the mixture ratio signal transmitted from A/F sensor 1.
This feedback signal is then sent to the ECM. The ECM cont rols the basic mixture ratio as close to the theoret-
ical mixture ratio as possible. However, the basic mi xture ratio is not necessarily controlled as originally
designed. Both manufacturing differences (i.e., mass air flow sensor hot wire) and characteristic changes dur-
ing operation (i.e., fuel injector clogging) directly affect mixture ratio.
Accordingly, the difference between the basic and theoretical mixture ratios is monitored in this system. This is
then computed in terms of “injection pulse duration” to automatically compensate for the difference between
the two ratios.
“Fuel trim” refers to the feedback compensation value co mpared against the basic injection duration. Fuel trim
includes short term fuel trim and long term fuel trim.
“Short term fuel trim” is the short-term fuel compensati on used to maintain the mixture ratio at its theoretical
value. The signal from A/F sensor 1 indicates whether the mixture ratio is RICH or LEAN compared to the the-
oretical value. The signal then triggers a reduction in fuel volume if the mixture ratio is rich, and an increase in
fuel volume if it is lean.
“Long term fuel trim” is overall fuel compensation ca rried out long-term to compensate for continual deviation
of the short term fuel trim from the central value. Such deviation will occur due to individual engine differences,
wear over time and changes in the usage environment.

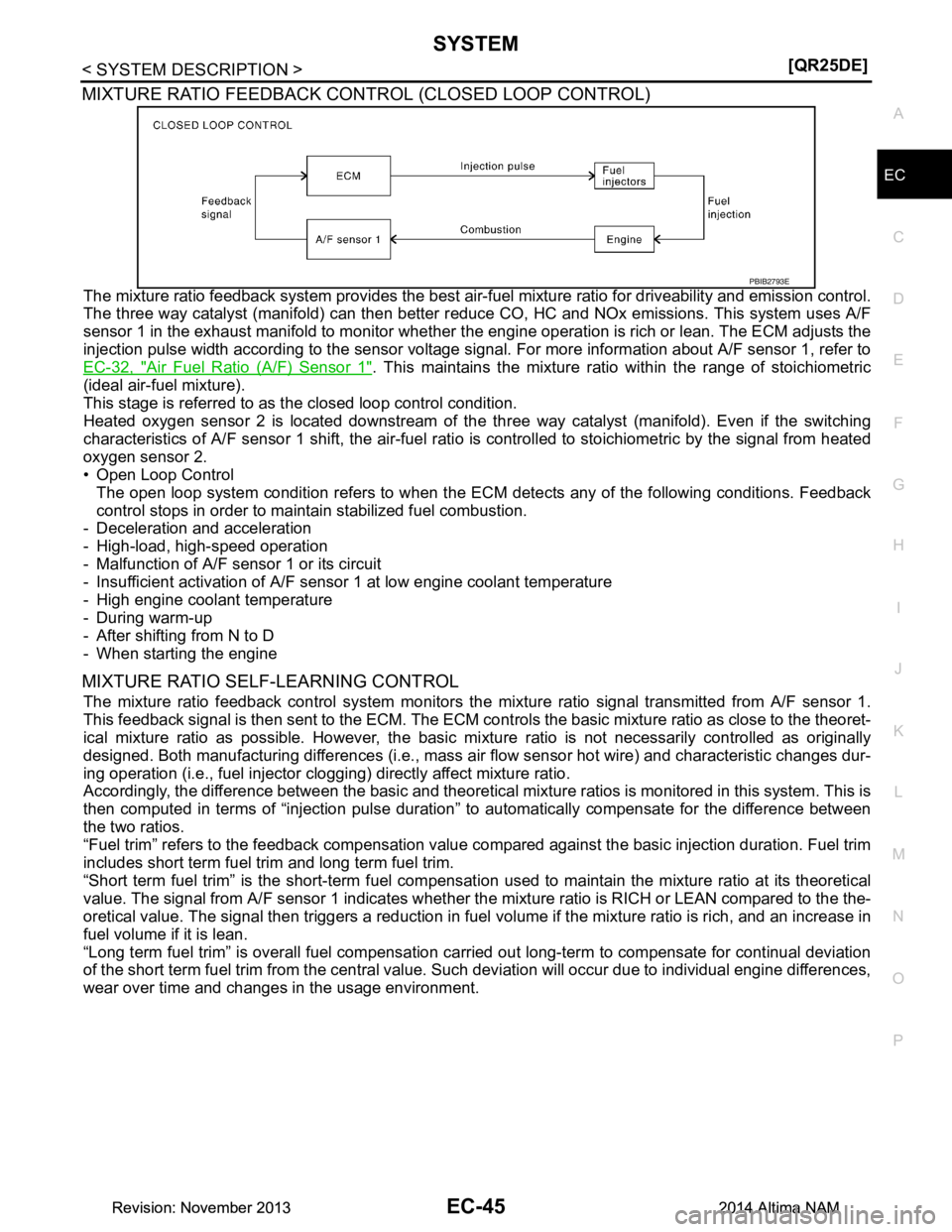

PBIB2793E
Revision: November 20132014 Altima NAMRevision: November 20132014 Altima NAM
