MOTORCRAFT PARTS
2.0L ATK iVCT Engine
Component
FA-1911
Air filter element 1
FL-910-S
Oil filter 2
BXT-96R-500
Battery
BXT-96R-590
SP-531
Spark plugs 3
FP-71
Cabin air filter
FS-104
Seat filter
WW-2200 (driver side)
Windshield wiper blade
WW-1900 (passenger side)
1 Failure to use the correct air filter element may result in severe engi\
ne damage. The
customer warranty may be void for any damage to the engine if the correc\
t air filter
element is not used.
2 Only use the specified replacement oil filter. The use of a non-specified oil filter can
result in engine damage.
3 For spark plug replacement, see your authorized dealer. Replace the spark plugs at
the appropriate intervals. See Scheduled Maintenance (page 412).
Note:
Replace the spark plugs with ones that meet Ford material and design spec\
ifications
for your vehicle, such as Motorcraft or equivalent replacement parts. The customer
warranty may be void for any damage to the engine if such spark plugs ar\
e not used.
303
MKZ (CC9) Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle
identification number.
The Vehicle Identification Number contains
the following information: World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
304
MKZ (CC9) Capacities and SpecificationsE142476 E142477

VEHICLE CERTIFICATION LABEL
The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door
latch, next to the driver's seating position. TRANSMISSION CODE
DESIGNATION
The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.
Code
Description
J
Electronic continuously variable transmission (ECVT),
automatic, power split, shift by wire
305
MKZ (CC9) Capacities and SpecificationsE167469 E167814

TECHNICAL SPECIFICATIONS
Ford part number / Ford
specification
Ford part name or
equivalent
Capacity
Item
PM-20/
Motorcraft DOT 4
LV High Perform-ance Brake Fluid
Between MIN and
MAX on reservoir
Brake fluid 1
WSS-M6C65-A2
Motorcraft XL-5 (aerosol) /
CRCSL3151ESB/
Multi-Purpose
Grease (lithium grease)
Not applicable
Hinges, latches,
striker plates and
rotors, seat tracks, fuel filler door
hinge and spring ESB-M1C93-B
XL-1 / None
Motorcraft Penet-
rating and Lock Lubricant
Not applicable
Lock cylinder
XT-10-QLV MERCONLV
Motorcraft
MERCON LV ATF
5.7 qt (5.4L)
Automatic transmis-
sion fluid 2, 3
WSS-M2C947-A
Motorcraft SAE 0W-
20 motor oil or equivalent
4.5 qt (4.3L)
Hybrid engine oil 4,
5, 6, 7
VC-3DIL-B (U.S.);
Motorcraft Orange
Antifreeze/Coolant Prediluted
8.2 qt (7.8L)
Hybrid engine
coolant 8
CVC-3DIL-B (Canada)
/ WSS-M97B44-D2
1 qt (1.0L)
Inverter system
controller coolant 8
ZC-32-A (U.S.);
Motorcraft Premium
Windshield Washer
Concentrate with Bitterant(U.S.);
Fill as required
Windshield washer
fluid CXC-37-(A, B, D, and
F) (Canada)
/ WSB-M8B16-A2
Premium Quality
Windshield Washer Fluid (Canada)
Not applicable
Not applicable
13.5 gal (51.1L)
Hybrid fuel tank
306
MKZ (CC9) Capacities and Specifications

Ford part number / Ford
specification
Ford part name or
equivalent
Capacity
Item

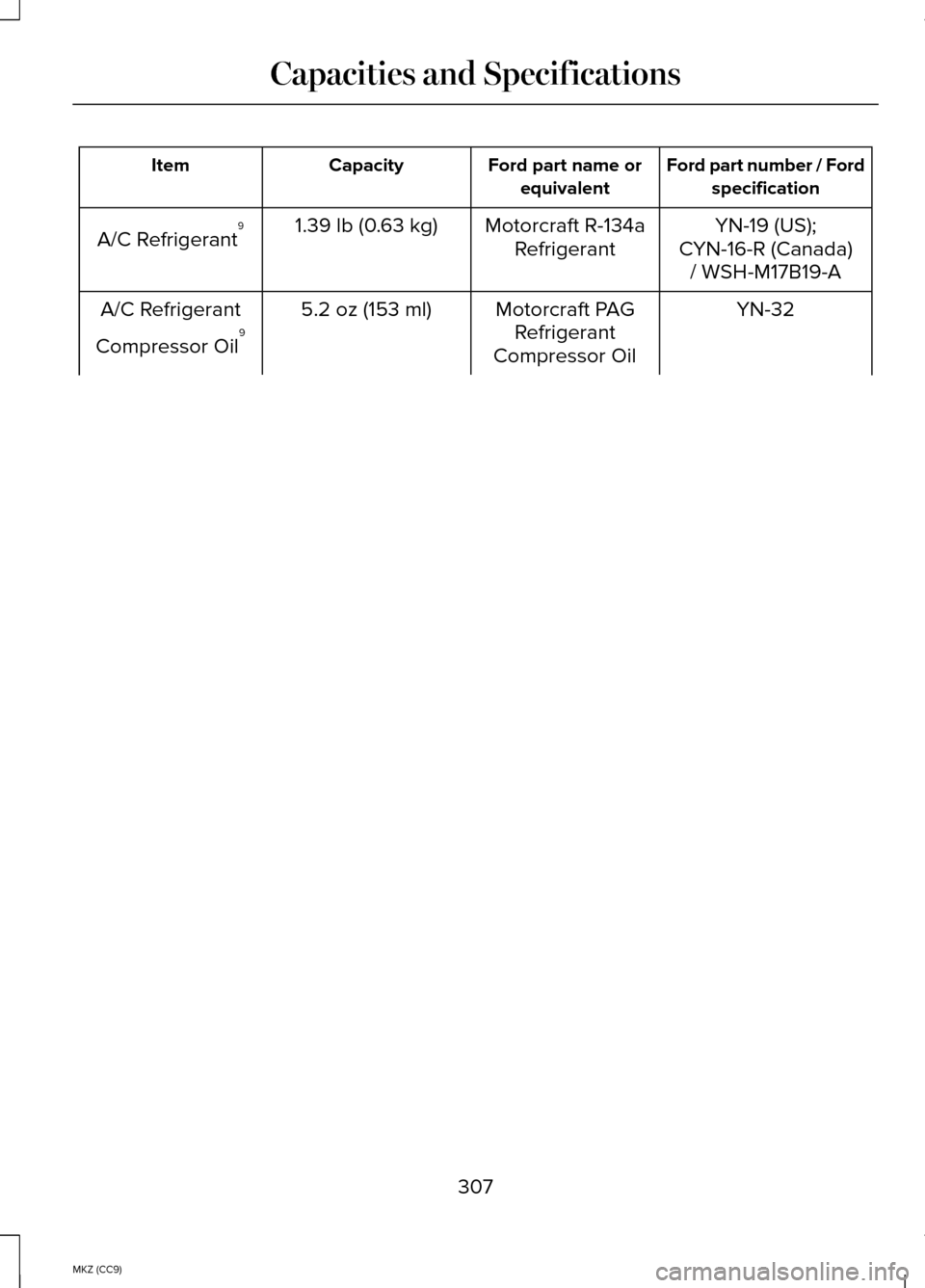

YN-19 (US);
Motorcraft R-134a
Refrigerant
1.39 lb (0.63 kg)
A/C Refrigerant 9
CYN-16-R (Canada)/ WSH-M17B19-A
YN-32
Motorcraft PAG
Refrigerant
Compressor Oil
5.2 oz (153 ml)
A/C Refrigerant
Compressor Oil 9
307
MKZ (CC9) Capacities and Specifications

Ford part number / Ford
specification
Ford part name or
equivalent
Capacity
Item
/WSS-M2C31-B2
1 Ford recommends using Motorcraft (Ford) DOT 4 LV High Performance Motor Vehicle
Brake Fluid or equivalent meeting WSS-M6C65-A2. Use of any fluid other than \
the
recommended fluid may cause degraded brake performance and not meet the Ford
performance standards. Keep brake fluid clean and dry. Contamination with dirt, water,
petroleum products or other materials may result in brake system damage and possible
failure.
2 Approximate dry fill capacity. Actual amount may vary during fluid changes.
3 Automatic transmissions that require Motorcraft MERCON LV transmission fluid should
only use Motorcraft MERCON LV transmission fluid.
Use of any fluid other than the recommended fluid may cause transmission\
damage.
Change the automatic transmission fluid and filter at the correct servic\
e interval. See
Scheduled Maintenance (page 412).
4 The design of your engine allows for the use of Motorcraft engine oils o\
r equivalent oils
that meet Ford specifications. It is also acceptable to use an engine oi\
l of recommended
viscosity grade that meets API SN requirements and displays the API cert\
ification mark
for gasoline engines.
5 Do not use supplemental engine oil additives, cleaners or other engine t\
reatments. They
are unnecessary and could lead to engine damage not covered by Ford warr\
anty.
6 Do not use API S category oils labeled as SN, SM, SL or lower category u\
nless the label
also displays the API certification mark. These oils do not meet the req\
uirements of the
engine and emission system.
7 You can use 5W-20 oil if 0W-20 oil is not available.
8 Add the coolant type originally equipped in your vehicle.
9 See the warning below: WARNING
The air conditioning refrigerant system contains refrigerant R-134a unde\
r high
pressure. Opening the air conditioning refrigerant system can cause personal inj\
ury.
Have the air conditioning refrigerant system serviced only by qualified \
personnel. 308
MKZ (CC9) Capacities and Specifications

GENERAL INFORMATION

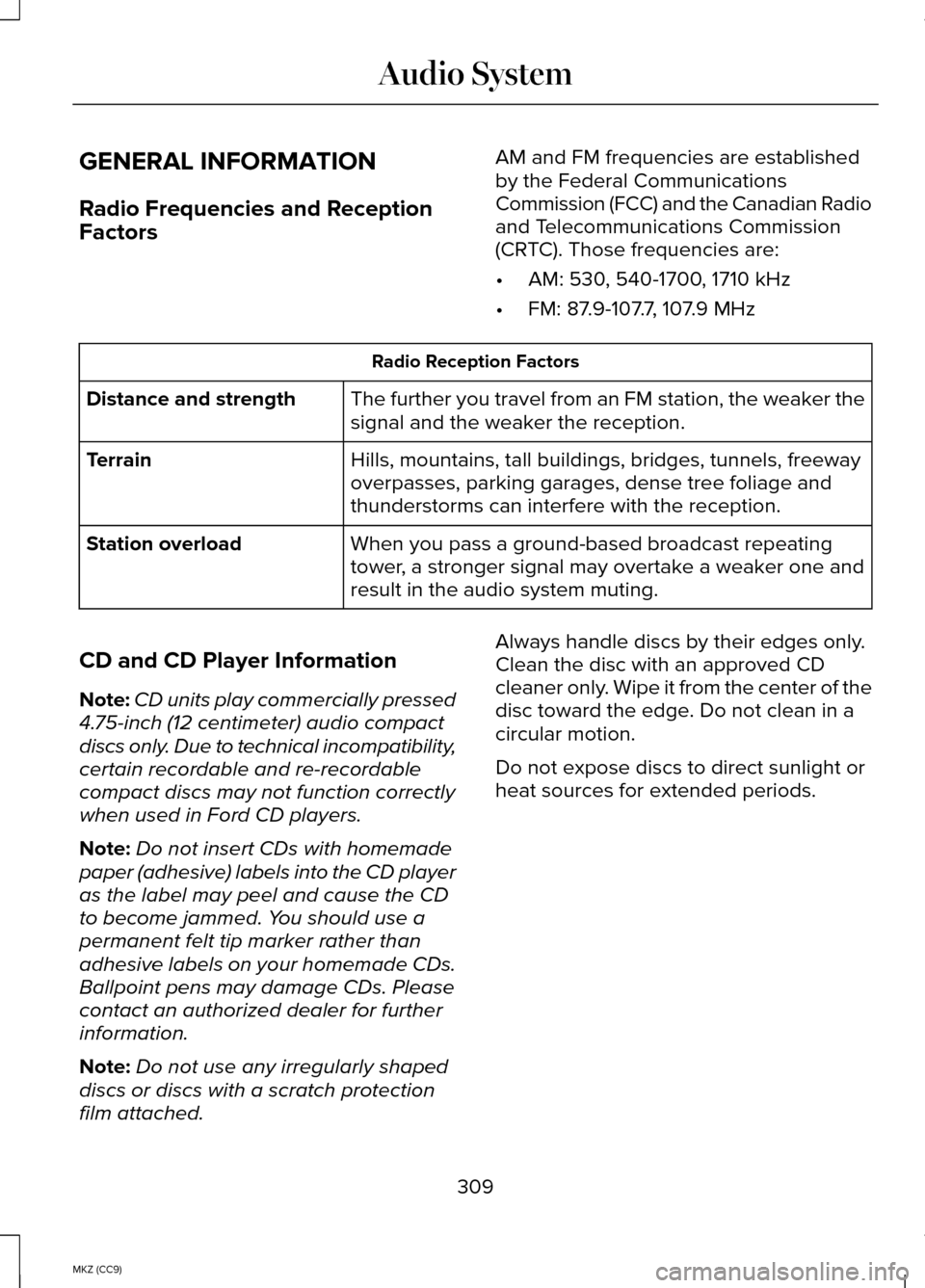

Radio Frequencies and Reception
Factors
AM and FM frequencies are established
by the Federal Communications
Commission (FCC) and the Canadian Radio
and Telecommunications Commission
(CRTC). Those frequencies are:
•
AM: 530, 540-1700, 1710 kHz
• FM: 87.9-107.7, 107.9 MHz Radio Reception Factors
The further you travel from an FM station, the weaker the
signal and the weaker the reception.
Distance and strength
Hills, mountains, tall buildings, bridges, tunnels, freeway
overpasses, parking garages, dense tree foliage and
thunderstorms can interfere with the reception.
Terrain
When you pass a ground-based broadcast repeating
tower, a stronger signal may overtake a weaker one and
result in the audio system muting.
Station overload
CD and CD Player Information
Note: CD units play commercially pressed
4.75-inch (12 centimeter) audio compact
discs only. Due to technical incompatibility,
certain recordable and re-recordable
compact discs may not function correctly
when used in Ford CD players.
Note: Do not insert CDs with homemade
paper (adhesive) labels into the CD player
as the label may peel and cause the CD
to become jammed. You should use a
permanent felt tip marker rather than
adhesive labels on your homemade CDs.
Ballpoint pens may damage CDs. Please
contact an authorized dealer for further
information.
Note: Do not use any irregularly shaped
discs or discs with a scratch protection
film attached. Always handle discs by their edges only.
Clean the disc with an approved CD
cleaner only. Wipe it from the center of the
disc toward the edge. Do not clean in a
circular motion.
Do not expose discs to direct sunlight or
heat sources for extended periods.
309
MKZ (CC9) Audio System

MP3 Track and Folder Structure
Audio systems capable of recognizing and
playing MP3 individual tracks and folder
structures work as follows:
•
There are two different modes for MP3
disc playback: MP3 track mode (system
default) and MP3 folder mode.
• MP3 track mode ignores any folder
structure on the MP3 disc. The player
numbers each MP3 track on the disc
(noted by the .mp3 file extension) from
T001 to a maximum of T255. The
maximum number of playable MP3 files
may be less depending on the
structure of the CD and exact model
of radio present.
• MP3 folder mode represents a folder
structure consisting of one level of
folders. The CD player numbers all
MP3 tracks on the disc (noted by the
.mp3 file extension) and all folders
containing MP3 files, from F001 (folder)
T001 (track) to F253 T255.
• Creating discs with only one level of
folders helps with navigation through
the disc files.
If you are burning your own MP3 discs, it
is important to understand how the system
reads the structures you create. While
various files may be present, (files with
extensions other than mp3), only files with
the .mp3 extension are played; other files
are ignored by the system. This enables
you to use the same MP3 disc for a variety
of tasks on your work computer, home
computer and your in-vehicle system. In track mode, the system displays and
plays the structure as if it were only one
level deep (all .mp3 files play, regardless
of being in a specific folder). In folder
mode, the system only plays the .mp3 files
in the current folder.
AUDIO UNIT - VEHICLES WITH:
PREMIUM AM/FM/CD
