2014 FIAT 500L LIVING Owners Manual

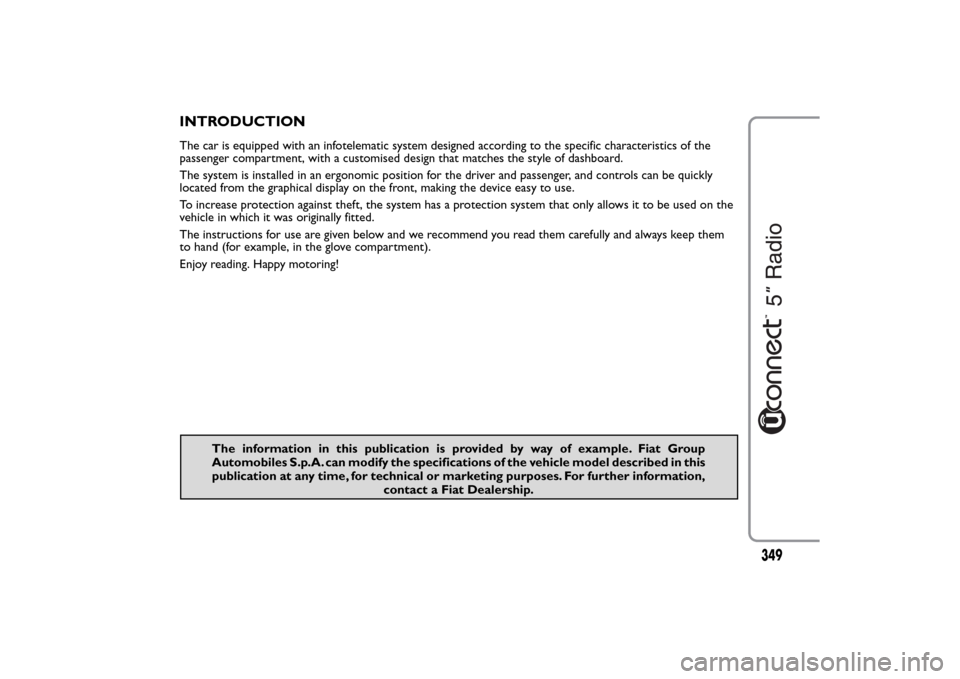

INTRODUCTIONThe car is equipped with an infotelematic system designed according to the specific characteristics of the
passenger compartment, with a customised design that matches the style of dashboard.
The system is installed in an ergonomic position for the driver and passenger, and controls can be quickly
located from the graphical display on the front, making the device easy to use.
To increase protection against theft, the system has a protection system that only allows it to be used on the
vehicle in which it was originally fitted.
The instructions for use are given below and we recommend you read them carefully and always keep them
to hand (for example, in the glove compartment).
Enjoy reading. Happy motoring!
The information in this publication is provided by way of example. Fiat Group
Automobiles S.p.A. can modify the specifications of the vehicle model described in this
publication at any time, for technical or marketing purposes. For further information,
contact a Fiat Dealership.
349

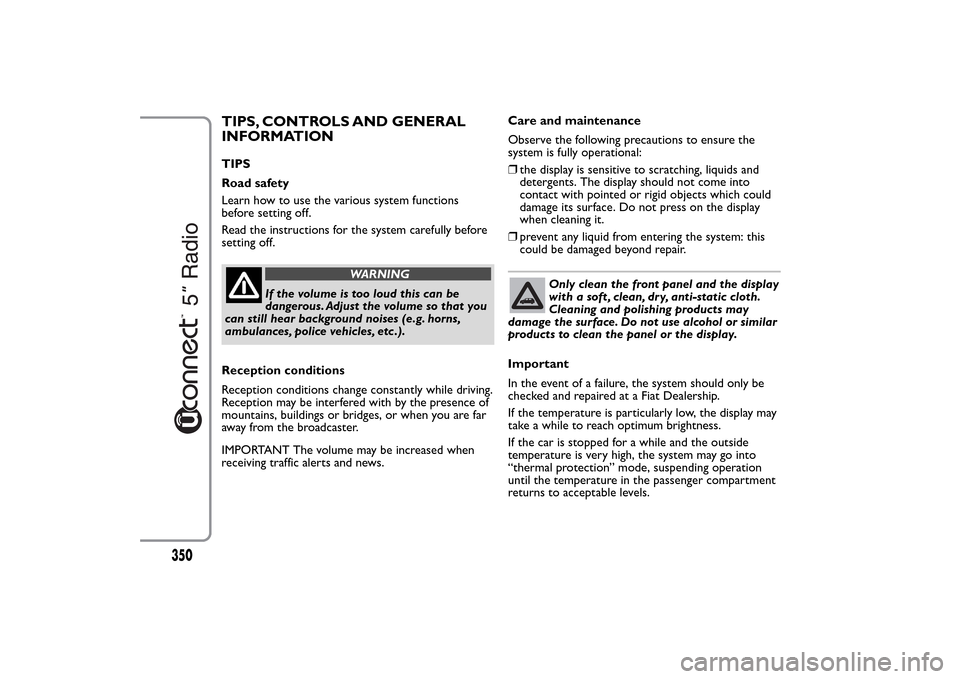

TIPS, CONTROLS AND GENERAL
INFORMATIONTIPS
Road safety
Learn how to use the various system functions
before setting off.
Read the instructions for the system carefully before
setting off.
WARNING
If the volume is too loud this can be
dangerous. Adjust the volume so that you
can still hear background noises (e.g. horns,
ambulances, police vehicles, etc .).
Reception conditions
Reception conditions change constantly while driving.
Reception may be interfered with by the presence of
mountains, buildings or bridges, or when you are far
away from the broadcaster.
IMPORTANT The volume may be increased when
receiving traffic alerts and news.Care and maintenance
Observe the following precautions to ensure the
system is fully operational:
❒the display is sensitive to scratching, liquids and
detergents. The display should not come into
contact with pointed or rigid objects which could
damage its surface. Do not press on the display
when cleaning it.
❒prevent any liquid from entering the system: this
could be damaged beyond repair.
Only clean the front panel and the display
with a soft , clean, dry, anti-static cloth.
Cleaning and polishing products may
damage the surface. Do not use alcohol or similar
products to clean the panel or the display.
Important
In the event of a failure, the system should only be
checked and repaired at a Fiat Dealership.
If the temperature is particularly low, the display may
take a while to reach optimum brightness.
If the car is stopped for a while and the outside
temperature is very high, the system may go into
“thermal protection” mode, suspending operation
until the temperature in the passenger compartment
returns to acceptable levels.
350

CD
Dirt, scratches or any distortions on CDs may cause
skipping during playback and poor sound quality.
Follow these tips for optimum playback conditions:
❒only use CDs with the following mark:❒clean every CD thoroughly removing any
fingerprints or dust using a soft cloth. Hold CDs by
the circumference and clean them from the centre
towards the edge;
❒never use chemical products (e.g. antistatic,
thinner or spray cans) for cleaning as they could
damage the surface of the CDs;
❒after listening to them place CDs back in their
cases to avoid them being damaged;
❒do not expose CDs to direct sunlight, high
temperatures or moisture for long periods;
❒do not stick labels on the surface of the CD and
do not write on the recorded surface using pens
or pencils;
❒never use CDs that are very scratched, cracked,
deformed, etc. Their use could cause damage the
player or make it malfunction.To achieve the best quality audio reproduction we
recommend the use of original CD supports. Correct
operation is not guaranteed when CD-R/RW media
are used that were not correctly burnt and/or with a
maximum capacity above 650 Mb.
IMPORTANT Do not use commercially available
protective sheets for CDs or discs with stabilisers as
they could get stuck in the internal mechanism and
damage the disc.
IMPORTANT If a copy-protected CD is used, it may
take a few seconds before the system starts to play
it. The CD player cannot be guaranteed to play all
protected discs. The presence of copy protection is
often in small letters or may be difficult to read on
the cover of the actual CD and it may say something
like, for example, "COPY CONTROL", "COPY
PROTECTED", "THIS CD CANNOT BE PLAYED
ON A PC/MAC" or identified through the use of
symbols, such as, for example:
IMPORTANT If a multisession disc is loaded, only the
first session will be played.
351

MULTIMEDIA DEVICES: SUPPORTED
AUDIO FILES AND FORMATS
For CD, USB and iPod sources the system can play
files with the following extensions and formats:
❒.MP3 (32 – 320Kbps);
❒. WAV ;
❒.WMA (5 – 320Kbps) mono and stereo;
❒.AAC (8 – 96KHz) mono and stereo;
❒.M4A (8 – 96KHz) mono and stereo;
❒.M4B (8 – 96KHz) mono and stereo;
❒.MP4 (8 – 96KHz) mono and stereo.
For all sources (CD, AUX, iPod andBluetooth®),
the system can also play the following Playlist
formats:
❒.M3U
❒.WPL
NOTE It makes no difference whether the suffixes
are written in capital or small letters.NOTES ON TRADEMARKS
iPod, iTunes and iPhone are registered trademarks of
Apple Inc.
All other trademarks are the property of their
respective owners.
Apple is not responsible for the operation of this
device and of its conformity with the safety rules and
standards.The DAB/DAB+/DMB Digital Radio function has
been certified according to the specifications of
"ARD" white sticker, for Class A - Audio services.
ARD is a trademark of the Associazione per la
Radiofonia Digitale in Italia.
352

EXTERNAL AUDIO SOURCES
Other electronic devices (e.g. iPod, PDA, etc...) can
be used on the car.
Some of them can however cause electromagnetic
interference. Disconnect these devices if the system
performance worsens.
NOTE The system supports only FAT32-formatted
USB devices. The system does not support devices
with a capacity higher than 64 Gb.
ANTI-THEFT PROTECTION
uconnect™ is equipped with an anti-theft
protection system based on the exchange of
information with the electronic control unit (Body
Computer) on the car.
This guarantees maximum safety and prevents the
secret code from being entered after the power
supply has been disconnected.
If the check has a positive outcome, the system will
start to function, whereas if the comparison codes
are not the same or if the electronic control unit
(Body Computer) is replaced, the system will ask the
user to enter the secret code according to the
procedure described in the paragraph below.Entering the secret code
When the system is switched on, if the code is
requested, the display will show "Please enter Anti-
Theft Code" followed by the video page showing a
keypad to enter the secret code.
The secret code is made up of four digits, from 1 to
9: to insert the first number of the code press the
corresponding key on the display. Enter the other
code digits in the same way.
After entering the fourth figure,uconnect™ begins
operating.
If an incorrect code is entered, the system displays
"Incorrect Code. Please Try Again" to notify the user
of the need to enter the correct code.
After the 3 available attempts to enter the code, the
system displays "Incorrect Code. Radio locked. Please
wait 30 minutes": the waiting time is displayed. Once
the text has disappeared you can start the code
entering procedure again.
353

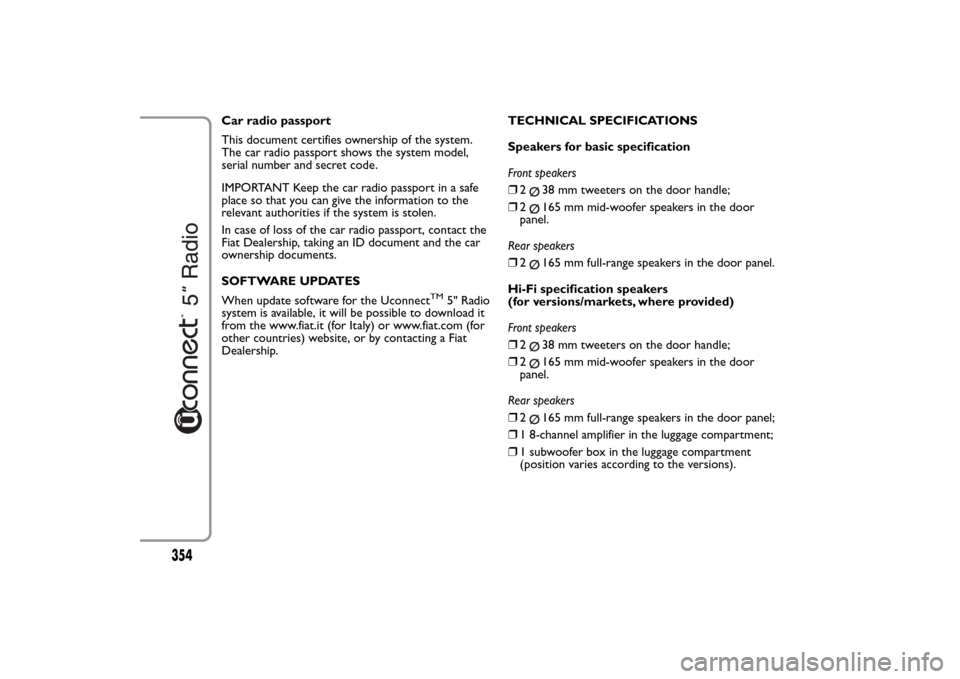

Car radio passport
This document certifies ownership of the system.
The car radio passport shows the system model,
serial number and secret code.
IMPORTANT Keep the car radio passport in a safe
place so that you can give the information to the
relevant authorities if the system is stolen.
In case of loss of the car radio passport, contact the
Fiat Dealership, taking an ID document and the car
ownership documents.
SOFTWARE UPDATES
When update software for the Uconnect
TM
5" Radio
system is available, it will be possible to download it
from the www.fiat.it (for Italy) or www.fiat.com (for
other countries) website, or by contacting a Fiat
Dealership.TECHNICAL SPECIFICATIONS
Speakers for basic specification
Front speakers
❒2
38 mm tweeters on the door handle;
❒2165 mm mid-woofer speakers in the door
panel.
Rear speakers
❒2165 mm full-range speakers in the door panel.
Hi-Fi specification speakers
(for versions/markets, where provided)
Front speakers
❒238 mm tweeters on the door handle;
❒2165 mm mid-woofer speakers in the door
panel.
Rear speakers
❒2165 mm full-range speakers in the door panel;
❒1 8-channel amplifier in the luggage compartment;
❒1 subwoofer box in the luggage compartment
(position varies according to the versions).
354

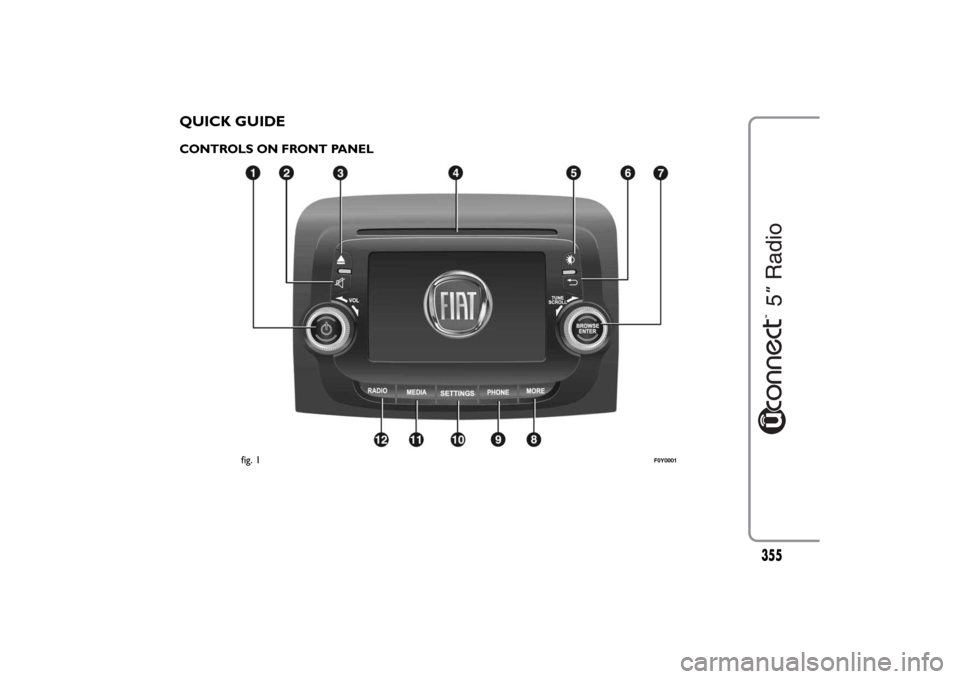

QUICK GUIDECONTROLS ON FRONT PANEL
fig. 1
F0Y0001
355

FRONT PANEL CONTROL SUMMARY TABLEButton Functions Mode
1-
Ignition Brief button press
Off Brief button press
Volume adjustment Left/right rotation of knob
2-Volume activation/deactivation (Mute/Pause) Brief button press
3-CD ejection Brief button press
4CD housing –
5-Display on/off Brief button press
6-Exit the selection/return to previous screen Brief button press
7-BROWSE
ENTERScrolling the list or tuning to a radio station Left/right rotation of knob
Confirmation of the option displayed Brief button press
8 - MOREAccessing the addition functions (displaying of
Time, Trip Computer, eco:Drive function data)Brief button press
9 - PHONEPhone data displaying Brief button press
10 - SETTINGSAccessing the Vehicle Settings menu Brief button press
11 - MEDIASource selection: CD, USB/iPod, AUX orBluetooth
®Brief button press
12 - RADIOAccessing the Radio mode Brief button press
356
