2014 FIAT 500L LIVING Owners Manual

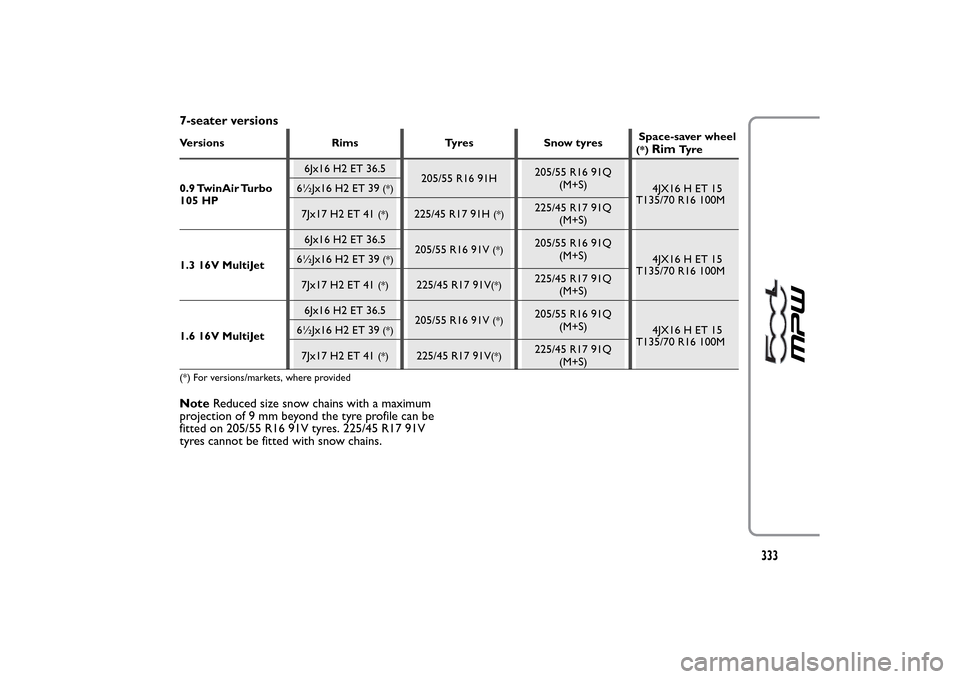

7-seater versionsVersions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim
Ty r e
0.9 TwinAir Turbo
105 HP6Jx16 H2 ET 36.5
205/55 R16 91H205/55 R16 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
(*)
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
1.3 16V MultiJet6Jx16 H2 ET 36.5
205/55 R16 91V
(*)
205/55 R16 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
(*)
225/45 R17 91V
(*)
225/45 R17 91Q
(M+S)
1.6 16V MultiJet6Jx16 H2 ET 36.5
205/55 R16 91V
(*)
205/55 R16 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
(*)
225/45 R17 91V
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where providedNoteReduced size snow chains with a maximum
projection of 9 mm beyond the tyre profile can be
fitted on 205/55 R16 91V tyres. 225/45 R17 91V
tyres cannot be fitted with snow chains.
333

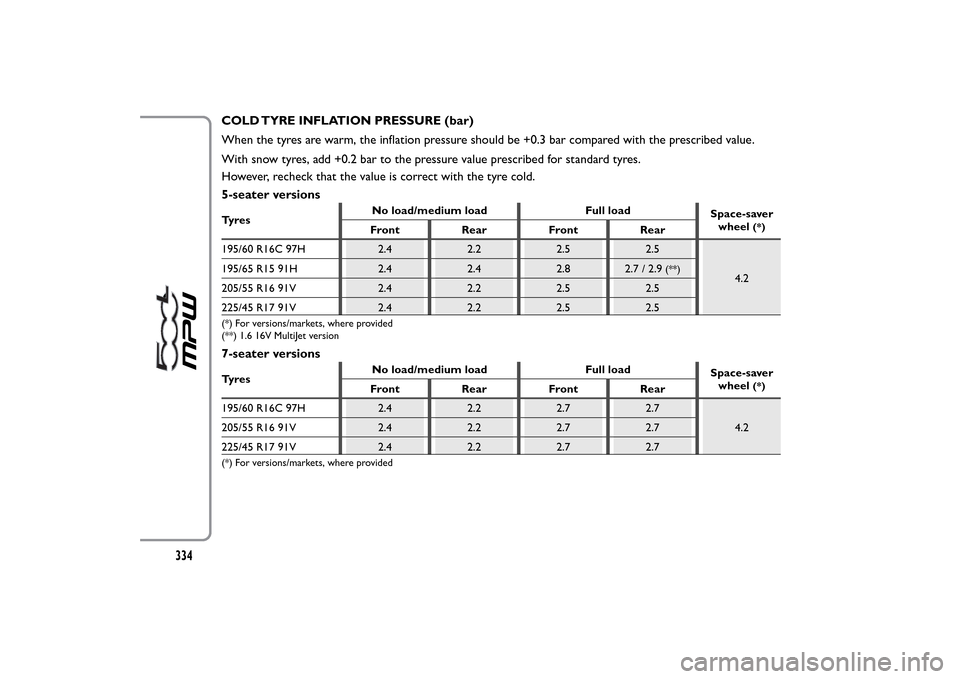

COLD TYRE INFLATION PRESSURE (bar)
When the tyres are warm, the inflation pressure should be +0.3 bar compared with the prescribed value.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
However, recheck that the value is correct with the tyre cold.
5-seater versionsTy r e sNo load/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/60 R16C 97H 2.4 2.2 2.5 2.5
4.2 195/65 R15 91H 2.4 2.4 2.8
2.7 / 2.9
(**)
205/55 R16 91V 2.4 2.2 2.5 2.5
225/45 R17 91V 2.4 2.2 2.5 2.5(*) For versions/markets, where provided
(**) 1.6 16V MultiJet version7-seater versionsTy r e sNo load/medium load Full load
Space-saver
wheel
(*)
Front Rear Front Rear
195/60 R16C 97H 2.4 2.2 2.7 2.7
4.2 205/55 R16 91V 2.4 2.2 2.7 2.7
225/45 R17 91V 2.4 2.2 2.7 2.7
(*) For versions/markets, where provided
334

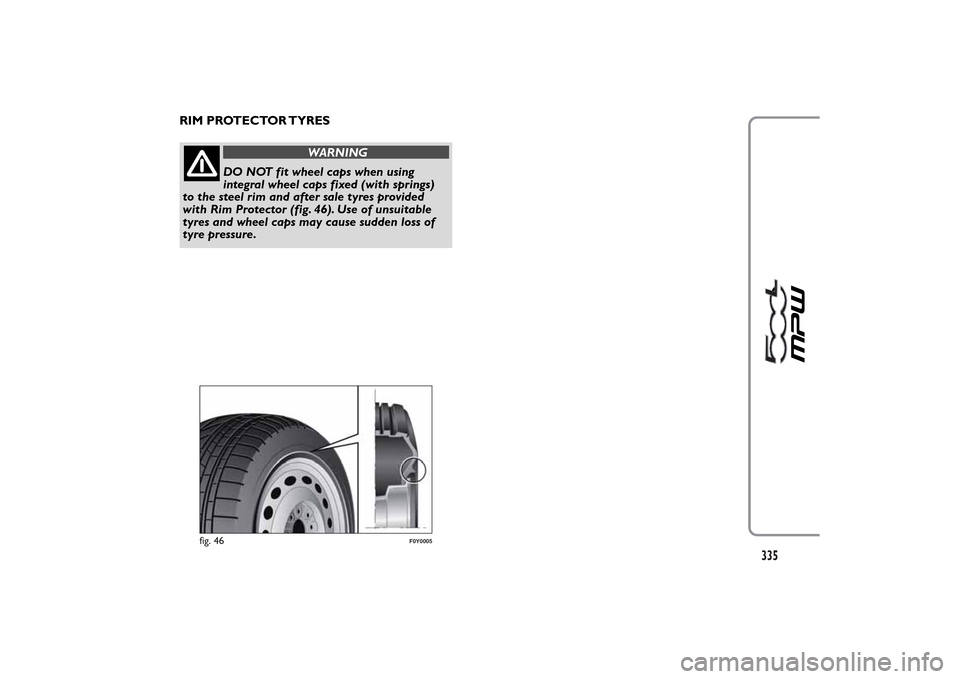

RIM PROTECTOR TYRES
WARNING
DO NOT fit wheel caps when using
integral wheel caps fixed (with springs)
to the steel rim and after sale tyres provided
with Rim Protector (fig. 46). Use of unsuitable
tyres and wheel caps may cause sudden loss of
tyre pressure.
fig. 46
F0Y0005
335

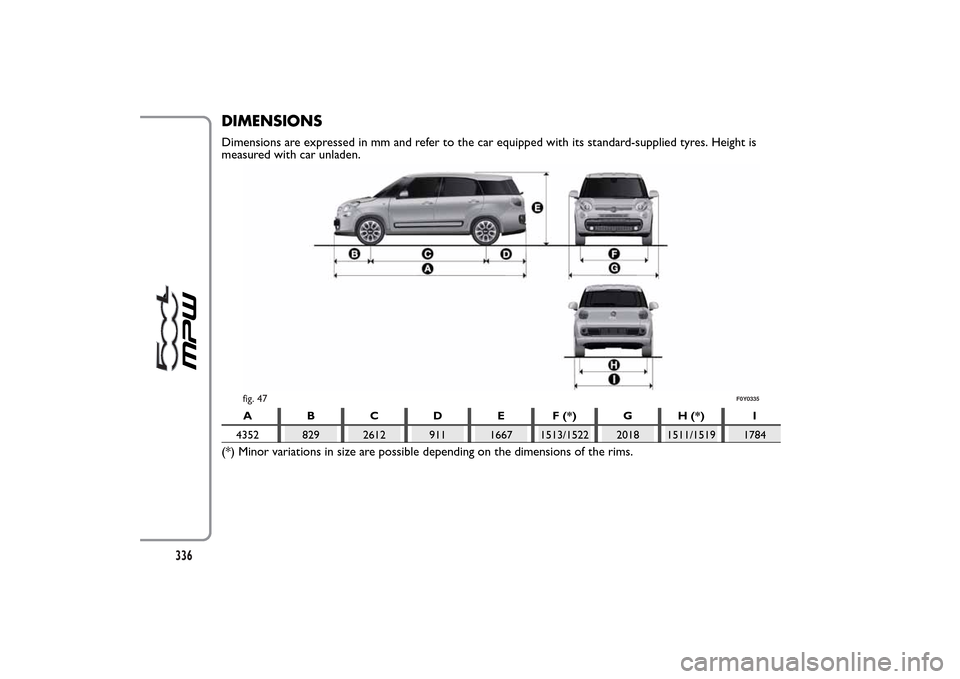

DIMENSIONSDimensions are expressed in mm and refer to the car equipped with its standard-supplied tyres. Height is
measured with car unladen.
A B C D E F (*) G H (*) I
4352 829 2612 911 1667 1513/1522 2018 1511/1519 1784
(*) Minor variations in size are possible depending on the dimensions of the rims.
fig. 47
F0Y0335
336

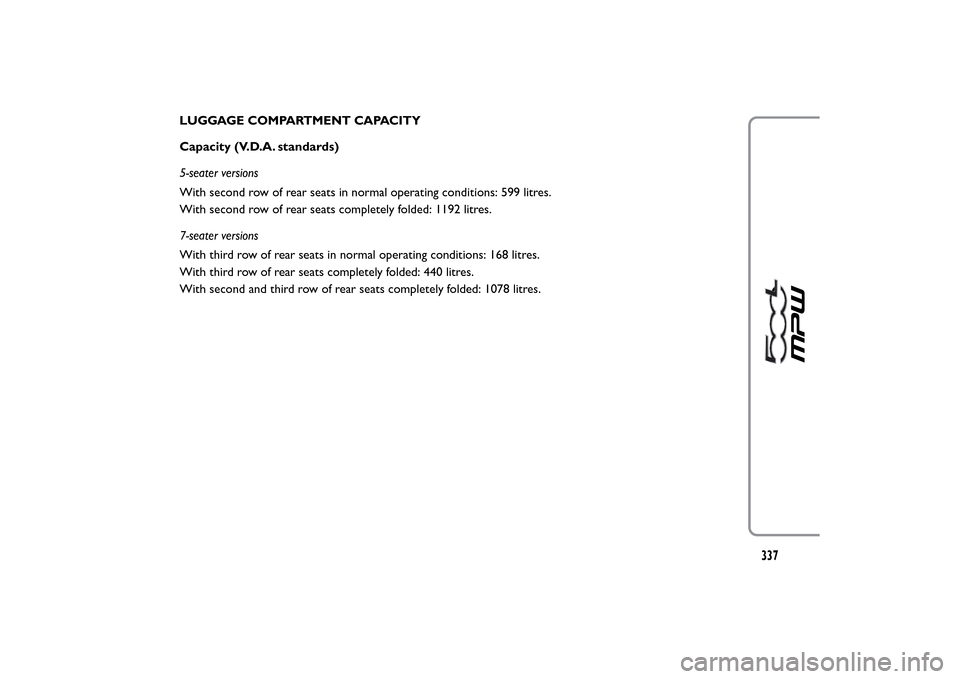

LUGGAGE COMPARTMENT CAPACITY
Capacity (V.D.A. standards)
5-seater versions
With second row of rear seats in normal operating conditions: 599 litres.
With second row of rear seats completely folded: 1192 litres.
7-seater versions
With third row of rear seats in normal operating conditions: 168 litres.
With third row of rear seats completely folded: 440 litres.
With second and third row of rear seats completely folded: 1078 litres.
337

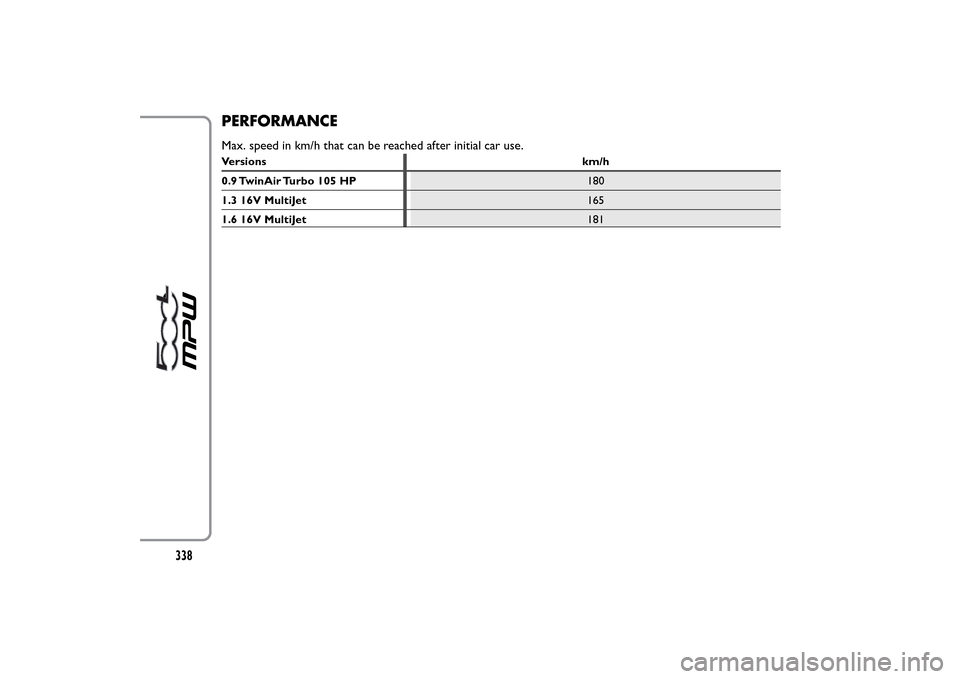

PERFORMANCEMax. speed in km/h that can be reached after initial car use.Versions km/h
0.9 TwinAir Turbo 105 HP180
1.3 16V MultiJet165
1.6 16V MultiJet181
338

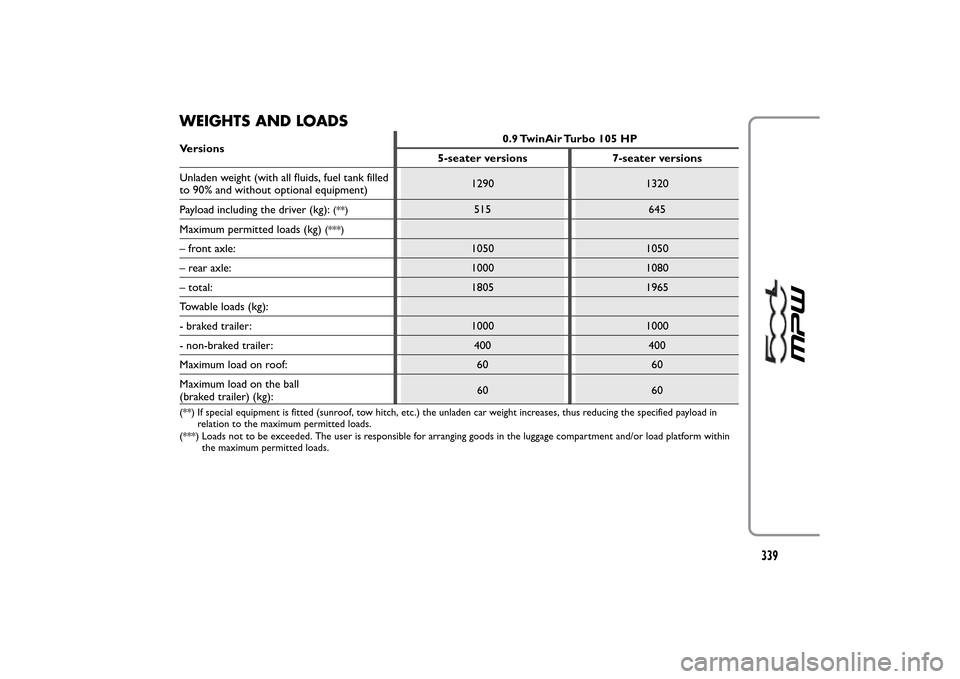

WEIGHTS AND LOADSVersions0.9 TwinAir Turbo 105 HP
5-seater versions 7-seater versions
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1290 1320
Payload including the driver (kg):
(**)
515 645
Maximum permitted loads (kg)
(***)
– front axle: 1050 1050
– rear axle: 1000 1080
– total: 1805 1965
Towable loads (kg):
- braked trailer: 1000 1000
- non-braked trailer: 400 400
Maximum load on roof: 60 60
Maximum load on the ball
(braked trailer) (kg):60 60(**) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permitted loads.
(***) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
339

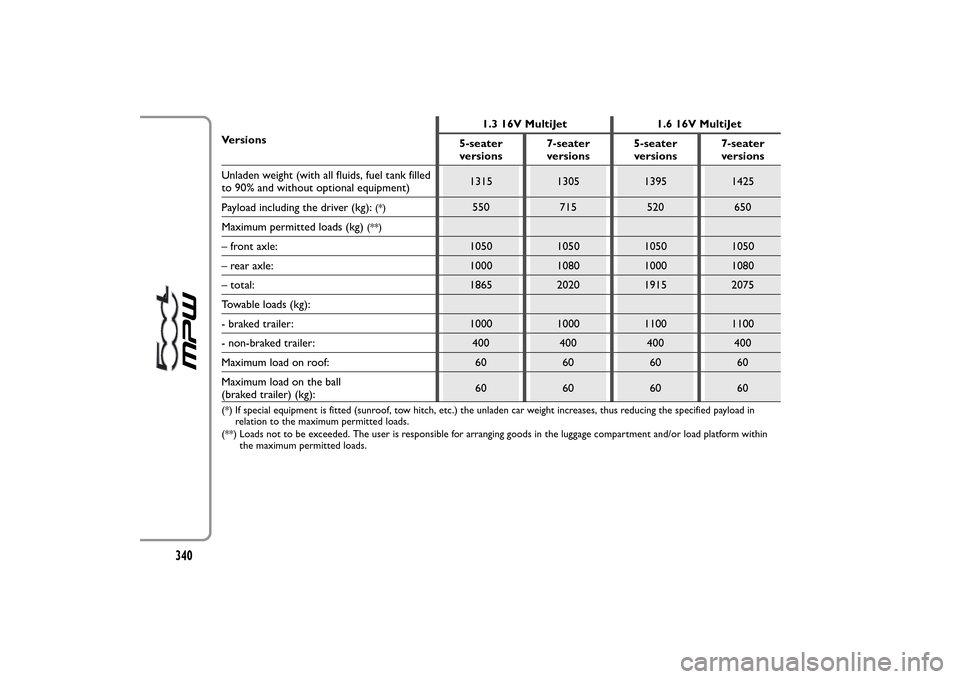

Versions1.3 16V MultiJet 1.6 16V MultiJet
5-seater
versions7-seater
versions5-seater
versions7-seater
versions
Unladen weight (with all fluids, fuel tank filled
to 90% and without optional equipment)1315 1305 1395 1425
Payload including the driver (kg):
(*)
550 715 520 650
Maximum permitted loads (kg)
(**)
– front axle: 1050 1050 1050 1050
– rear axle: 1000 1080 1000 1080
– total: 1865 2020 1915 2075
Towable loads (kg):
- braked trailer: 1000 1000 1100 1100
- non-braked trailer: 400 400 400 400
Maximum load on roof: 60 60 60 60
Maximum load on the ball
(braked trailer) (kg):60 60 60 60(*) If special equipment is fitted (sunroof, tow hitch, etc.) the unladen car weight increases, thus reducing the specified payload in
relation to the maximum permitted loads.
(**) Loads not to be exceeded. The user is responsible for arranging goods in the luggage compartment and/or load platform within
the maximum permitted loads.
340
