2014 FIAT 500L LIVING Owners Manual

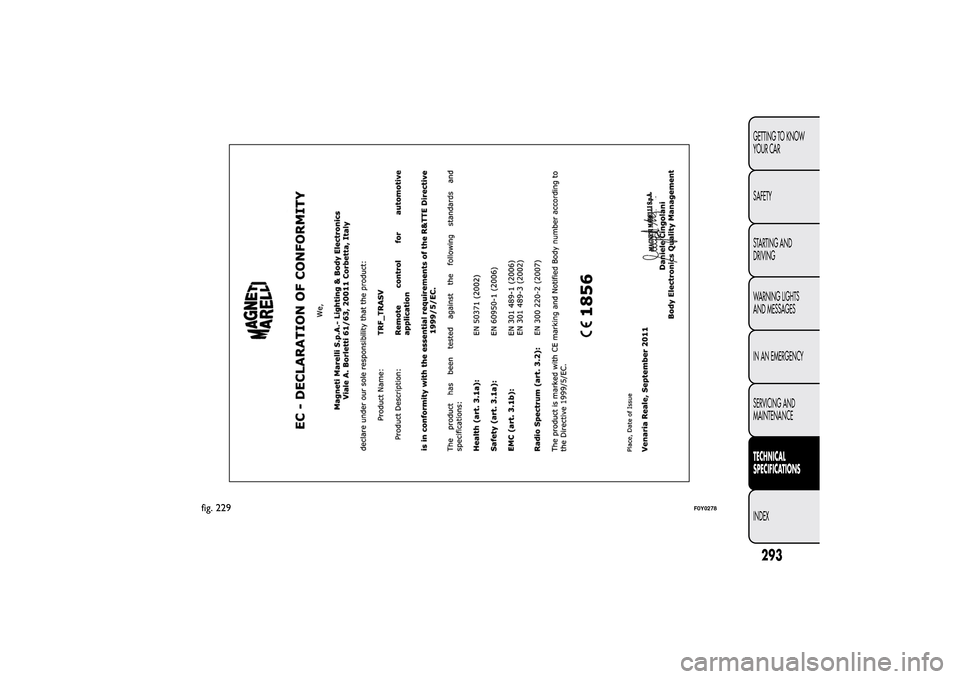

fig. 229
F0Y0278
293GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCETECHNICAL
SPECIFICATIONSINDEX

Morocco



!
"

#$%


&'

!
"

#(#)
Mexico RLVMABC11-0959 RLVMABC12-0020
Serbia
TRF198= 34540-164/12-3
BCML7= 34540-83/12-4
SyriaMarking
Marking
South Africa
TA-2011/505
APPROVED
TA-2011/1915
APPROVED
TunisiaMarking
Marking
294GETTING TO KNOW
YOUR CAR
SAFETY
STARTING AND
DRIVING
WARNING LIGHTS
AND MESSAGES
IN AN EMERGENCY
SERVICING AND
MAINTENANCE
TECHNICAL
SPECIFICATIONS
INDEX

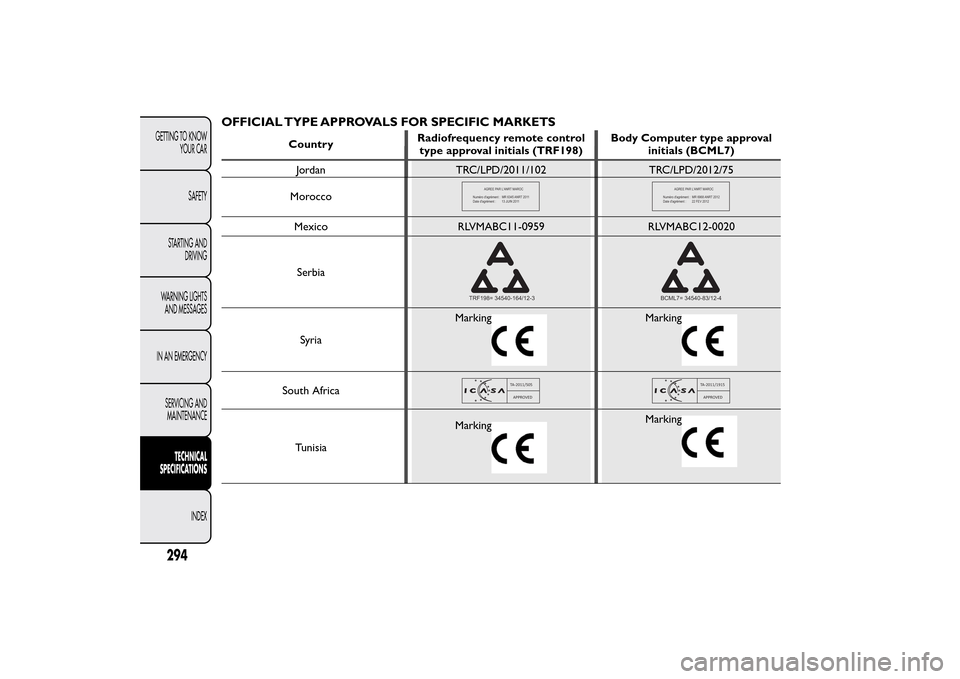

OFFICIAL TYPE APPROVALS FOR SPECIFIC MARKETS
CountryRadiofrequency remote control
type approval initials (TRF198)Body Computer type approval
initials (BCML7)
Jordan TRC/LPD/2011/102 TRC/LPD/2012/75

DASHBOARDThe presence and position of the controls, instruments and indicators may vary according to the different
versions.1. Adjustable air diffusers 2. Upper glove compartment (for versions/markets, where provided the compartment may be
conditioned) 3. Passenger front airbag 4. Adjustable and directable centre air diffusers 5. Fixed upper air vent 6. Radio
controls on the steering wheel (for versions/markets, where provided) 7. Exterior light control lever 8. Instrument panel
9. Windscreen wiper/rear window wiper/trip computer control lever 10. Ignition switch 11. Driver front airbag 12. Cruise
Control/Speed Limiter lever (for versions/markets, where provided) 13.UConnect™ (for versions/markets, where
provided) or radio system setup 14. USB port/AUX socket (for versions/markets, where provided)
15. Heating/ventilation system or manual climate control (for versions/markets, where provided) or automatic dual zone
climate control (for versions/markets, where provided) 16. Control buttons 17. Lower glove compartment 18. Oddment
compartment
fig. 1
F0Y0185
295
RIGHT HAND DRIVE VERSIONS

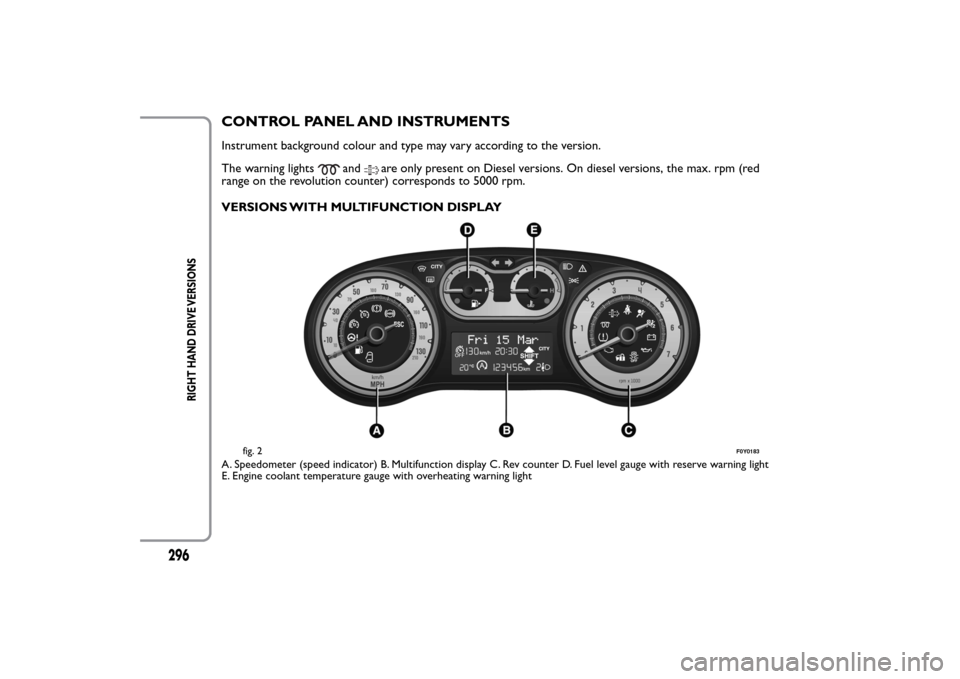

CONTROL PANEL AND INSTRUMENTSInstrument background colour and type may vary according to the version.
The warning lights
and
are only present on Diesel versions. On diesel versions, the max. rpm (red
range on the revolution counter) corresponds to 5000 rpm.
VERSIONS WITH MULTIFUNCTION DISPLAY
A. Speedometer (speed indicator) B. Multifunction display C. Rev counter D. Fuel level gauge with reserve warning light
E. Engine coolant temperature gauge with overheating warning light
fig. 2
F0Y0183
296
RIGHT HAND DRIVE VERSIONS

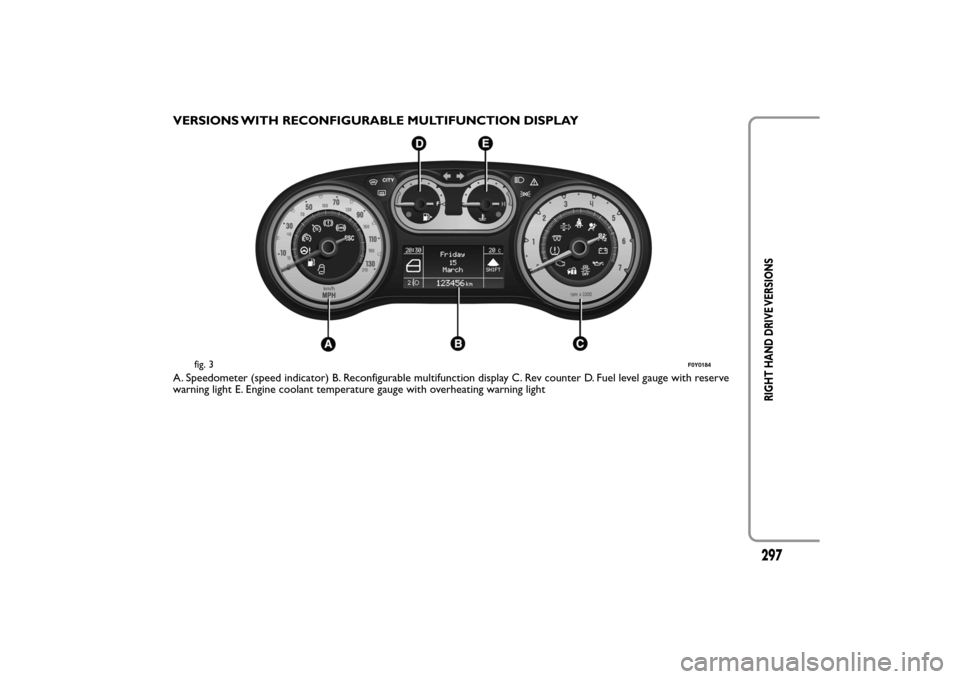

VERSIONS WITH RECONFIGURABLE MULTIFUNCTION DISPLAYA. Speedometer (speed indicator) B. Reconfigurable multifunction display C. Rev counter D. Fuel level gauge with reserve
warning light E. Engine coolant temperature gauge with overheating warning light
fig. 3
F0Y0184
297
RIGHT HAND DRIVE VERSIONS

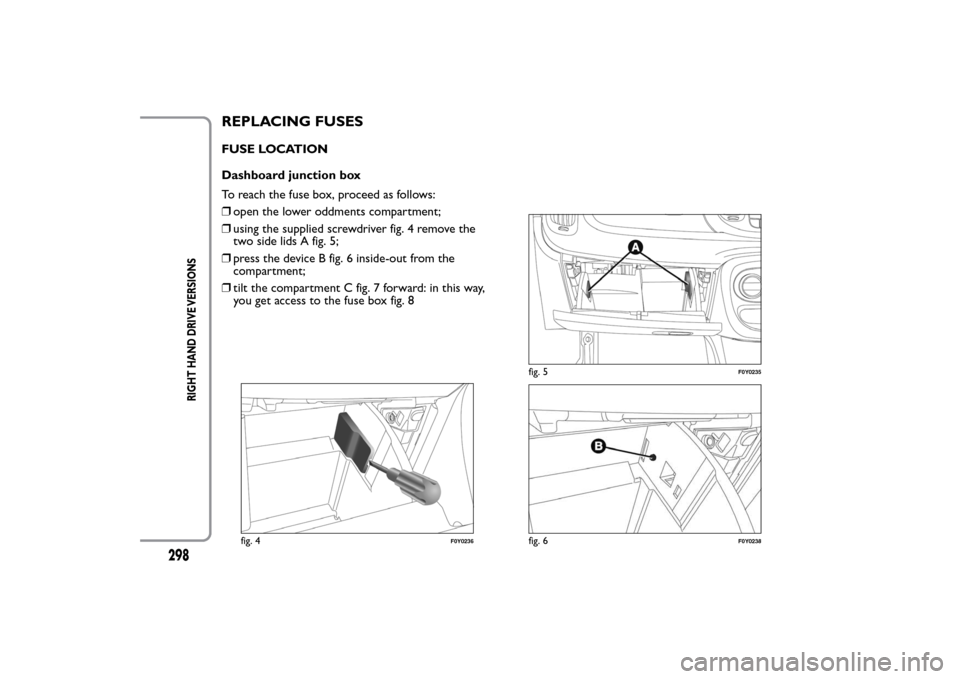

REPLACING FUSESFUSE LOCATION
Dashboard junction box
To reach the fuse box, proceed as follows:
❒open the lower oddments compartment;
❒using the supplied screwdriver fig. 4 remove the
two side lids A fig. 5;
❒press the device B fig. 6 inside-out from the
compartment;
❒tilt the compartment C fig. 7 forward: in this way,
you get access to the fuse box fig. 8
fig. 4
F0Y0236
fig. 5
F0Y0235
fig. 6
F0Y0238
298
RIGHT HAND DRIVE VERSIONS

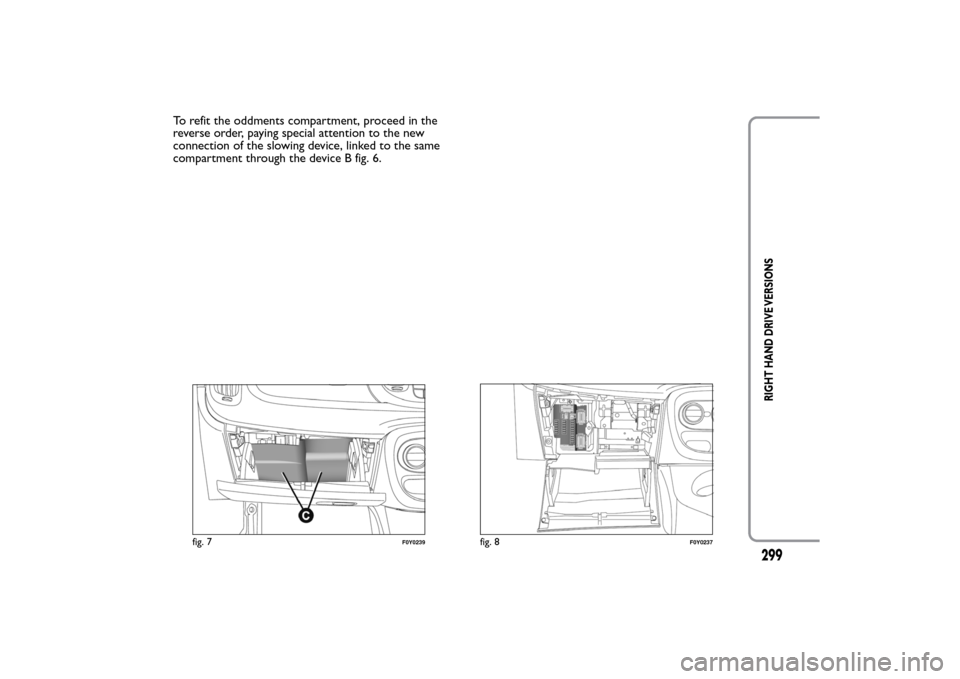

To refit the oddments compartment, proceed in the
reverse order, paying special attention to the new
connection of the slowing device, linked to the same
compartment through the device B fig. 6.
fig. 7
F0Y0239
fig. 8
F0Y0237
299
RIGHT HAND DRIVE VERSIONS

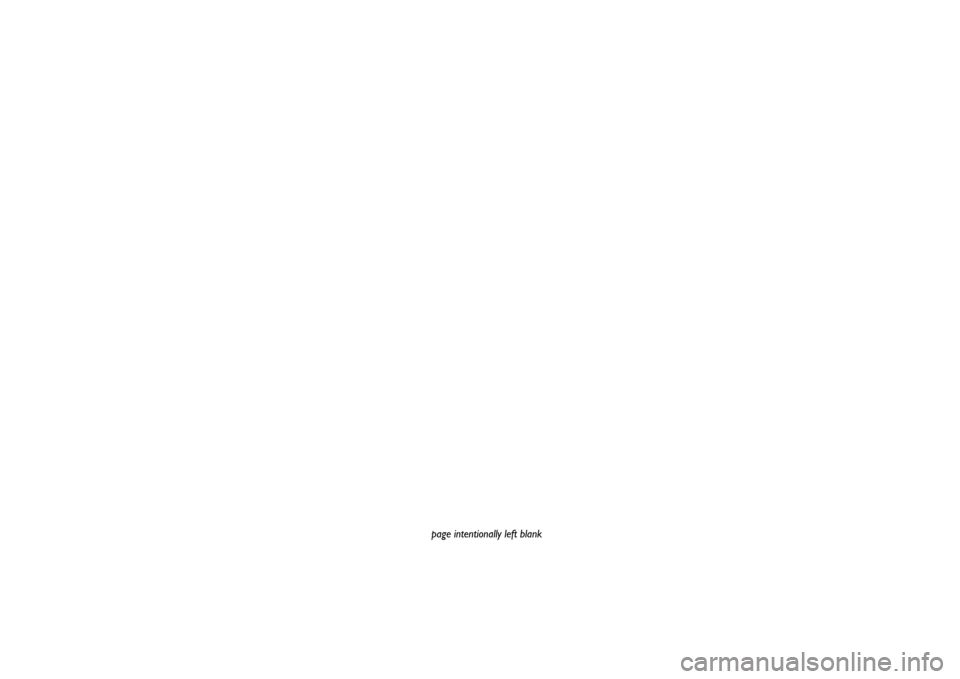

page intentionally left blank
