2014 FIAT 500L LIVING Owners Manual

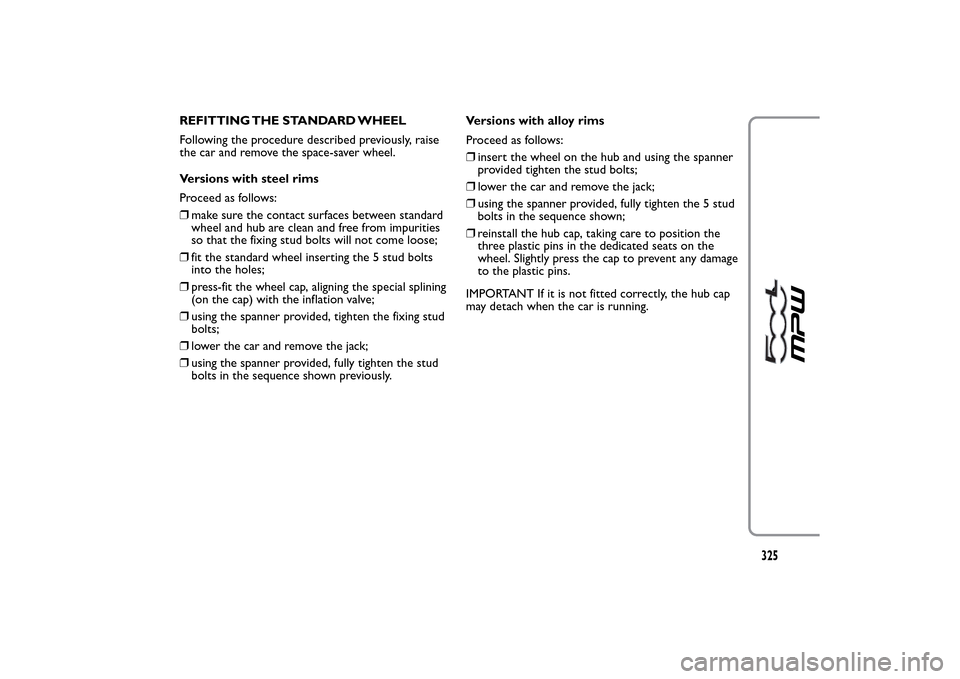

REFITTING THE STANDARD WHEEL
Following the procedure described previously, raise
the car and remove the space-saver wheel.
Versions with steel rims
Proceed as follows:
❒make sure the contact surfaces between standard
wheel and hub are clean and free from impurities
so that the fixing stud bolts will not come loose;
❒fit the standard wheel inserting the 5 stud bolts
into the holes;
❒press-fit the wheel cap, aligning the special splining
(on the cap) with the inflation valve;
❒using the spanner provided, tighten the fixing stud
bolts;
❒lower the car and remove the jack;
❒using the spanner provided, fully tighten the stud
bolts in the sequence shown previously.Versions with alloy rims
Proceed as follows:
❒insert the wheel on the hub and using the spanner
provided tighten the stud bolts;
❒lower the car and remove the jack;
❒using the spanner provided, fully tighten the 5 stud
bolts in the sequence shown;
❒reinstall the hub cap, taking care to position the
three plastic pins in the dedicated seats on the
wheel. Slightly press the cap to prevent any damage
to the plastic pins.
IMPORTANT If it is not fitted correctly, the hub cap
may detach when the car is running.
325

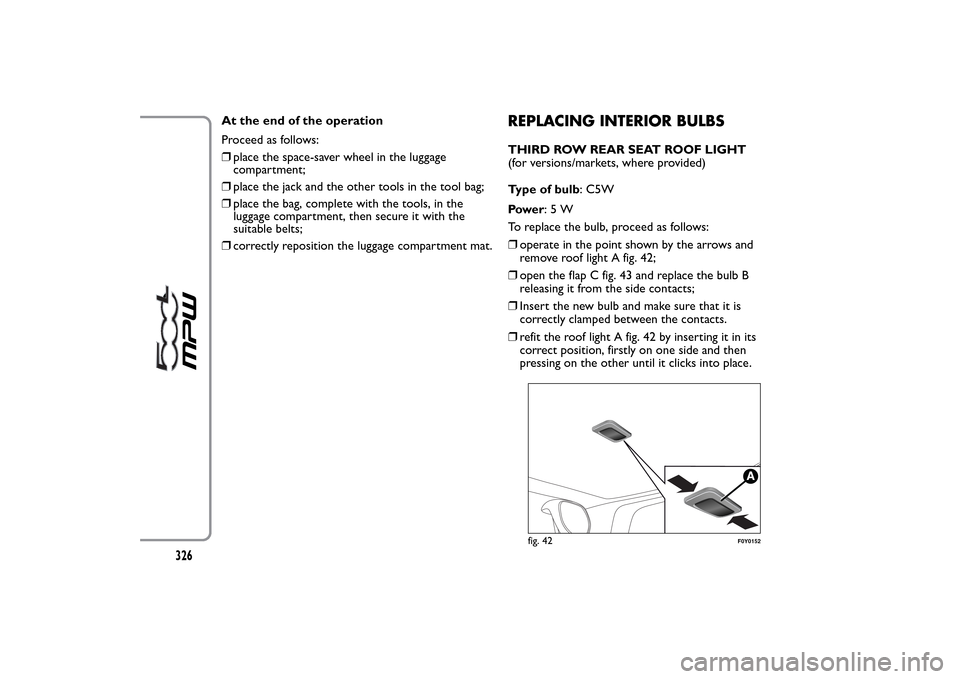

At the end of the operation
Proceed as follows:
❒place the space-saver wheel in the luggage
compartment;
❒place the jack and the other tools in the tool bag;
❒place the bag, complete with the tools, in the
luggage compartment, then secure it with the
suitable belts;
❒correctly reposition the luggage compartment mat.
REPLACING INTERIOR BULBSTHIRD ROW REAR SEAT ROOF LIGHT
(for versions/markets, where provided)
Type of bulb: C5W
Power:5W
To replace the bulb, proceed as follows:
❒operate in the point shown by the arrows and
remove roof light A fig. 42;
❒open the flap C fig. 43 and replace the bulb B
releasing it from the side contacts;
❒Insert the new bulb and make sure that it is
correctly clamped between the contacts.
❒refit the roof light A fig. 42 by inserting it in its
correct position, firstly on one side and then
pressing on the other until it clicks into place.
fig. 42
F0Y0152
326

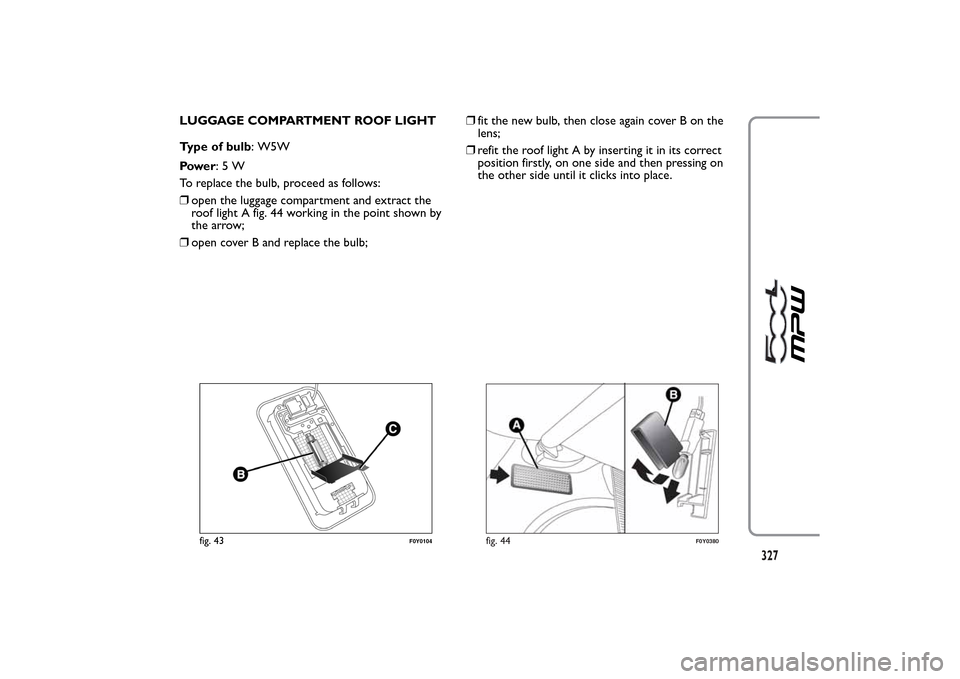

LUGGAGE COMPARTMENT ROOF LIGHT
Type of bulb: W5W
Power:5W
To replace the bulb, proceed as follows:
❒open the luggage compartment and extract the
roof light A fig. 44 working in the point shown by
the arrow;
❒open cover B and replace the bulb;❒fit the new bulb, then close again cover B on the
lens;
❒refit the roof light A by inserting it in its correct
position firstly, on one side and then pressing on
the other side until it clicks into place.
fig. 43
F0Y0104
fig. 44
F0Y0380
327

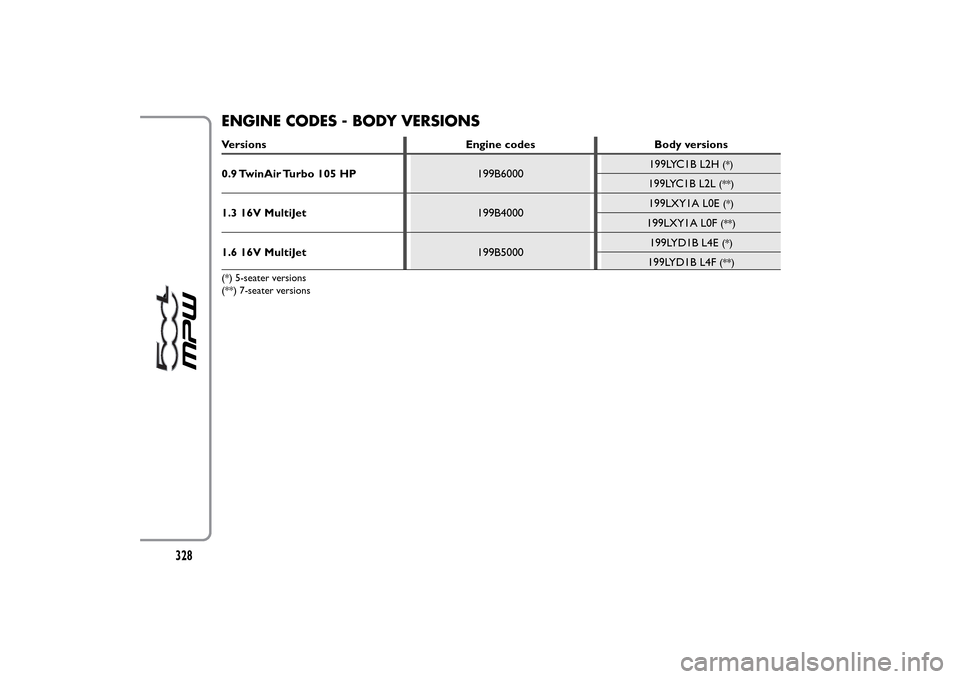

ENGINE CODES - BODY VERSIONSVersions Engine codes Body versions
0.9 TwinAir Turbo 105 HP199B6000199LYC1B L2H
(*)
199LYC1B L2L
(**)
1.3 16V MultiJet199B4000199LXY1A L0E
(*)
199LXY1A L0F
(**)
1.6 16V MultiJet199B5000199LYD1B L4E
(*)
199LYD1B L4F
(**)
(*) 5-seater versions
(**) 7-seater versions
328

WHEELSRIMS AND TYRES
Pressed steel or alloy rims. Tubeless radial carcass
tyres.
All approved tyres are listed in the registration
document.
IMPORTANT If there are any discrepancies between
the Owner Handbook and the registration
document, take the information from the latter. For
safe driving, the car must be fitted with tyres of the
same make and type on all wheels.
IMPORTANT Do not use air chambers with Tubeless
tyres.
WHEEL GEOMETRY
Front wheel toe-in measured from rim to
rim: −0.5±1mm.
The values refer to the car in running order.
CORRECT TYRE READING
Example fig. 45: 195/65 R 15 91H195
Rated width (S, distance in mm between the
sides)
65
Height/width ratio (H/S) as a percentage
RRadial tyre15
Rim diameter in inches (Ø)
91
Load rating (capacity)
H
Maximum speed rating
Maximum speed rating
Q
up to 160 km/h
Rup to 170 km/hSup to 180 km/hT
up to 190 km/h
U
up to 200 km/h
H
up to 210 km/h
V
up to 240 km/h
Maximum speed index for snow tyres
QM+S
up to 160 km/h
TM+S
up to 190 km/h
HM+S
up to 210 km/h
fig. 45
F0Y0004
329

Load rating (capacity)
70= 335 kg81= 462 kg
71= 345 kg82= 475 kg
72= 355 kg83= 487 kg
73= 365 kg84= 500 kg
74= 375 kg85= 515 kg
75= 387 kg86= 530 kg
76= 400 kg87= 545 kg
77= 412 kg88= 560 kg
78= 425 kg89= 580 kg
79= 437 kg90= 600 kg
80= 450 kg91= 615 kg
CORRECT READING OF THE RIM CODE
Example fig. 45:6Jx15H26rim width in inches (1).Jprofile of the flange (side projection where the tyre
bead rests) (2).15
rim fitting diameter in inches (corresponds to the
diameter of the tyre to be mounted) (3 = Ø).
H2
shape and number of humps (circumference
measurement which keeps the bead of Tubeless
tyres in position on the rim).
330

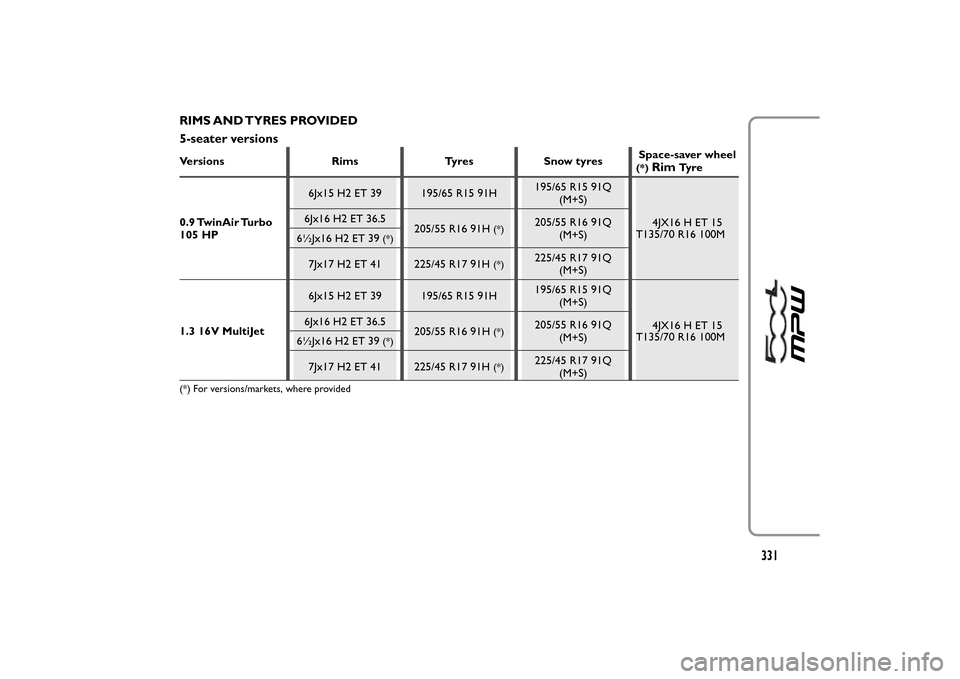

RIMS AND TYRES PROVIDED
5-seater versionsVersions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim
Ty r e
0.9 TwinAir Turbo
105 HP6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
1.3 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where provided
331

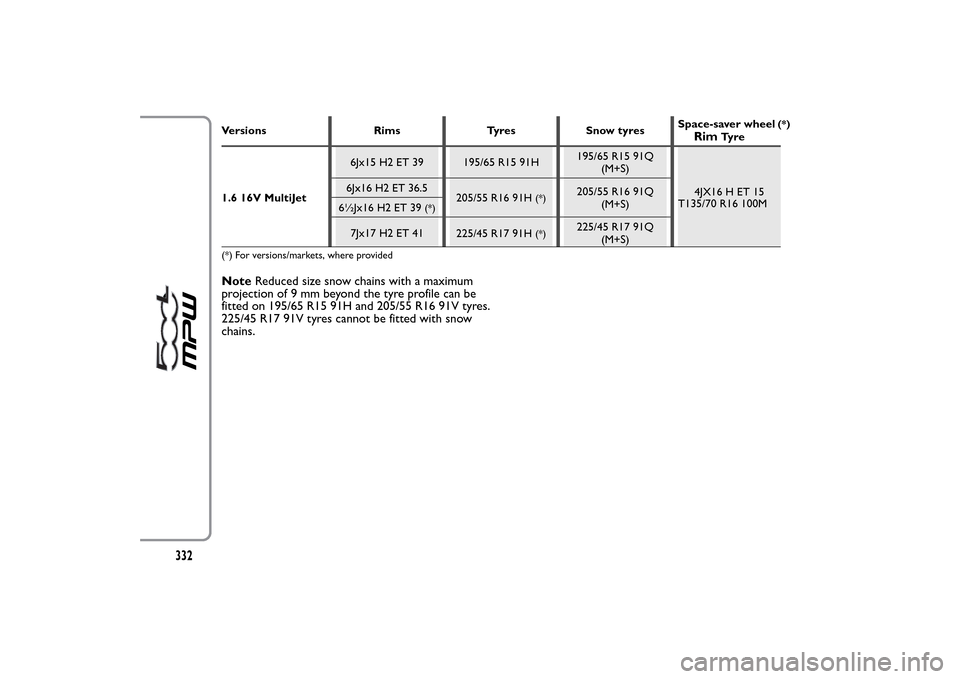

Versions Rims Tyres Snow tyresSpace-saver wheel
(*)
Rim
Ty r e
1.6 16V MultiJet6Jx15 H2 ET 39 195/65 R15 91H195/65 R15 91Q
(M+S)
4JX16 H ET 15
T135/70 R16 100M 6Jx16 H2 ET 36.5
205/55 R16 91H
(*)
205/55 R16 91Q
(M+S)
6½Jx16 H2 ET 39
(*)
7Jx17 H2 ET 41
225/45 R17 91H
(*)
225/45 R17 91Q
(M+S)
(*) For versions/markets, where providedNoteReduced size snow chains with a maximum
projection of 9 mm beyond the tyre profile can be
fitted on 195/65 R15 91H and 205/55 R16 91V tyres.
225/45 R17 91V tyres cannot be fitted with snow
chains.
332
