Reverse (manual transmission) or in Drive (D), Sport Drive (S), or Reverse (R) (automatic
transmission) and you must use the foot brake to hold the vehicle before starting to move.
Hill Hold keeps the brake applied for not quite 2 seconds with the same force you used to prevent the
vehicle from moving. This gives you time to take your foot off the brake, let the clutch out on a manual
transmission vehicle, and gently depress the accelerator to get the vehicle moving again. If you do not
depress the accelerator pedal and get the vehicle moving again within this time, the brakes will release
and the vehicle will roll downhill. Furthermore, if any requirement for engaging Hill Hold is no longer
met while the vehicle is stopped, Hill Hold disengages and the brakes are automatically released and
will no longer hold the vehicle.
Hill Hold is activated automatically when the following conditions are all met at the same
time.

Points 1 to 3 must all be met at the same time:
Manual transmission Automatic transmission
1. Hold the stopped vehicle on an incline with the foot or parking brake.
2. The engine must be running “smoothly.”
3. A manual transmission vehicle must be in 1st
gear (1) if headed up a hill or in Reverse (R) if
backing up a hill; you must hold the clutch
down and the foot brake must be depressed to
keep the vehicle from moving.
An automatic transmission vehicle must be in
Reverse (R), Drive (D), or Sport Drive (S) and
the foot brake must be depressed to keep the
vehicle from moving.
4. To drive off take your foot off the brake pedal
as you let the clutch out and gently depress
the accelerator within 2 seconds.
To drive off take your foot off the brake pedal
and gently depress the accelerator within 2
seconds.

Hill Hold is immediately deactivated:
x If any requirement listed in the table above is no longer met.
x If the engine is not running smoothly or the engine malfunctions.
x If the engine stalls or is switched off.
x Automatic transmission vehicles: If the transmission is in Neutral (N).
x Automatic transmission vehicles: If a tire does not have enough road contact (such as when the
vehicle is tipped or at an angle).
WARNING
The intelligent technology of Hill Hold cannot overcome the laws of physics. Never let the
increased convenience provided by Hill Hold tempt you into taking risks.
x The Hill Hold feature cannot hold the vehicle in all hill start situations (for example, if the
surface is icy or slippery).
x Hill Hold can only help keep the vehicle from moving for less than 2 seconds. After that,
the brakes will be released and the vehicle can roll down the hill.

Rear Assist

NOTICE
x The camera shows only two-dimensional images on the screen. Due to the lack of depth of
field, it may be difficult or impossible to identify protruding objects or recesses in the road, for
example.
x Things like thin rods, fences, posts, and trees may not be detected by the camera and could
damage the vehicle.
Operation instructions

Fig. 149 In the luggage compartment lid: Location of the Rear Assist camera.

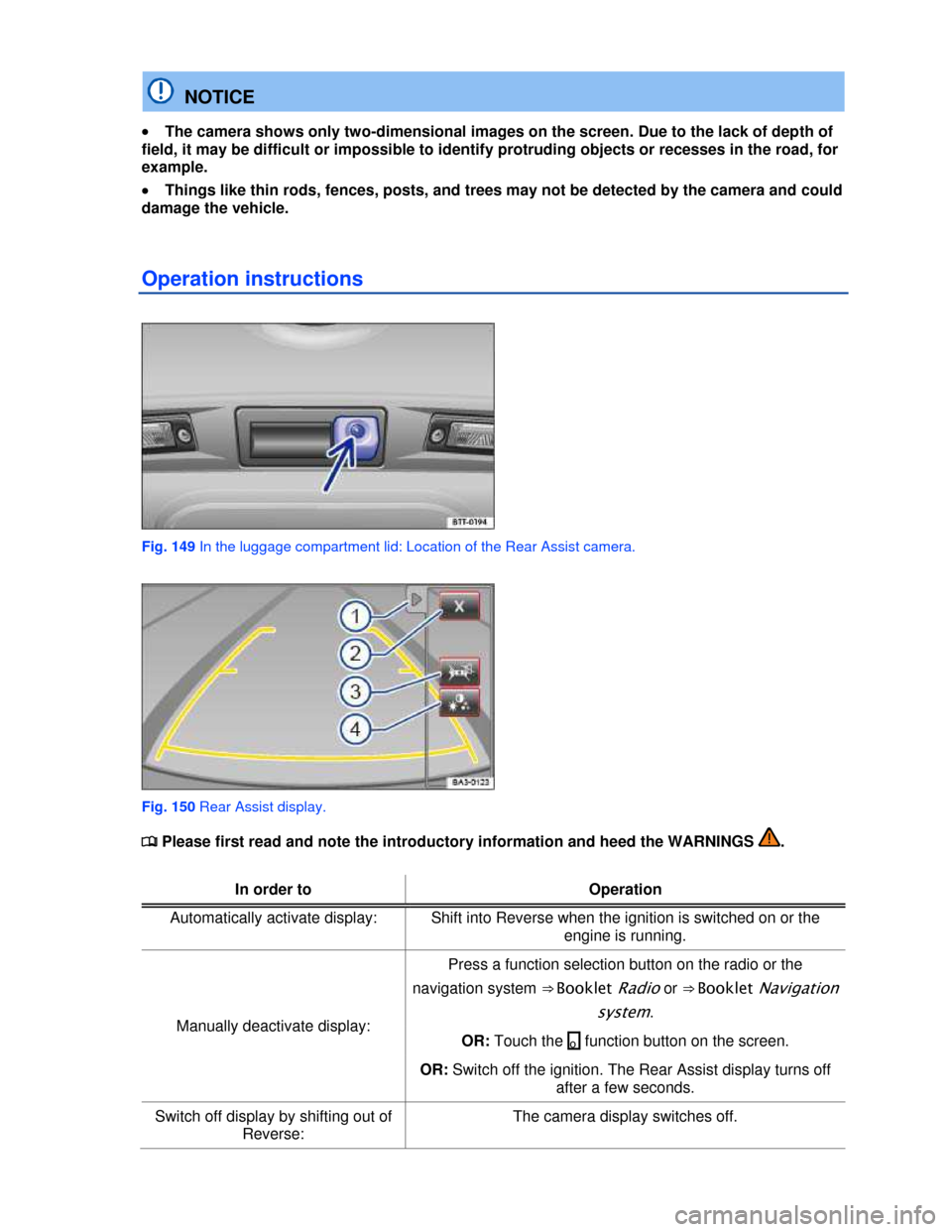

Fig. 150 Rear Assist display.

In order to Operation
Deactivate display by driving
forward:
Drive forward faster than about 10 mph (16 km/h).

Screen
Function buttons on the screen ⇒ fig. 150:
(1) Display or hide the menu bar.
(2) Turn off the rearview camera screen.
(3) Turn off the sound.
(4) Adjust display: brightness, contrast, color (for vehicles with navigation unit).
Special considerations

1) Do not use Rear Assist in the following situations:
– When an incorrect or unclear image is displayed, such as when there is poor visibility or the lens is
dirty.
– If the area behind the vehicle cannot be seen clearly or completely.
– If the rear of the vehicle is heavily loaded.
– When the luggage compartment lid is open.
– If the driver is not familiar with the system.
– If the position or angle of the camera has changed, such as after a rear-end collision. Have the
system checked by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.


2) Examples of optical distortion by the camera
The Rear Assist camera displays only two-dimensional images. Recesses and protruding objects on
the ground or protruding parts on other vehicles are difficult or impossible to identify due to the lack
of depth of field.
Objects or another vehicle may seem closer or farther away on the screen than they really are:
– When driving from a level surface onto an upward or downward slope.
– When driving up or down a slope onto a level surface.
– If the rear of the vehicle is heavily loaded.
– When approaching protruding objects. These objects can disappear from the field of view when
backing up.

Cleaning the camera lens
Keep the camera lens clean and free of snow and ice:
x Engage the parking brake.
x Switch on the ignition.
x Select the reverse gear.
x Wet the camera lens with a commercially available alcohol-based glass cleaner and clean with a
dry cloth ⇒ .
x Remove snow with a brush.
x Remove ice with deicer spray ⇒ .

NOTICE
x Never use abrasive cleaning agents to clean the camera lens.
x Never remove snow or ice on the camera lens with warm or hot water. This can damage the
camera lens.
Volkswagen recommends practicing parking with Rear Assist in a safe place with little or no
traffic or in a parking lot under good visibility and weather conditions in order to familiarize yourself
with the system, the orientation lines and the way they work.
Rear Assist does not work when the luggage compartment lid is open.
Parking

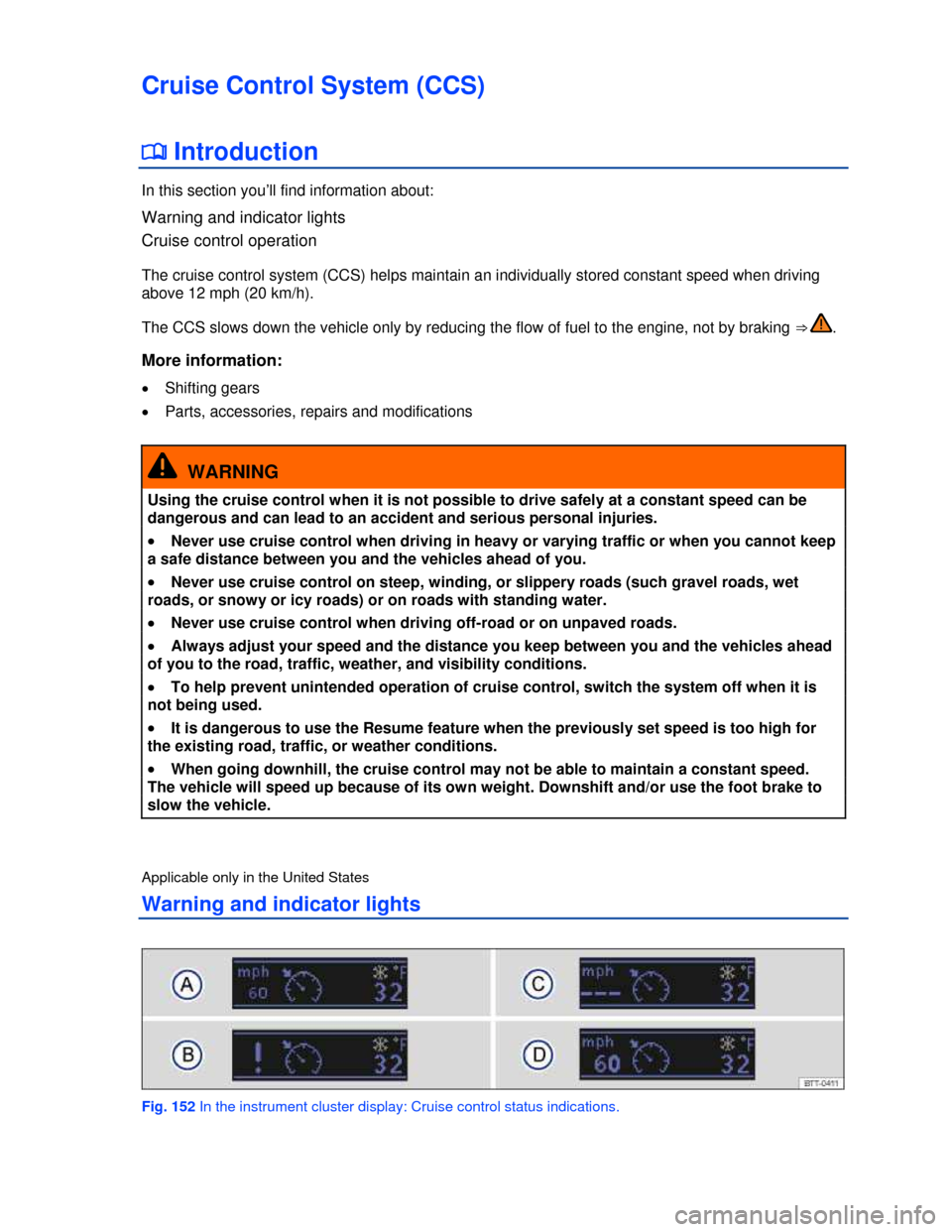

Fig. 151 On the screen: Static orientation lines for the parking space behind the vehicle.

Cruise Control System (CCS)

Display
Different cruise control versions are available. The stored speed is shown in the instrument cluster
display on some equipment versions.

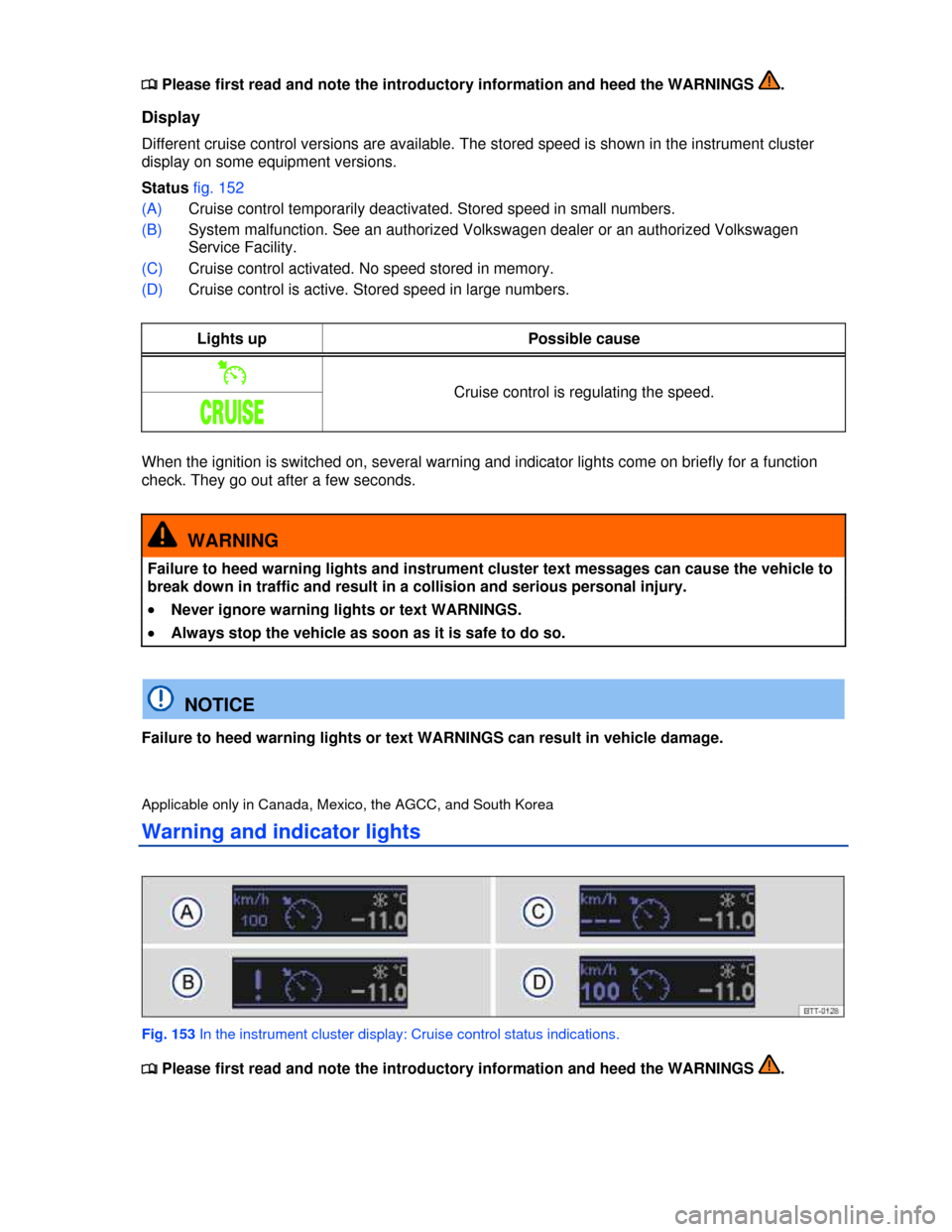

Status fig. 153
(A) Cruise control temporarily deactivated. Stored speed in small numbers.
(B) System malfunction. See an authorized Volkswagen dealer or an authorized Volkswagen
Service Facility.
(C) Cruise control activated. No speed stored in memory.
(D) Cruise control is active. Stored speed in large numbers.

Lights up Possible cause
% Cruise control is regulating the speed.
#25)3%
Indicator lights
When the ignition is switched on, several warning and indicator lights come on briefly for a function
check. They go out after a few seconds.
WARNING
Failure to heed warning lights and instrument cluster text messages can cause the vehicle to
break down in traffic and result in a collision and serious personal injury.
x Never ignore warning lights or text WARNINGS.
x Always stop the vehicle as soon as it is safe to do so.
NOTICE
Failure to heed warning lights or text WARNINGS can result in vehicle damage.
Cruise control operation

Fig. 154 On the left side of the steering column: Cruise control buttons and switches.
