2013 TOYOTA YARIS HATCHBACK Owners Manual

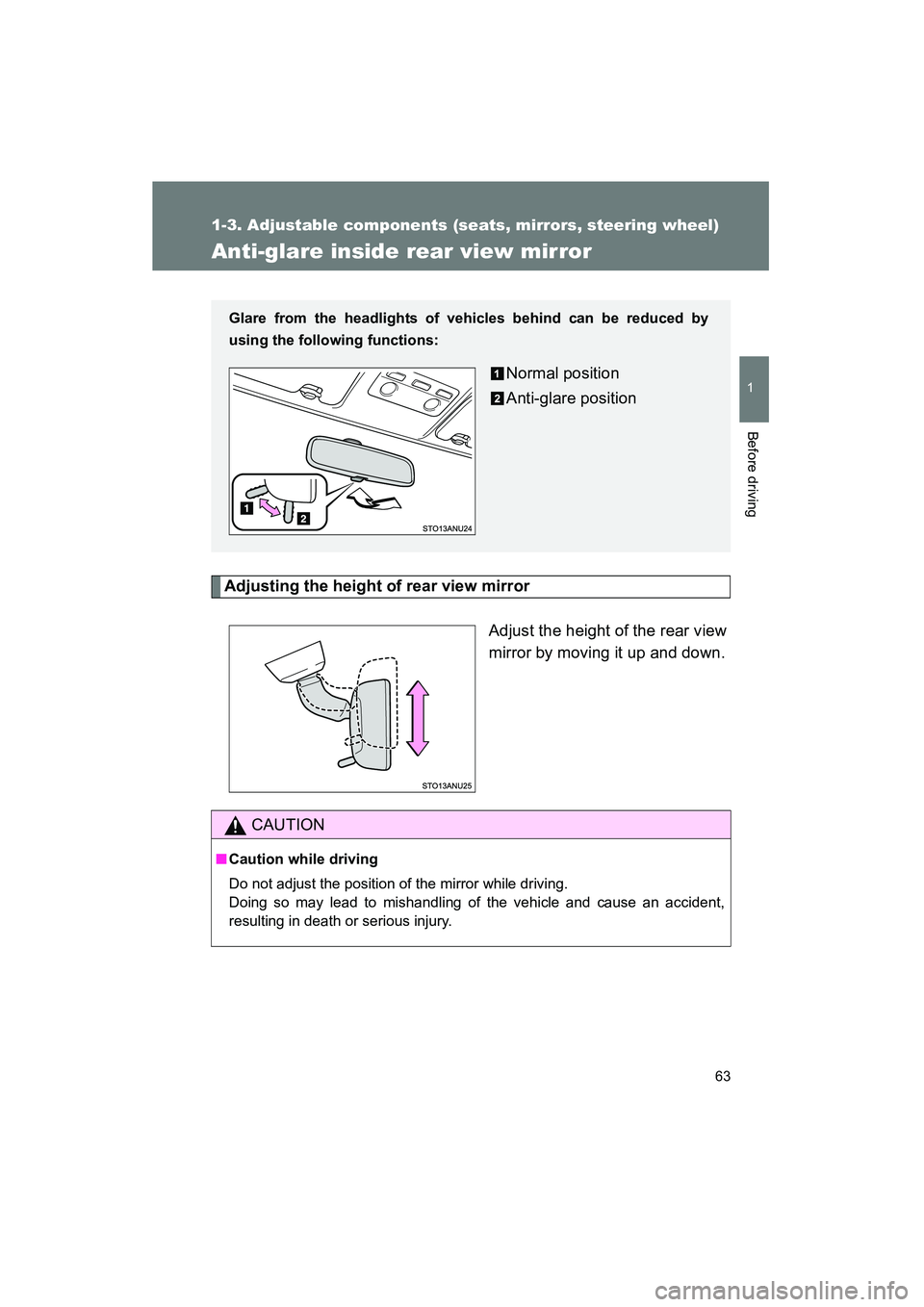

63
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
YARIS_HB_U_52D44U
Anti-glare inside rear view mirror
Adjusting the height of rear view mirrorAdjust the height of the rear view
mirror by moving it up and down.
Glare from the headlights of vehicles behind can be reduced by
using the following functions:
Normal position
Anti-glare position
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident,
resulting in death or serious injury.

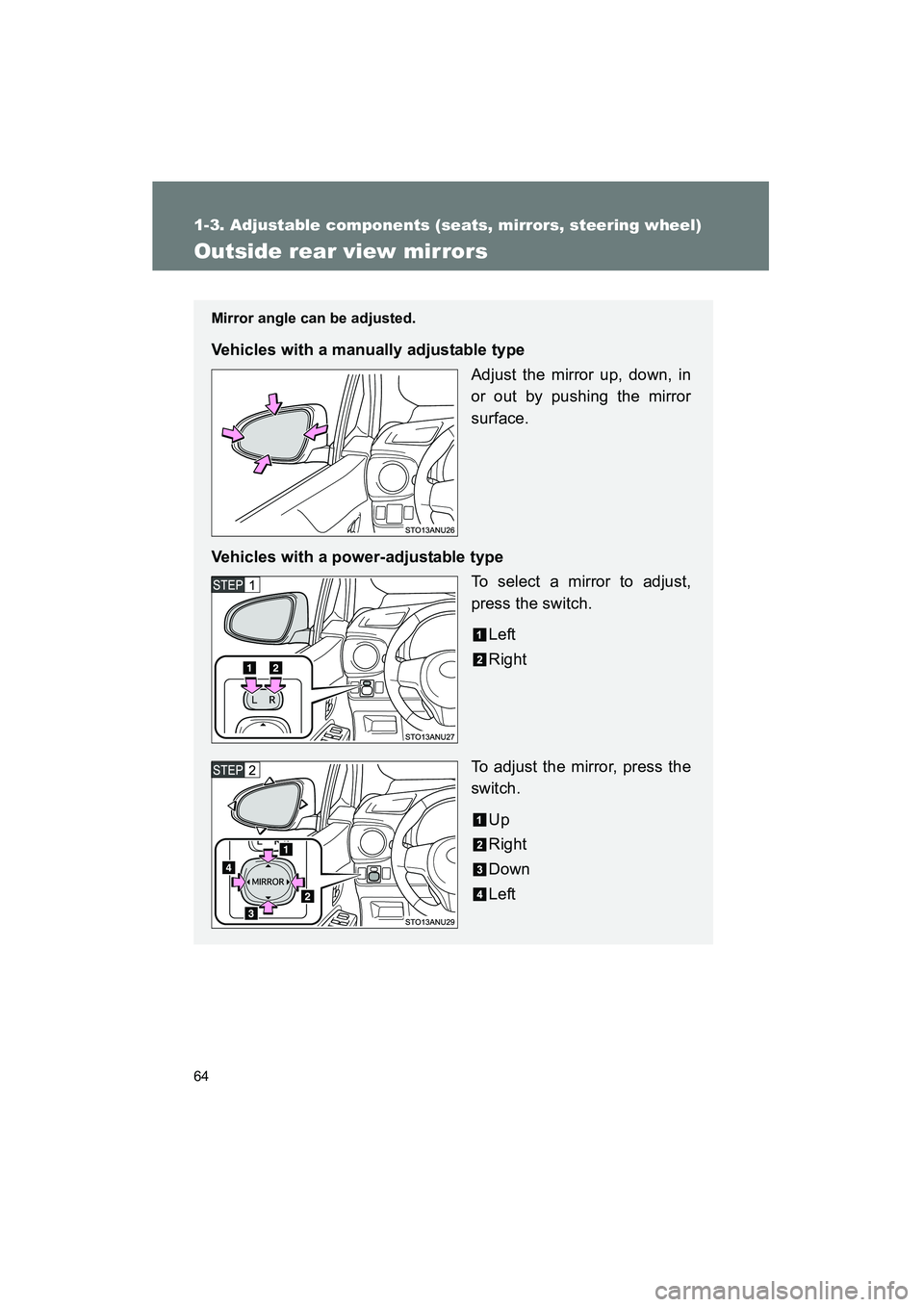

64
1-3. Adjustable components (seats, mirrors, steering wheel)
YARIS_HB_U_52D44U
Outside rear view mirrors
Mirror angle can be adjusted.
Vehicles with a manually adjustable typeAdjust the mirror up, down, in
or out by pushing the mirror
surface.
Vehicles with a power-adjustable type To select a mirror to adjust,
press the switch.
Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left

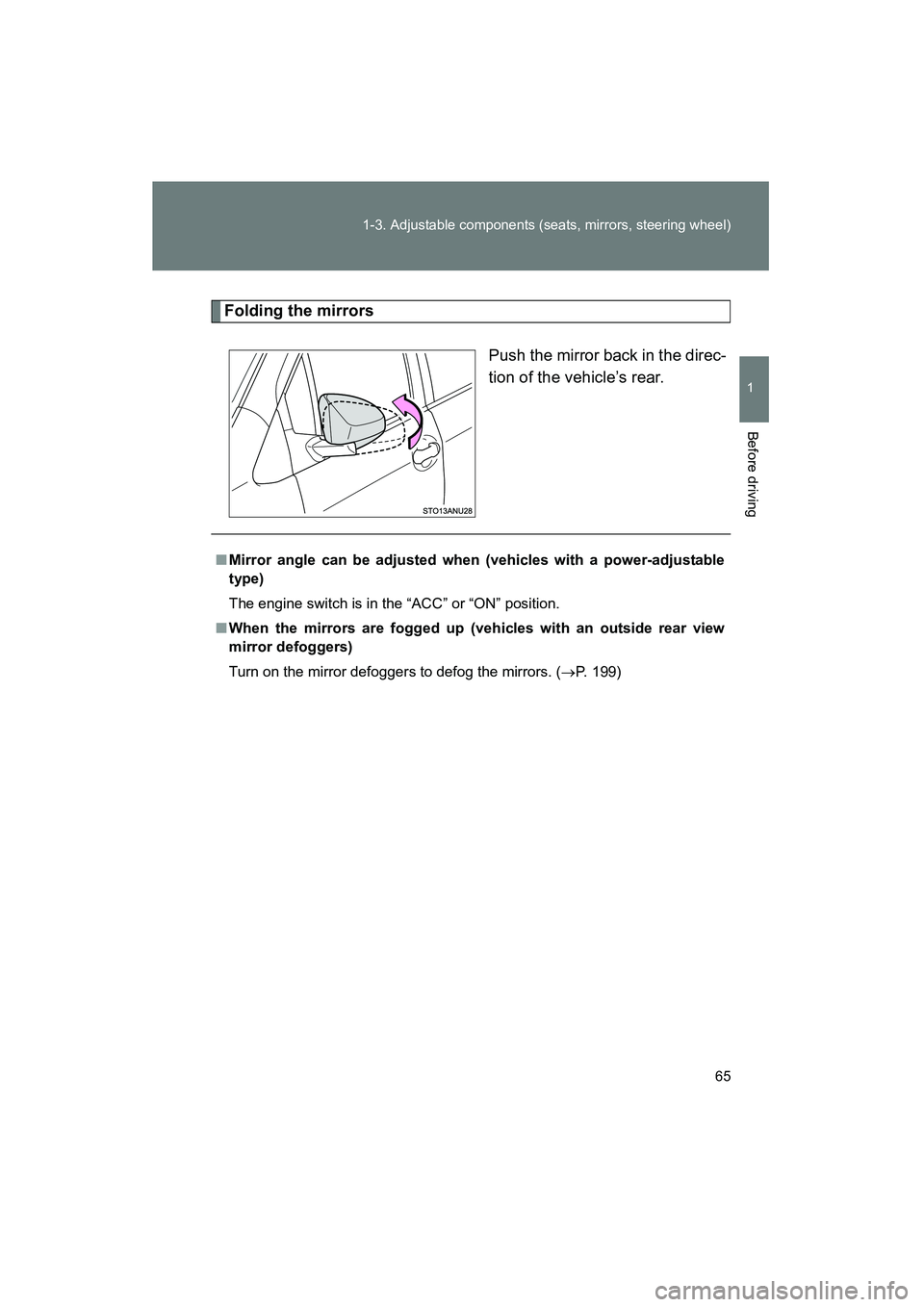

65
1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
YARIS_HB_U_52D44U
Folding the mirrors
Push the mirror back in the direc-
tion of the vehicle’s rear.
■Mirror angle can be adjusted when (vehicles with a power-adjustable
type)
The engine switch is in the “ACC” or “ON” position.
■ When the mirrors are fogged up (vehicles with an outside rear view
mirror defoggers)
Turn on the mirror defoggers to defog the mirrors. ( →P. 199)

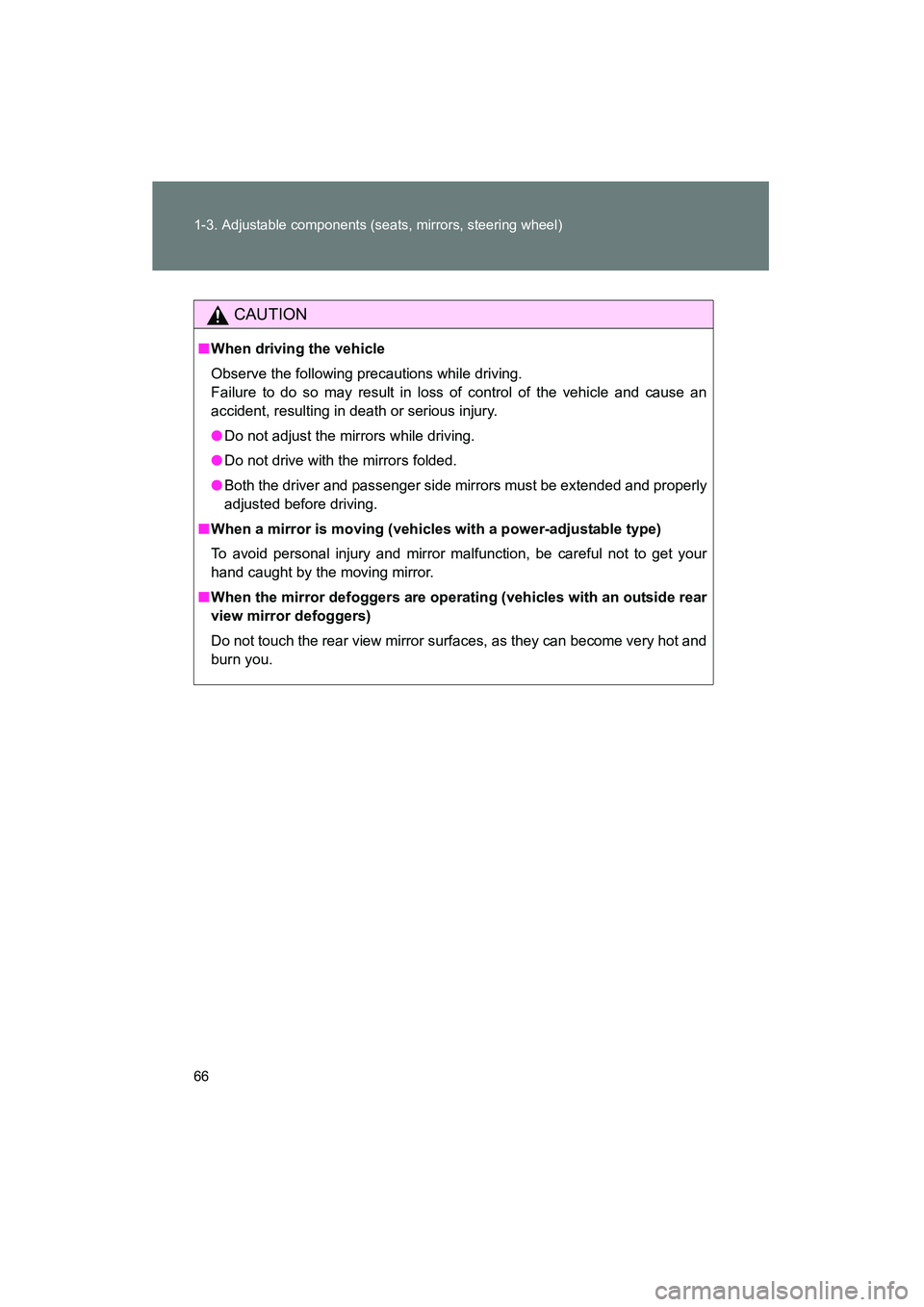

66 1-3. Adjustable components (seats, mirrors, steering wheel)
YARIS_HB_U_52D44U
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
● Do not adjust the mirrors while driving.
● Do not drive with the mirrors folded.
● Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■ When a mirror is moving (vehicles with a power-adjustable type)
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.
■ When the mirror defoggers are operating (vehicles with an outside rear
view mirror defoggers)
Do not touch the rear view mirror surfaces, as they can become very hot and
burn you.

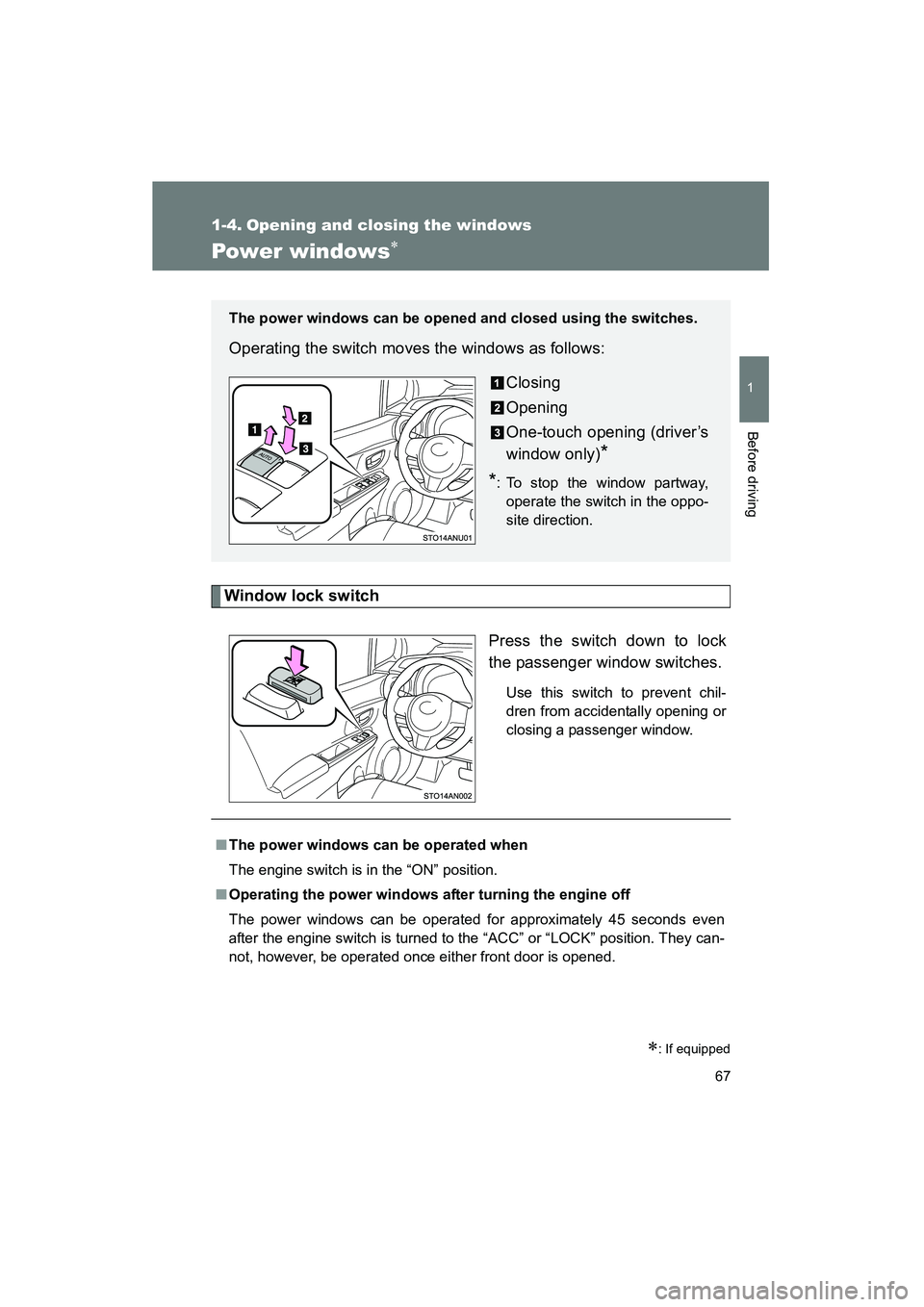

67
1
Before driving
YARIS_HB_U_52D44U
1-4. Opening and closing the windows
Power windows∗
Window lock switchPress the switch down to lock
the passenger window switches.
Use this switch to prevent chil-
dren from accidentally opening or
closing a passenger window.
∗: If equipped
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows: Closing
Opening
One-touch opening (driver’s
window only)
*
*
: To stop the window partway, operate the switch in the oppo-
site direction.
■ The power windows can be operated when
The engine switch is in the “ON” position.
■ Operating the power windows after turning the engine off
The power windows can be operated for approximately 45 seconds even
after the engine switch is turned to the “ACC” or “LOCK” position. They can-
not, however, be operated once either front door is opened.

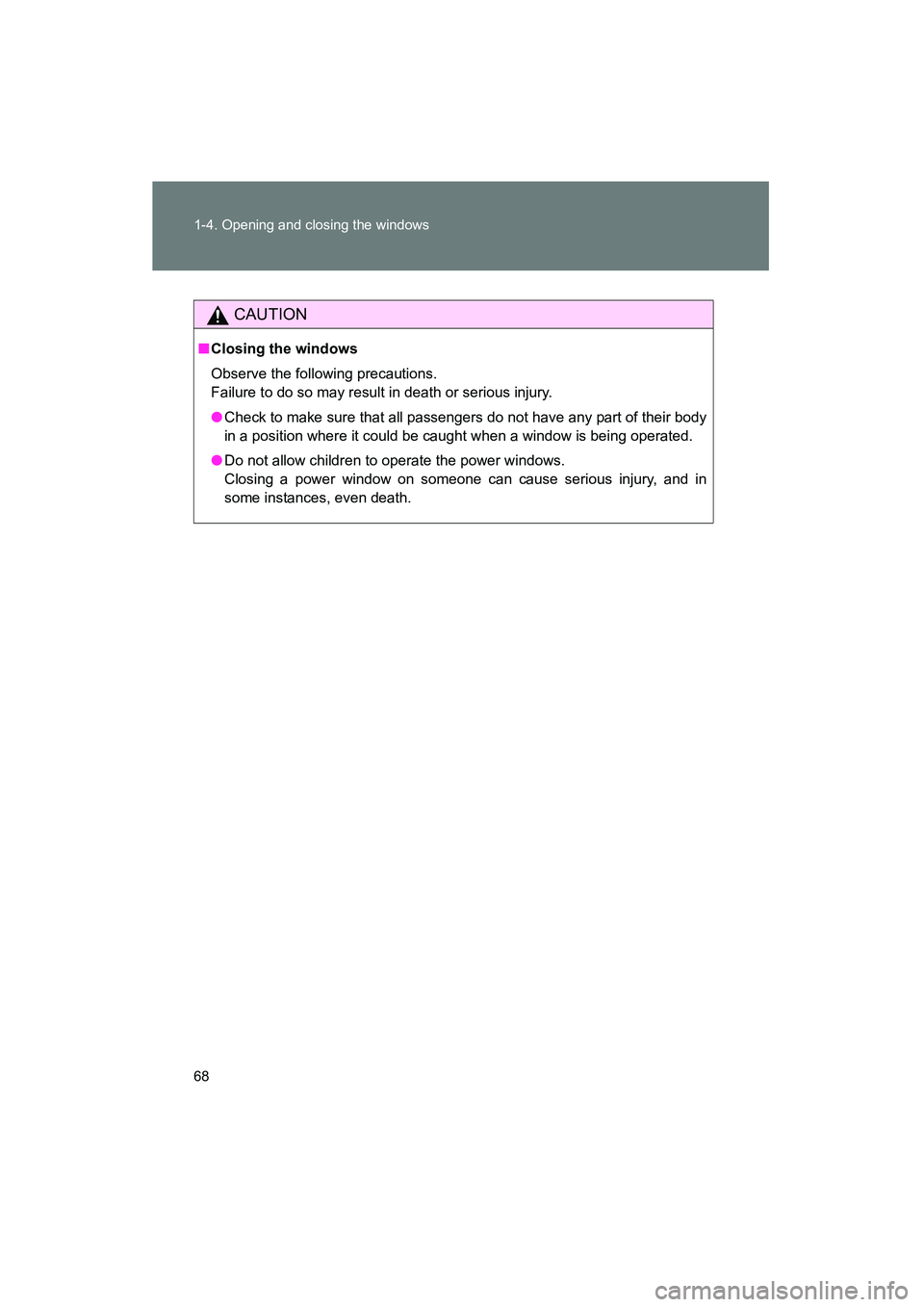

68 1-4. Opening and closing the windows
YARIS_HB_U_52D44U
CAUTION
■Closing the windows
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Check to make sure that all passengers do not have any part of their body
in a position where it could be caught when a window is being operated.
● Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in
some instances, even death.

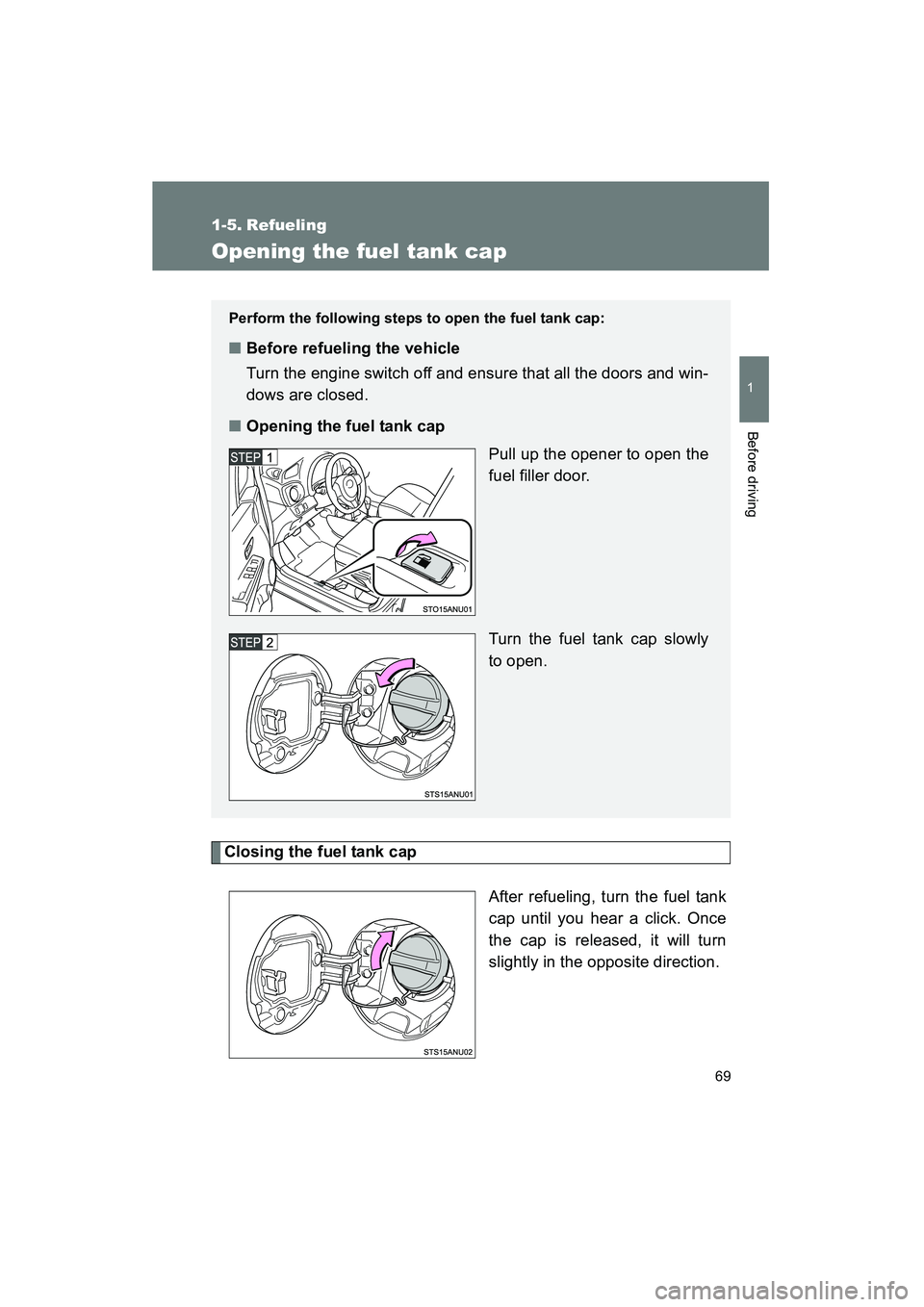

69
1
Before driving
YARIS_HB_U_52D44U
1-5. Refueling
Opening the fuel tank cap
Closing the fuel tank capAfter refueling, turn the fuel tank
cap until you hear a click. Once
the cap is released, it will turn
slightly in the opposite direction.
Perform the following steps to open the fuel tank cap:
■Before refueling the vehicle
Turn the engine switch off and ensure that all the doors and win-
dows are closed.
■ Opening the fuel tank cap
Pull up the opener to open the
fuel filler door.
Turn the fuel tank cap slowly
to open.

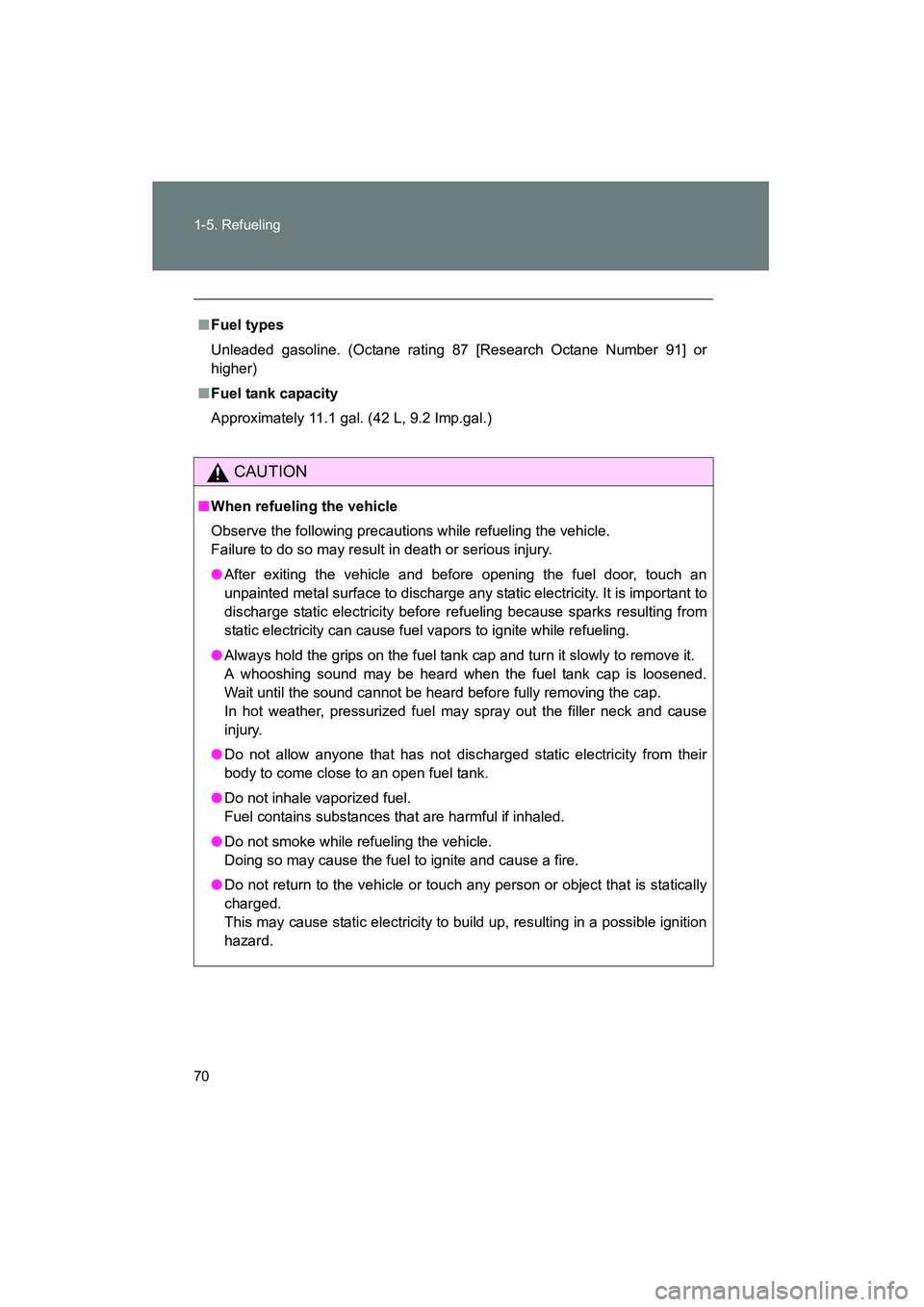

70 1-5. Refueling
YARIS_HB_U_52D44U
■Fuel types
Unleaded gasoline. (Octane rating 87 [Research Octane Number 91] or
higher)
■ Fuel tank capacity
Approximately 11.1 gal. (42 L, 9.2 Imp.gal.)
CAUTION
■When refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
● After exiting the vehicle and before opening the fuel door, touch an
unpainted metal surface to discharge any static electricity. It is important to
discharge static electricity before refueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
● Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out the filler neck and cause
injury.
● Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
● Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
● Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
● Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
